DO200 Smart Lora Parking Occupation Detector from Dingtek
- Category: IoT Solutions & Products >>>
- Supplier: Beijing Dingtek Technology Corp. Ltd.
Share on (60708008712):
Product Overview
Description
Overview
➤ DO200 parking occupation detector is sensor which combining ultrasonic and magnetic technology. With the redundant technology of sensor, it achieves accuracy of 99%. The error is only happened while extreme environment, like flood and thunder at the same time.

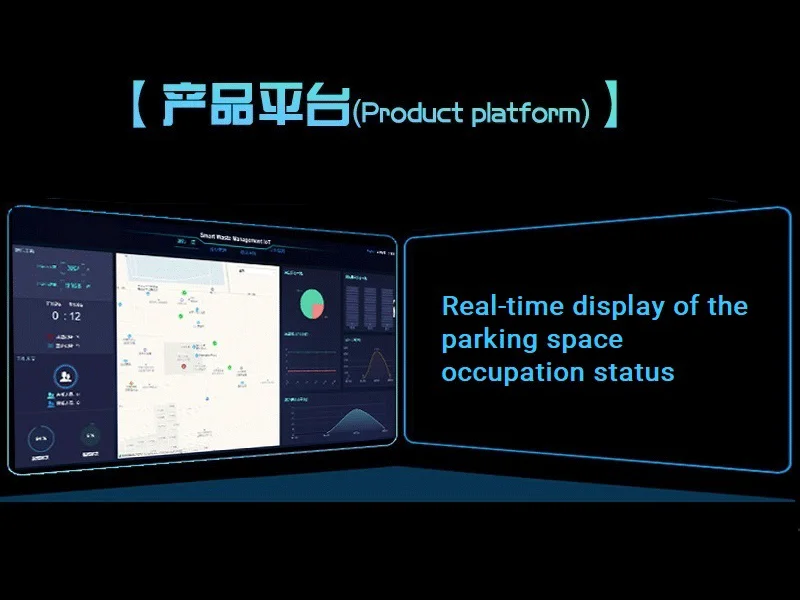

➤ From the performance, it overwhelms the lonely magnetic products. Through the built-in low power wireless module (LoraWAN, NB-IoT, Sigfox), users can monitor the status remotely.
➤ As it is with algorithm of low power consumption, the internal battery work for more than 5 years. The IP66 level ensure the endurable working outdoor.
Product Paramenters
Overview | Dimension | 115*115*50mm |
Net Weight | 150g | |
Color | Black/White | |
Shell Material | ABS | |
Detector | Principle | Ultrasonic + Magnetic |
Accuracy of Report | 99% | |
Wireless | Communication | LoRaWAN/NB-IoT/Sigfox |
Battery | Internal Battery | Non-recharged Lithium battery ER26500M 8000mah@3.6V. |
Lifetime | 5 years at 4 times report per day | |
Current | <150mA@3.6V(uploading), <40ma@3.6V(working normal), <60ua @3.6V (sleep normal) <240ua @3.6V (sleep transit detection) | |
Environment | Operating Temperature | -20 ~ +70℃ |
Storage Temperature | -40 ~ +85℃ | |
Protection Level | IP66 |
