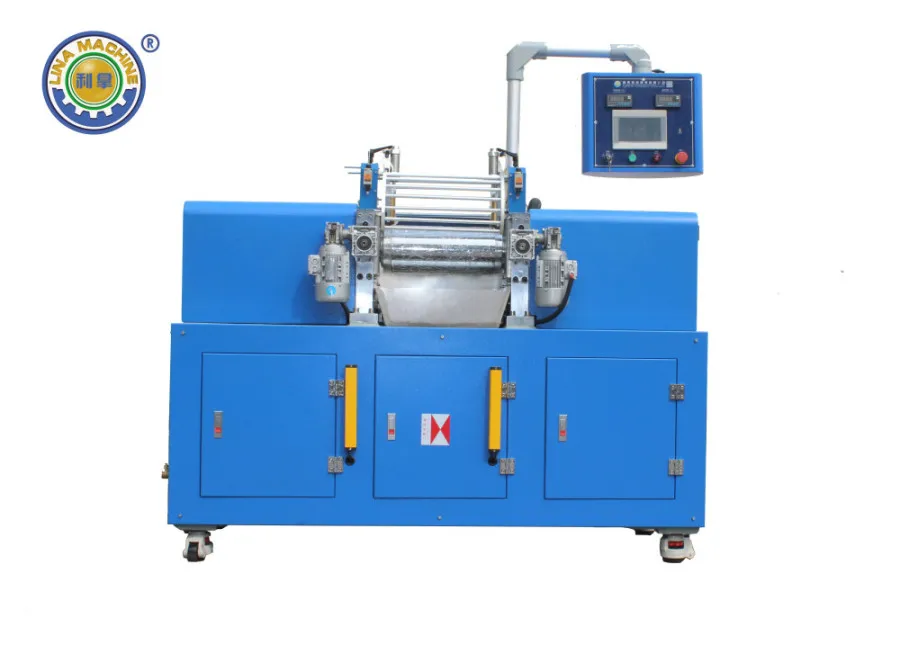

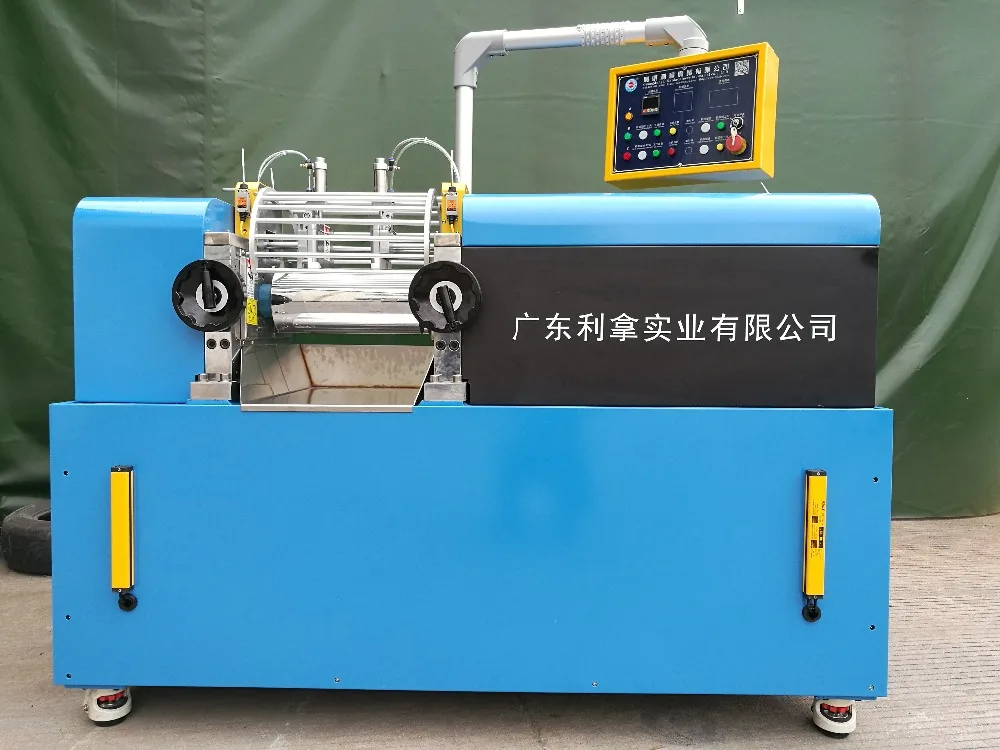

Small Lab Two Roll Mixing Mill for Natural Rubber/Natural Rubber Processing Two Roll Mixing Mill

New product silicone cable open mixing mill/open mill

Two roll open mixing mill is used for rubber&plastic raw material mixing and modification, just like the PVC EVA NBR SBR etc.The specific proposal would be based on the materials characteristic, production capacity.

Main Features

1) The components imported from Taiwan, keep the low maintenance rate.

2) Single—shaft transmission, leads easy installation, strong twisting force and low noise.

3) The rollers are made of vanadium-titanium alloy.

4) Digital display and safe and easy adjustment.

5) Multiple emergency braking devices .

6) Enclosed cooling system,  minimum pollution, excellent cooling performance.

7) Automatic warning to add oil for lubrication,  maintain continuous lubrication to extend its service life.

8) Mirror surface treatment of rollers, smoothly and evenly handle and discharge materials.

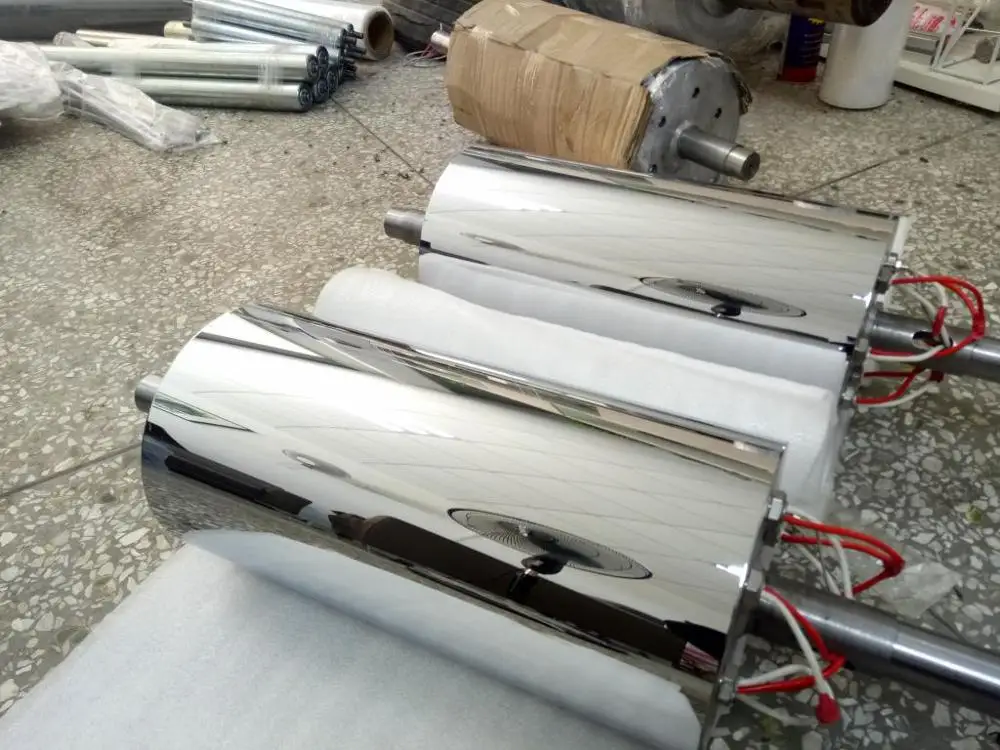

Roller of the open mixing mill

Roller treatment:The roller is made of high quality carbon steel, which is treated by nitriding, the surface is coated by chromium, the bearing capacity is strong, making the service life longer.

Roller structure: Medium hole roller, roller hardness (Hs) 58-65. Fine machining inner cavity of the roller ensures that the roller body cools quickly and evenly.

Safety devices

1.A protective cover is installed to prevent operator's hands from rolling into the roll.

2.A 360 angle emergency brake button.(national invention patent) once the button being touched from any angle, the roller will stop and turn back a quarter round to avoid secondary damage.

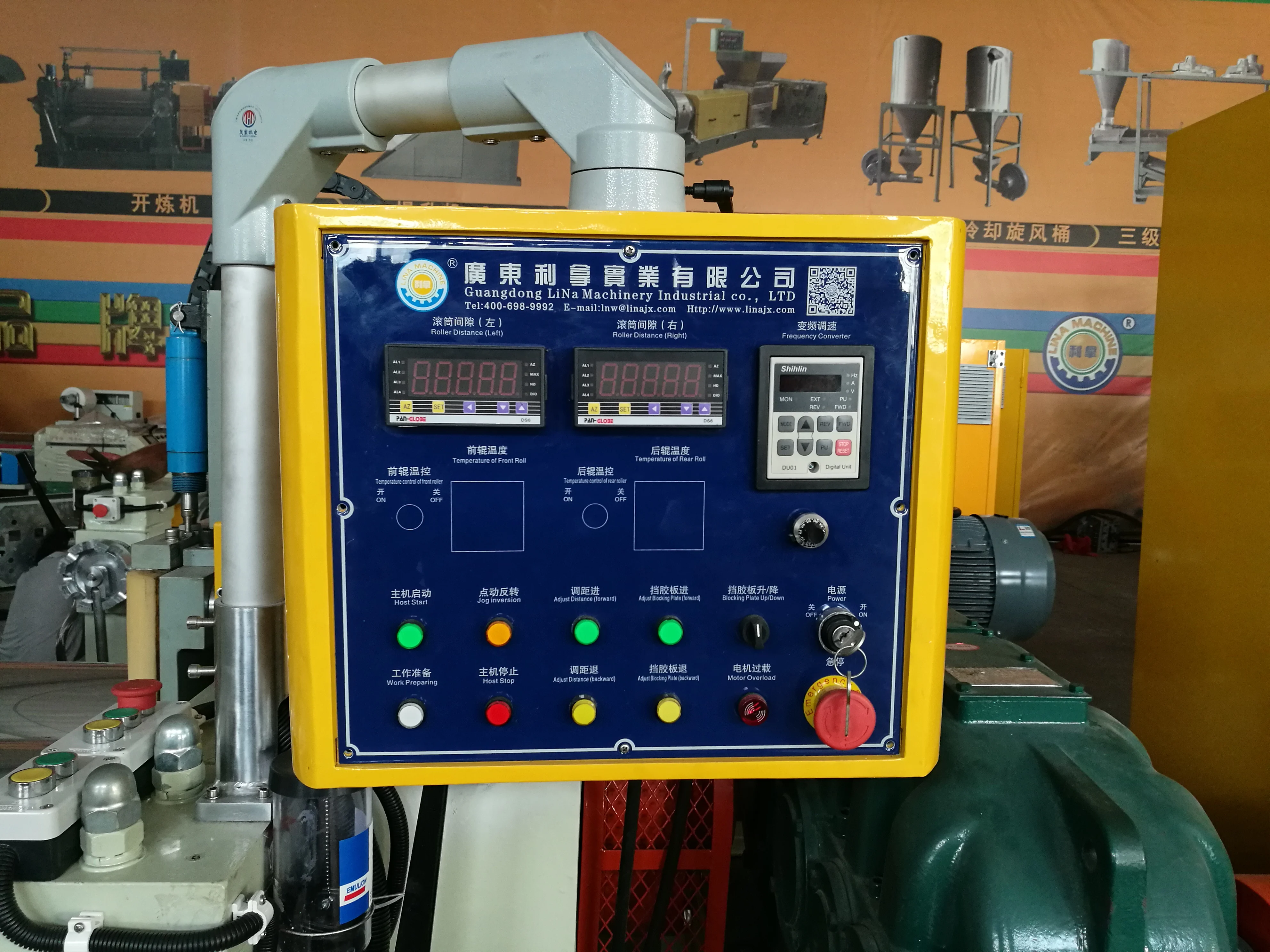

Intelligent control panel and PLC control system

1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

Are you factory or trading company?

LINA Machinery has been engaged in Rubber&Plastic mixing machine for many years. We have workshop and R&D department.

What about the operational guideline?

Training of customer's operator and maintenance personnel and long-term technical consultation is provided.

How about the warranty time?

One year's non-charge warranty period is provided for units in normal operation and long-term spare parts/component are available.

Do you offer the customization of the machine?

Certainly, LINA will give you the most proper recommendation and setting according to your materials and demand.
