Edge light DC5V SMD4020 Digital RGB Side view LED Strip SK6812
- Category: >>>
- Supplier: Shenzhen Ipixel Led Light Co. Ltd.
Share on (60708039188):
Product Overview
Description
Edge light DC5V SMD4020 Digital RGB Side view LED Strip SK6812
Product Description
- After we developed the ultra thin side emitting bar ( //www.ipixelleds.com/index.php?id=376).
- The flexible side view stripe came out under customer's strong request.
- It's 60 LEDs per meter and 5 meters in a reel.
- Same as our other addressable tapes, it's cut-able every unit.
- Just be aware that the solder pad very small so suggest you choose a 22AWG wire for re-connection.
-Each chip has 4 pin even it's quite thin size, and the Pin almost covered by the LED's body, so it's hard to replace LED if any of broken, cut the unit LED on PCB will be a better option.
Product Features
| Product Name | Ultra Thin Side View Flexbiel LED Strip |
| LED type | SK6812 SIDE SMD 4020 |
| LED Qty | 60LEDs/m |
| Color | full color |
| Control (IC) | SK6812 |
| Voltage | DC5V |
| Power | 18W/m |
| PCB size | L 5000* W 8* H 2.5 mm |
| Luminosity Luminosity | R:90000mcd G:132000mcd B:6000mcd |
| Beam Angle | 120° |
| Brand Name | iPixel LED |
| Warranty | 2 Years |
| IP Rate | IP20 |

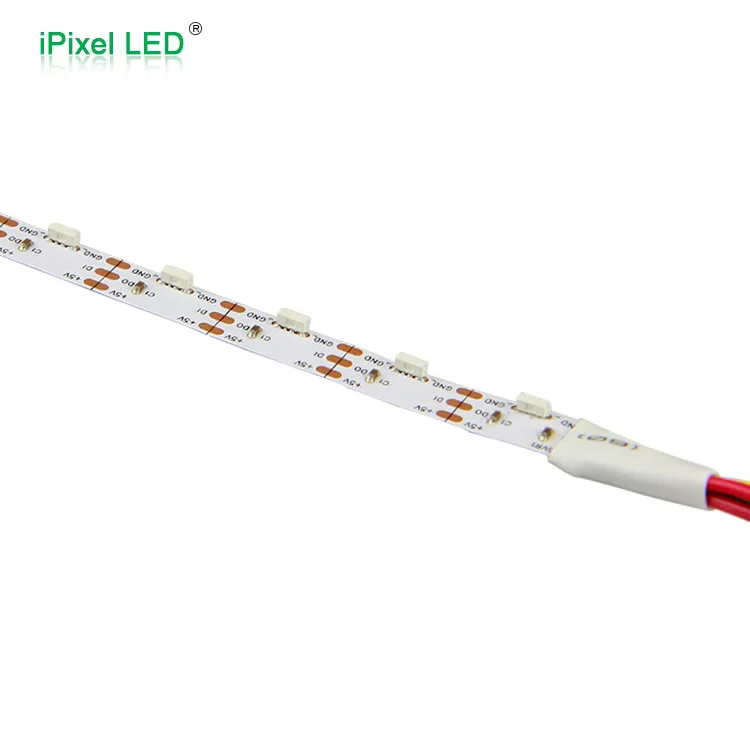

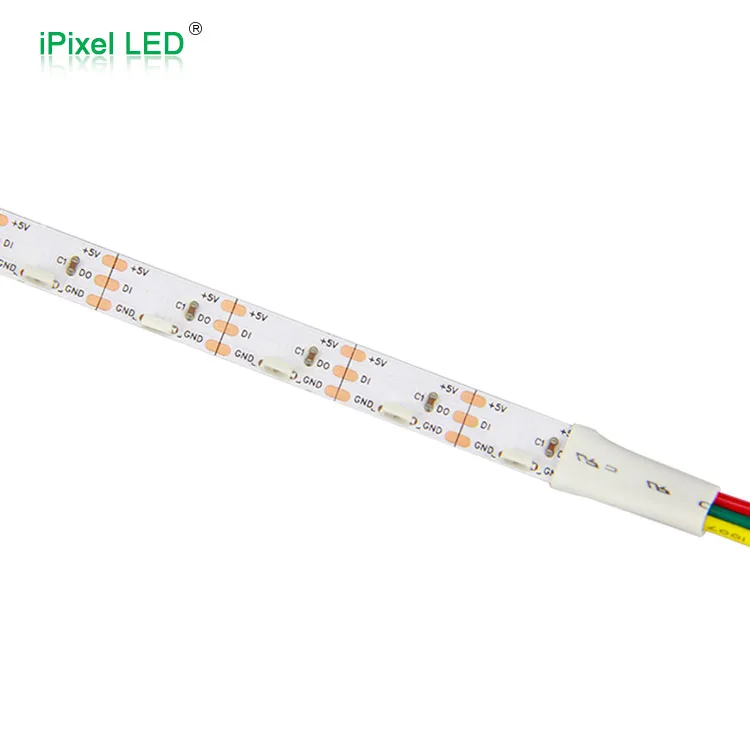

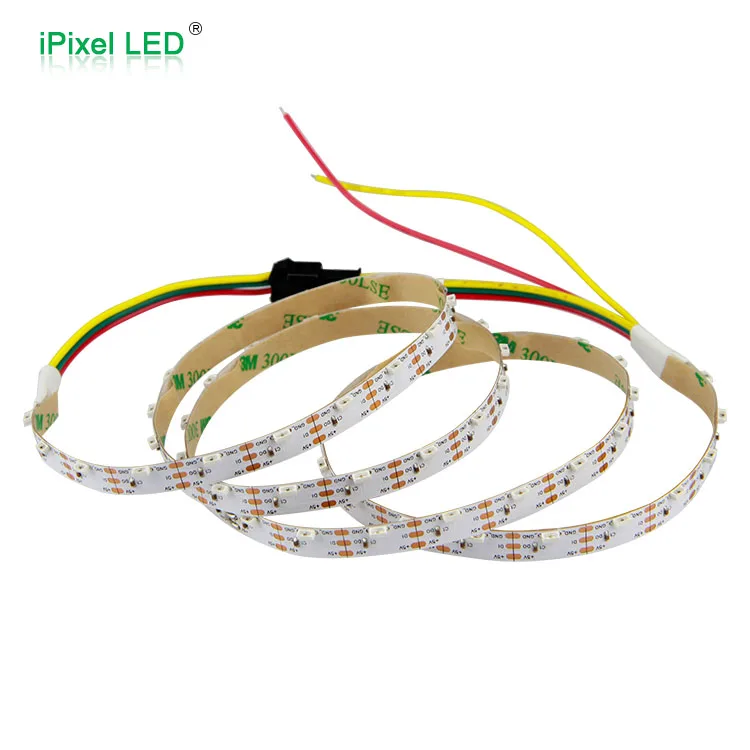

Product Pictures

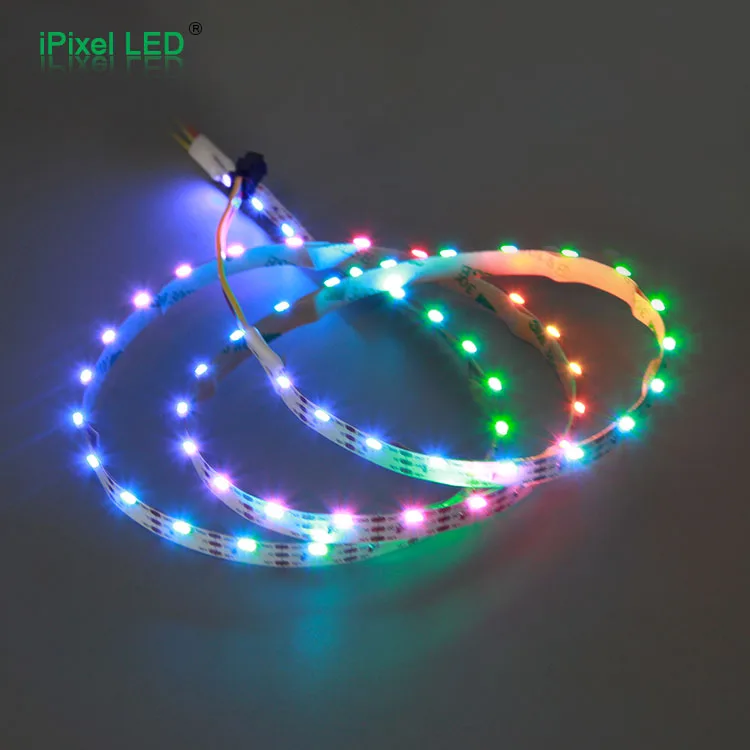

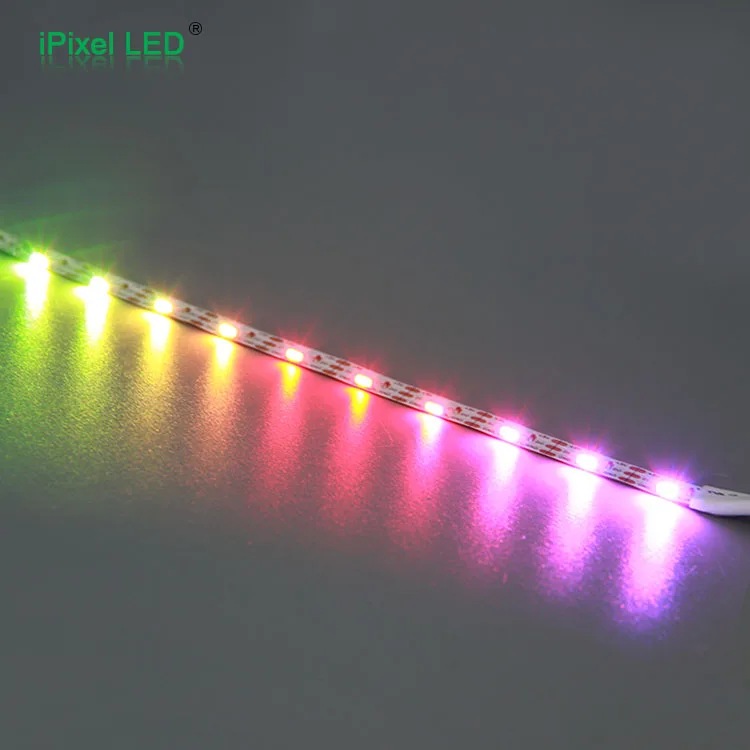

Lighting Effects
Structure Diagram
Application
