Outdoor Aerial Single Mode G652D 1 2 4 6 12 24 core Fiber Optic cable with two FRP gyfxtby FTTH flat drop cable

Product Overview

Description

Outdoor Aerial Single Mode G652D 1 2 4 6 12 24 core Fiber Optic cable with two FRP gyfxtby FTTH flat drop cable

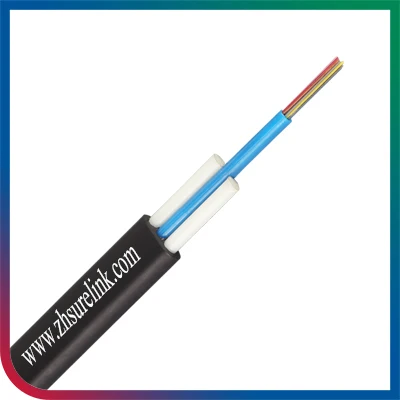

Cable Structure







Technical Parameters





No.	Items	Unit	Specification
			G.652D
1	Mode Field Diameter	1310mm	μm	9.2+-0.4
		1550mm	μm	10.4+-0.5
2	Cladding Diameter		μm	10.4+-0.5
3	Cladding Non-Circularity		%	<=10
4	Core-Cladding Concentricity Error		μm	<=0.6
5	Coating Diameter		μm	245+-7
6	Coating Non-Circularity		%	<=6.0
7	Cladding-Coating Concentricity Error		μm	<=12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310mm	dB/km	<=0.36
		1550mm	dB/km	<=0.22



Cable Parameters

Items		Specification
Fiber Count		24
Colored Coating Fiber	Dimension	250+-15μm
	Color	Blue,Orange Blue&Brown,Gray,White,Red,Black,Yellow Violet,Pink,Aqua.
Loose Tube	Dimension	2.7+-0.1mm
	Material	PBT
	Color	Natural
Strength Member	Dimension	2.0mm
	Material	FRP
	Color	Natural
Outer Jacket	Dimension	(8.5+-0.3)mmx(4.5+-0.2)mm
	Material	PE
	Color	Black



Mechanical and environmental Characteristics

Items	Unite	Specification
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2000
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70



Related Package



Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers

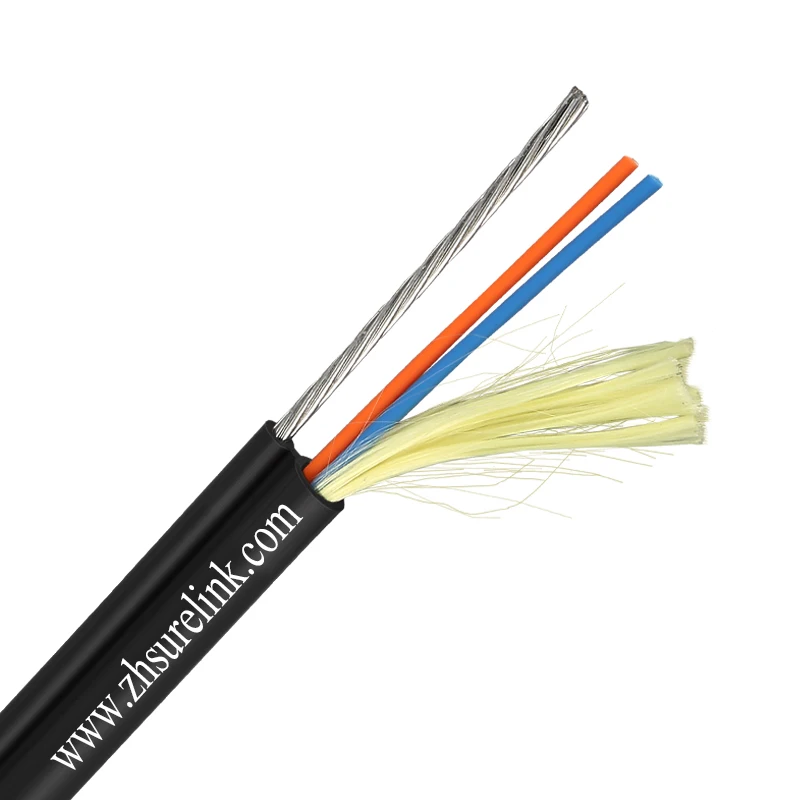

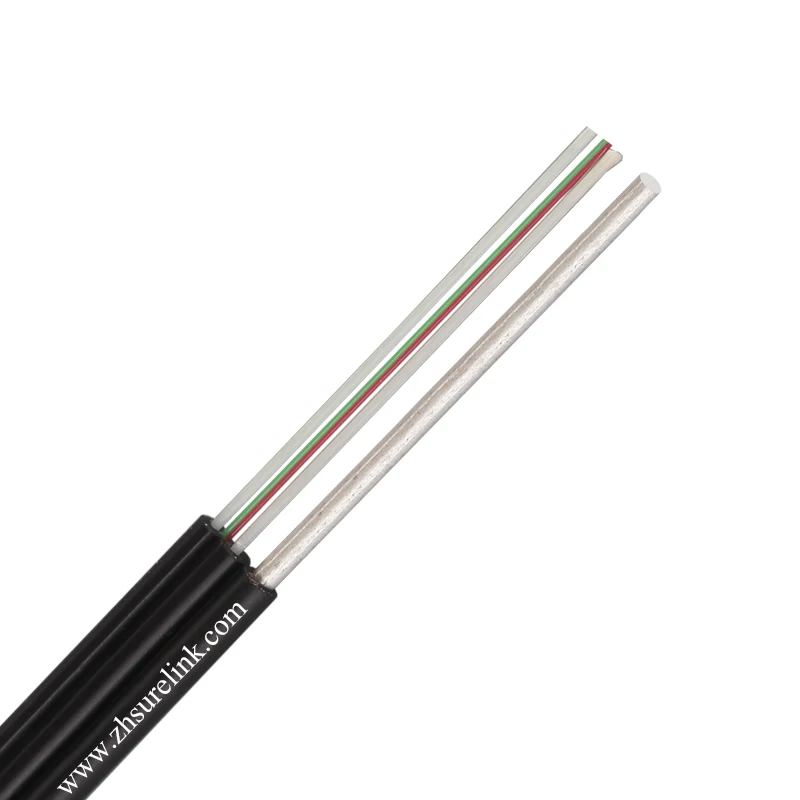

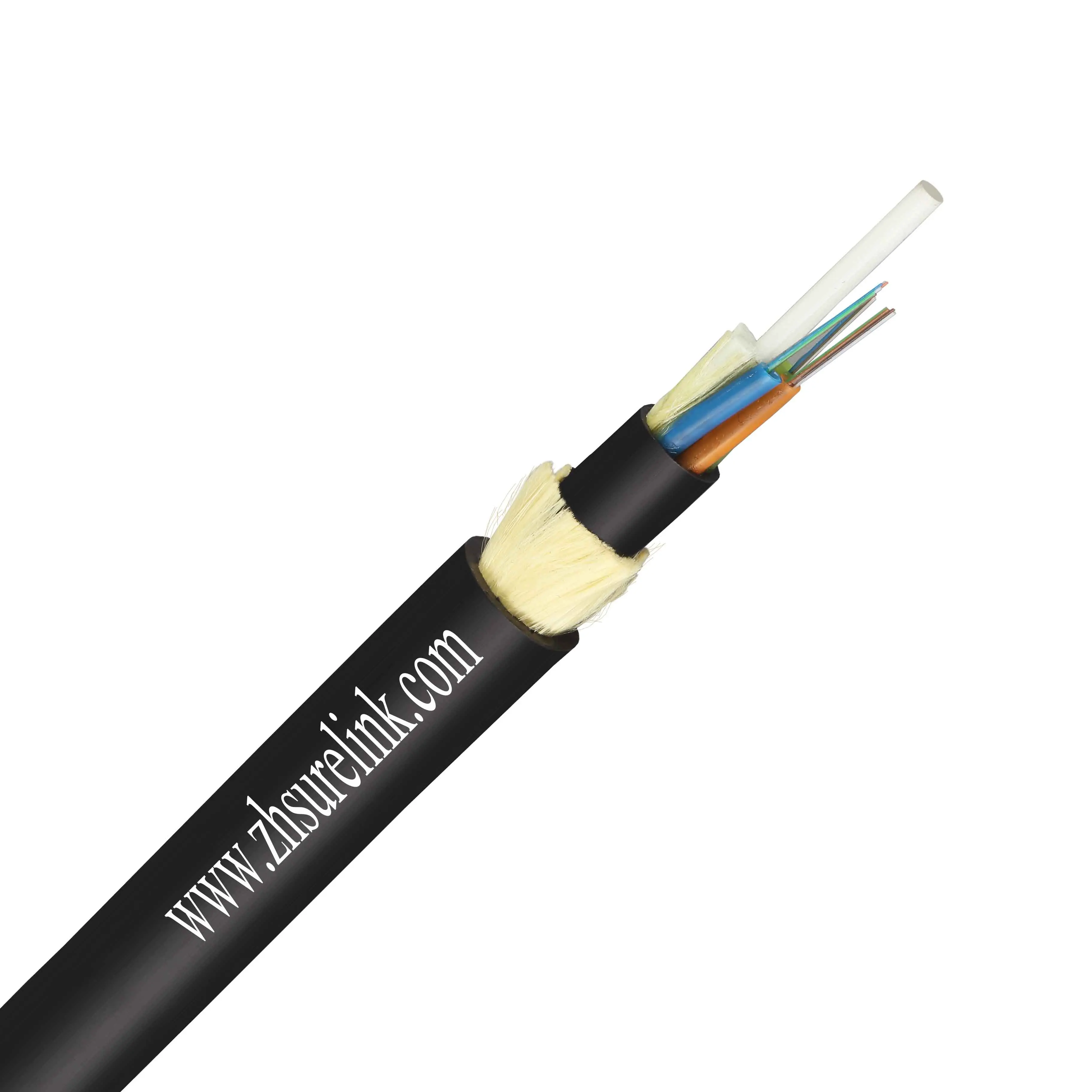

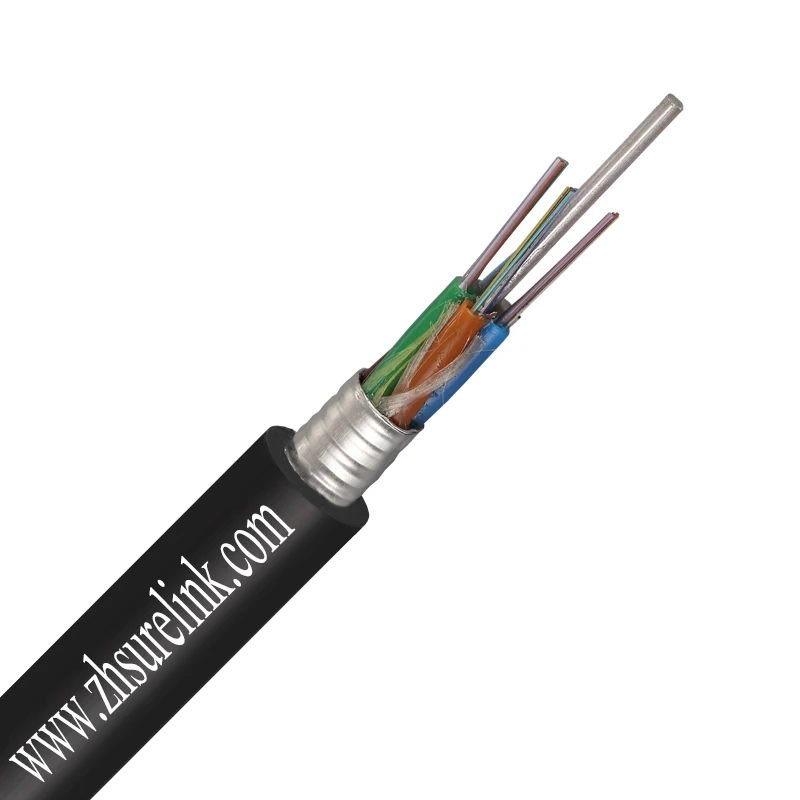

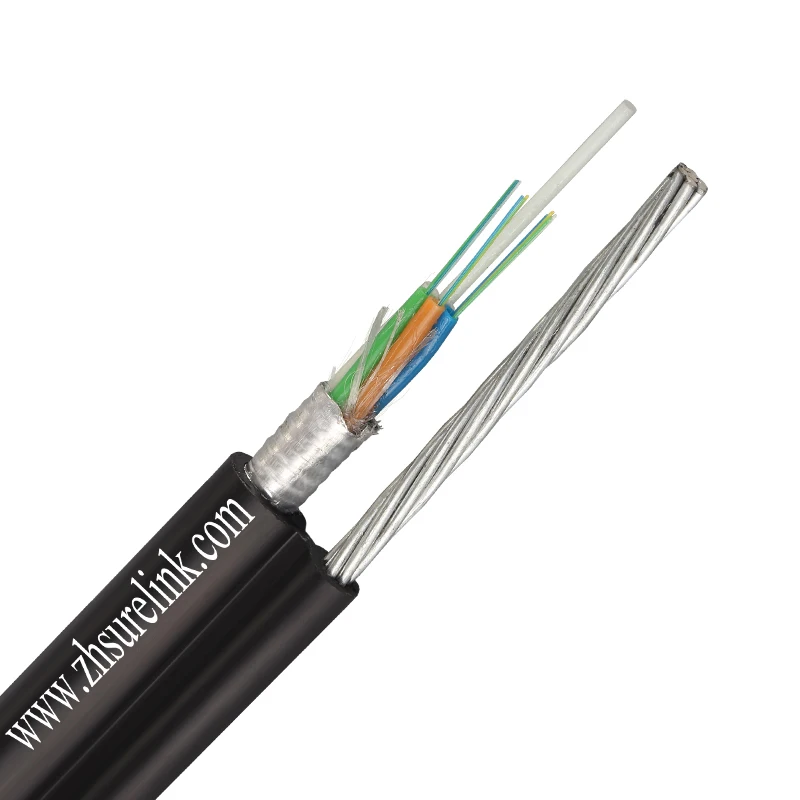

Related Hot Models
