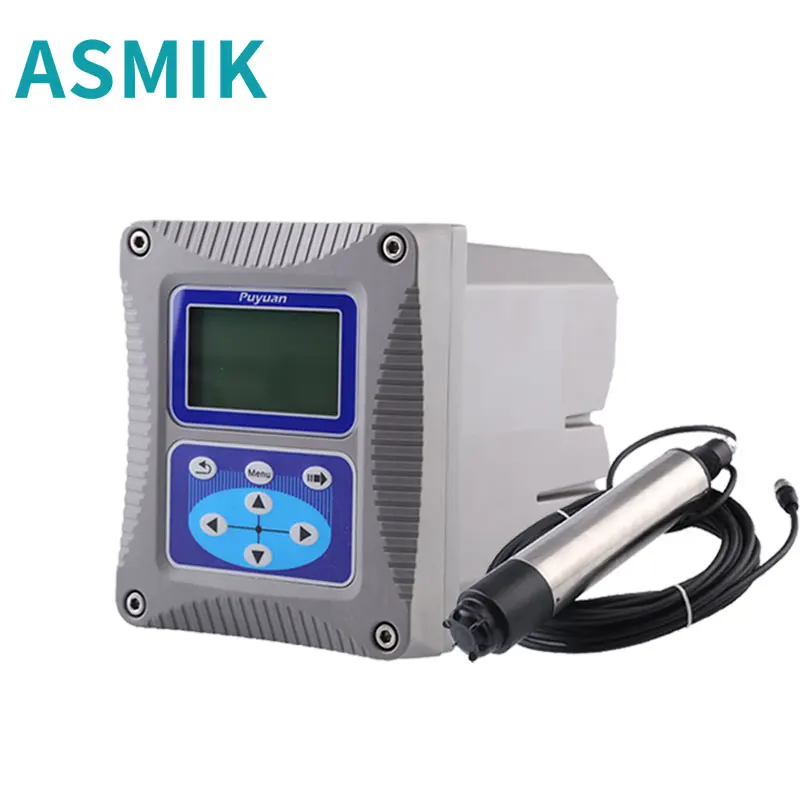

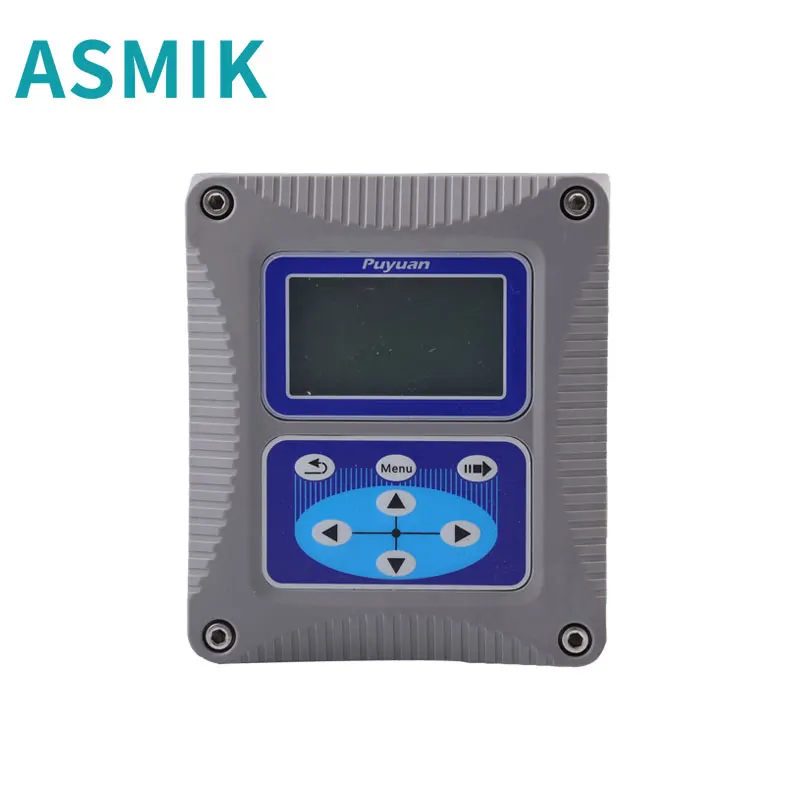

Asmik water quality analyzer digital online fluorescence dissolved oxygen meter/sensor
Specification | Details |
Size | 145*125*162mm L*W*H |
Weight | 1.3KG |
Material of outside shell | lower casing:Aluminum with powder covering |
| cover:PA66+GF25+FR |
Waterproof Rate | IP65/NEMA4X |
Storage Temperature | -20 to 70℃ |
Operation Temperature | -15 to 60℃ |
Power Supply | AC:AC220V, 50HZ, 5W DC:DC24V |
Output | three-way analog output 4-20mA, response parameters and corresponding scope can be programmed Note: the maximum load is 500 ohms |
Relay | three-way relay can be set up, and response parameters and response values can be programmed |
Display Output | 128 * 64 dot matrix LCD with LED backlight, which can be operated under the direct sunlight |
Digital Communication | MODBUS RS485 communication function, which can transmit real-time measurements |
Warranty Period | 1 year |

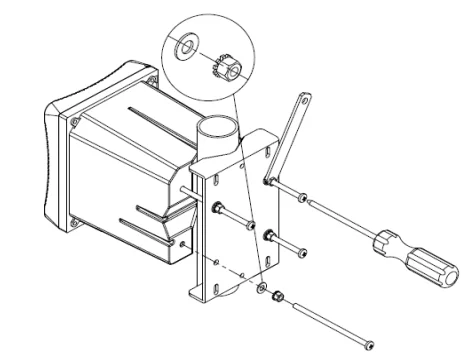

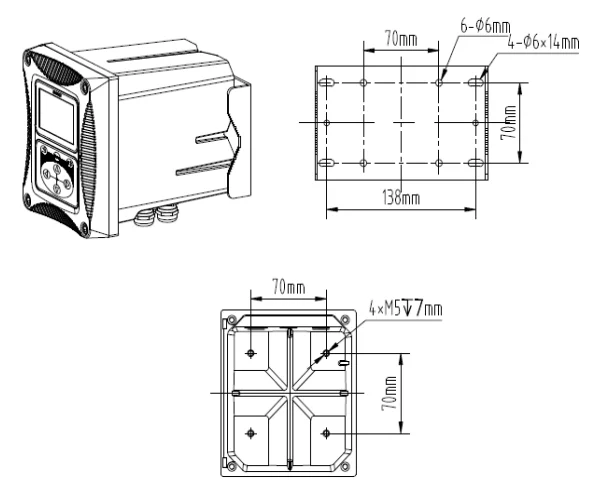

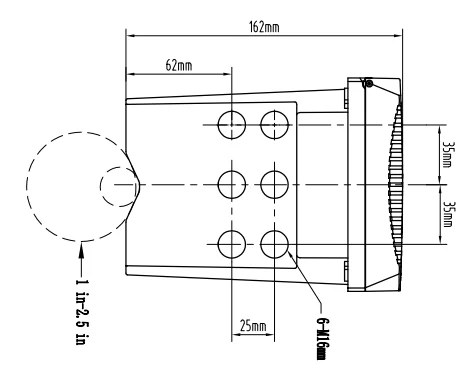

installation dimension



1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2. Q: Where is your factory located?
A:Our factoriy is located in Hangzhou, zhejiang province, China.
3. Q: How can I get some samples?
A: Welcome to contact us by e-mail or alibaba for any samples. We can provide FREE SAMPLE for you!
4. Q: How does your factory do regarding QC?
A:Quality is priority. We always consider quality as the most important thing during the whole production process. Our factory has gained ISO9001 and CE certificate.
5. Q: What is your after-sale service?
A: We offer guarantee on our product and we have the special After-sales service team.
6. Q: What is your MOQ?
A: Any quantity is acceptable for your order.
7. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the quantity of your order.
ASMIK is a professional manufacturer and supplier for industrial process automation sensors and instrument, paperless recorder,chart recorder, digital meter, signal isolators, pressure transmitter,temperature transmitter,flow meter etc. ASMIK offers supporting products and for one-stop-service and in industries as widespread as oil & gas, water & wastewater, chemical & petrochemical in more than 30 countries.
