Tips: We sell the hardware only (The price is for hardware only), any software is not what we sell, just for better technical exchange, and we can help to install,which not make any commercial application.
If the software generated any problems, we do not assume any responsibility Hardware support PFS, ROS and other systems etc
Equipped with z87, intel core i3 4160 processor,AES-NI support,compatible with many open source software distributions, could help to install pfsense 2.4.4 or other distributions, no special demand, will be pfsense 2.4.4; easy configuration and management
24/7 security network: original industry network security motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation and stable heat dissipation
Comprehensive functionality and stability: call power on (circuit directly realizes/ not on bios), network wake-up, system power management, temperature management, network card with heat sink, gigabit wan+lan ports provide high-speed wired connectivity,prioritize traffic with quality of service (qos) and wan traffic metering

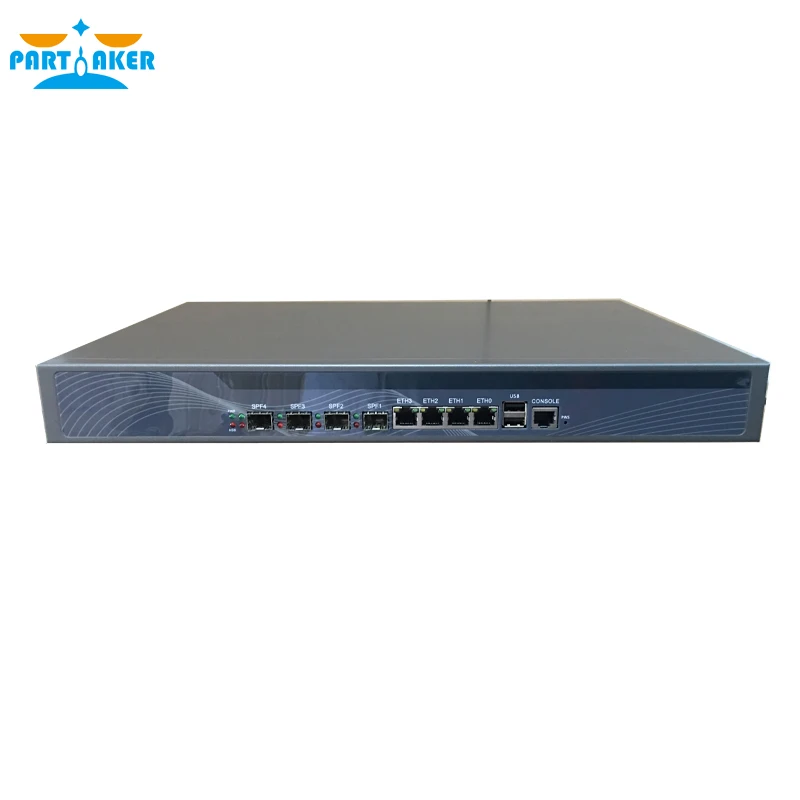

Designed with 4* intel gigabit lan,4* gigabit optical ports,1*com,1* vga,2* usb; standard 13-19 inches 1u, full mold production, fine surface treatment, solid structure, solid states storage, load balancing and failover capabilities to keep businesses always connected nonstop,protect your network from most known internet attacks,business-class firewall prevents unwanted access to your network,cli management for advanced users,secure off-site management and monitoring
Size at 430*270*50mm, 150w big power, with power cord; all use big brand memory and ssd/hdd with quality assurance,ready to run straight out of the box
Standard 1U Type(43*27*5CM),180W Big Power,Can Rack,With Mounting Bracket Ears,Wall Hanging,Foot Pad
Network Card:

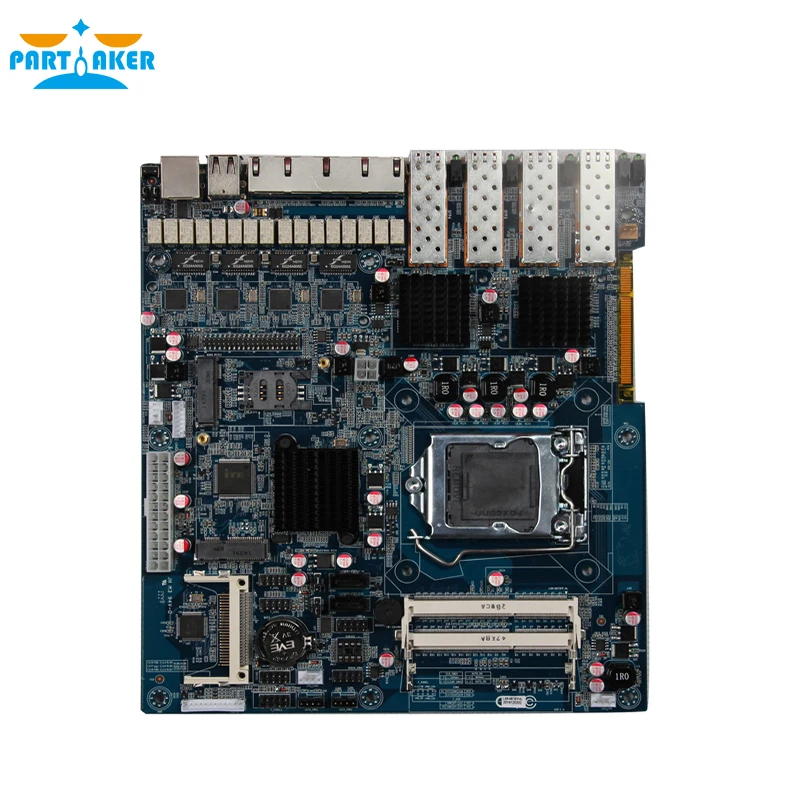

The Motherboard Integrates 4 Intel (Intel) Gigabit Ethernet Electrical Interface, Using Intel 82574l / L 10/100 / 1000m Ethernet Controller, The Network Card Bus Using PCI-E Interface, The Actual Test Flow On The Machine More Than 1G/S.
Model Number: Partaker R20 Type: Z87 8 Ports,(4 Ethernet 4 Optical), (Cabinet Type), With Fan Version CPU: Intel Core I3 4160 or its similar replacement CPUs, ship at random per inventory Graphics: Intel HD Graphics 4400 AES-NI Supported: YES Chipeset: Intel Z87 Express Chipset, With One Set BYPASS Memory: 2* SODIMM DDR3-1333/1600, DDR3L-1333/1600 @ 1.5V, Max. 32G RAM HDD/SSD: 1* Msata SSD+ 1*2.5 Inch HDD Supported Ethernet: 4*Intel 82574L Gigabit Ethernet,4* Gigabit Intel I-350 Optical ports COM: Yes Hardware: Standard 1U Type (43*27*4.5CM), 150W Big Power,Can Rack,With Mounting Bracket Ears,Wall Hanging,Foot Pad Network Card: 4 Intel 82574l / L 10/100 / 1000m Ethernet, The Actual Test Flow On The Machine More Than 1G/S. WAN-LAN Throughput: Throughput through 1 Gigabit NIC from LAN to WAN forwarding speed is 1Gbps. Throughput through 1 Gigabit Optical from LAN to WAN forwarding speed is 1Gbps. Power: 150W 12V 10A, 90-264V 47-63Hz Size: 430*270*50mm Weight: 6.5kgs System Support: RouterOS(ROS), Mikrotik,PFSense, IPFire, Panabit, WayOS, SmoothWall, m0n0wall, ClearOS, IPCop, Devil Linux, Radius_Manager, BYTEVALUE, Netzone, Hi-spider, iKuai8, etc. System Default Option: Pfsense as the default option; ATTENTION: Barebone, Single RAM without any system. Other OS demand, Do need to leave us message on the order, thank you. 4 LAN, 6 LAN, 8 LAN, 10 Ports, Different CPU, 1U/2U RACK Mount, Desktop Type, all are available in our shop, Welcome your collections on Partaker and we will be glad to supply you different demands. Contact us freely and you will get a timely reply.
