Mobile Movable Gravel Sand Gold Trommel Screen

Product Overview

Description



The trommel screen  is widely applied in the preliminary classification process of beach resources and alluvial gold mining, as well as in the effective screening and looseness process of the alluvial gold ore with high viscosity clay by cooperating with the rotary scrubber or log washer.

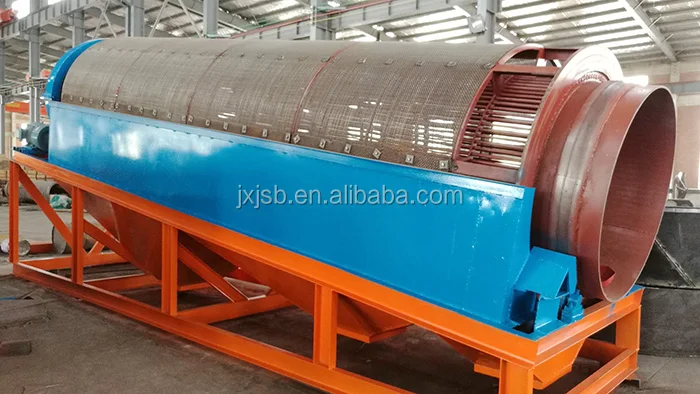

This is the model YGT1550 mobile trommel screen which is applied in Zambia for river alluvial gold recovery. The dredger transports the raw materials from the river to the trommel screen. The grizzly on the feeding hopper would remove the oversizes. +6mm materials are delivered away as waste, while -6mm materials are delivered to the centrifugal concentrator for enrichment.



 Gravel Sand Trommel Screen Gravel Sand Trommel Screen Gravel Sand Trommel Screen



 Other standard models:



Model	Capacity (t/h)	Power (kw)	Drum diameter (mm)	Drum length (mm)	Screen size (mm)	Dimension (mm)	Weight (kg)
GT1015	50	4.0	1000	1500	<3~10	3000*1400*2145	2200
GT1020	100	5.5	1000	2000		3460*1400*2145	2800
GT1225	160	7.5	1200	2500		4146*1600*2680	4200
GT1530	250	11	1500	3000		4460*1900*2820	5100
GT1545	350	15	1500	4500		5960*1900*3080	6000
GT1848	450	22	1800	4800		6500*2300*4000	7500
GT2055	600	30	2000	5500		7500*2500*4000	8600





 Gravel Sand Trommel Screen Gravel Sand Trommel Screen Gravel Sand Trommel Screen



LCL: The Gravel Sand Trommel Screen be packed in steel frame and plywood box before loading into the container.

FCL: The Gravel Sand Trommel Screen be fixed in the container for shipping. The spare parts be packed in wooden box.





Gravel Sand Trommel Screen Gravel Sand Trommel Screen Gravel Sand Trommel Screen



Jiangxi Jinshibao Mining Machinery Manufacturing Co, Ltd was founded in 2001. It is mainly engaged in:



1. Mining machinery manufacturing

2. Experimental analysis on sample ore

3. Flow chart designing

4. Installation and debugging

5. Technical support services



Its main products contain shaking table, ore washing machine, centrifugal concentrator, spiral chute, crusher, ball mill, vibrating screen, classifier, flotation machine, Jigger and so on.





 Gravel Sand Trommel Screen Gravel Sand Trommel Screen Gravel Sand Trommel Screen





Q1. Are you a manufacturer or trading company?

A: We are a real manufacturer of mining equipments. Welcome to visit us at any time!

A

Q2. Where is your factory located? How can I visit there?

A: Our factory is located in Shicheng County, Jiangxi Province, China.

    You could fly to Ganzhou airport from Guangzhou airport or other airport of China. We will pick you up at Ganzhou airport.

A

Q3. Why choose you and buy from you?

A: 1. High quality and most competitive price

        ----We are a real factory who could provide the factory price to you.

        ----The factory has have more than 20 years' production experiences.

        ----In addition, we are famous for our shaking table. And the city we located in was the home of shaking table in China.

2. Fast delivery-----Goods be sent out within 7 to 30 days based on order quantity.

3. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business.
