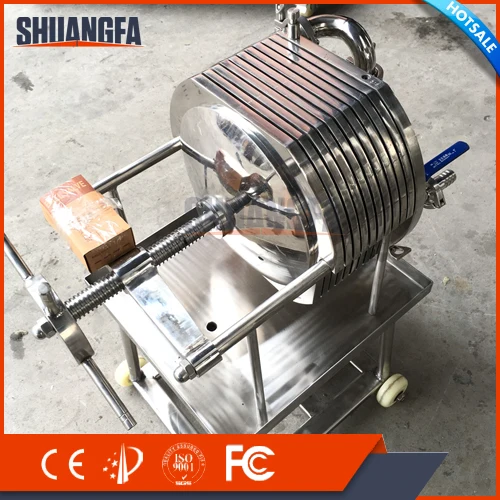

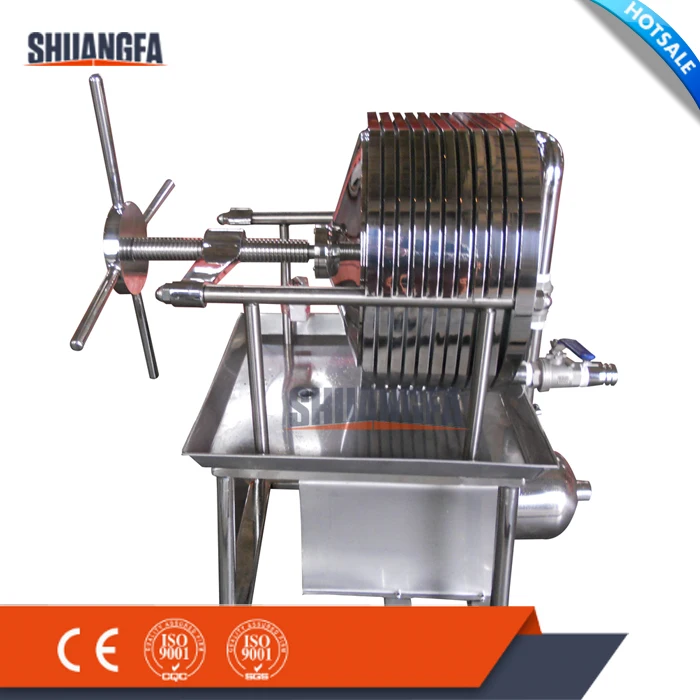

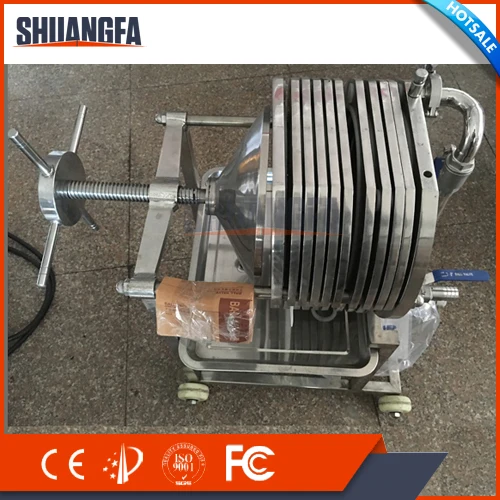

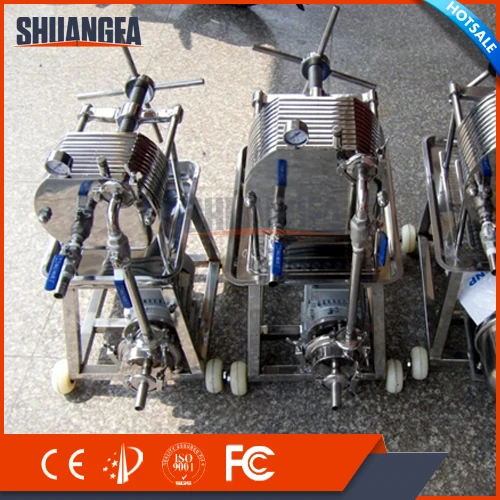

Stainless Steel Beer Filter Machine, Small Wine Filter Machine
- Category: >>>
- Supplier: Henan Shuangfa Chemical Industry Machinery Co. Ltd.
Share on (60708161420):
Product Overview
Description
Product Description
The equipment is multi-layer plate filter machine, which is applicable to the process operation with the requirements of fine filtration and semi-fine filtration such as purification,sterilization and defecation with sealed filtration in the liquid with low viscosity and little slagging content under the concentration of 50%,it can realize the sterile filtration without passing the microporous film by directly adopting microporous filtration film.
It can be made of SS304 or SS316 as required, and the material of plate can be stainless steel or PP based on actucal use.
It can be made of SS304 or SS316 as required, and the material of plate can be stainless steel or PP based on actucal use.
Structure of Plate Filter Machine
Working Principle of Plate Filter Machine:
Suspensions(material to be filtered) will be put into the hermetic straining chamber by pump, at the function of the pressure, suspension will flow through the filter layer, filter membrane and other filter media, and flow out through the filter membrane then,the filter residue will be left and become filter cake in the sheet frame, so purpose for the solid-liquid separation will be come true.
Features of Products
1, Simple and easy to operate, the machine is equipped with a stainless steel pressure pump, which is equipped with a small motor, low power consumption;
2, The user only need to connect the feeding hold and filtrate discharge hole before start operating.
3, Except the motor, the other parts are made of high quality 304 or 316L stainless steel corrosion-resistant material, beautiful appearance and health, high temperature-resistant and corrosion-resistant, durable and long service life.

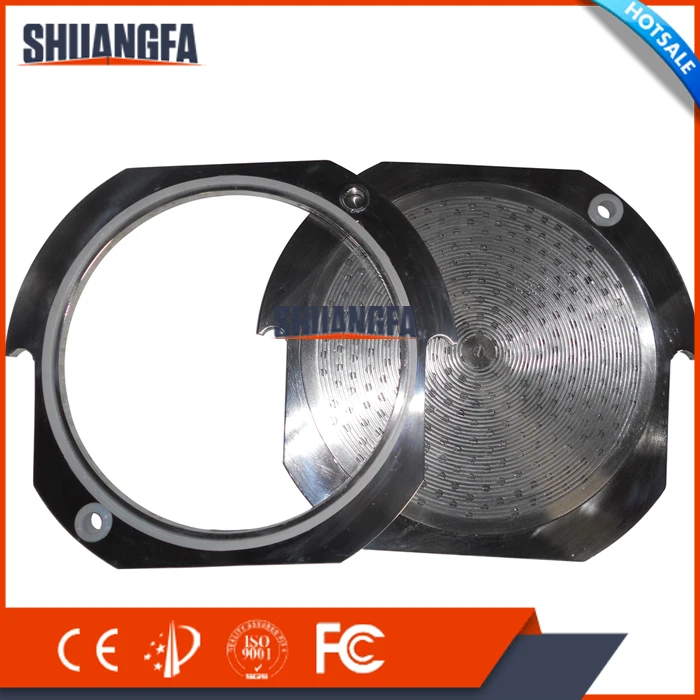

4, The filter plate adopts whorled structure,advanced structure, no deformation, easy to clean, thus it can effectively increase the service life of various membrane, thereby reducing and saving production costs.
5, All the parts have been installed with the sealing ring (milky silicone rubber seals, non-toxic high temperature), no leakage, good sealing performance.
6, When working, pressurized sealed filtration, without liquid material loss, good liquid clarity effect.
2, The user only need to connect the feeding hold and filtrate discharge hole before start operating.
3, Except the motor, the other parts are made of high quality 304 or 316L stainless steel corrosion-resistant material, beautiful appearance and health, high temperature-resistant and corrosion-resistant, durable and long service life.
4, The filter plate adopts whorled structure,advanced structure, no deformation, easy to clean, thus it can effectively increase the service life of various membrane, thereby reducing and saving production costs.
5, All the parts have been installed with the sealing ring (milky silicone rubber seals, non-toxic high temperature), no leakage, good sealing performance.
6, When working, pressurized sealed filtration, without liquid material loss, good liquid clarity effect.

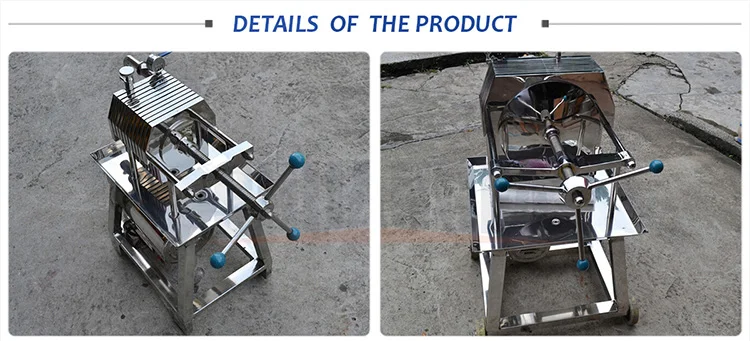

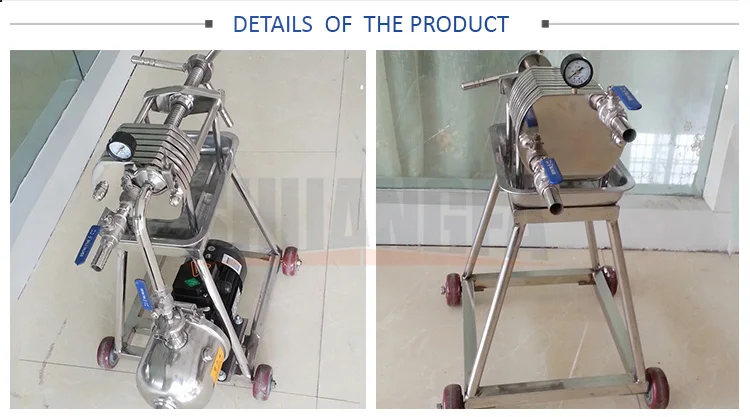

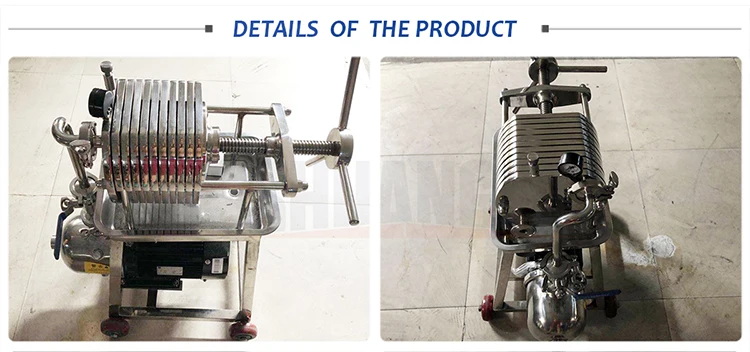

Detailed Images
Application of Products
Size Information
Model | Layer(pcs) | Filter area(m2) | Flow of water(T/H) | Power(Kw) | Working pressure | Dimension(mm) |
PF150-10 | 10 | 0.17 | 1.5 | 0.75 | 0.2 | 650*380*650 |
PF200-10 | 10 | 0.34 | 2 | 1.1 | 0.2 | 600*400*700 |
PF300-10 | 10 | 0.7 | 4 | 1.1 | 0.3 | 700*500*800 |
PF400-10 | 10 | 1.25 | 6 | 1.1 | 0.3 | 900*600*1000 |
PF400-16 | 16 | 2 | 9 | 1.5 | 0.3 | 1000*600*1000 |
PF400-20 | 20 | 2.5 | 10 | 1.5 | 0.3 | 1100*600*1000 |
Related Products
Company Introduction
Packing & Delivery
Sales Service & FAQ
Sales Service
1, Pre-sale services:
We will happily assist you in getting the information you need to make a decision on which products best fit your needs.We want you to feel good about your purchase.
We can design and manufacture products as per your special requirements.If required, we can train your technical personnel for you.
2, Services during the sale:
We strictly adhere to the principle of "the customer first".Your needs and concerns will be addressed to your complete satisfaction.
We can help clients to draft solutions to their specific situations.
3, After-sale services:
Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.
If there is any problem, we will take measures to solve it immediately,on-site.technical exchanging is also provided for you.
We will happily assist you in getting the information you need to make a decision on which products best fit your needs.We want you to feel good about your purchase.
We can design and manufacture products as per your special requirements.If required, we can train your technical personnel for you.
2, Services during the sale:
We strictly adhere to the principle of "the customer first".Your needs and concerns will be addressed to your complete satisfaction.
We can help clients to draft solutions to their specific situations.
3, After-sale services:
Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.
If there is any problem, we will take measures to solve it immediately,on-site.technical exchanging is also provided for you.
FAQ
1, What products you provide?
Chamber filter press machine, membrane filter press machine, plate and frame filter press machine, belt filter press machine,vacuum belt filter, round filter press machine, cast iron filter press machine, stainless steel filter machine, filter plate and filter cloth etc.
2, What's your MOQ?
We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
3, What is the payment terms?
TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
4, Do you accept OEM?
Yes, we can manufacture according to your requirement.
5, What is the machine warranty?
All the machines from my factory have 1 year warranty.
6, Is on site installation & commissioning available?
Yes.
7, Can I visit you?
Sure, of course, welcome to visit our factory at any time!
Chamber filter press machine, membrane filter press machine, plate and frame filter press machine, belt filter press machine,vacuum belt filter, round filter press machine, cast iron filter press machine, stainless steel filter machine, filter plate and filter cloth etc.
2, What's your MOQ?
We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
3, What is the payment terms?
TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
4, Do you accept OEM?
Yes, we can manufacture according to your requirement.
5, What is the machine warranty?
All the machines from my factory have 1 year warranty.
6, Is on site installation & commissioning available?
Yes.
7, Can I visit you?
Sure, of course, welcome to visit our factory at any time!
