Industrial Small Lifting 200kg Electromagnet Lifting Capacity Electromagnet 300kg
- Category: >>>
- Supplier: Yueyang Shengang Lifting Electromagnet Co. Ltd.
Share on (60708169531):
Product Overview
Description

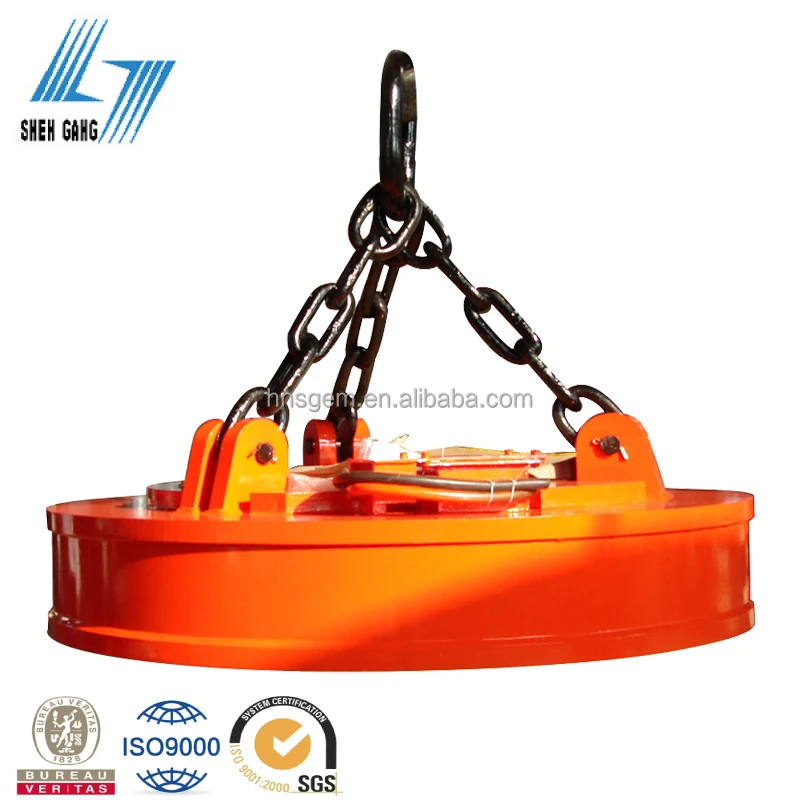

Industrial Small Lifting 200kg Electromagnet 300kg
Product Description

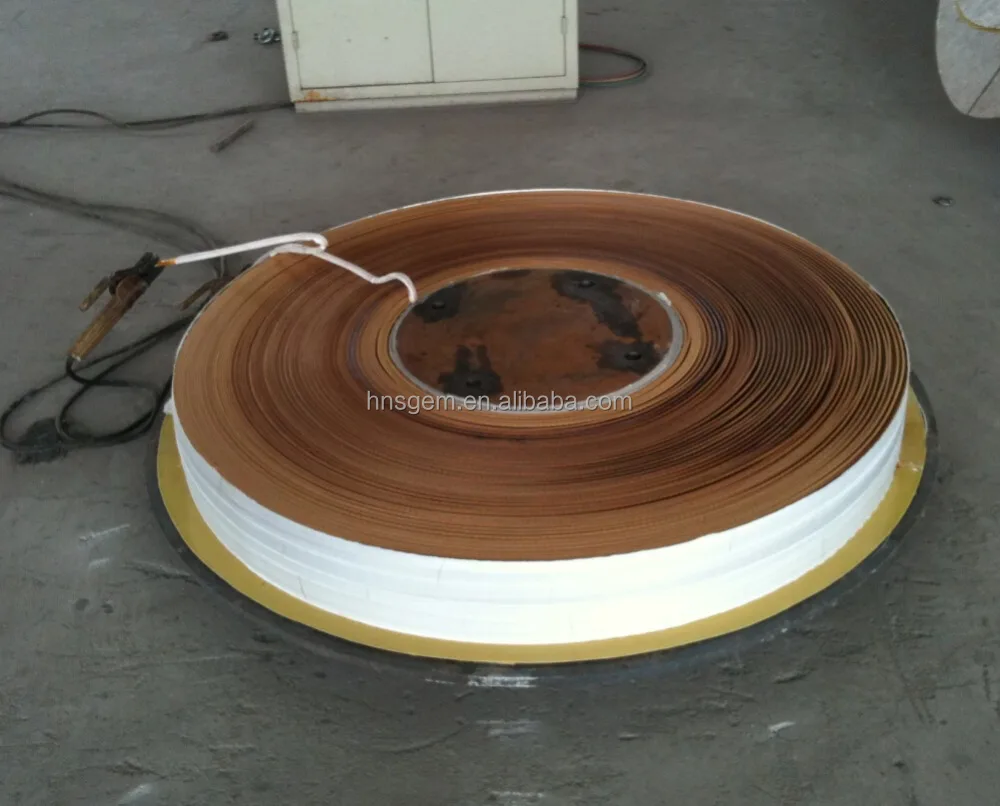

1. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire or copper wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption,high lifting capacity and long serving life.
2. This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils.The insulation grade can reach class special C.
3. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4. With simple structure reliability, it is suitable for working with all kinds of lifting equipments
| Product Name | 200kg Scrap Lifting Electromagnet for Crane/Excavator/Forklift |
| Series No. | MW5 |
| Diameter | 900mm |
| Current | 26.6A |
| Cold State Power | 5.9KW |
| Rated Voltage | DC-220V |
| Duty Cycle | 60% |
| Weight | 800KG |
| Composite | Iron core, aluminum coil,,Q235 steel plate,carbon steel,mica sheet,ethoxyline resin,etc. |
| Application | Magnet used for lifitng and transporting magnet-conductive materials such as steels in metallurgy industry, mine industry, machinery industry,communication and transportation industry,etc. |
| Pakaging of Magnet | fixed iron frame with five-plywoodboard and no need fumigation |
| Lead Time | within 15 work days after deposit cofirmed |
| Payment | T/T, Western Union, LC at sight |
| Warranty | 12 months |
| Notes | 1. Please let us know your lifting capacity, we can make different diameter magnet based on your different requirements. 2. Our MOQ is 1pc. (Different quantity will with different price.) |

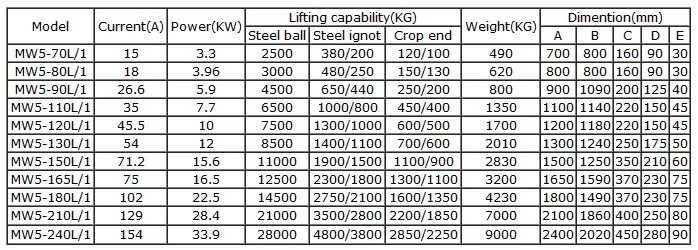

Series No.: MW5
Product Name: 200kg Electromagnet for Scrap Lifting
Application:

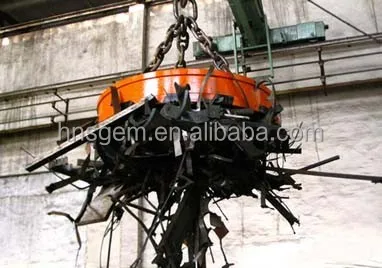

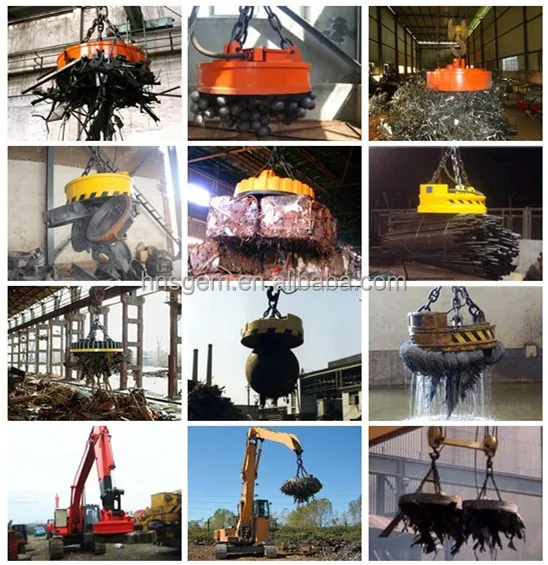

MW5 series lifting magnet used to transporting cast iron, steel ball, and various kinds of steel scraps on crane,forklift and excavator,etc.
Classification:
--Normal Temperature
--High Temperature
--High Frequency (75%)
--Diving Type
Coil Type:
--Aluminum Coil
--Copper Coil
(DC-220V, Duty Cycle:60%, Normal Temperature Type,Aluminum Coil)
We provide professional service for customers from over 30 countries. And we exported our main products as lifting magnet, cable reel, magnetic separator to the market as North America, South America, Europe, Southeast Asia/ Mideast,Africa, Australia and so on.
We are also looking for clients in different market to agent our products.Once you have interesting, welcome to contact with us at your convenient time.
Packaging & Shipping
(fixed iron frame with five-plywoodboard packing to keep 200kg Electromagnet with a safety and long-distance transportation and no need fumigation when clear custom )
