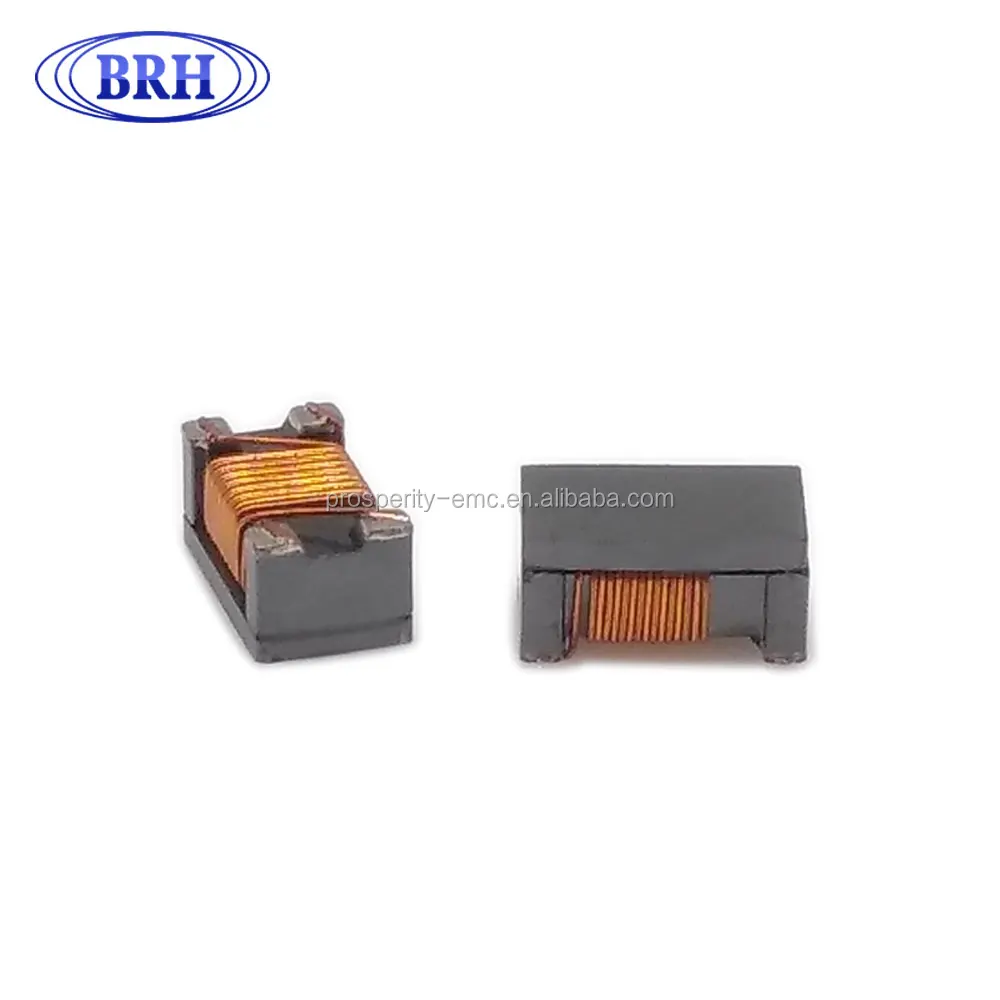

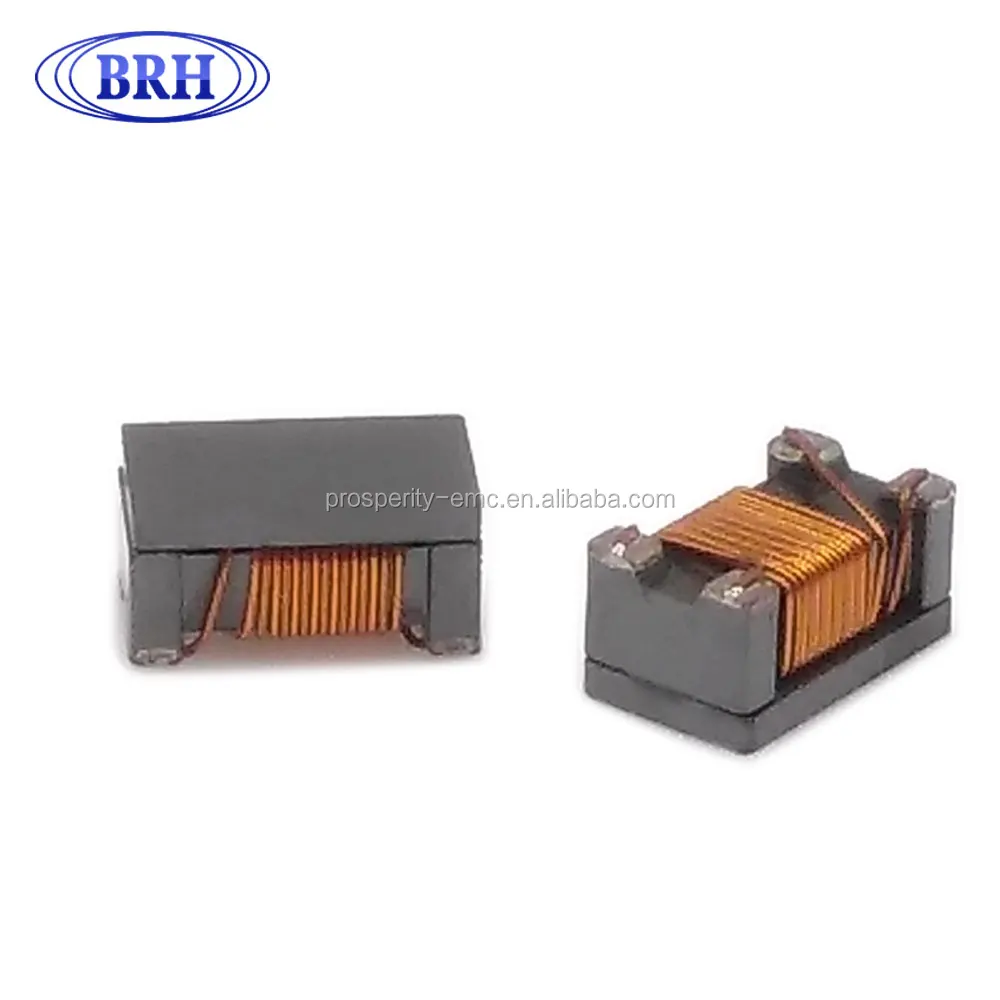

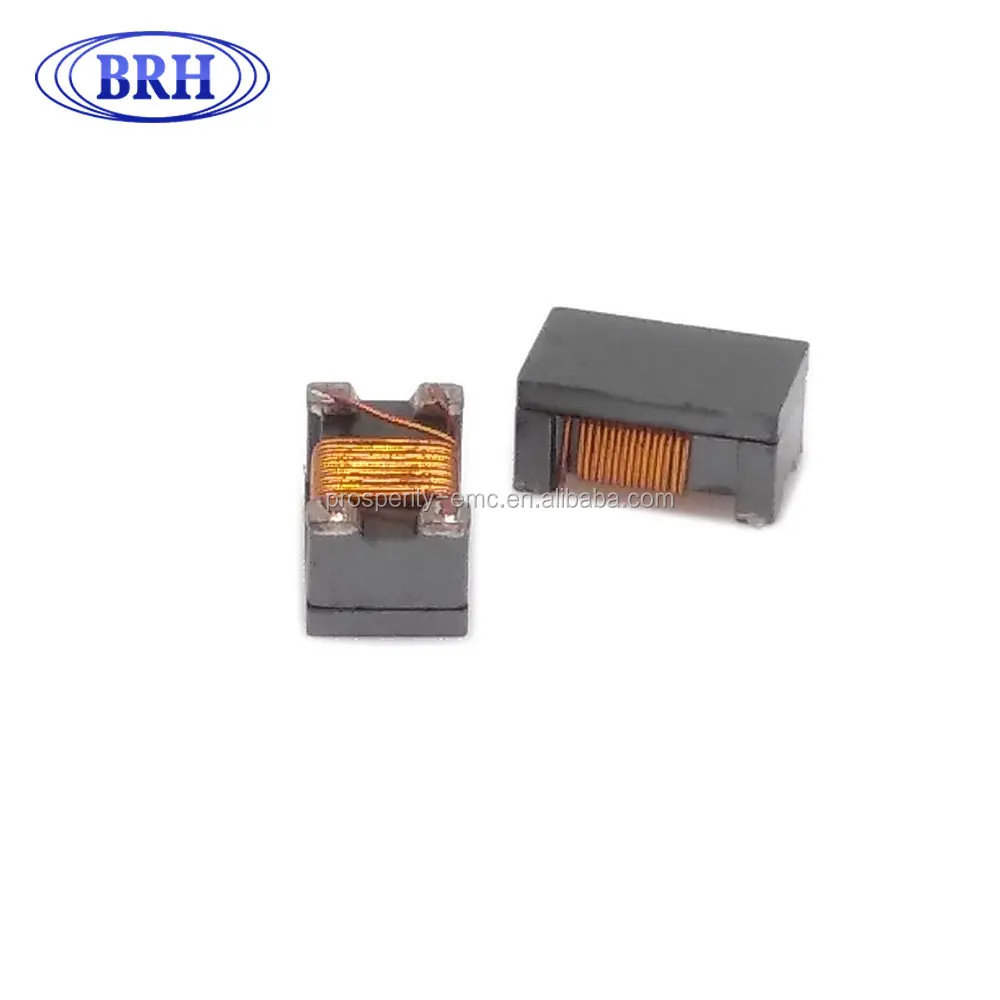

  • 4525 size 1000R 1A Smd common mode choke EMC filters inductor
4525 size 1000R 1A Smd common mode choke EMC filters inductor
4525 size 1000R 1A Smd common mode choke EMC filters inductor
4525 size 1000R 1A Smd common mode choke EMC filters inductor
4525 size 1000R 1A Smd common mode choke EMC filters inductor
4525 size 1000R 1A Smd common mode choke EMC filters inductor

4525 size 1000R 1A Smd common mode choke EMC filters inductor

Share on (60708171990):


Price:

Quantity:


Product Overview

Description


Description
\t

   MODEL
\t

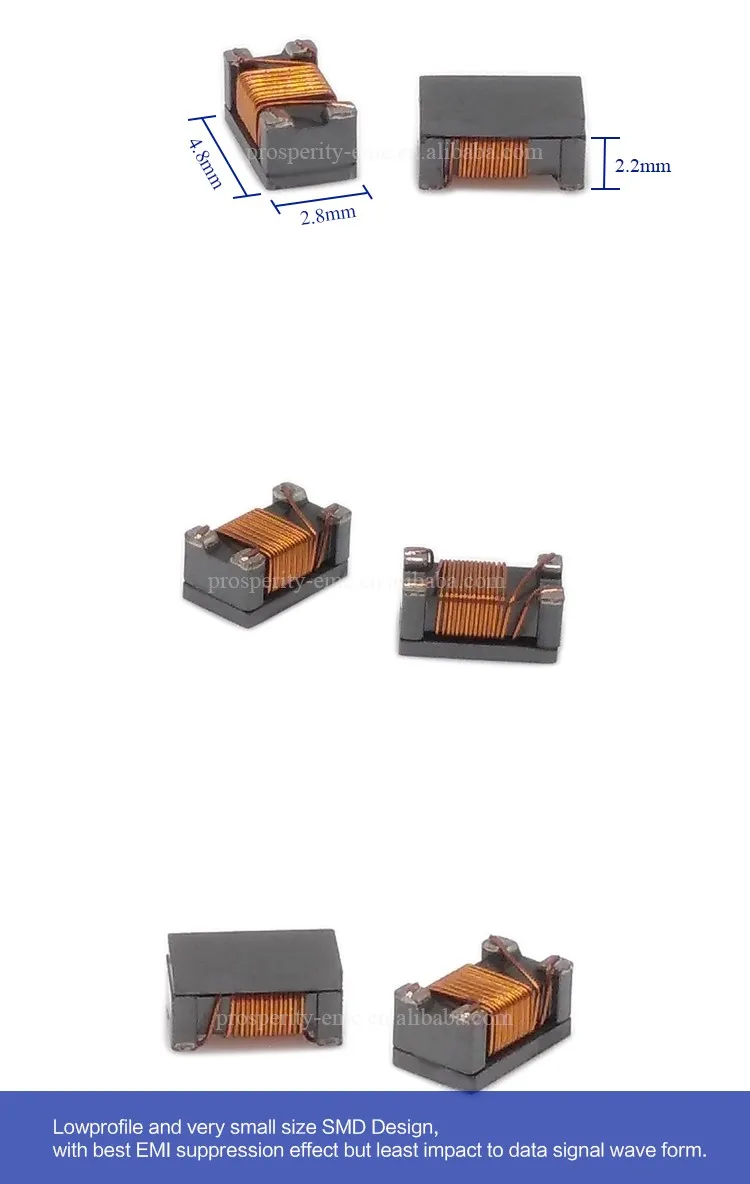

PRODUCT DIMENSIONS
\t
A
\t
B
\t
C
\t
D
\t
E
\t
4525
\t
4.8±0.20
\t
2.8±0.20
\t
2.2±0.20
\t
0.75 Typ
\t
0.75 Typ
\t
4528
\t
4.5±0.20
\t
3.2±0.20
\t
2.8±0.20
\t
1.00 Typ
\t
1.00 Typ
\t


SIZE CODE
(inch)
\t

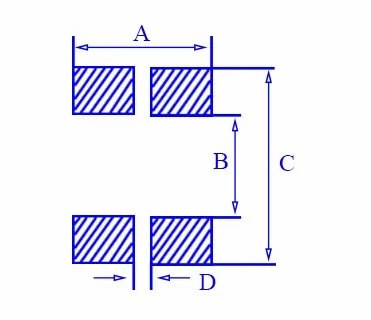

RECOMMENDED PATTERN
(mm)
\t

A
\t

B
\t

C
\t

D
\t

4525
\t
2.95 Typ
\t
3.50 Typ
\t
6.00 Typ
\t
1.05 Typ
\t

4528
\t
3.60 Typ
\t
2.10 Typ
\t
4.90 Typ
\t
0.40 Typ
Parameter
\t
Detailed specifications and parameters are introduced
\t

ORDERING CORE
\t
Impedance
(Ω)
\t
DC Resistance
(Ω)MAX
\t
Rated Current
(mA)MAX
\t
CHOK4525S600A30T
\t
60
\t
0.10
\t
3000
\t
CHOK4525S121A20T
\t
120
\t
0.20
\t
2000
\t
CHOK4525S601A15T
\t
600
\t
0.30
\t
1500
\t
CHOK4525S701A20T
\t
700
\t
0.15
\t
2000
\t
CHOK4525S102A10T
\t
1000
\t
0.40
\t
1000
\t
CHOK4525S122A10T
\t
1200
\t
0.40
\t
1000
\t
CHOK4525S142A10T
\t
1400
\t
0.40
\t
1000
\t

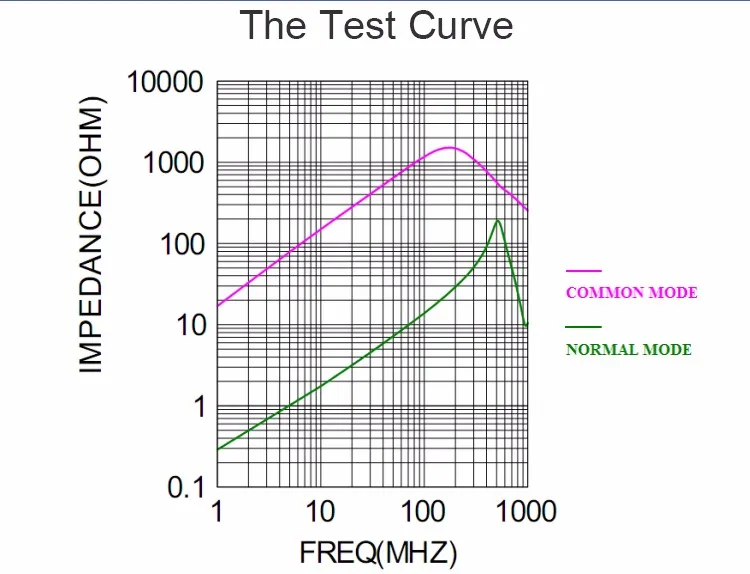

Test Frequency:100MHz                      Tolerance:±25%
\t
Test Data For Pre Production Samples
\t
MEAS.
 Item
\t
Z
(Ω)
\t
RDC
(Ω)
\t
A
 m/m
\t
B
m/m
\t
C
m/m
\t
Suggest
\t
1000±25%
\t
0.4+0
\t
4.8±0.20
\t
2.8±0.20
\t
2.2±0.20
\t
1
\t
1085.25
\t
0.161
\t
4.71
\t
2.79
\t
2.29
\t
2
\t
977.36
\t
0.136
\t
4.71
\t
2.82
\t
2.27
\t
3
\t
995.25
\t
0.145
\t
4.71
\t
2.82
\t
2.28
\t
4
\t
996.58
\t
0.167
\t
4.70
\t
2.80
\t
2.29
\t
5
\t
1004.57
\t
0.142
\t
4.71
\t
2.81
\t
2.29
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
1011.80
\t
0.15
\t
4.71
\t
2.81
\t
2.28
\t
R
\t
107.89
\t
0.031
\t
0.01
\t
0.03
\t
0.02
\t
The above test data for reference,Actual results may differ due to different production batches
