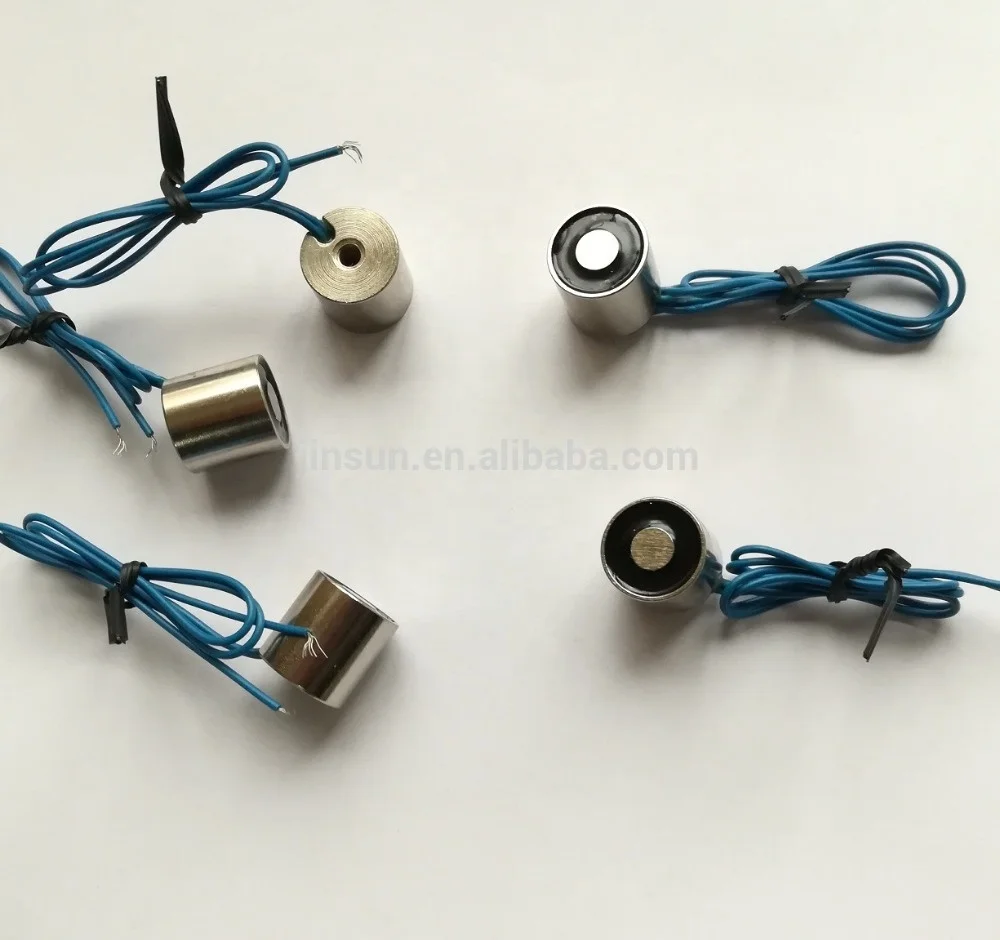

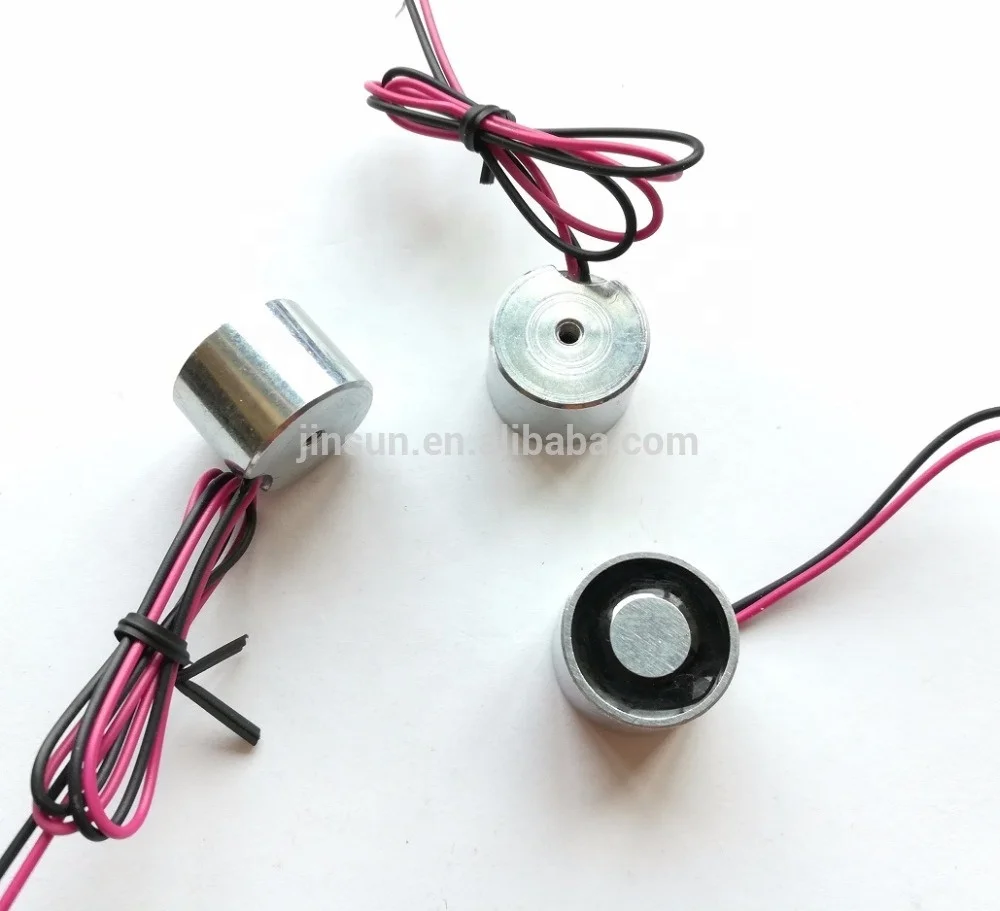

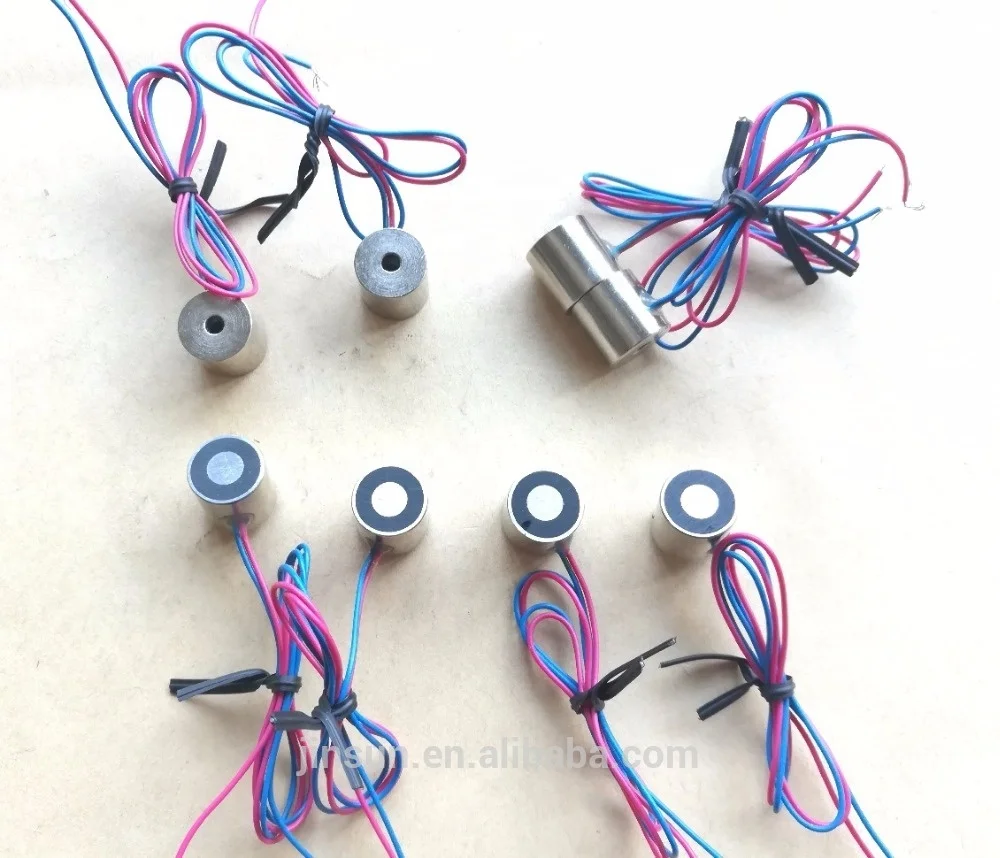

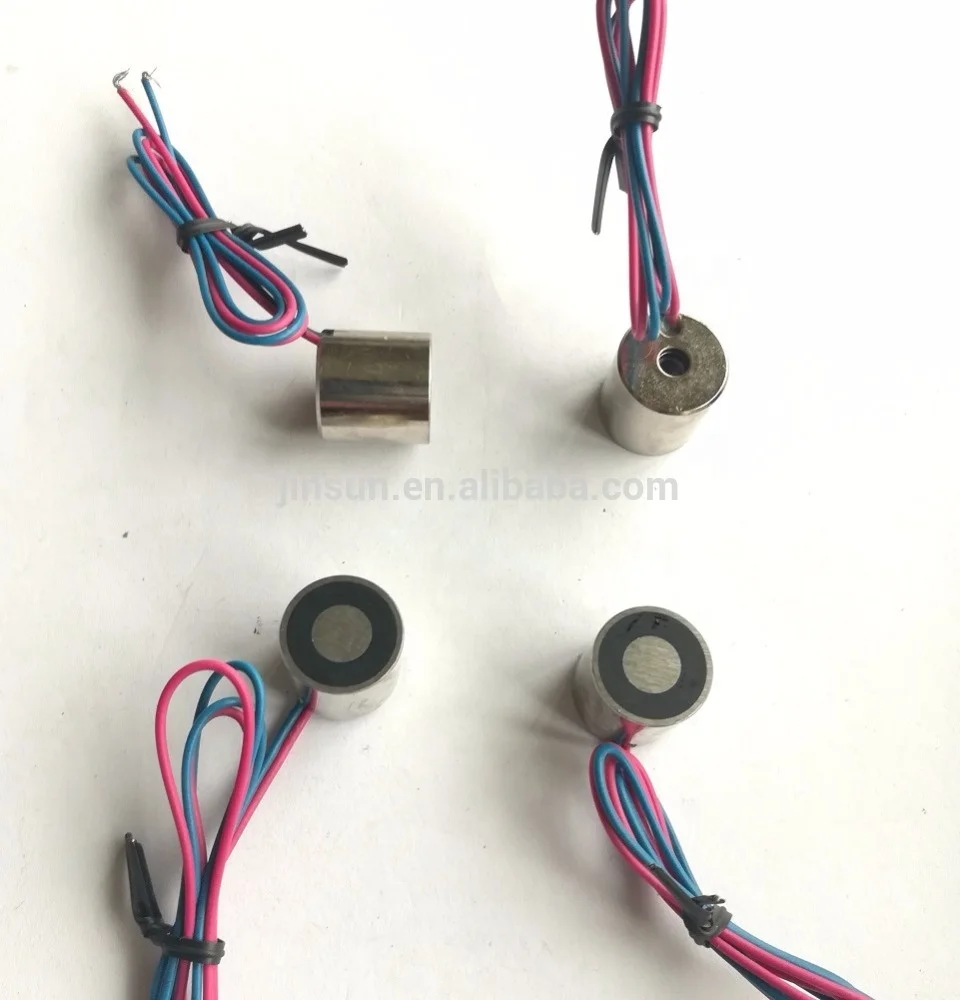

0.3kgs силы 24VDC JSP 1010 мини электромагнит, Малый Электромагнит постоянного тока, electromgnets

Mini Electromagnet, small electromagnet, DC electromagnets

Data for dc electromagnet(pot) JSP-1010:

-Power: 24VDC, 1.0W

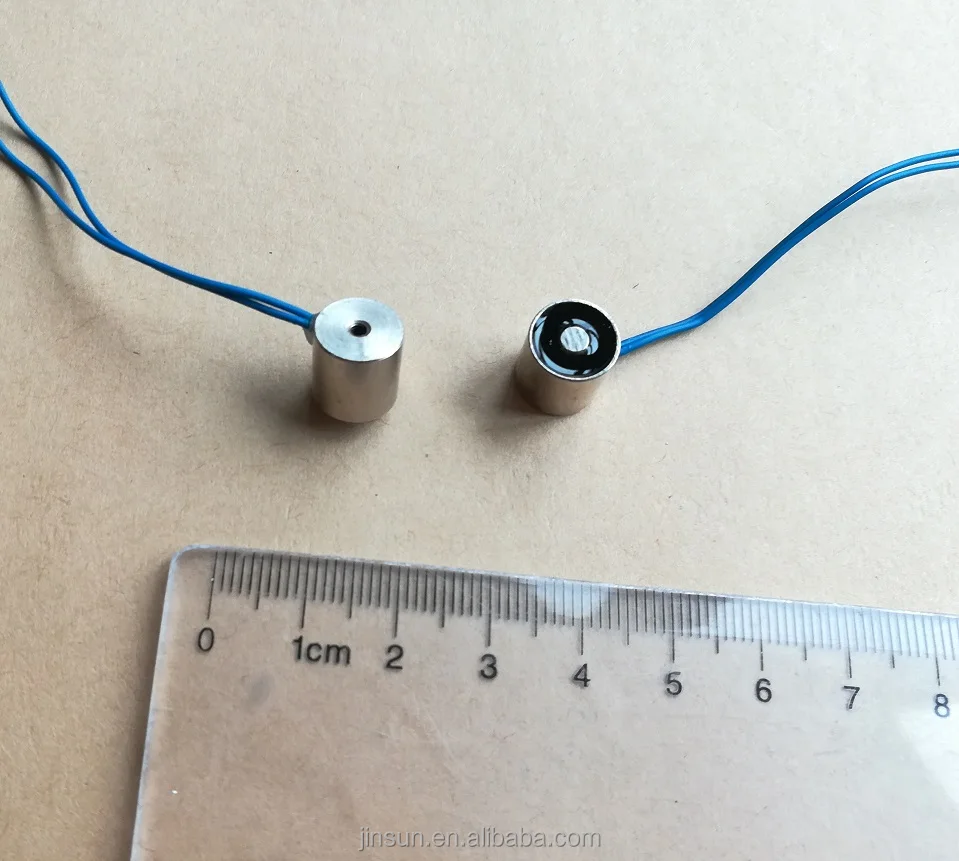

- Size: Dia10 x 10mm
- Attract force: >0.3kgs, hold product with power
- Duty cycle: 100%

- many different models are vailable, holding force: 1kgs - 200kgs.

- Application: electronic machine, package machines, mechanical hands.

 FAQ:

1. How to choose the model?

For linear solenoid, please inform us below:

• push or pull type
• dimension limit
• stroke & force
• duty cycle

For holding electromagnet, please inform us:

• holding force you need
• dimension limit if have
• duty cycle

 2. What’s duty cycle?

Duty cycle = “ON” time /( “ON” time + “OFF” time)

E.g. each cycle time is 10s, power on 2s and power off 8s, duty cycle = 2 / (2+8) = 20%.

If you always power on, then duty cycle is 100%

3. What’s the mean of “PUSH or PULL” type for solenoid?

“PUSH” type: when power is on, the plunger will push out.

“PULL” type: when power is on, the plunger will pull back.

4. Standard technical data for holding electromagnet?

• Thermal class of electromagnet: F class, 155℃
• Remanence approx. 10% of holding force
• Tolerance of dimension: +/-0.25mm
• Water-proof: IP65

Jinsun Electronics Co.,Ltd is one professional manufacturer of electromagnet, we have more than 15 year experience in magnet industry and exported- quality control. We manufacture all electromagnet according to VDE 0580 standard. Except standard models in datasheet, we also provide customized design and products.
