DPP 150 Flat Type Alu PVC and Alu Alu Blister packaging machine and Cod liver oil liquid packaging machine
- Category: >>>
- Supplier: Shanghai Tianhe Machinery Equipment Co. Ltd.
Share on (60708263256):
Product Overview
Description
Product Description
Product Application
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device (Omron Sensor) for number of medicines according to the user's requirement. It adopts imported frequency inverter.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Technical Parameters: | |
Punching Frequency (times/min) | 10-35 |
Production Capacity (plates/hour) | 1200-4200 ( two plates one time ) |
Max. Forming Area & Depth (mm) | 130*100 ( standard depth ≦15 ) & 26mm |
Standard Stroke Range (mm) | 50-120 ( Accept custom ) |
Standard Forum (mm) | 80*57 ( Accept custom ) |
Air Pressure (MPa) | 0.4 - 0.6 |
Air Compressed Capacity | ( Air compressor ) ≥ 0.3m³/min |
Total Power Supply (Kw) | 380V 50Hz 3.8Kw |
Main Electrode Power (Kw) | 1.5 |
PVC Rigid Film (mm) | (0.15 - 0.5)*150 |
PTP Aluminum Foil (mm) | (0.02 - 0.035)*150 |
Dialysis Paper (mm) | (50 - 100g)*150 |
Cooling of Mold | Tap water or Recycling water |
Overall Size (mm) | 2315*635*1405 |
Net Weight (Kg) | 820 |
Noise (dBA) | < 75dBA |
The features of lquid filling:

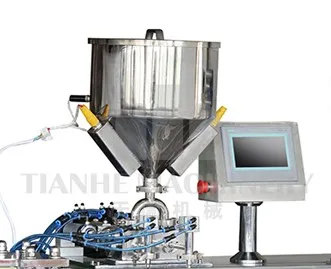

1.It adopts plunger type metering pump for filling,it is high in precision, the structure of the pump is easy to install and uninstall, and convenient for cleaning and sterilizing.

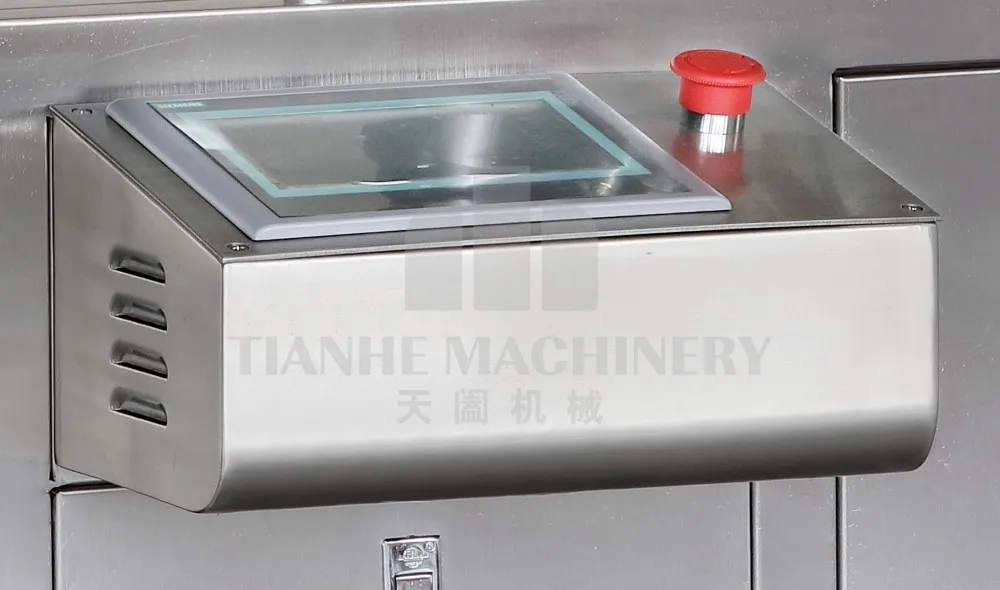

2.PLC control system, color touch screen display.
3.The filling head has the anti- dropping device
4.The filling precision is ±05%, the filling volume is 5-25ml( can be customized)
5.The frame of the machine and contact parts with material are bothmade from stainless steel, it meets with the GMP completely.

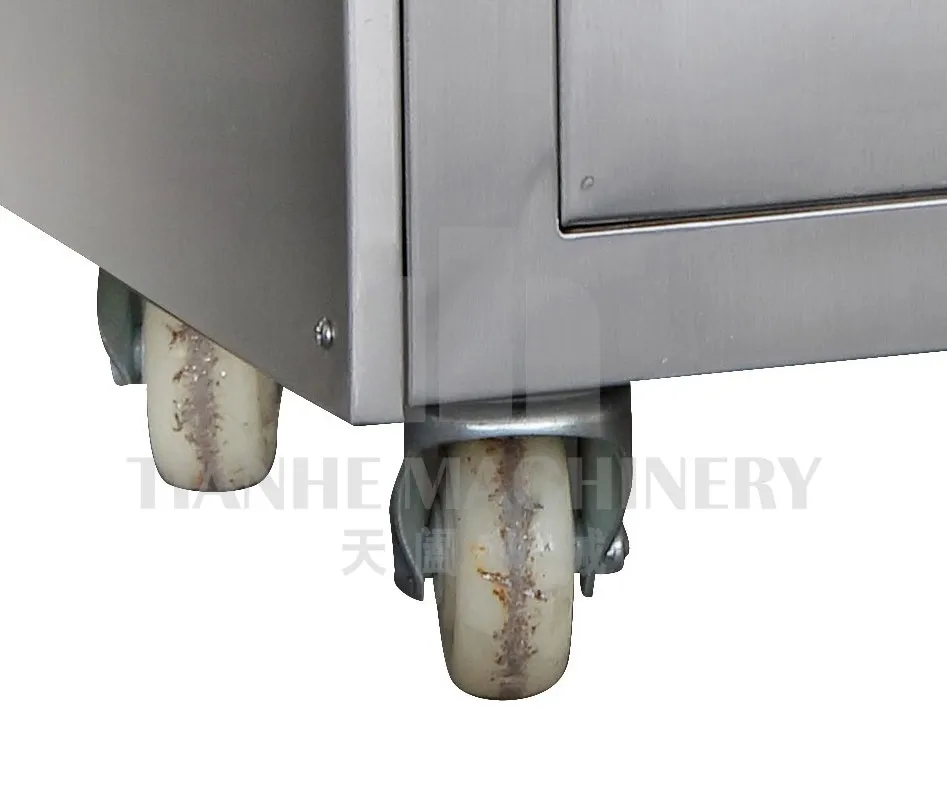

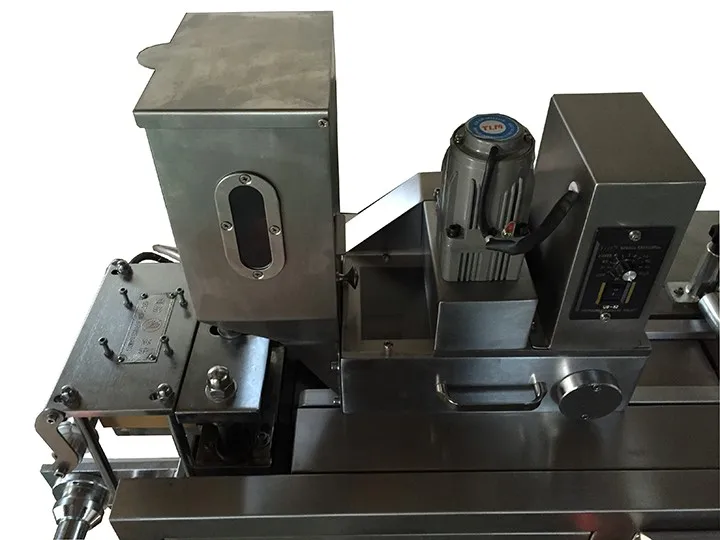

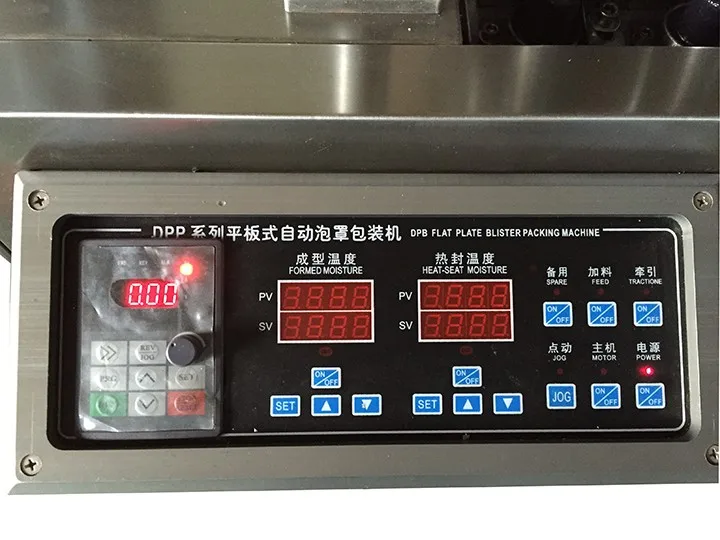

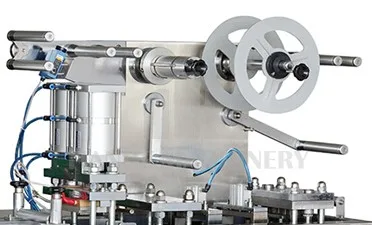

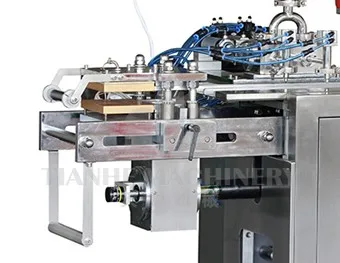

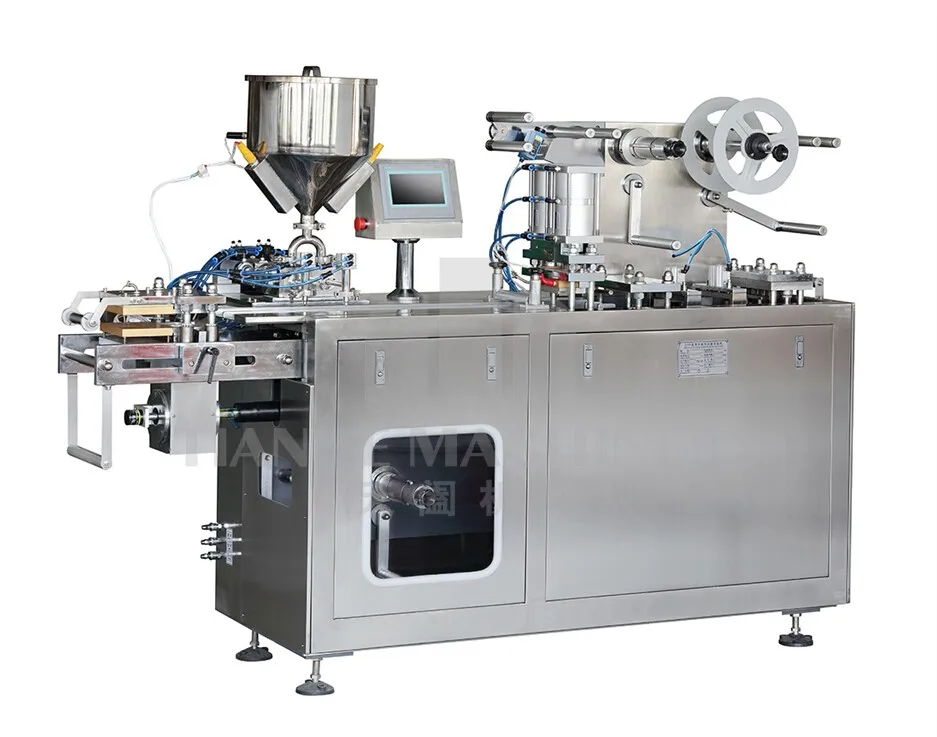

Detail picture

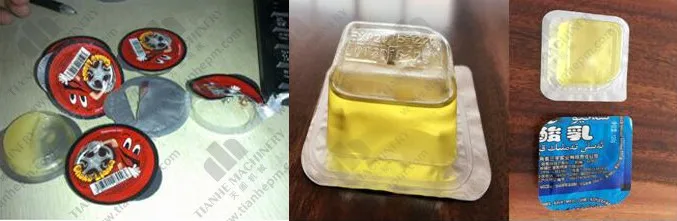

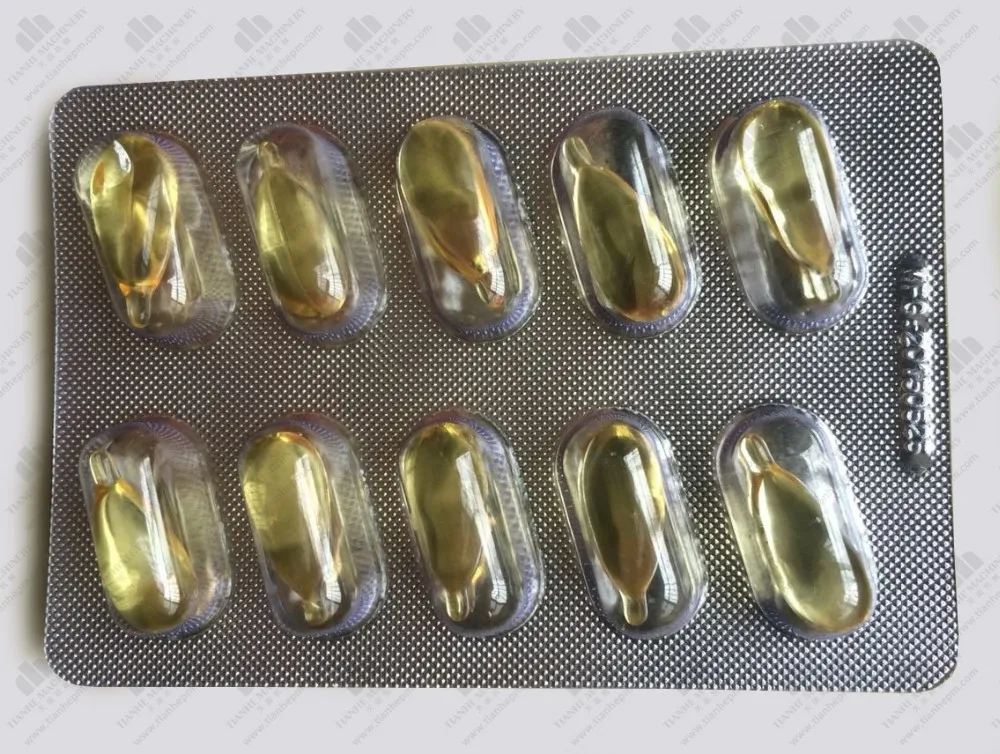

Pills pictures

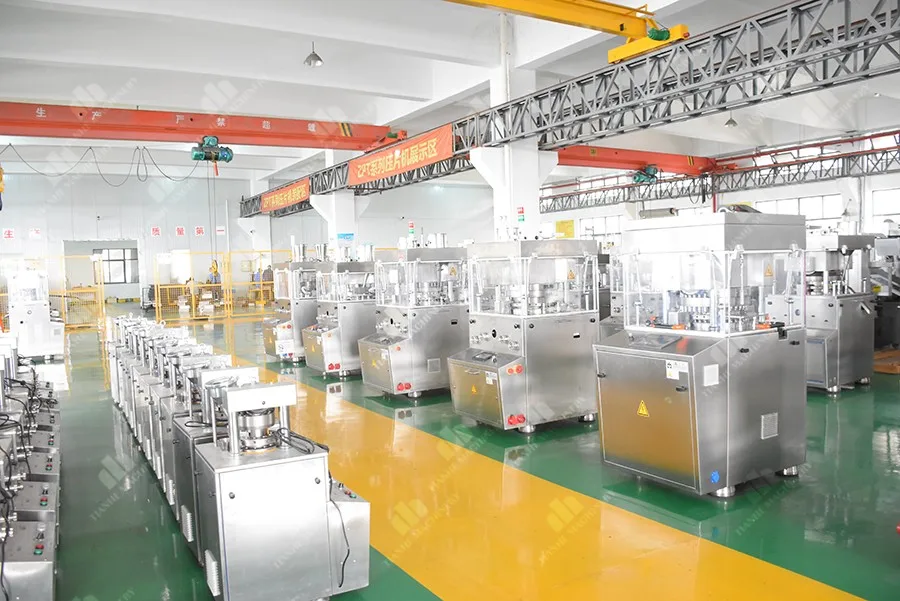

Our Company
Certifications
Packing & Delivery
Packaging | ||
Size | 2390*710*1500 | |
Weight | 840KG | |
Packaging Details | plywood wooden box,meet export standards. | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.Can offer service via skype whatsapp and so on.
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In shanghai. We are warmly welcome you visit our Factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A:If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
Q: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.
Q: How about the after service and guarantee period?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How do we contact you?
A: Please leave a message and click "send" to send us an inquiry.
If you have another question, pls feel free to contact us.
