High Speed Phaeton Large format printer UD 3208Q solvent printer for flex printing

Product Overview

Description

1, Equipped with 8 SPT 510-35PL print heads.

2, vivid color & high speed .

3, Anti-Clogging Flash Function & Capping System

4, Individual color cleaning minimizes the waste of the ink;

5, 3 way intelligent heater (pre/print/post) helps bring more vivid output;

6, The entire printing platform and the girder are made of the alloy-aluminum which is strong and flat.

parametre list:

Model	UD-3208Q
Printhead SII Printek Inc.	SPT-510/35PL
Number of printhead	8Heads
Maximum print width	3,200mm
Print Speed (m2/h)	Print mode	Standard output(m2/h)
	D	2 pass 76
	S	3 pass 51
	Q	4 pass 34
	HQ	4 pass 26
	C	-
Ink	Type	Solvent Ink / ECO Solvent Ink
	Color	4Color (C,M,Y,K)
	Capacity	1L or 5L per Main Tank of Each Color
	Ink Supply System	Low Ink Dectector, Auto or Manual Ink Supply System
Media Width	Maximum 3,300mm
Media Type	Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc.
Auto Media Feeding System	Equipped (Max. Media Weight 80kg)
Auto Cleaning System	Individual Positive Pressure Cleaning
Pre-heating & Drying System	Equipped
Clamp	Equipped
Print Interface	USB 2.0
Printhead Height	2 to 6 mm from Media
RIP Software	Maintop, Ultraprint, Photoprint, Wasatch, Topaz
Input Power	AC 220V, 50Hz/60Hz
Machine Dimension / N.W	L4,500 x W905 x H1,260mm / 362KG
Package Dimension / G.W	L4,650 x W970 x H1,550mm / 582KG
Requirement	Temperature:20°C-28°C Humidity:40%-60%



The front side of UD-3208Q .  Two emergncy swiths in the both left and right side . In the right size there are temperature control. Ensure printing safely and smoothly .

 The right side of printer . Top quality  X Y motor . Keep stable runing .

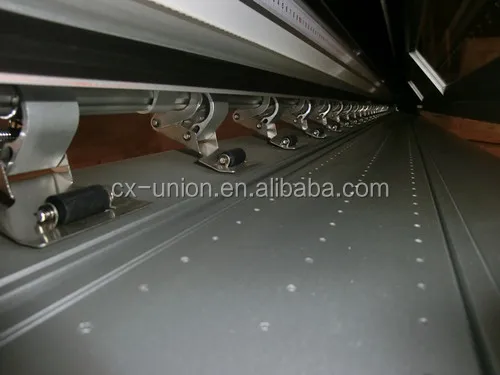

Full Alumium complete platform contains railroad stable and durable material,to optimize the accuracy of the feed material.

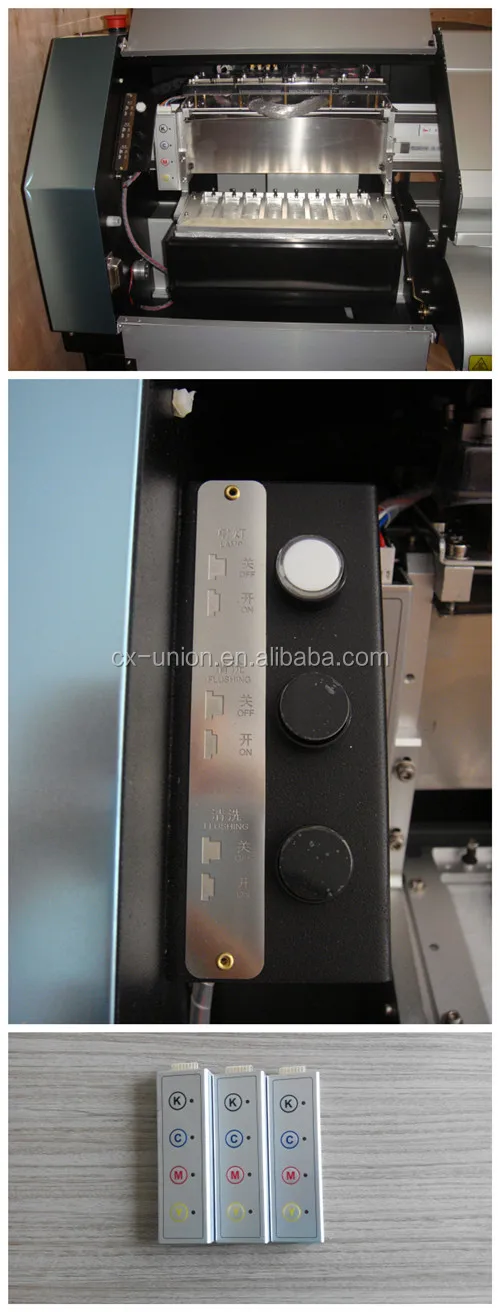

User-friendly&Individual positive pressure capping and cleaning system,easy for maintenance

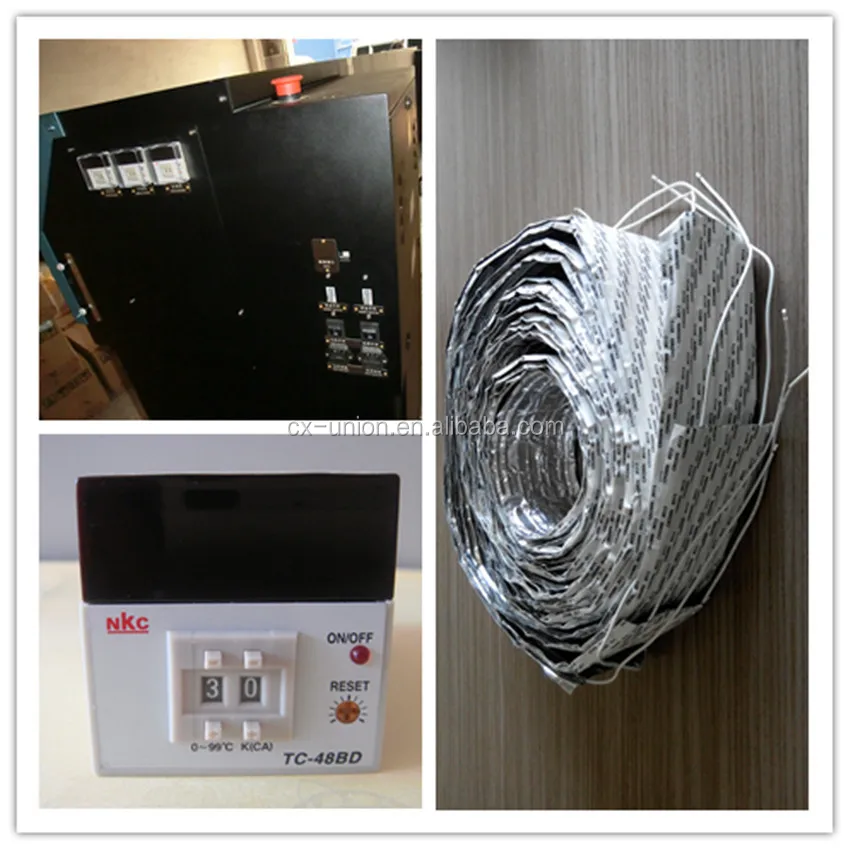

Three-way heaters,fast drying.

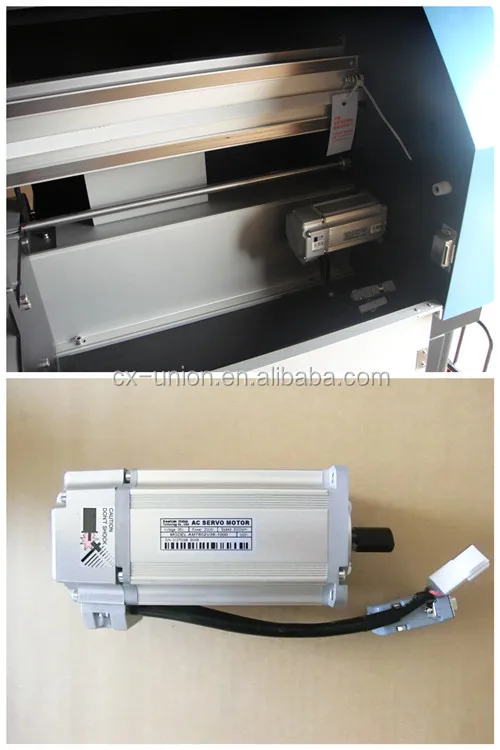

Special AC servo motors for mobility in X-Y for the shift in the printing area.

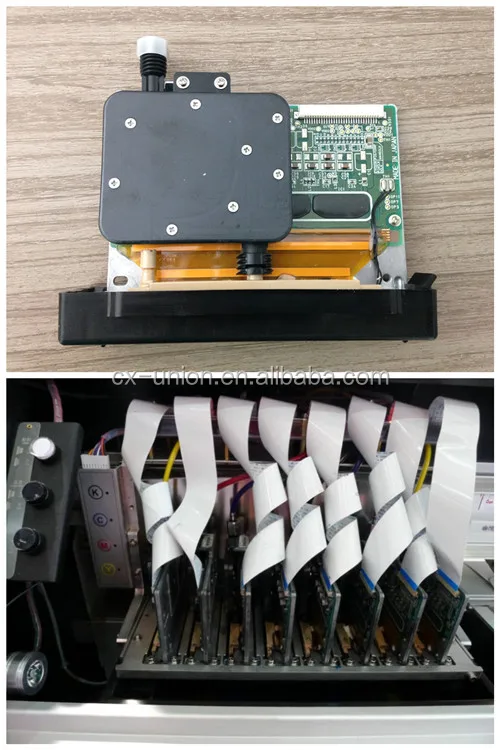

With PT 510 printhead,voltage adjustable!Avoiding printhead clogging under huge temperature change!

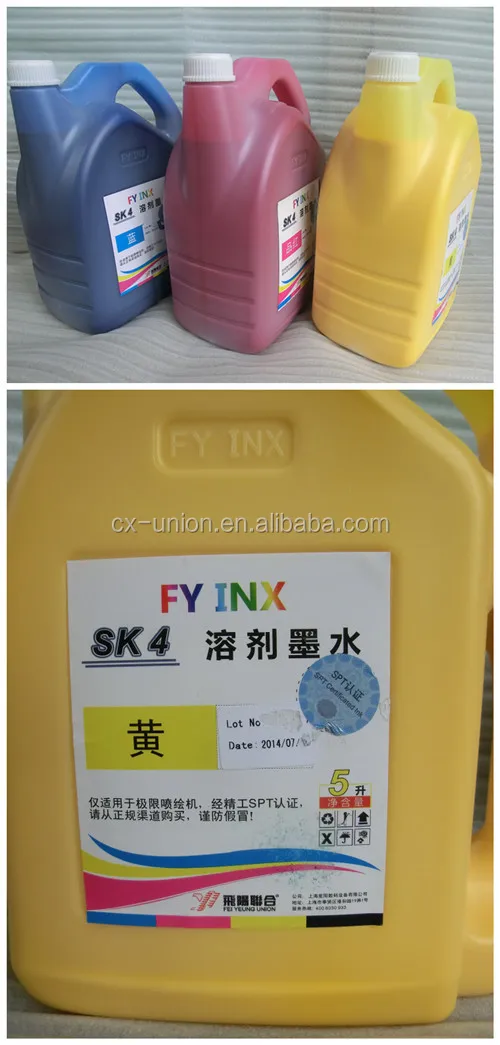

Original Infiniti SK-4 ink,vivid color,high climate-resistant and long durability,ensure the printing quality!

package: wooden package





 We supply all kinds of spare parts , including all kinds of brand main board , print head boards , ink tube ,print head ,ink,etc . Any intersting , please feel free to contact us .

-

Technical support:

 1. Any question we ensure to try our best to help you .By email ,video ,TEL, long-distance computer

control and so on . We company has the experts and professional skill team who have researched theprinter more than 10 years.

 Free training is available.

2. All kinds of original spare parts ensure the quality of printer machines.

What is more,all the printers have one year warranty.During the warranty, if any problems of the parts , you can send us back to repair or exchange .
