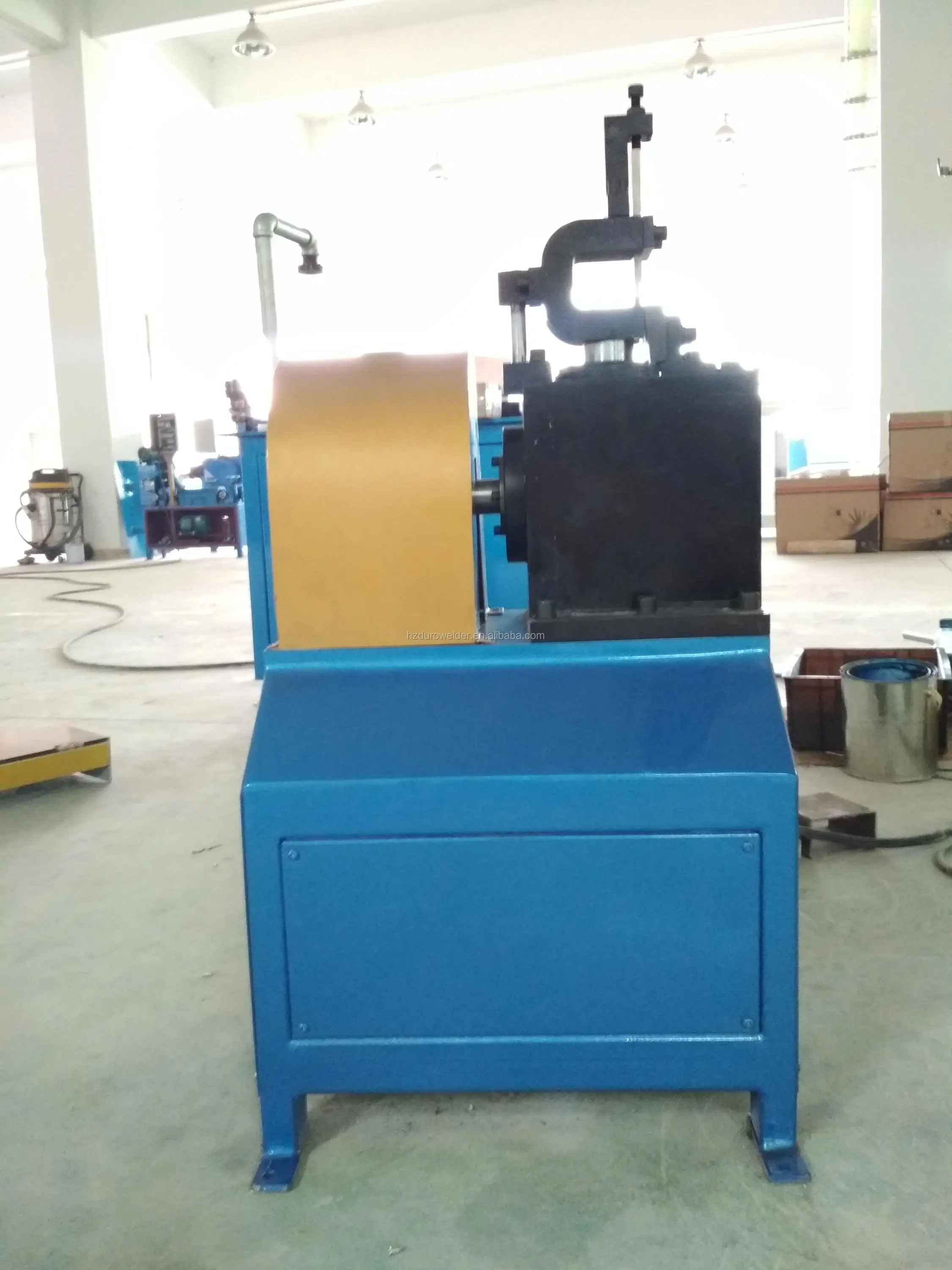

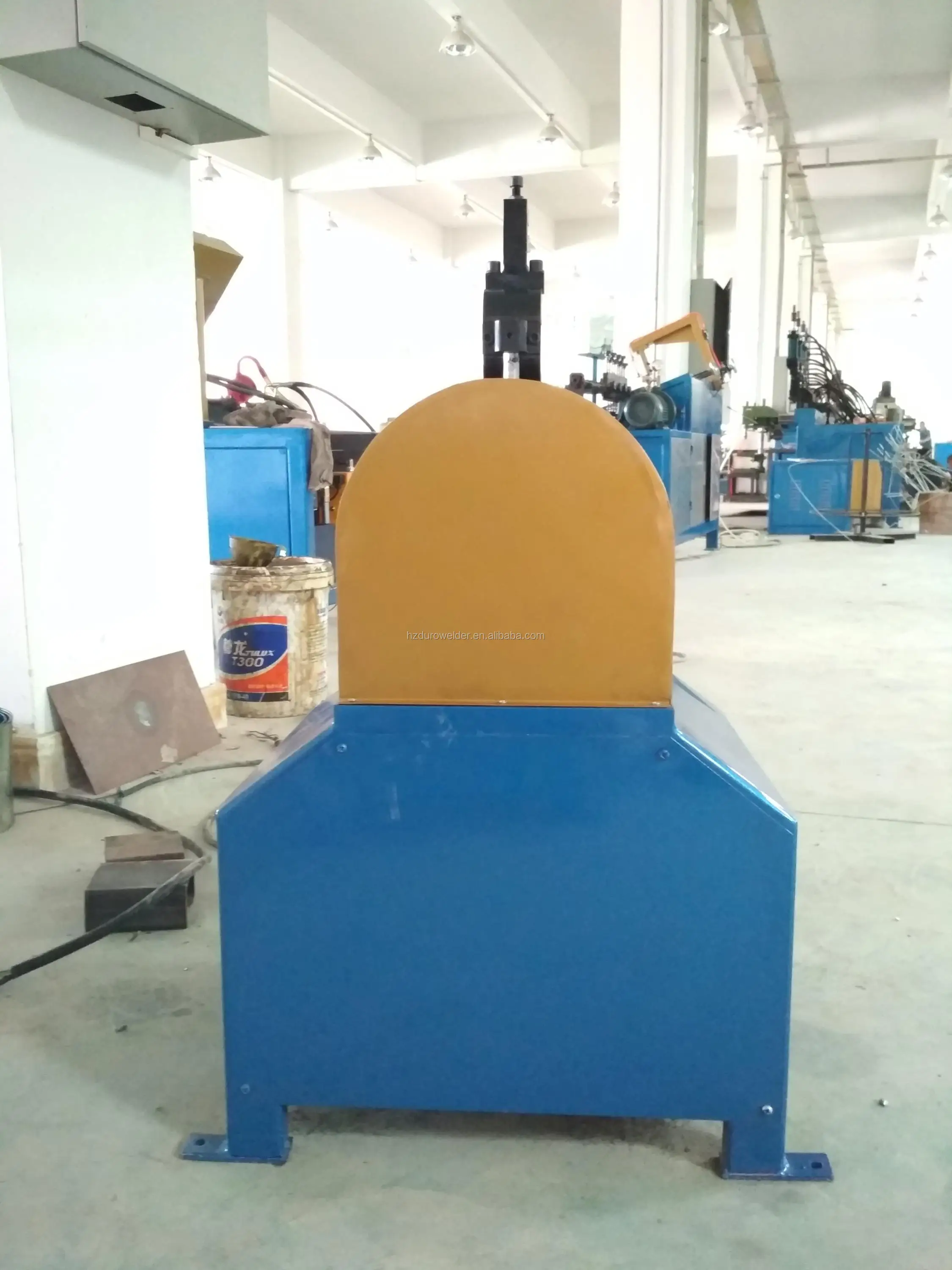

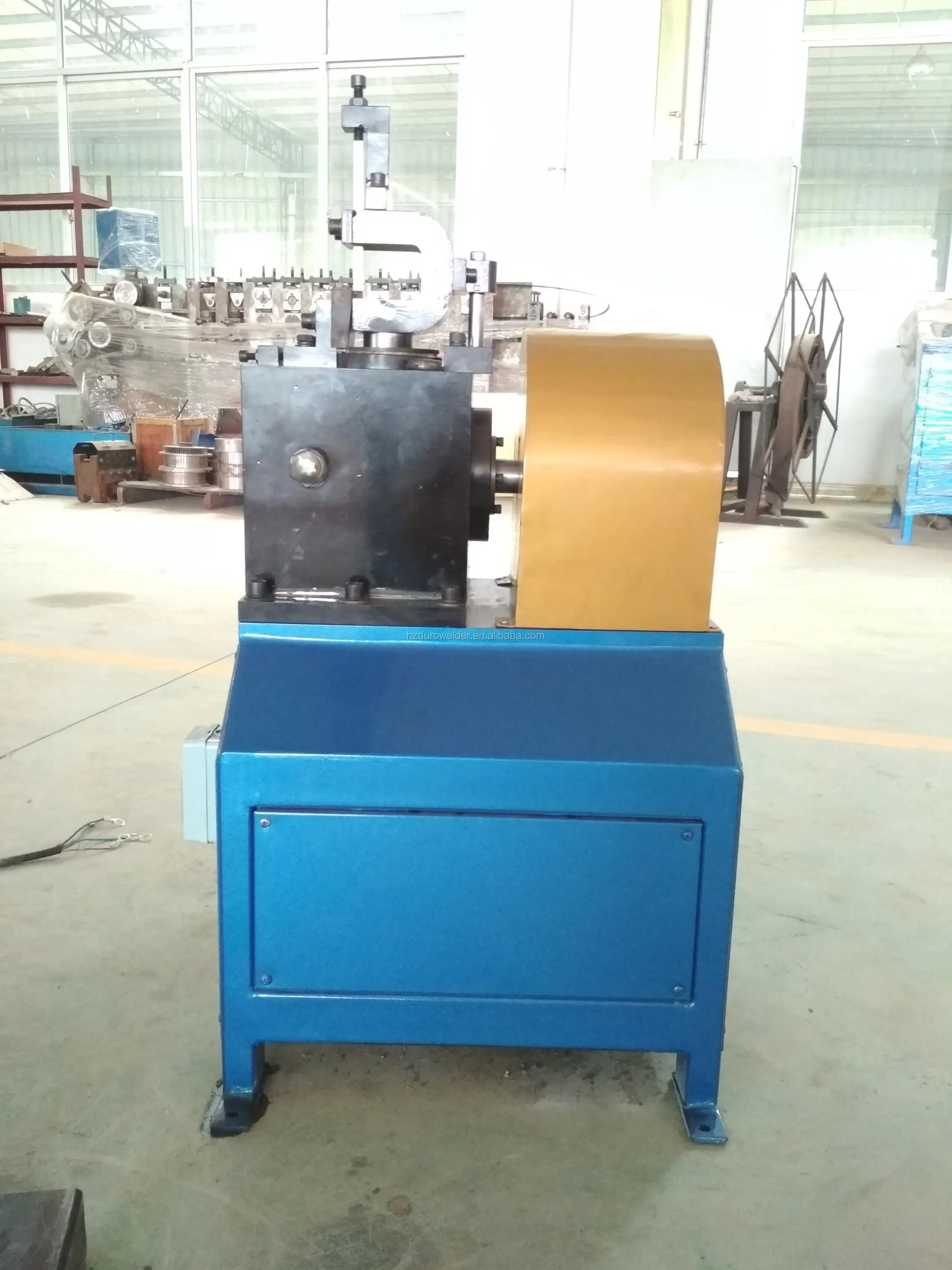

Steel Wire Shelves Trimming Machine Mesh edge Cutting Machine

Product Overview

Description

Product Description

The Main Features
1. This machine is mainly used for trimming the edge of steel wire, valid diameter is between 1-10mm.

2. The size of the mesh is not limited, work can be done easily and quickly with the help of fixtures. This machine
provides fast cutting speed, even trimming end and it is very easy to use.

3. Utilizing high quality shaft and bearings, not only meet the requirement of normal working, also increases the stability and reliability, and make it durable.


4. Can make customized machine for different requirement.

Main Technical Parameters

Model	TM-5MM	TM-8MM	TM-10MM
Rated Voltage	380V-415V AC
Rated Power	1.5KW	3KW	5KW
Motor Speed	2300RPM	1400RPM	980RPM
Max Cutting Diameter	Φ5MM	Φ8MM	Φ10MM
Cutting Speed	8-10M/MIN
Machine Size(L x W x H)	470X400X740MM	470X400X740MM	520X460X930MM
Machine Weight	90KG	105KG	200KG

If you want to know more information about our products, please feel free to contact me!
