Product Overview
Description

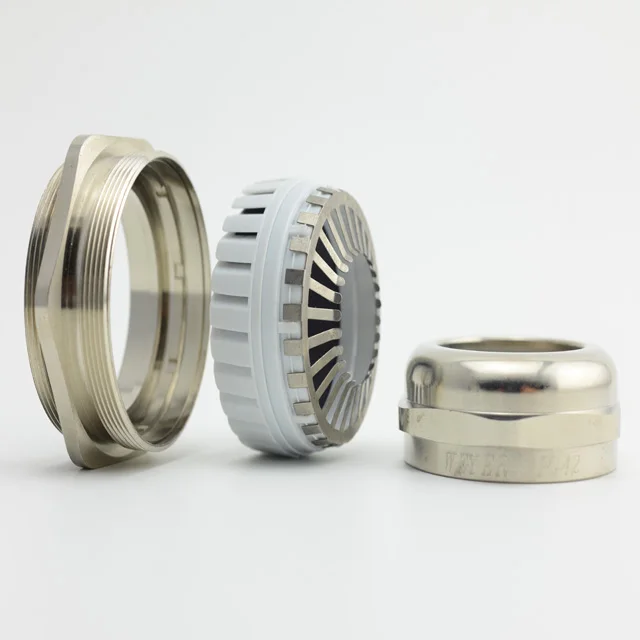

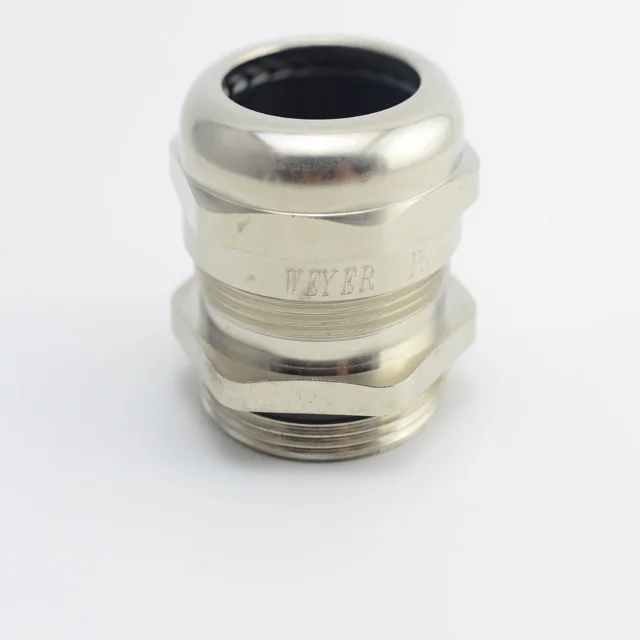

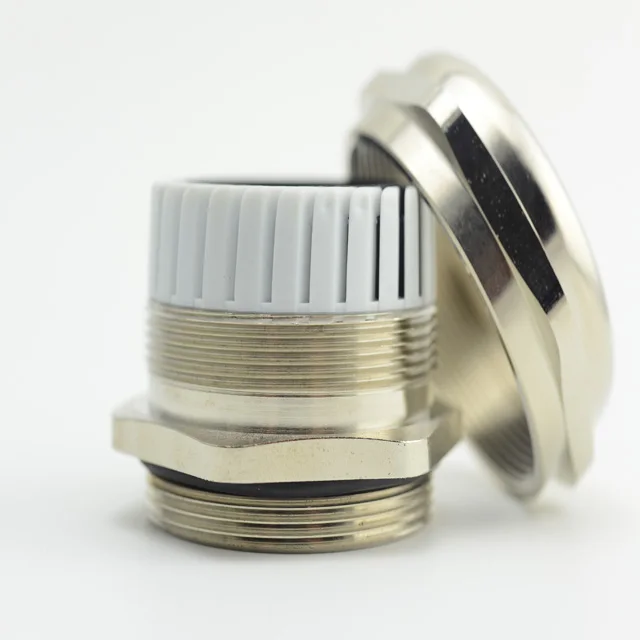

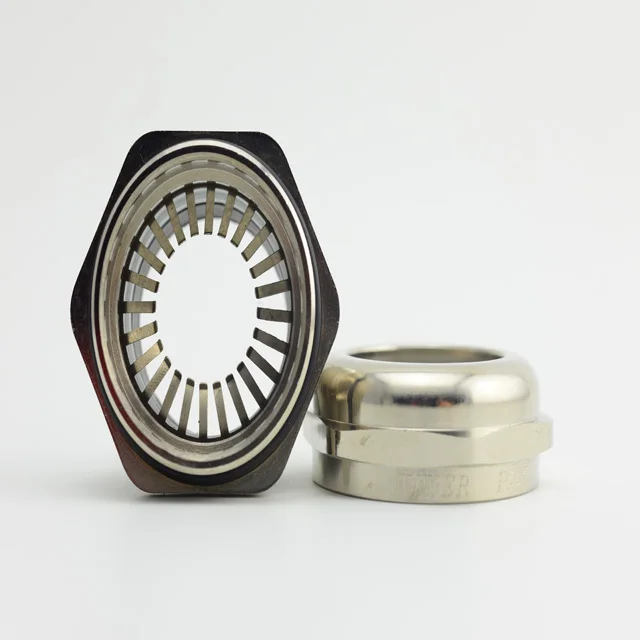

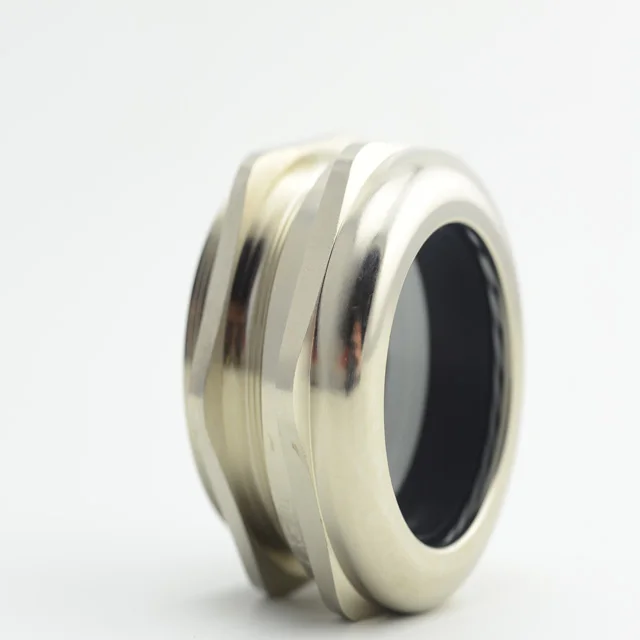

HSM-M-L Lengthened Metric Thread IP68 Nickel Plated Brass Metal Cable Gland
1.Material: Body:Nickel Plated Brass, Seal:Polyamide, Sealing: Modified Rubber 2.Protection degree: Within the clamping range,its protection degree can reach IP68 3.Temperature Range: Min-40℃,Max100℃,Short-term120℃ 4.Properties: Succeed in the experiment of IEC-60077-1999 Resistent to vibration and impact, passed ROHS. |
| Article No. | Thread | Clamping Range | AG | GL | H | Wrench Size | Packet |
| Dimension | mm | mm | mm | mm | mm | units | |
| HSM-M12-L | M12x1.5 | 3~6.5 | 12 | 10 | 19 | 14/14 | 50 |
| HSM-M16-HL | M16x1.5 | 3~6.5 | 16 | 10 | 20 | 14/18 | 50 |
| HSM-M16-L | M16x1.5 | 4~8 | 16 | 10 | 21 | 17/18 | 50 |
| HSM-M16-DL | M16x1.5 | 5~10 | 16 | 10 | 22.5 | 20/20 | 50 |
| HSM-M18-L | M18x1.5 | 5~10 | 18 | 10 | 22.5 | 20/20 | 50 |
| HSM-M20-HL | M20x1.5 | 5~10 | 20 | 10 | 22.5 | 20/22 | 32 |
| HSM-M20-L | M20x1.5 | 6~12 | 20 | 10 | 23.5 | 22/22 | 32 |
| HSM-M20-DL | M20x1.5 | 8~14 | 20 | 10 | 23 | 24/24 | 32 |
| HSM-M22-L | M22x1.5 | 8~14 | 22 | 10 | 23 | 24/24 | 32 |
| HSM-M24-HL | M24x1.5 | 6~12 | 24 | 12 | 23.5 | 24/27 | 32 |
| HSM-M24-L | M24x1.4 | 8~14 | 24 | 12 | 23 | 24/27 | 18 |
| HSM-M25-HL | M25x1.5 | 8~14 | 25 | 12 | 23 | 24/28 | 18 |
| HSM-M25-L | M25x1.5 | 10~16 | 25 | 12 | 24.5 | 28/28 | 18 |
| HSM-M25-DL | M25x1.5 | 13~18 | 25 | 12 | 26 | 30/30 | 18 |
| HSM-M27-HL | M27x2.0 | 10~16 | 27 | 12 | 24.5 | 28/30 | 18 |
| HSM-M27-L | M27x2.0 | 13~18 | 27 | 12 | 26 | 30/30 | 18 |
| HSM-M30-HL | H30x2.0 | 10~16 | 30 | 12 | 24.5 | 28/34 | 18 |
| HSM-M30-L | M30x2.0 | 13~18 | 30 | 12 | 26 | 30/34 | 18 |
| HSM-M32-HL | M32x1.5 | 13~18 | 32 | 12 | 26 | 30/36 | 18 |
| HSM-M32-L | M32x1.5 | 15~22 | 32 | 12 | 28 | 36/36 | 18 |
| HSM-M32-D-L | M32x1.5 | 18~25 | 32 | 12 | 33 | 38/40 | 8 |
| HSM-M33-L | M33x2.0 | 18~25 | 33 | 12 | 33 | 38/40 | 8 |
| HSM-M36-HL | M36x2.0 | 15~22 | 36 | 12 | 28 | 36/40 | 8 |
| HSM-M36-L | M36x2.0 | 18~25 | 36 | 12 | 33 | 40/40 | 8 |
| HSM-M40-HL | M40x1.5 | 18~25 | 40 | 15 | 33 | 40/45 | 4 |
| HSM-M40-L | M40x1.5 | 22~30 | 40 | 15 | 35.5 | 45/45 | 4 |
| HSM-M40-DL | M40x1.5 | 22~32 | 40 | 15 | 38.5 | 50/50 | 4 |
| HSM-M42-L | M42x2.0 | 22~32 | 42 | 15 | 38.5 | 50/52 | 4 |
| HSM-M48-L | M48x2.0 | 22~32 | 48 | 15 | 38.5 | 50/52 | 4 |
| HSM-M50-L | M50x1.5 | 30~38 | 50 | 15 | 40 | 55/58 | 4 |
| HSM-M56-L | M56x2.0 | 30~38 | 56 | 15 | 40 | 58/60 | 4 |
| HSM-M60-L | M60x2.0 | 37~44 | 60 | 15 | 41 | 65/65 | 2 |
| HSM-M63-L | M63x1.5 | 37~44 | 63 | 15 | 41 | 65/70 | 2 |
| HSM-M63-DL | M63x1.5 | 42~53 | 63 | 15 | 44.5 | 75/75 | 2 |
| HSM-M64-L | M64x2.0 | 37~44 | 64 | 15 | 41 | 65/70 | 2 |
