The mini round baler is mainly used to collect and pack wheat, corn and rice straw that can be used for breeding industry and biomass power generation. Mechanization requirements can be met in the plains and half slope. More than 95% of the machine parts are produced by our own factory, so we can completely control the quality of the product.
Model
9YKD-50
9YKD-60
9YKD-70
9YKD-90
Model Number
850
870/870F
1070/1070F
1090/1090F
Bale size(dia.*width)
50*70cm
60*70cm
62*95cm
82*95cm
Machine Dimension (L*W*H)
115*130*120cm
131*146*138cm
131*167*156cm
157*167*170cm
Bale weight
15-20kg
20-30kg
30kg
50kg
Pickup width
700mm
800mm
950mm
950mm
Drum speed
200r/m
200r/m
200r/m
200r/m
Math power
25-50hp
25-50hp
25-50hp
25-50hp
PTO speed
540r/m
540r/m
540r/m
540r/m
Efficiency
2-5km/h
2-5km/h
3-8km/h
3-8km/h
Productivity
1500-3000Kg/h
1500-3000Kg/h
1950-3900Kg/h
2500-5100Kg/h
Density
≥115Kg/m3
≥115Kg/m3
≥115Kg/m3
≥115Kg/m3
Force Feeding
/
870F have
1070F have
1090F have

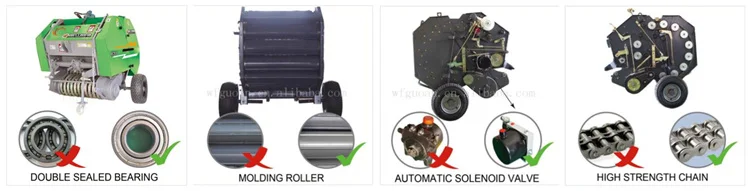

Our Advantages
Main Features
Force feeding system : it won't produce congestion. At the same time, it can pick up hay for comb; make hay baling orderly and higher density, easy storage and transportation.
Automatic baling system: Our latest automatic solenoid valve can automatically put the bale, and the main material is aluminium alloy, not easy to rust, it can use for many years.
Molding roller:Our equipment is made of a forming technology, is not easy to wear and tear, no hidden dangers.
Others
1.3 point linkage, easy to lift and pass from one place to another place
2.High efficiency, make the picking and bundling up at one time.
3.buzzer warning after one bale finished,bale density adjustable.
4.natural hemp twine, harmless to animal.
5.Each bale weights about 25kg,one hour can bale about 80-120 bales.
6.Our baler can use tractor hydraulic system or hydraulic pump on itself, these are optional.
Product Testing
We are scrupulous about every detail,Professional QC and strict checking procedure ensure our work and ganrantee each piece of product which is in its best presentation.
Company Information
Weifang Guoan Engineering Machinery Co., Ltd., founded in 2006, is a comprehensive technology company integrating scientific research, production, sales and services. Our company is formerly known as Weifang Anguo Fine Casting Factory, established in 1996, produced mainly the agricultural equipment for Foton Lovol. 20 years of experience of mechanical development and production guarantee strongly the quality of production. Since 2012, our company independently developed and produced 9YKD-60 series round baler, rice chopper and other products.
We have the first class quality and service, welcome all the new and old customers to visit our factory and negotiate the cooperation.
Certifications
Our products have CE certification, at the same time we passed the ISO9001 quality system certification by ZJQC every year. Our product quality is higher than the market standard, won the customer's praise.
Packing & Delivery
Packing&delivery
MODEL
850/850F
870/870F
20FT
20units
16units
40FT
40units
36units
HOW
TO
PACKING
By iron crate with film cover
1.Delivery time: Within 15days after receiving clients' payment 2.Payment Terms :T/T/paypal /trade assurance
3.Quality Gurantee: Quality gurantee term is for 1 years, Malfunctions which are caused by operation mistakely will be reponsible for customers
FAQ
1)1. Which machines can be used to move your round-balers?
Our round-balers can be adapted to any brand and model, towed by 20-50 horse power tractors.
2. Are your machines suited to any type of ground?
Yes, our machines can work on any ground, on flat and hilly ground.
3.I have a meadow area that requires grass and leaves to be collected, can your machines help me?
Yes, our machines also can collect leaves and grass.
4.Which solutions do you bind the bales?
We are able to bind the bales by hemp rope. The binding operation is completely automatic.
5.Where can we buy the machine's parts?
Our company can provide machines for your any time
Contact Information
pls feel free to contact with us.Looking forward to your kind inquiry!
