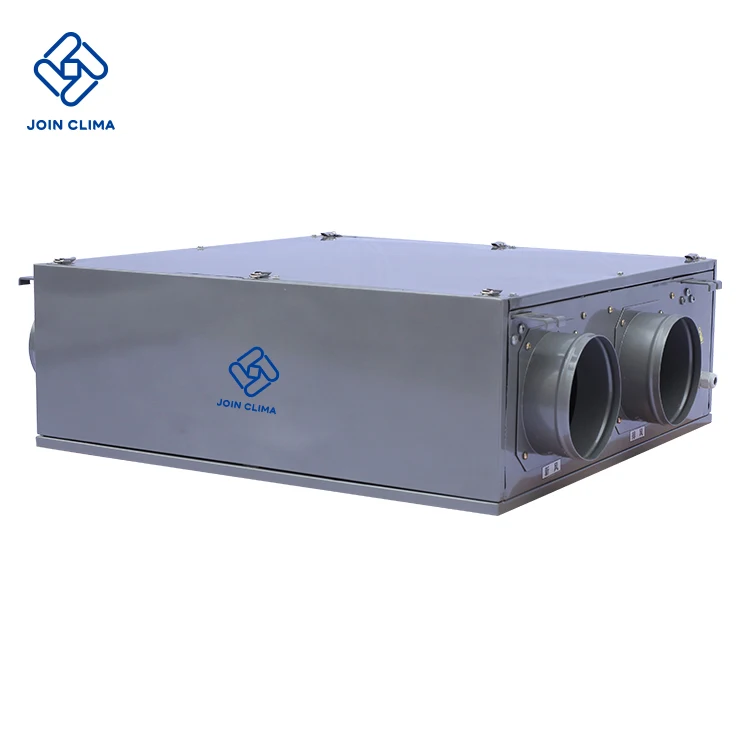

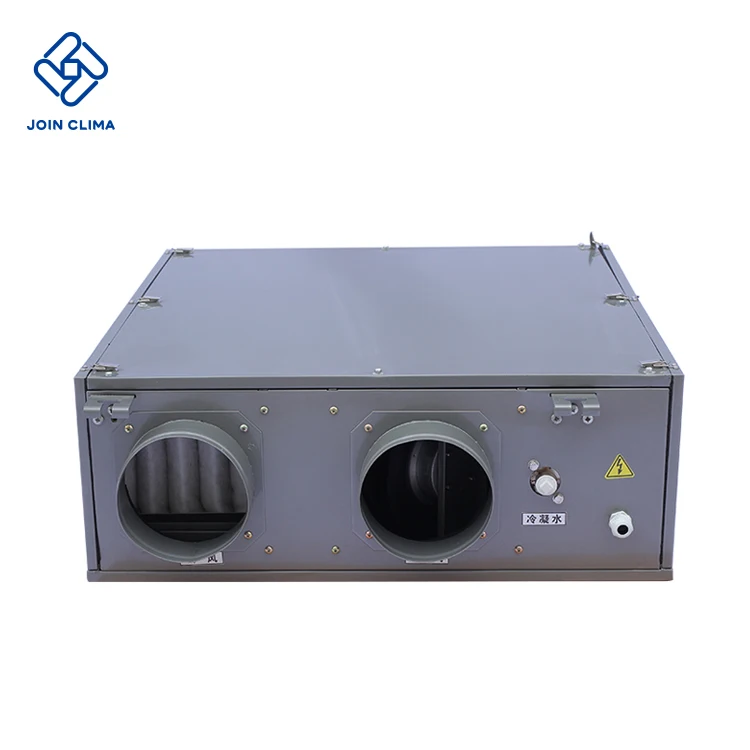

200m3/h G4 Activated carbon F8 fresh air energy recovery ventilation type handling unit
- Category: >>>
- Supplier: Guangzhou Join Electronic & Technology Co. Ltd.
Share on (60708445947):
Product Overview
Description
Ce Certified Air Heat Pump -25 -30/Heat Pump Gas Burn Air Conditioning
Product Description
| Type NO. | ZJXRA-150/3 | ZJXRA-300/2 | ZJXRA-500/2 | ZJXRA-500/2a | ZJXRA-700/2 | ZJXRA-700/2a | ||
| Horizontal | Horizontal | Horizontal | Horizontal (narrow case) | Horizontal | Horizontal (narrow case) | |||
| Rated cooling capacity | W | 800 | 2000 | 3200 | 3200 | 4650 | 4650 | |
| Rated heating capacity | W | 900 | 3000 | 3800 | 3800 | 6000 | 6000 | |
| Rated cooling power | W | 295 | 550 | 890 | 890 | 1450 | 1450 | |
| Rated cooling current | A | 1.4 | 2.6 | 4.16 | 4.16 | 6.64 | 6.64 | |
| Rated heating power | W | 285 | 400 | 750 | 750 | 1150 | 1150 | |
| Rated heating current | A | 1.35 | 1.9 | 3.75 | 3.75 | 5.26 | 5.26 | |
Electric auxiliary heat power | W | / | / | 1200 | / | 1200 | / | |
| Rated cooling(heating)capacity | A | / | / | 5.5 | / | 5.5 | / | |
| Maximum operating power | W | 430 | 750 | 1380 | 1380 | 1700 | 1700 | |
| Maximum operating current | A | 2.05 | 3.6 | 6.3 | 6.3 | 7.78 | 7.78 | |
| Compressor | / | rotary | rotary | rotary | rotary | rotary | rotary | |
| Power/Power type | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | |
| Fresh air/Exhaust air capacity | m3/h | 60~150 | 130~300 | 160~500 | 160~500 | 300~700 | 300~700 | |
| External static pressure | Pa | 50 | 80 | 130 | 130 | 130 | 130 | |
| Noise | dB(A) | 31 | 31 | 32 | 32 | 39 | 39 | |
| Outlet dimension | mm | 150 | 200 | 200 | 200 | 250 | 250 | |
Condensation drainage dimension | inch (BSP) | 1/2" | 1/2" | 3/4" | 3/4" | 3/4" | 3/4" | |
Machine dimension (length/width/height) | mm | 840/685 /260 | 1170/760 /400 | 1800/930 /515 | 1860/750 /670 | 1800/930 /515 | 1860/750 /670 | |
Packing dimension (length/width/height) | mm | 900/745 /310 | 1210/810 /500 | 1900/1030 /695 | 1950/830 /850 | 1900/1030 /695 | 1950/830 /850 | |
| Net/gross weight | Kg | 50/55 | 120/135 | 175/255 | 175/225 | 181/261 | 181/231 | |
| Refrigerant | / | R134a | R410A | R410A | R410A | R410A | R410A | |
Test conditions:
Heating conditions:Ambicnt dry bulb / wet bulb tcmpcraturc7*C/6 < C; Room dry bulb : wet bulb tcmpcraturc20XT/15*C
Cooling conditions:Ambient dry bulb / wet bulb temperaiure35*C/24X^ ;Room dry bulb / wet bulb temperature27*C/19"C
Fresh Air Heal Pump only handles fresh air.
1. The heating/cooling capacity and heat recovery volume is calculated according to the following conditions:( Remarks: )
Heating: ambient DB=7°C, ambient WB=6°C, indoor DB=20°C Cooling: ambient DB=35°C, ambient WB=24°C, indoor DB=26°C
2. The airflow is controlled according to the ambient temperature:
Ambient temperature<-15°C, airflow=160m3/h. -15°C<=ambient temperature<0°C, airflow=320m3/h.
Ambient temperature>=0°C, airflow=480m3/h.
Configuration

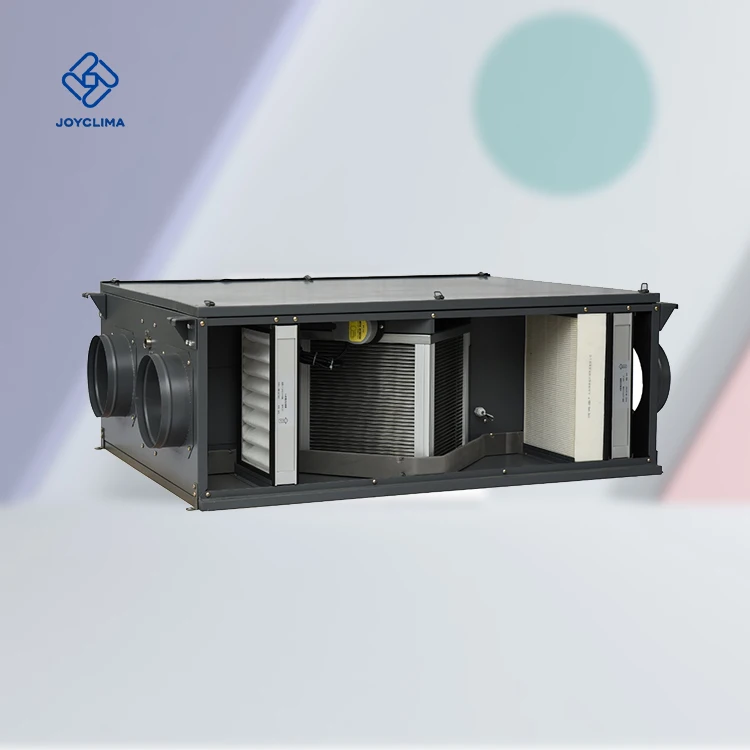

1. Crossflow heat exchanger: Made of Aluminum, cross flow passages, sensible heat exchanger.

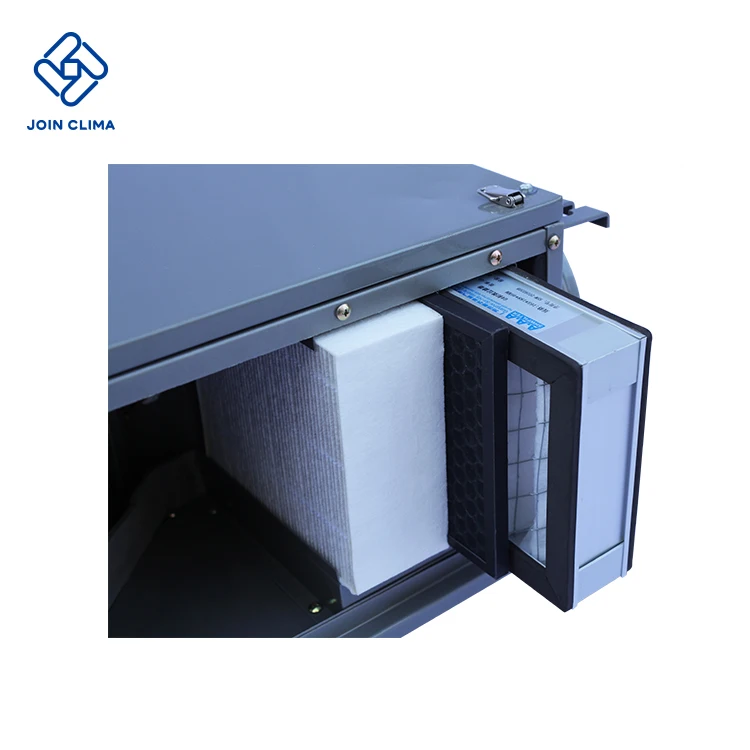

2. Fresh air filters: Triple filtration to ensure air cleanness, G4+F7+H10. Aluminum frame, solid, stable, ametabolic and anti corrosive.
3. Return air filter: Nonwoven material, G4 class, filtering return air. -Aluminum frame, solid, stable, ametabolic and anti corrosive.
4. Bypass system: By adjusting the opening angle, different fresh air volume can go through theheat exchanger and by-pass synchronously. When it’s opened completely, the air goes without passing the heat exchanger.
5. Compressors: Made by Panasonic, rated cooling capacity is 2410W. -R410A refrigeration, environment friendly.
6. Evaporator: Plate fin heat exchanger, with coated hydrophilic fins.
7. Connection box: Circuit board, core of intelligent control system -Power switch, power supply to the compressor, fans and by-pass Wiring terminal, easy access for field connection.
8. Electrical heater: 1200W power controlled by the intelligent set program signal.
9. Drain tray: Made of coated galvanized steel, collecting the drain water from heat exchanger, evaporator and condenser. 10. Drain pump -Integrated with ball cock to test the water level, the water is drain out automatically if the water is full.
Functions of controller
(1) Operation data display (2) Airflow adjustment according to ambient temperature (3) Room temperature setting (4) Modbus connection (5) Auto defrosting (6) Auto bypass (7) Running mode selection: AUTO-COOLING-HEATING-VENTILATION (8) Auto restart (9) Filter monitor (10) Auto water drain
(11) Alarm:
A. High pressure or low pressure alarm B. Communication failure alarm C. Frosting alarm D. Short connection or wrong connect of the sensors E. Sensors fault or short circuit alarm F. Over heating of electrical heater G. Fire alarmI. Filter alarm
(12) Multiple protection :
A. High-voltage protection B. Low-voltage protection C. Thermal overload protection D. Over discharge temp. protection of compressor E. Low supply air temperature protection F. Drain pump failure protection

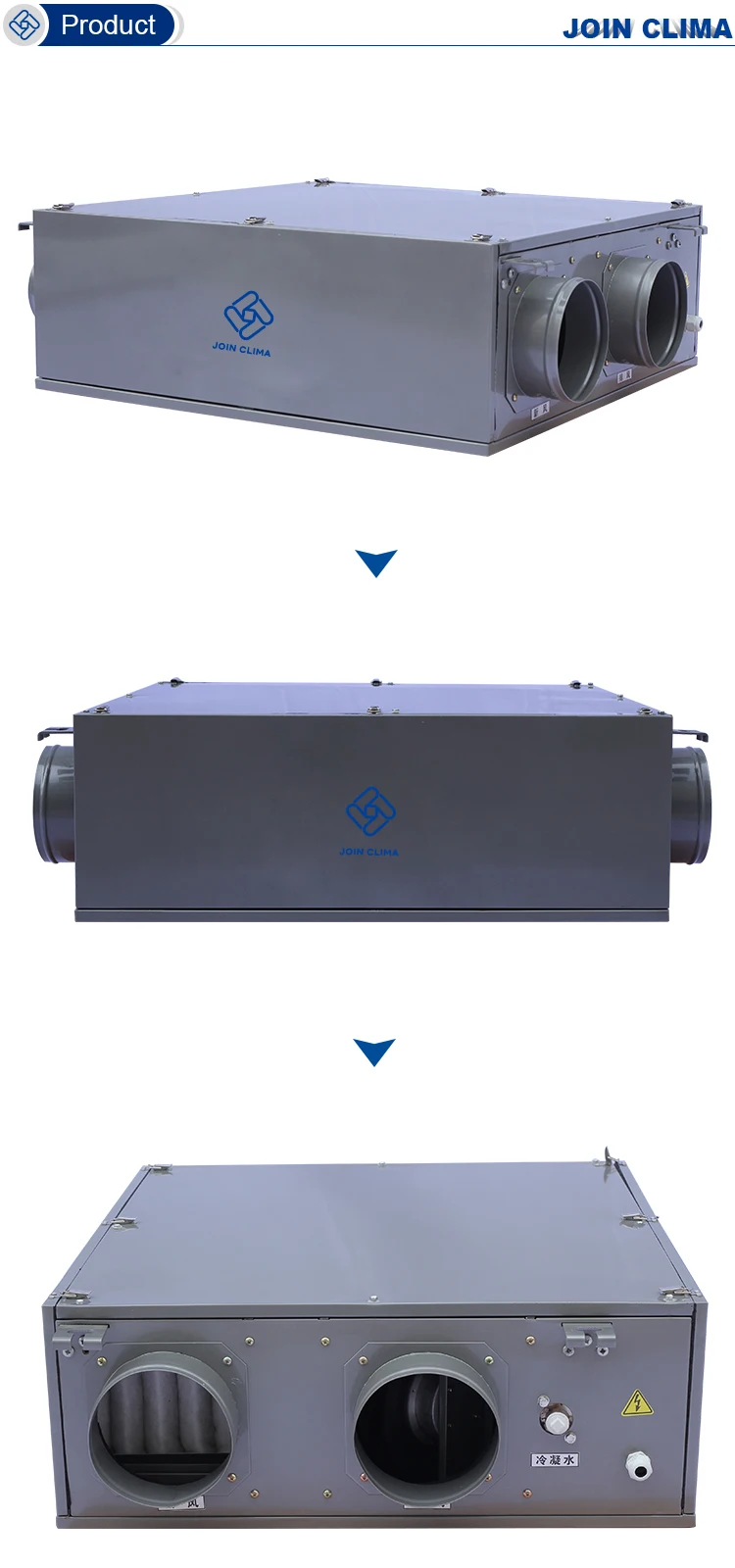

Product Show

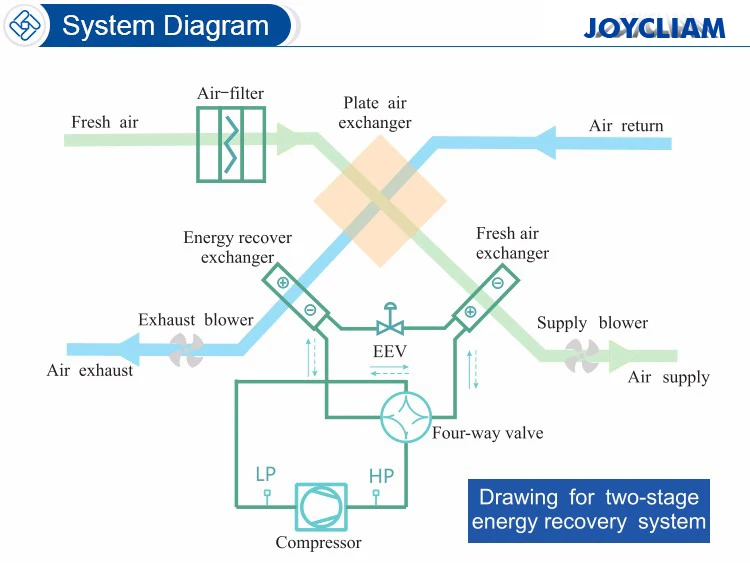

System Diagram

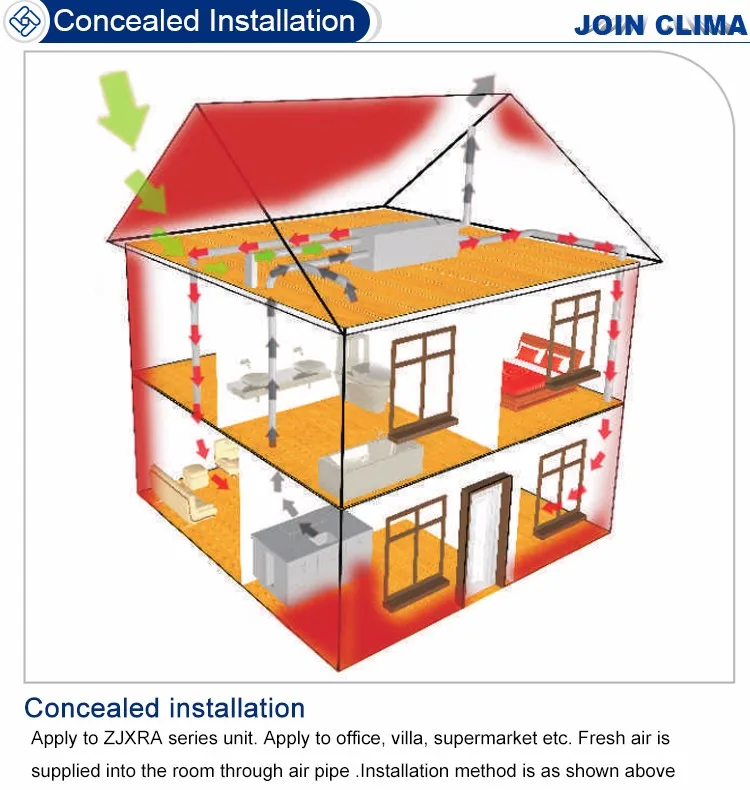

Installation

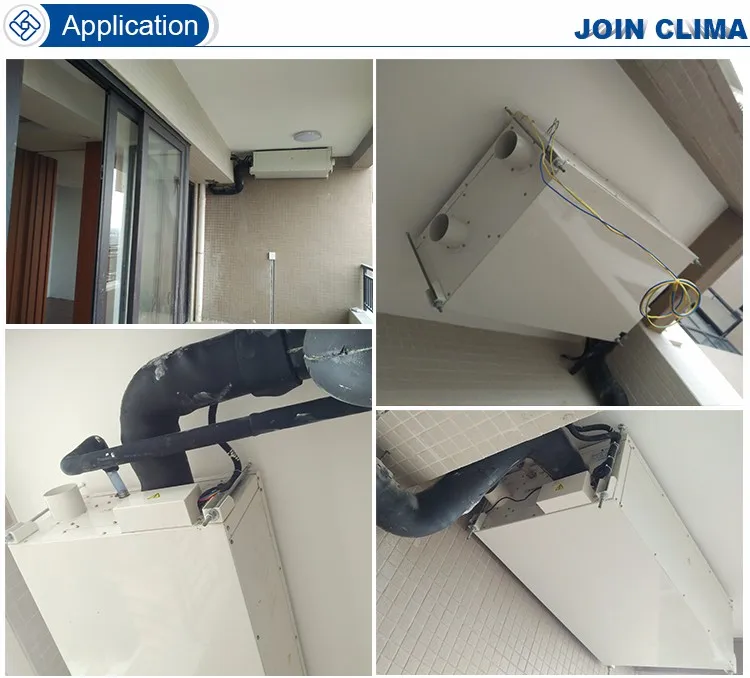

Application
 |  |  |  |
