Product Overview
Description
| Specification | Details |

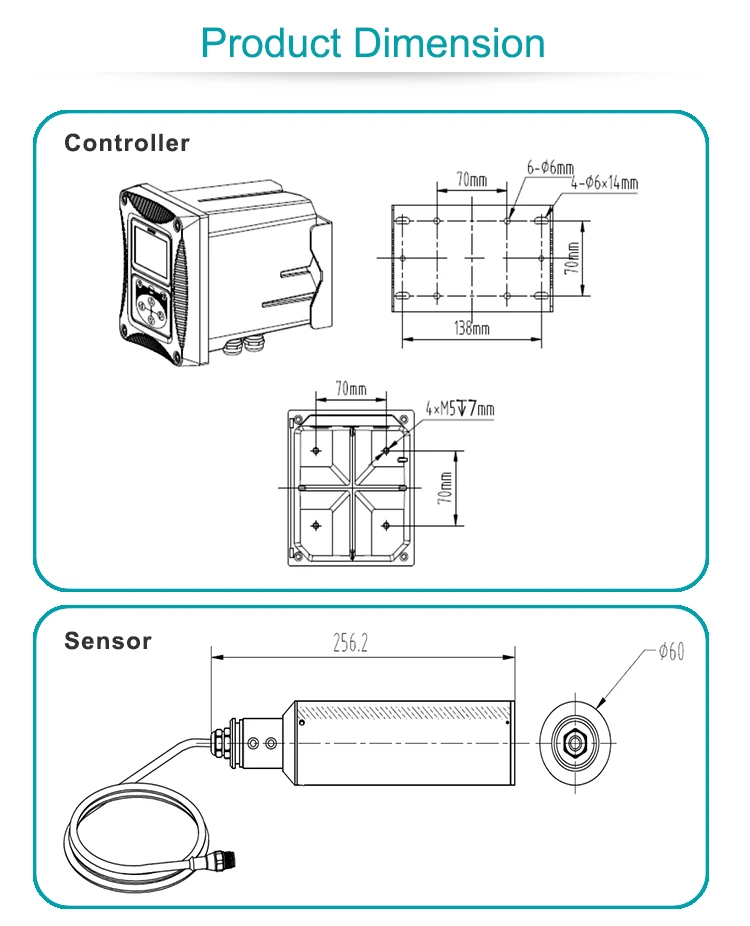

| Size | 145*125*162mm L*W*H |
| Weight | 1.3KG |
| Material of outside shell | lower casing:Aluminum with powder covering |
| cover:PA66+GF25+FR | |
| Waterproof Rate | IP65/NEMA4X |
| Storage Temperature | -20 to 70℃ |
| Operation Temperature | -15 to 60℃ |
| Power Supply | AC:AC220V, 50HZ, 5W DC:DC24V |

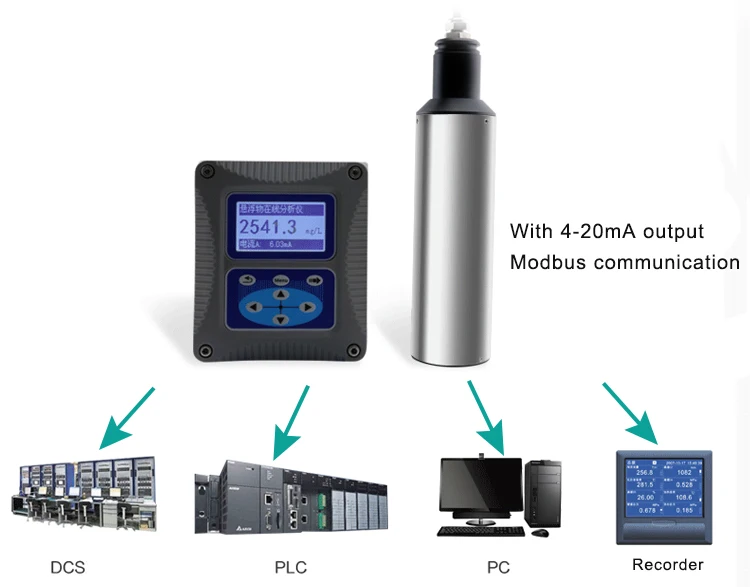

| Output | three-way analog output 4-20mA, response parameters and corresponding scope can be programmed |
| Note: the maximum load is 500 ohms | |
| Relay | three-way relay can be set up, and response parameters and response values can be programmed |
| Display Output | 128 * 64 dot matrix LCD with LED backlight, which can be operated under the direct sunlight |
| Digital Communication | MODBUS RS485 communication function, which can transmit real-time measurements |
| Warranty Period | 1 year |

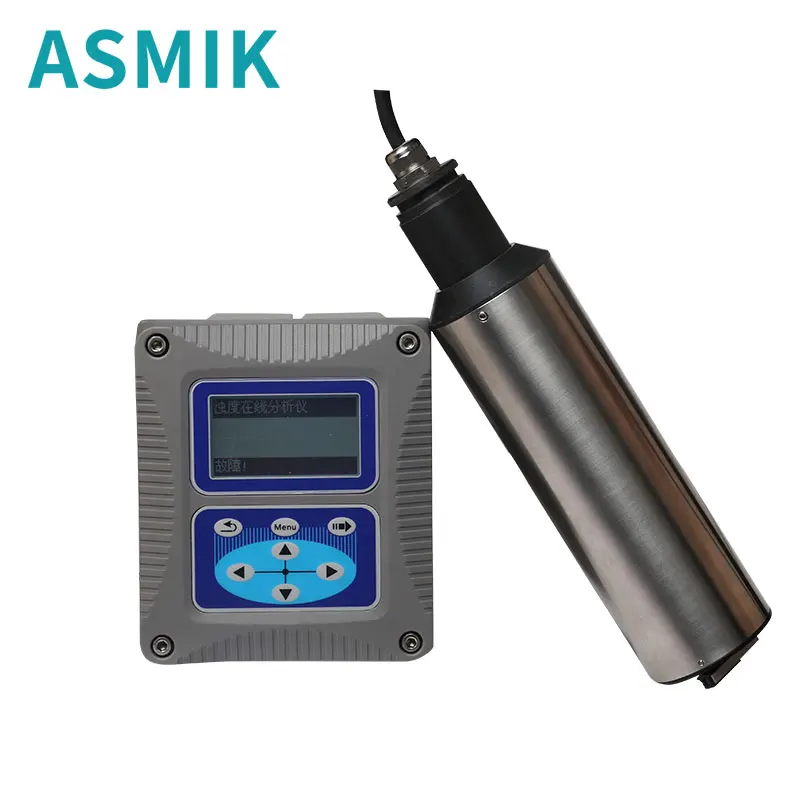

Turbidity sensor
| Specifications | Details |
| Size | Diameter 60mm* Length 256mm |
| Weight | 1.65 KG |
| Main Materials | Main Body:SUS316L (Ordinary Version),Titanium Alloy (Seawater Version) |
| Upper and Lower Cover:PVC;Cable: PVC | |
| Waterproof Rate | IP68/NEMA6P |
| Measurement Range | 0.01-100 NTU ,0.01-4000 NTU |
| Indication Resolution | Less than ± 2% of the measured value, or ± 0.1 NTU Maximax criterion |
| Pressure Range | ≤0.4Mpa |
| Flow velocity | ≤2.5m/s,8.2ft/s |
| Storage Temperature | -15~65℃ |
| Environment Temperature | 0~45℃ |
| Calibration | Sample Calibration, Slope Calibration |
| Cable Length | Standard 10-Meter Cable, Max Length: 100 Meters |
| Warranty Period | 1 Year |
| High Voltage Baffle | Aviation Connector, Cable Connector |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2. Q: Where is your factory located?
A:Our factoriy is located in Hangzhou, zhejiang province, China.
3. Q: How can I get some samples?
A: Welcome to contact us by e-mail or alibaba for samples.
4. Q: How does your factory do regarding QC?
A:Quality is priority. We always consider quality as the most important thing during the whole production process. Our factory has gained ISO9001 and CE certificate.
5. Q: What is your after-sale service?
A: We offer guarantee on our product and we have the special After-sales service team.
6. Q: What is your MOQ?
A: Any quantity is acceptable for your order.
7. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the quantity of your order.
