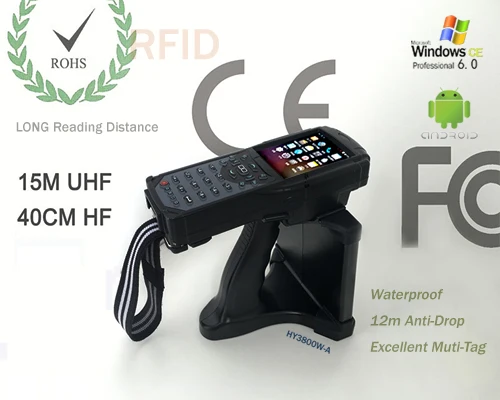

Best Performance High Quality rugged RFID UHF 15 meters / HF 40cm Long range android/wince handheld reader FCCCE RoHS
- Category: >>>
- Supplier: Hyin Technology Co. Ltd.
Share on (60708543063):
Product Overview
Description
Product Description

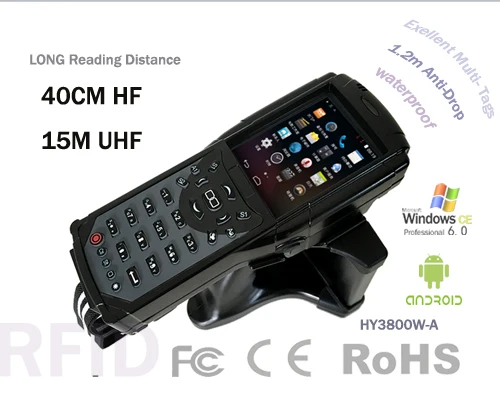

HY3800W-A
rfid long range 40cm NFC 15meters uhf android handheld reader or wince
Video download link
//www.hyintech.com/en/download.asp?pid=1&cid=23
Industrial Handheld Computer
Super Power Battery
Android or wince System
1.2 Meters Anti-Drop
Introduction
1. Compact structure design, multi internal plastic buffer, sustain 1. 2 meters drop,
2. Super Power Battery 7.4V,2600MAH/3.7V,5200MAH, Long Working Time. Sustain consecutive Working above 10 hours (depends on specific situation), 10 days standby. Extended battery life.
3. Efficiency and power saving 1.2GHZ CPU System ,Long working time.
4. Readable under sun-shine 3.5 inch LCD
5. Android or wince System
6. Hardware extendable functions
7. High capability Barcode scanner engine, Designed for 10 years using.
8. Sensitive RFID (LF/HF/UHF)Module
9. Wifi &BT( Standard), GPRS/3G(optional),GPS/Optional, Camera/Optional
10. Wireless Charging(Optional)
11. Support further software development, SDK(Software Development Kit ) Provided
Specification
| 1.2 GHZ Due Core | |
OS |
| Android 4.4 |
Memory | RAM | 1GB |
F-ROM | 4GB | |
Barcode Scan engine | Scanner | 1D /2D Laser Barcode Scanner |
Module | Opticon /Moto | |
Scan Speed | 100 times per second +-2 times | |
Scan Distance | 60-650mm | |
Angle | 54±5 | |
Width | 60-360mm At Max Reading Distance | |
Resolution | 0.127-1.00mm | |
Code | UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded; | |
RFID | LF 125KHZ | Max Reading10cm |
LF 134.2KHZ | Max Reading 40cm | |
HF 13.56MHZ | Max Reading 40cm | |
UHF 860-928M | Max Reading above 15Meter | |
LCD | Type | TFT-LED QVGA Touch Screen |
Resolution | QVGA(240X320)Readable Under Sun Shine | |
Size | 3.5 inch | |
Input | Soft Keyboard | English, Chinese Input(Multi Language Customizable) |
Hard Keyboard | 30 Key | |
ScanKey | At the Middle | |
Function Modules | Standard | WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5 |
Standard | BT V3.0 | |
Optional | Internal 3M camera | |
Optional | Internal GPS Signal 48,Accuration 2.5m,Speed below 0.01m/s | |
Optional | Internal LF/HF/UHF RFID Reader | |
Optional | Internal GPRS/3G WCDMA | |
Power | Main Power | 7.4V,2600mah/3.7V 5200mah Li-ion |
RTC Battery | Button battery | |
Standby | 10 days | |
Working | Above 10 hours, depends on specific situation | |
Extension |
| Micro SD/TF Slot |
Industrial Standard |
| IP54 |
Size | Human Engineering Design | 190(L)×78(W)×40(T) mm |
Weight |
| 800g( Including Battery) |
Working Environment | Operation Temp. | -15~+50℃ |
Storable Temp. | -20~+60℃ | |
Working Wet | 5-95% | |
Storage Wet | 5-95% | |
Anti-Drop | 50 inch(1.2Meters)Multi Drop |

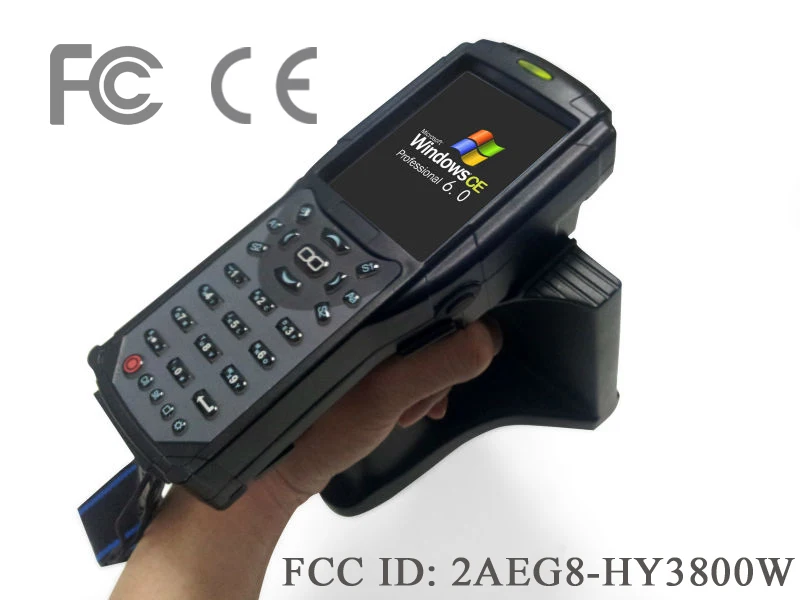

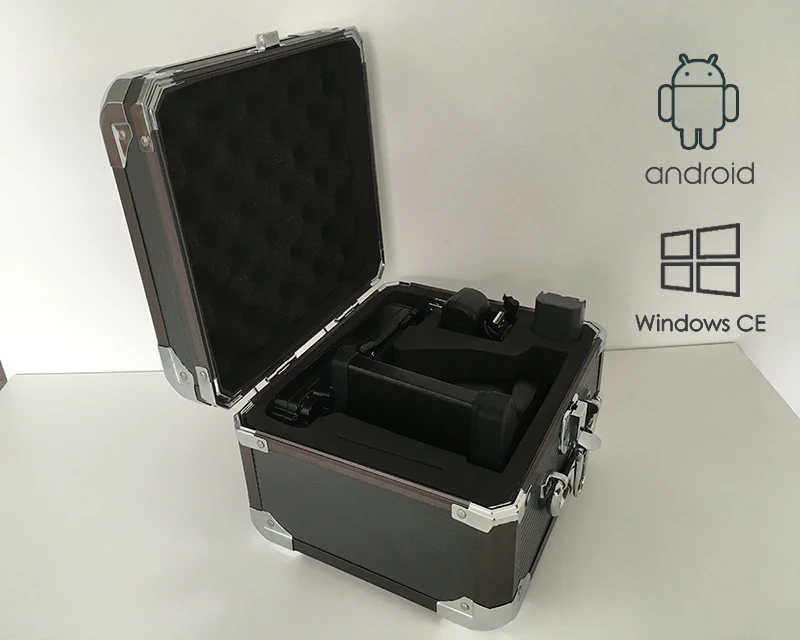

Detailed Pictures
........................................................................................

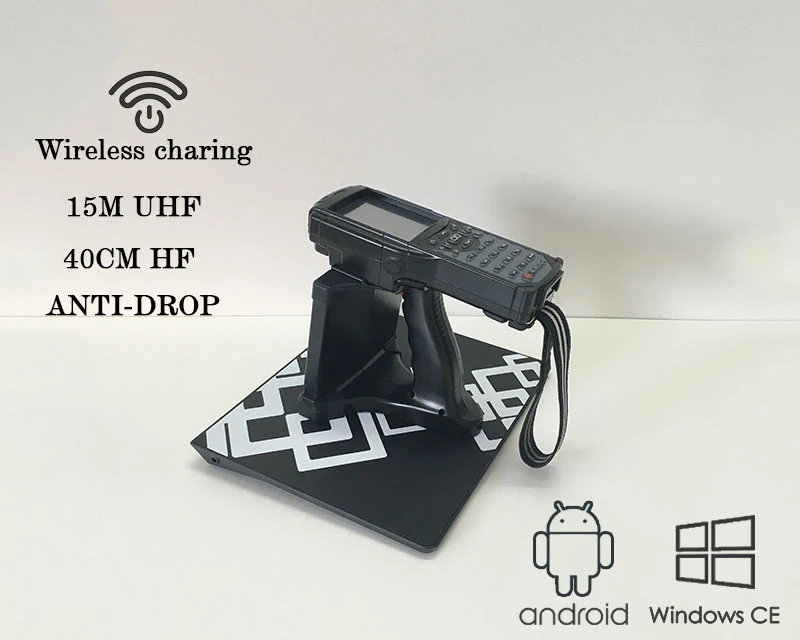

Wireless Charging
.........................................................................................

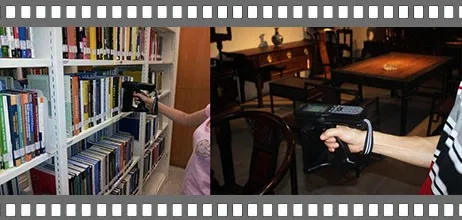

Application
15M Long Range Handheld Computer
with RFID Software Solutions

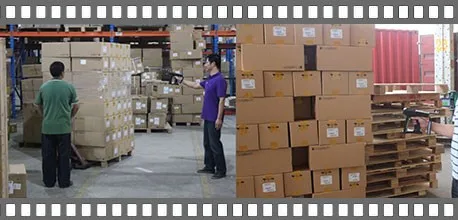

Inventory/ Warehouse/ Animals/ Attendance/ Laundry/ Jewelley Management

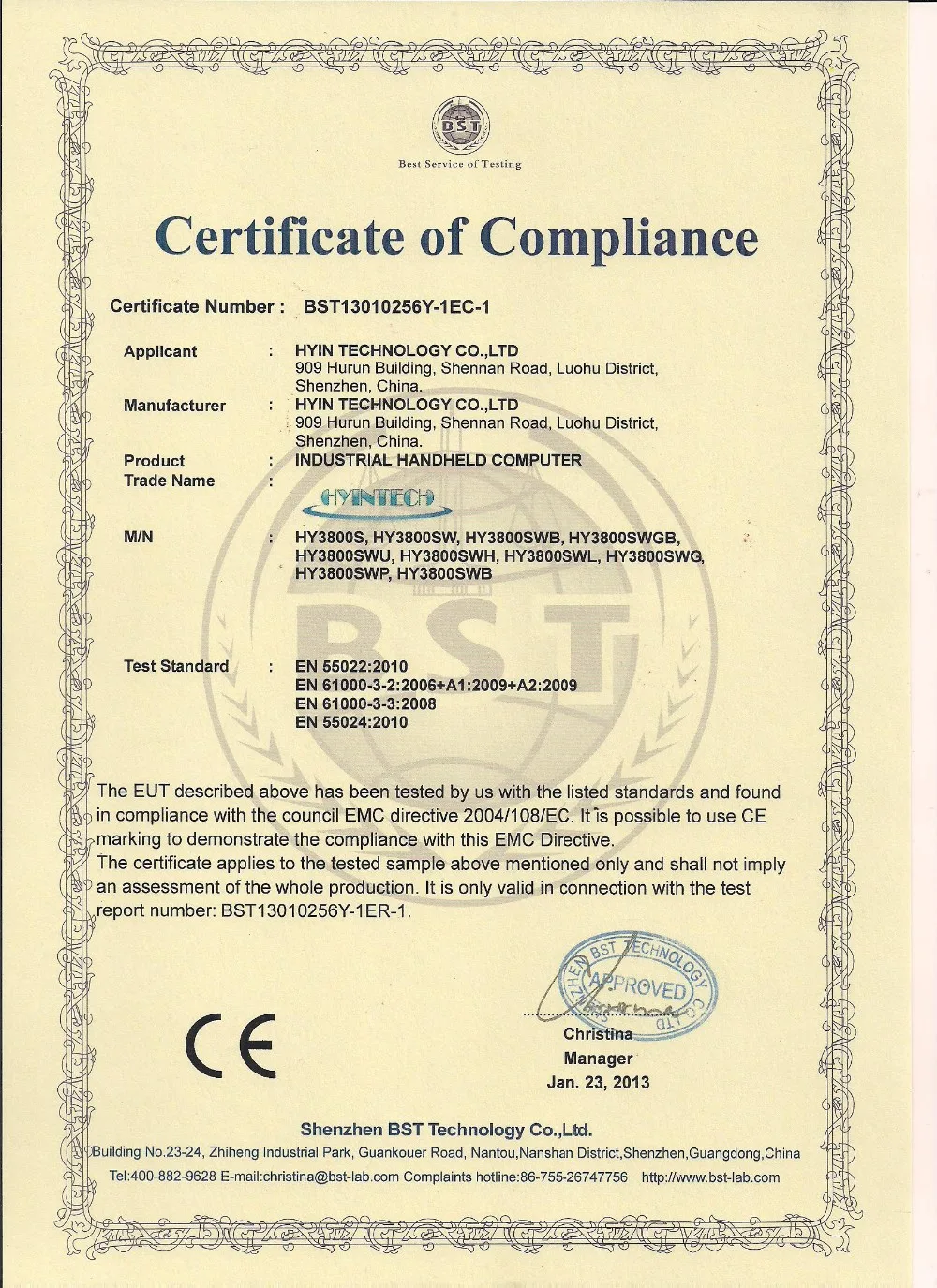

Certifications
CE

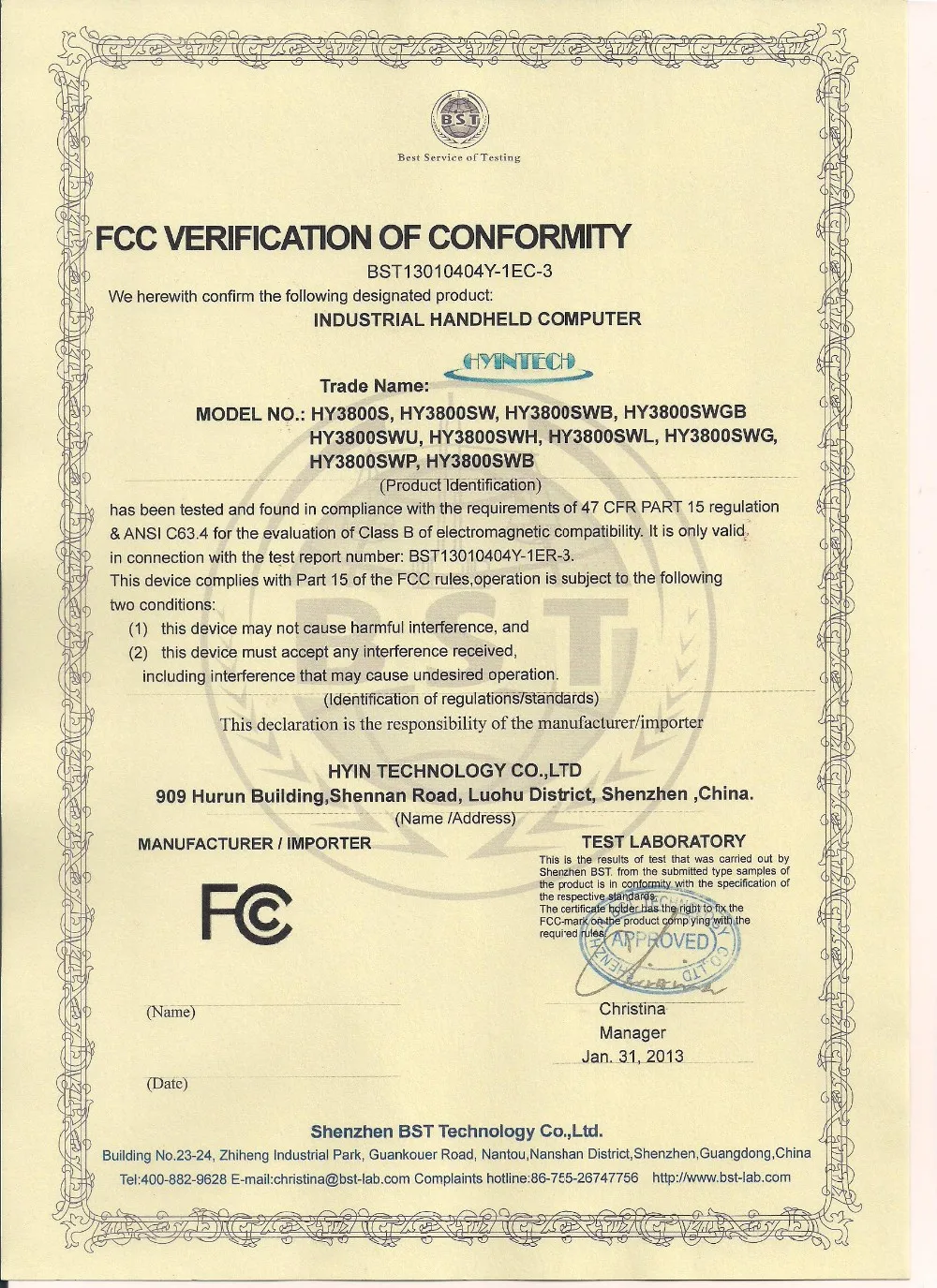

FCC

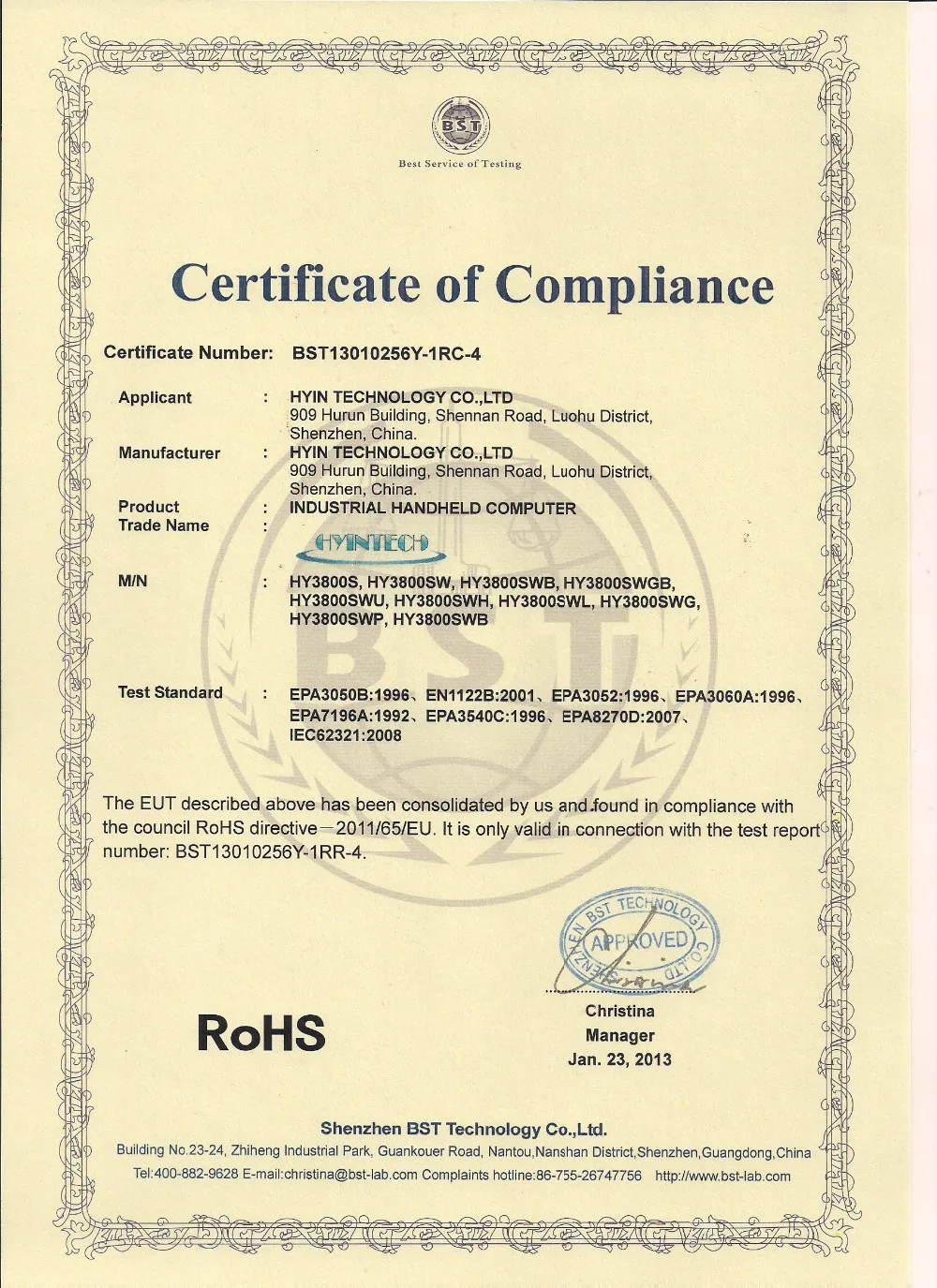

RoHS
Company Information
HYINTECH, Since 2003,8th year Trustpass Golden Supplier in Alibaba, is the leading Industrial Rugged Handheld Computer , RFID Reader & Tag Manufacturer.
HY3800W handheld, with world leading technology, UHF 15 meters, HF(ISO15693 13.56MHZ)40CM, multi tag reading.
FCC, CE, IEC60950, RoHS certified.
More information, please visit our website:
//www.hyintech.com/
