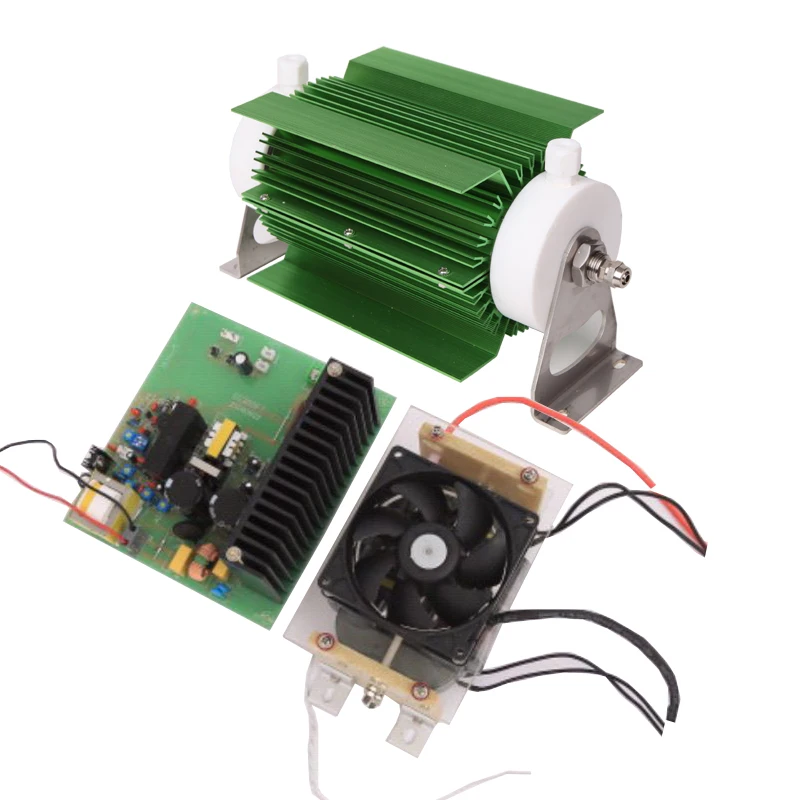

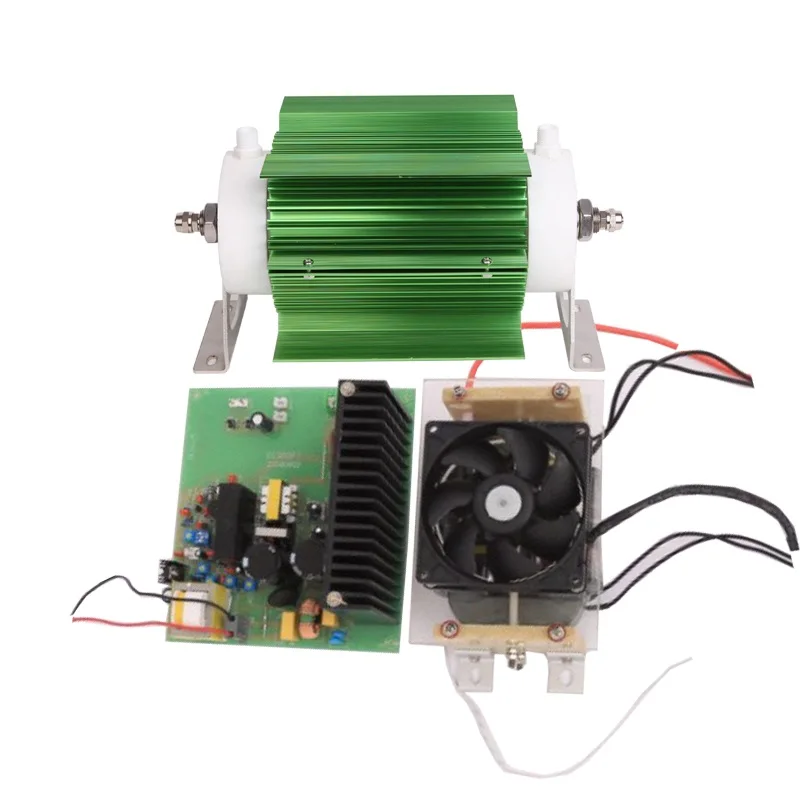

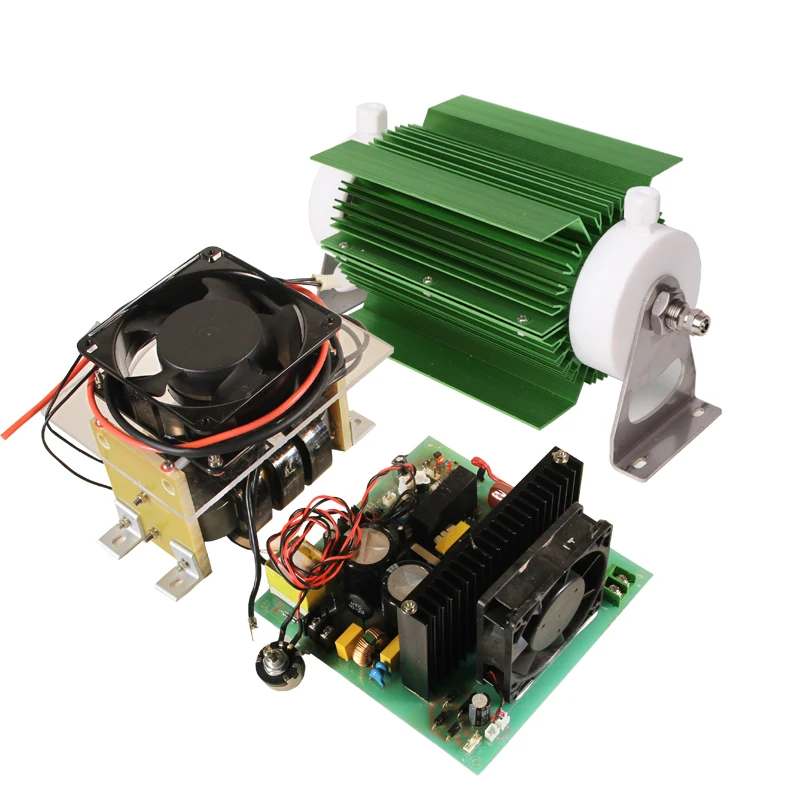

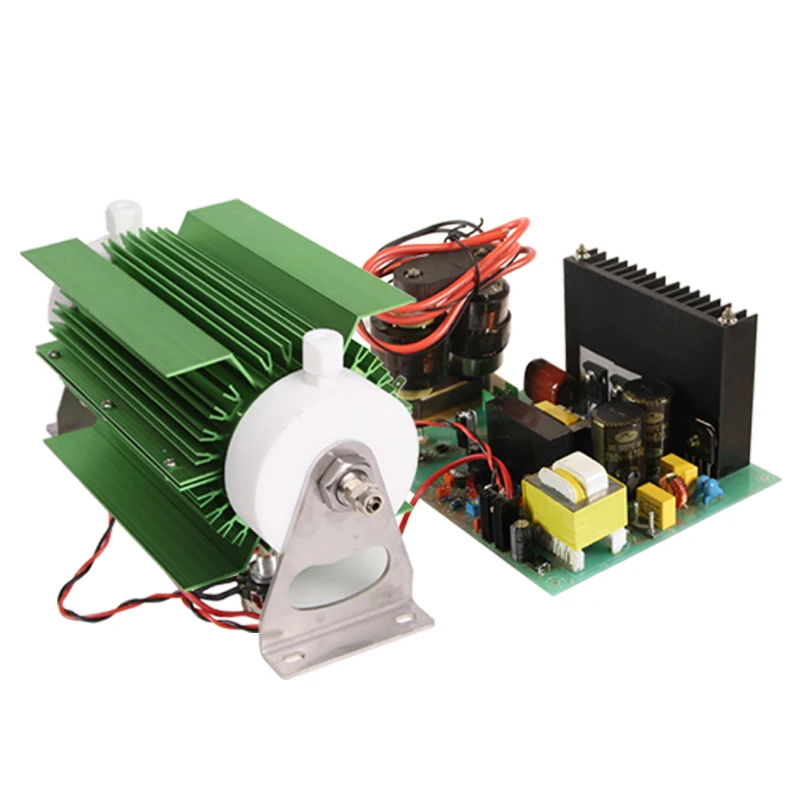

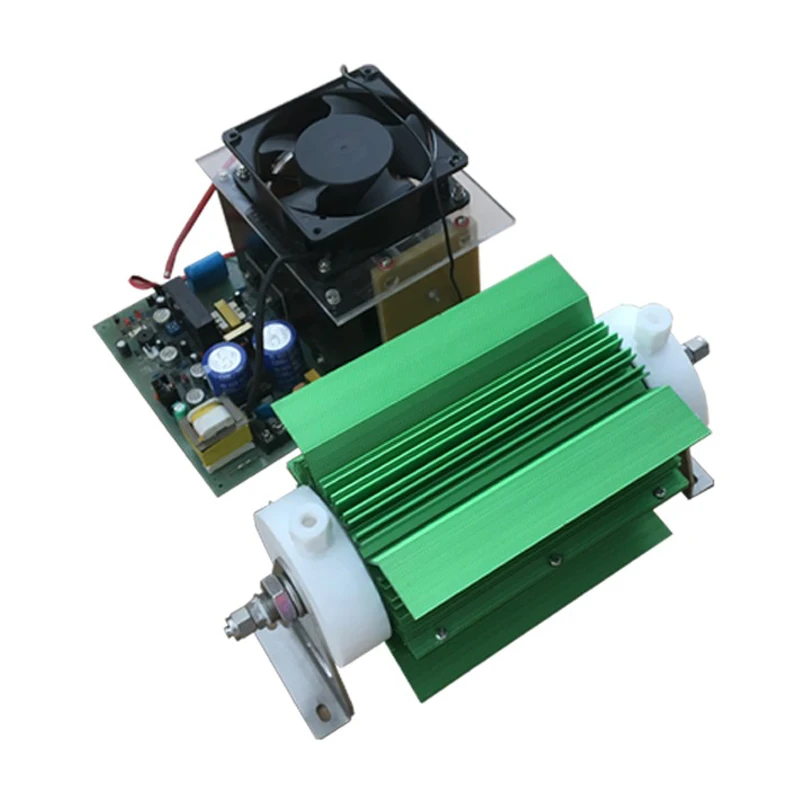

Factory price 20G 30G 50G ozone generator tube /corona discharge ozone tube for water treatment
- Category: >>>
- Supplier: Shenzhen Ozonegreenplant Technology Co. Ltd.
Share on (60708551219):
Product Overview
Description
Factory price 20G 30G 50G ozone generator tube /corona discharge ozone tube for water treatment
Features:
1- Electrodes: Use Ceramic tube as external electrode, stainless steel as internal electrode.it produces high concentration ozone output.
2- Cooling way: Water cooled for internal & Air cooled for external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
3- Adjustable ozone output: 20-100%.Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
4- High ozone concentration and ozone output range 15G ~50g/hr.
Specification:
| Item | Unit | OGP-CR15GA | OGP-CR20GA | OGP-CR30GA | OGP-CR50GA |
| Oxygen flow rate | LPM | 3~5 | 2-7.5 | 5~10 | 10~15 |
| Ozone concentration | Mg/L | 66-53 | 100-52 | 74~51 | 68~58 |
| Ozone output | G/Hr | 11.8-15.9 | 12-23.4 | 22.2-30.6 | 40.8~52 |
| Power | Kw | ≤0.2 | ≤0.396 | ≤0.55 | ≤0.7 |
| Cooling method | Water cooled for internal electrode + air cooled for external electrodes | ||||
| Cooling water flow rate | LPM | 3L/MIN | 3L/MIN | 5L/MIN | 6L/MIN |
| Cooling water temperature | ℃ | 35 | 35 | 35 | 35 |
| Fitting size | mm | 1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ8mm | |||
| Adjustable range | % | 20-100 | 20-100 | 20-100 | 20-100 |
| Power supply | V/Hz | 110/220V 50/60HZ | |||
| Ozone tube dimension | mm | 263*141*154 | 263*141*154 | 296*141*154 | 320*142*154 |
| Power supply dimension | mm | 158*141*88 | 177 x 161 x 109 | 240 x 180 x 142 | 177*161*102 |
| Ozone tube weight | Kg | 3.62 | 3.62 | 4.21 | 4.8 |
| Power supply weight | Kg | 1.74 | 1.74 | 3.36 | 3.36 |
OGP-CR15G Water Cooled Ceramic Ozone Generator With Adjustable Electric Card.
OGP-CR20G Water Cooled Ceramic Ozone Generator With Adjustable Electric Card.
OGP-CR30G Water Cooled Ceramic Ozone Generator With Adjustable Electric Card.
OGP-CR50G Water Cooled Ceramic Ozone Generator With Adjustable Electric Card.
Please check this link for more information of OGP-TC 15G~70G ename ozone generator https://www.alibaba.com/product-detail/70G-Water-cooling-Enamel-ozone-generator_60689003214.html?spm=a2747.manage.0.0.7b1371d2TiVug5
Please click this link for more information https://www.alibaba.com/product-detail/40G-Air-Cooling-Adjustable-ozone-generator_60239001245.html
Please click this product link for more information https://www.alibaba.com/product-detail/3G-6G-8G-10G-Air-Cleaner_60774361330.html
Please click this product link for more information https://www.alibaba.com/product-detail/OGP-Brand-3G-6G-8G-10G_60756196910.html
Please click this product link for more information https://www.alibaba.com/product-detail/3G-5G-6G-8G-10G-Air_60782083475.html
Please click this product link for more information https://www.alibaba.com/product-detail/60G-600G-hr-Corona-Discharge-Ozone_60810490696.html
OGP-OL 3L 5L 8L10L series Oxygen tower with air compressor
Please click the link for more information
https://www.alibaba.com/product-detail/10L-Oxygen-concentrator-portable-for-ozone_62348925819.html
OGP-OX 3L 5L 8L 10L 15L series 12 Towers PSA Oxygen generating unit with air compressor
Please click the link for more information
https://www.alibaba.com/product-detail/10L-high-purity-hydrogen-oxygen-generator_60313665328.html
