Manufacture Double Plug Rotating Cementing Head for wells
- Category: >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.
Share on (60708557237):
Product Overview
Description
Product Description
Double plugs cementing head is special tool for pumping slurry and releasing plug.It can couple with two plugs simultaneously,and makes the drilling fluid
fill into casing in turn and quickly.This can simplify the cementing operation, prevent cement pollution.
Features
Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
It is manufactured utilizing API grade steels with API 8 round, buttress and premium threads.
Double balance pipe is developed.
Positive lever indicates plug releasing.
Main parts are made from AISI4145H alloy steel.
Top cover and union nut with large trapezoidial-threaded.
It makes the tool convenient to disassemble and carry.
Technical Data:
| Specifications(in) | Φ139.7 | Φ177.8 | Φ193 .7 | Φ244.5 | Φ273 | Φ339.7 |
| (51/2") | (7") | (75/8") | (9 5/8") | (103/4") | (133/8") | |
| Overall-Length, mm | 1950 | 2020 | 2020 | 2360 | 2360 | 2440 |
| Manifold | 2" 1502Union | |||||
| I.D. of Plug Container, mm | Φ125 | Φ160 | Φ175 | Φ225 | Φ250 | Φ320 |
| Length of Plug Container,mm | 400 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure, MPa | 35,50 | 35,50 | 35,50 | 35,50 | 35 | 21 |

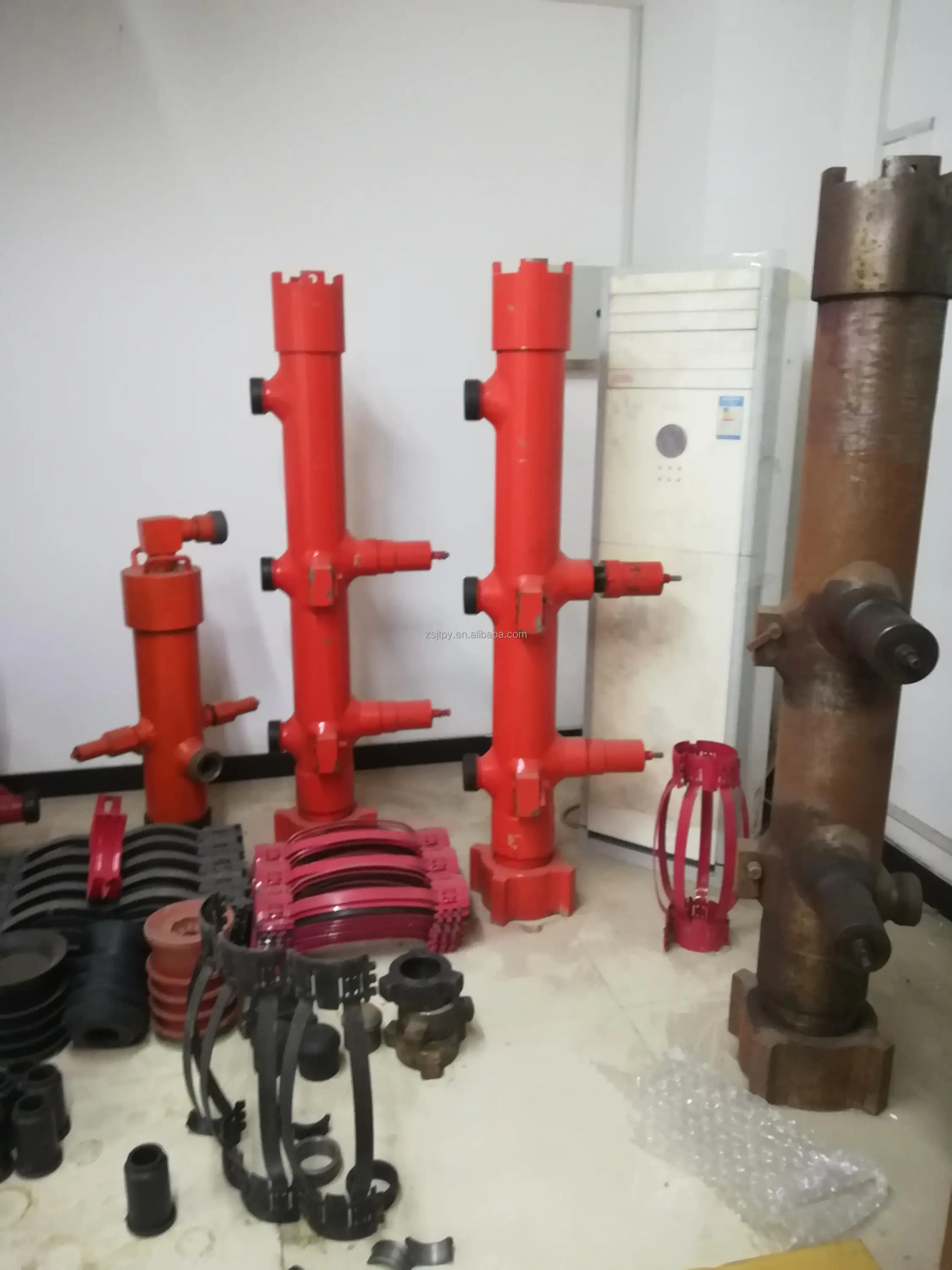

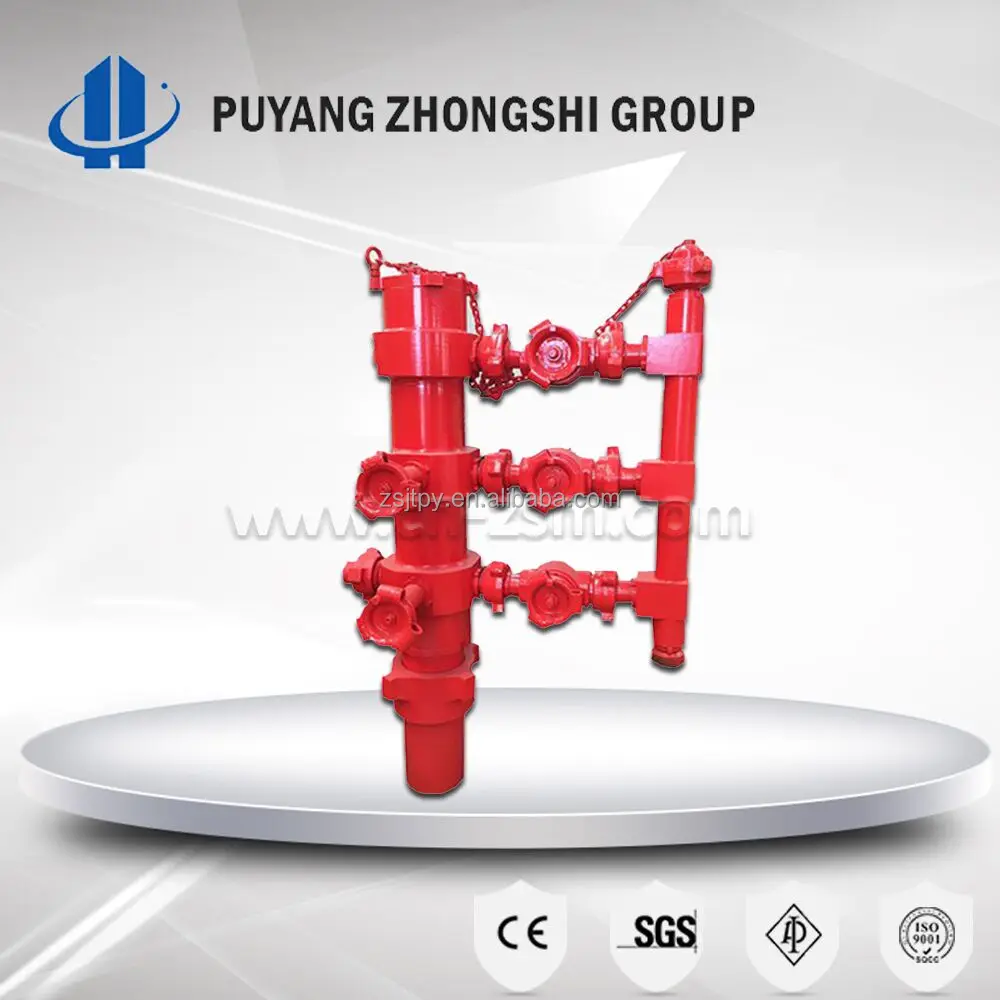

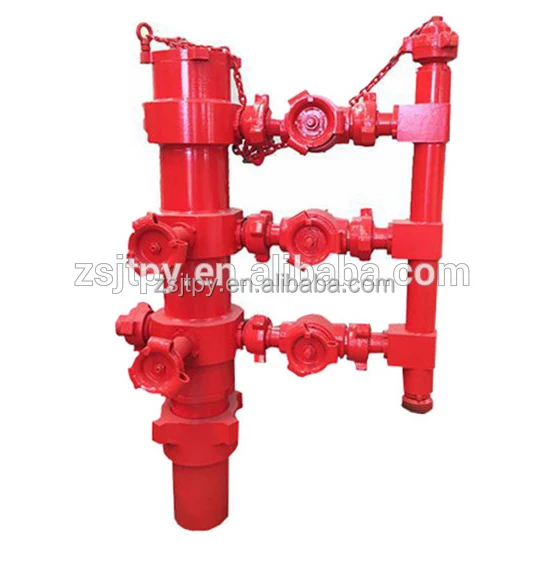

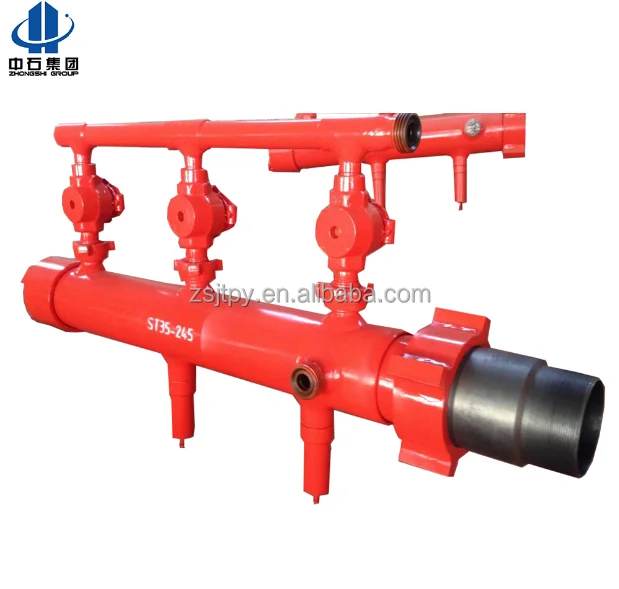

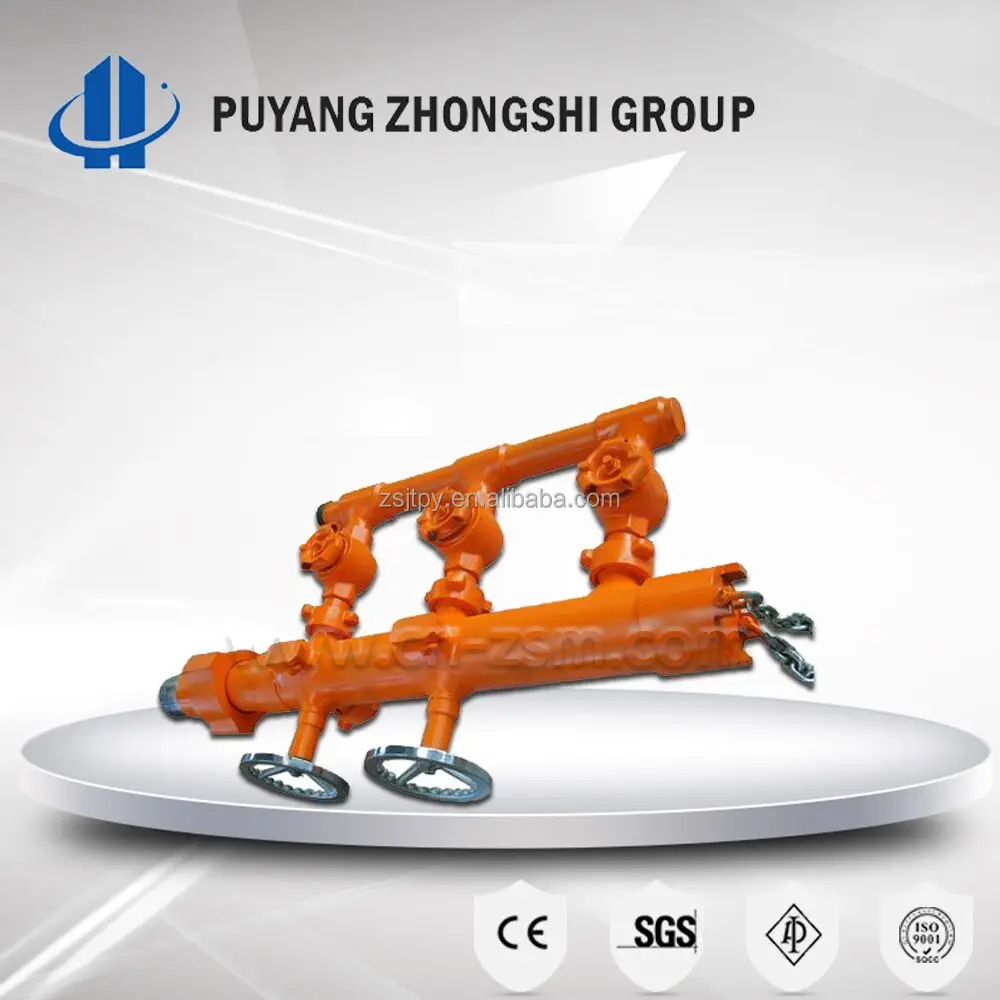

Detailed Images
Packaging & Shipping
C
Company Information
We are a manufacture of Casing Accessories. We Puyang Zhongshi Group Co.,Ltd has more than 20 years in the market .
Our Products are sold to major oil fields, have been exported to over 10 countries and regions in the Middle East, Central Asia, South America and Africa.
