Bar code inkjet printer manual batch date coding machine
- Category: >>>
- Supplier: Guangzhou Topcn Machinery Co. Ltd.
Share on (60708560990):
Product Overview
Description
Inkjet printer can be used in many directions such as clothes, food, paper, toys,bag
Model No | TPTX | ||||||
Dimension | 40*80*235mm | ||||||
Net weight | 0.996kg | ||||||
G.W | 3.5Kg(with protect cover) | ||||||
Printing direction | adjusted within 360 degree, meet all kinds of production needs | ||||||

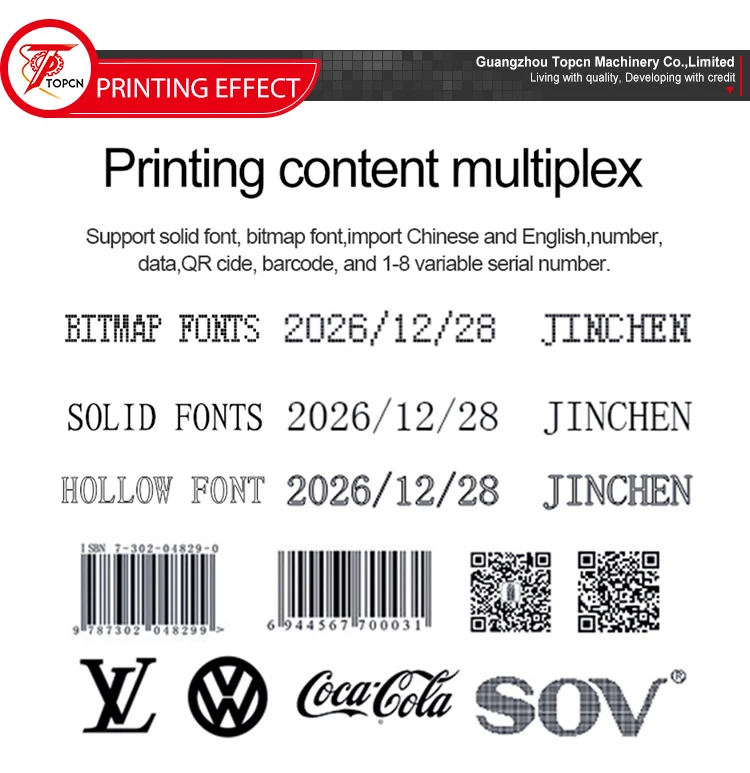

Character type | high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English | ||||||
Printing pictures | all kinds of logo, pictures can be uploaded through USB disk | ||||||
Printing accuracy | 300-600DPI | ||||||
Printing line | 1-8 lines (adjustable) | ||||||
Printing height | 1.2mm-12.7mm | ||||||
Print code | bar code, QR Code | ||||||
Printing distance | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm) | ||||||
Print serial number | 1~9 | ||||||

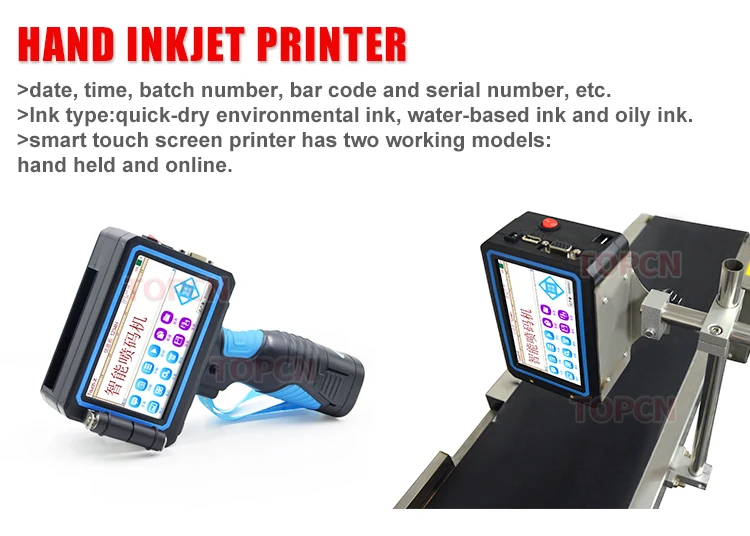

Automatic print | date, time, batch number shift and serial number, etc | ||||||
Storage | the system can store more than 1000 mass (external USB make the information transfer in a free way) | ||||||
Message length | 2000characters for each message, no limitation on length | ||||||
Printing speed | 60m/min | ||||||
Ink type | Quick-dry environmental ink, water-based ink and oily ink | ||||||
Ink color | black, white, red, blue, yellow, green, invisible | ||||||
Ink volume | 42ml(usually can print 800,000 characters) | ||||||

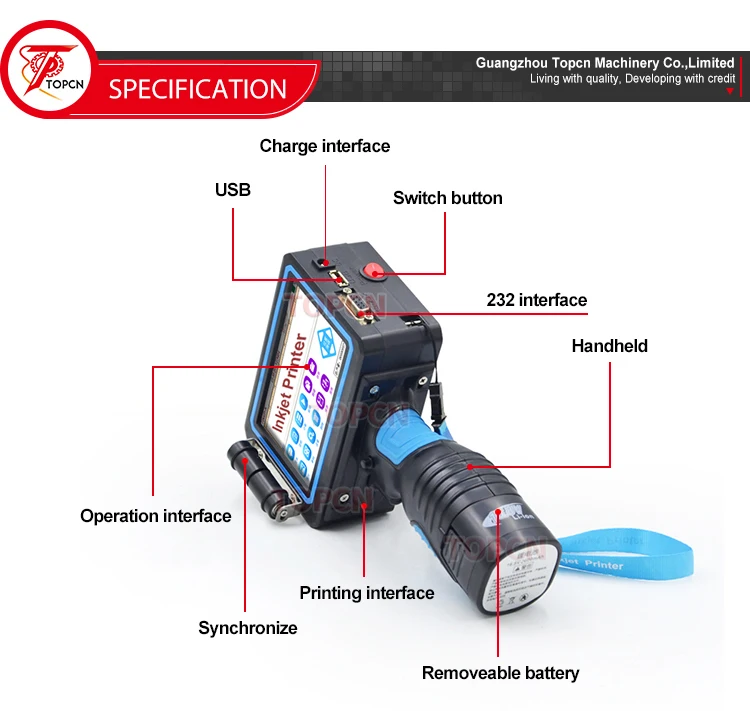

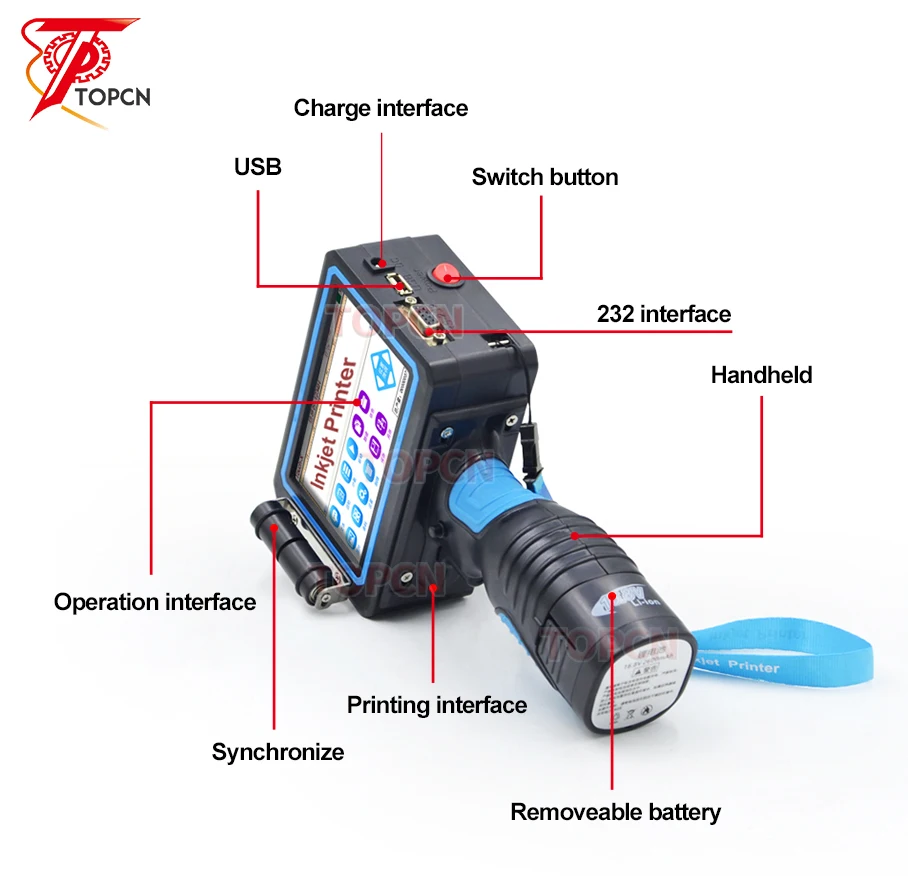

External interface | USB, DB9, DB15, Photoelectric interface, can directly insert a USB disk to upload information | ||||||
Voltage | DC14.8 lithium battery, print continuously more than 10 hours and 20 hours standby | ||||||

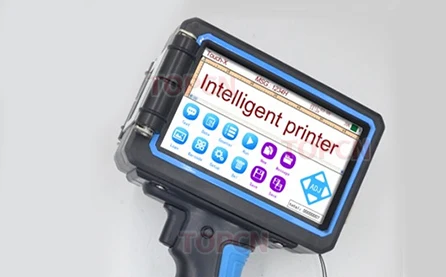

Control panel | touch-screen (can connect wireless mouse, can also edit information through the computer) | ||||||
Power consumption | the average power consumption is lower than 5W | ||||||
Working environment | Temperature:0 - 40 degree; Humidity: 10% - 80% | ||||||
Printing material | board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc. | ||||||
Show Details

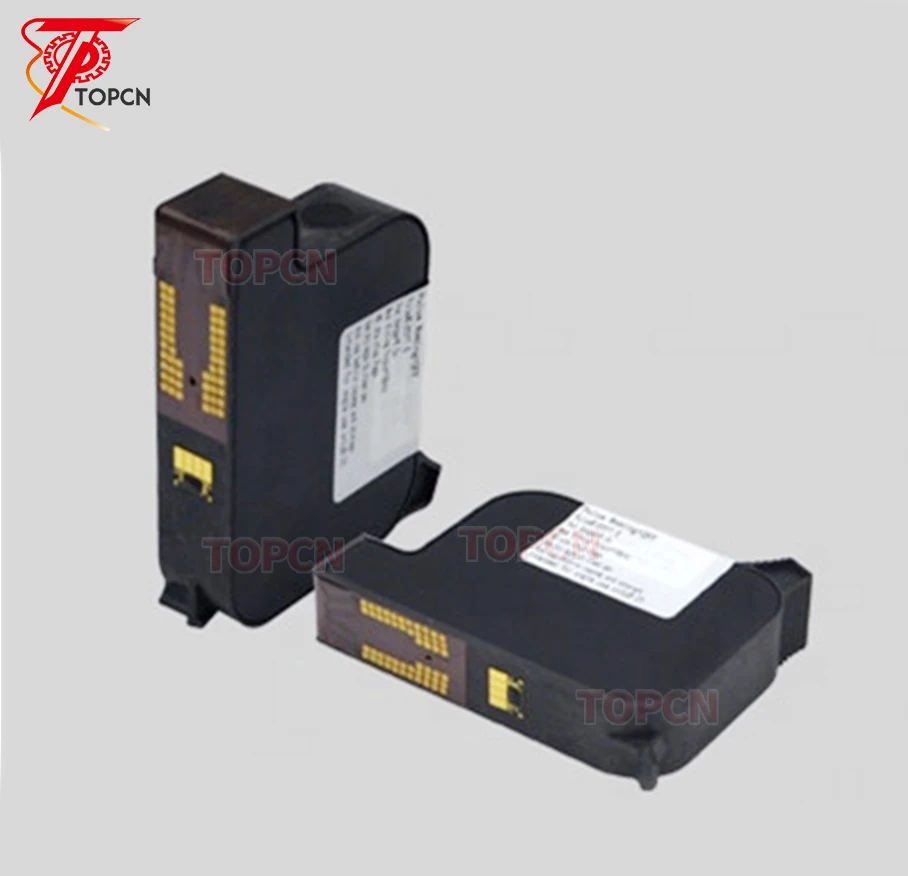

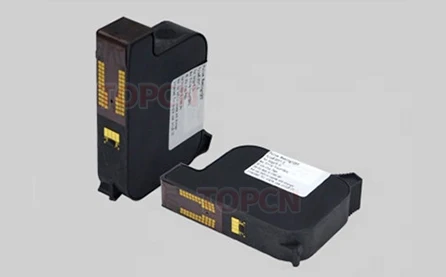

Cartridge for quick-drying ink
Supporting black, red, blue, green
yellow, orange, white and invisible Cartridge

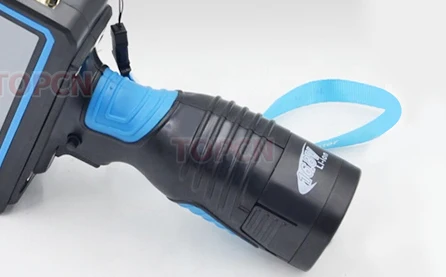

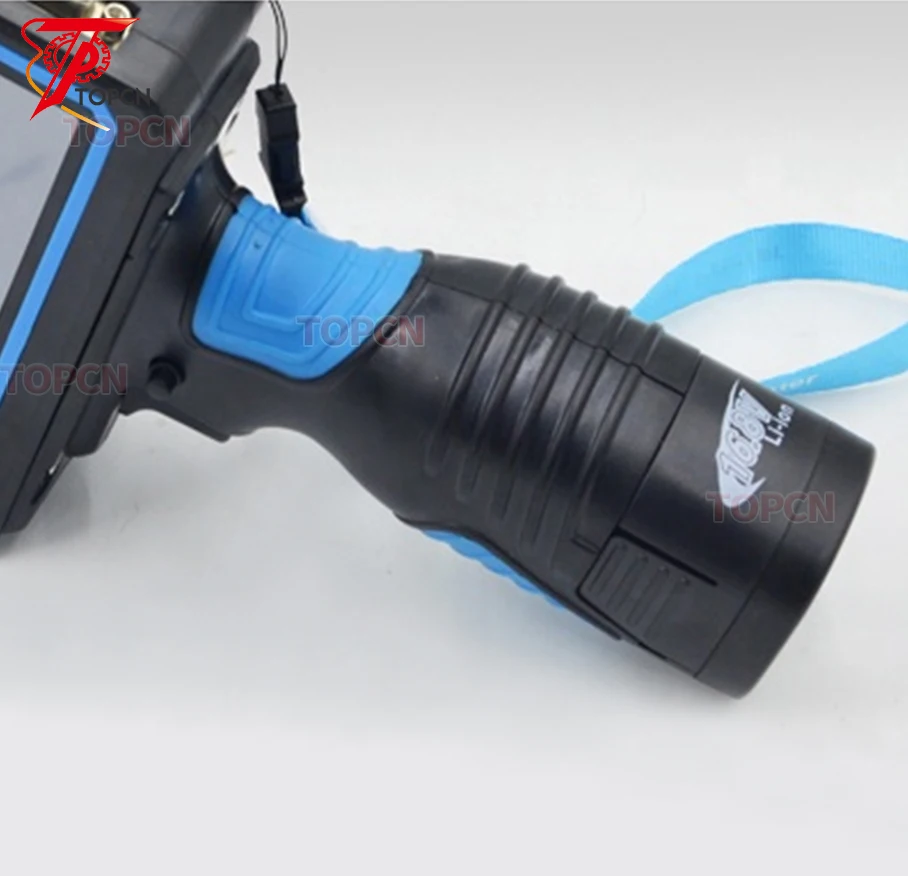

No slip handle for tightly holding, closely fit with our palm for labor saving

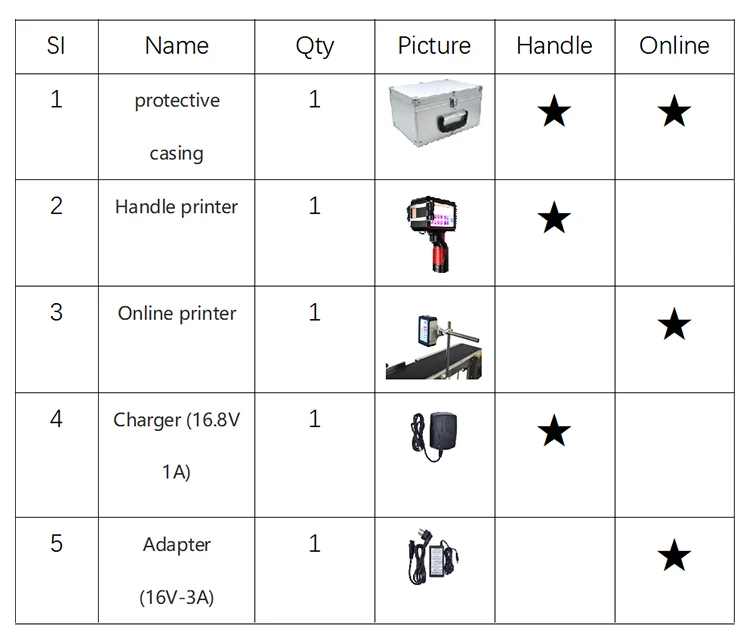

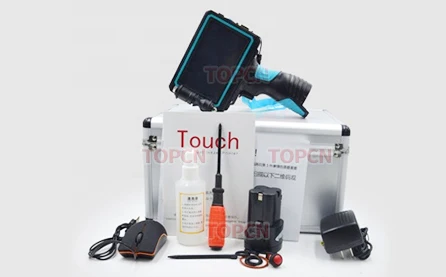

Spare parts together with the printer
including charger, battery, cartridge etc.
