Product Overview
Description
Cybex SCKM 100 Series Secure Desktop KM Switches
Product Description
IT Management
Cybex SCKM 100 Series Secure Desktop KM Switches
Access up to four systems simultaneously and navigate between systems effortlessly. The Avocent SCKM switch provides real-time access to up to 4 systems at a time from a single keyboard and mouse.
Features
Outstanding Security:
- Designed to meet the specifications of NIAP Protection Profile for Peripheral Switching Devices, version 3.0
- Unidirectional Optical Data Diodes assure USB peripheral isolation enabling data flow from devices to host only
- Hardware-based peripheral isolation loads all firmware on ROM with no keyboard bu ering or memory
- Full USB device filtering to assure support for keyboard and mouse only
- Dedicated Peripheral Port permits a secure connection to external USB devices, including CAC smart card readers, fingerprint readers and face recognition devices (SCKM145 only)
- Always-on active anti-tampering system
Enhanced Usability: Cursor Navigation Switching allows the user to switch control between systems by simply moving the cursor from one display to another
Specifications
Specifications
PART NUMBER | SCKM120 | SCKM140 | SCKM145 |
System Connections | 2 | 4 | 4 |
Dedicated Peripheral | n/a | n/a | 1 |
Port (DPP) |
|
|
|
SECURITY FEATURES |
|
|
|
|
| Active anti-tampering system |
|
|
| Unidirectional Optical Data Diodes |
|
|
| Dedicated Peripheral Port (SCKM145) |
|
|
| Full USB Device Filtering |
|
SUPPORTED HARDWARE |
|
|
|
Computer Peripherals |
| USB Type-B |
|
Audio Input/Output |
| 2 x 3.5mm stereo female |
|
MECHANICAL |
|
|
|
Enclosure |
| Steel with Plastic Front Panel |
|
Dimensions WxDxH |
| 342 x 125 x 28 mm |
|
|
| 13.7 x 5 x 1 inches |
|
Weight | 0.4 kg (0.88 lbs) | 1.4 kg (3 lbs) | 1.4 kg (3 lbs) |
Power Requirements | 12V DC, 1.5A | 35W Max Internal | 35W Max Internal |
| External Adaptor |
|
|
AC Input Voltage |
| 100 to 240V AC |
|
ENVIRONMENTAL |
|
|
|
Operating Temperature |
| 32° to 104° F; 0° to 40° C |
|
Storage Temperature |
| -4° to 140° F; -20° to 60° C |
|
Humidity |
| 0-80% RH, non-condensing |
|
Certifications | CE, RCM, FCC class B, VCCI, TUV US, TUV Canada | ||

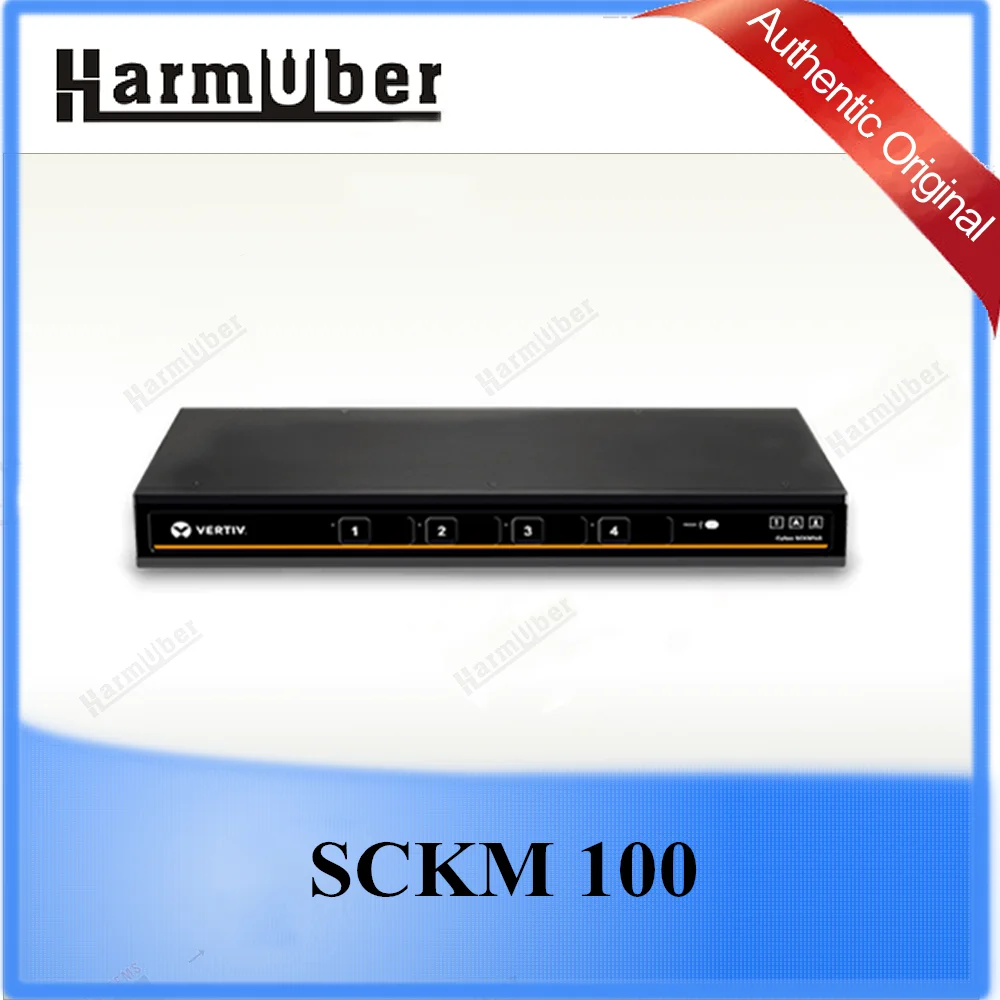

Product Picture
