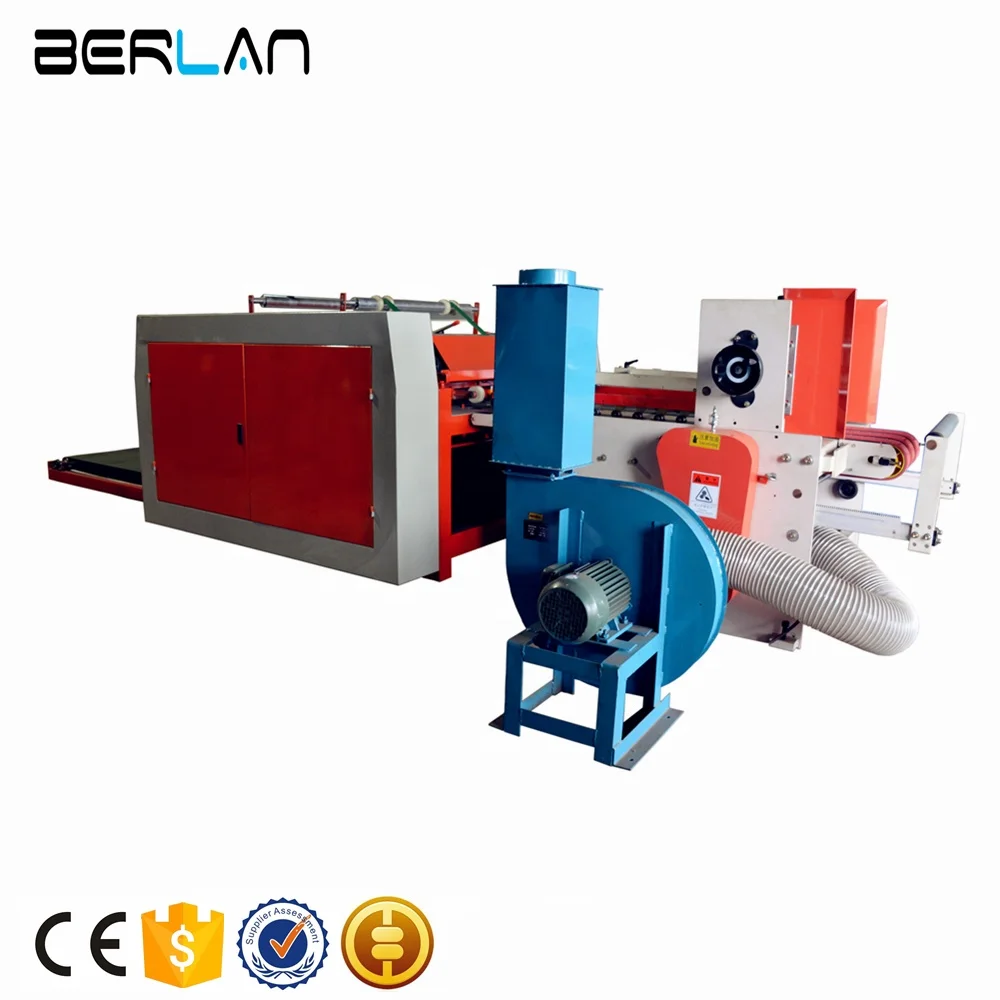

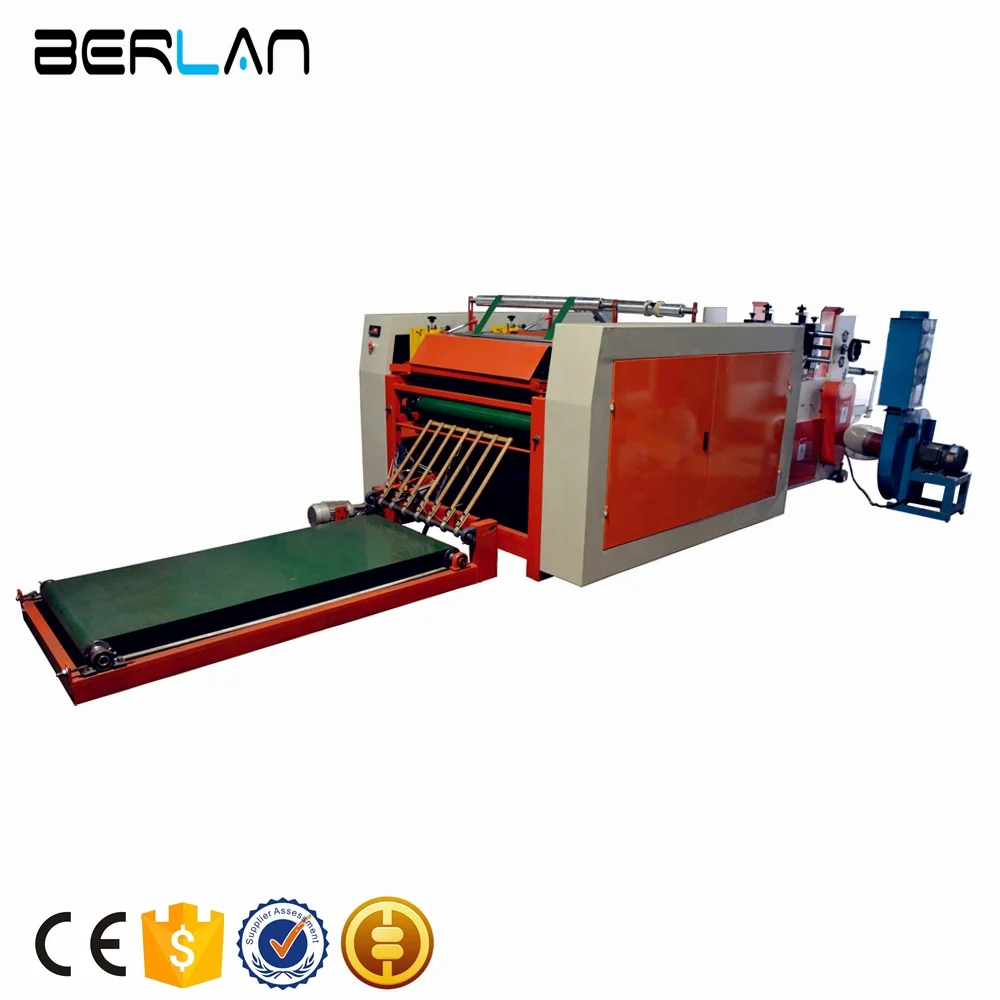

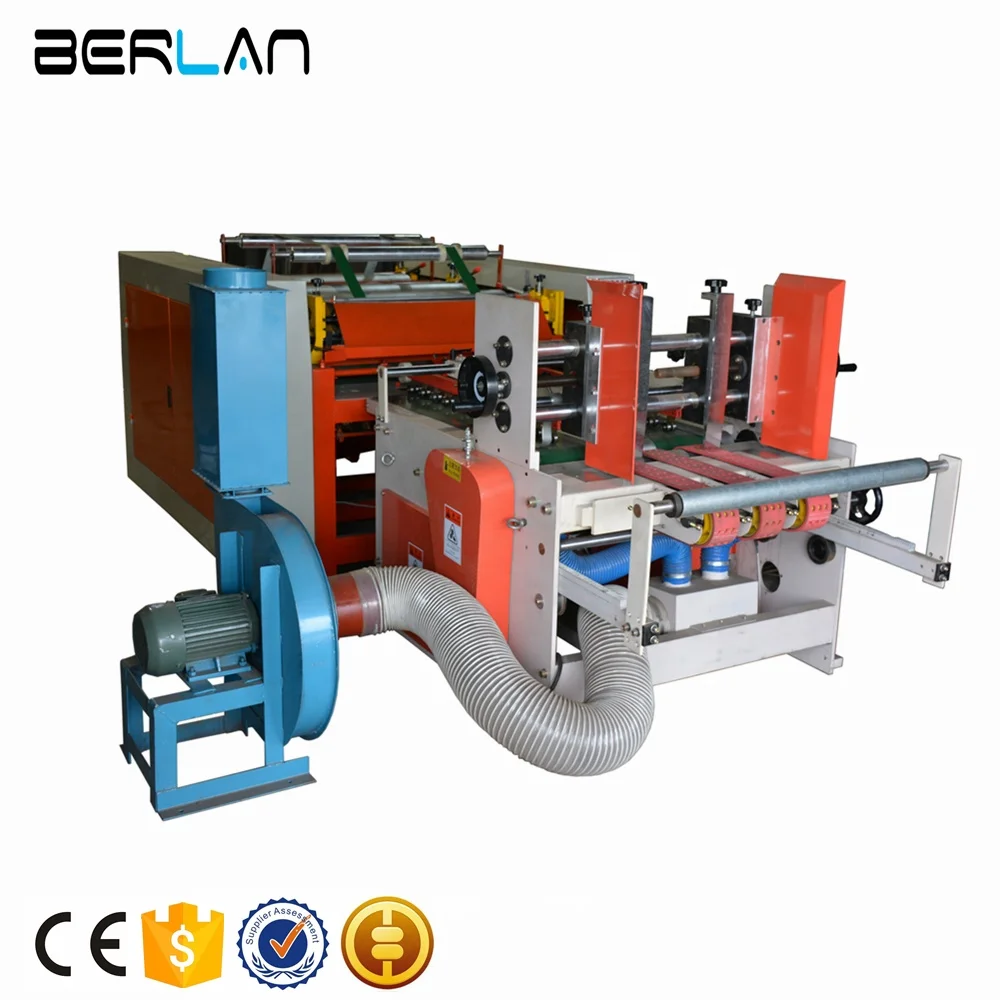

SBY CB 1200 4 Colors Pizza Box Printing Machine
SBY-CB-1200 4 Colors Pizza Box Printing Machine
SBY-CB-1200 4 Colors Pizza Box Printing Machine
SBY-CB-1200 4 Colors Pizza Box Printing Machine
SBY-CB-1200 4 Colors Pizza Box Printing Machine

SBY CB 1200 4 Colors Pizza Box Printing Machine

Share on (60708633383):


Price:

Quantity:


Product Overview

Description


Product Description
\t
PRODUCT NAME
\t
SBY-CB-1200-Series Corrugated Paper Board Flexo Printing Machine
\t
USAGE
\t
Suit For Printing Corrugated Paper Box & Paper Board After Die Cutting And Without Die Cutting.
Feature&Parameter

1.New Model Feeder

Compact structure ,Have many kinds of advantage from feeder counterparts.

Machine frame made of 14mm steel plate ,connect beam made of 12# iron and 10# square steel.

2.Adjustable Material Bracket &Centrigugal Blower

Suit for different size of paper board.Easy operating to adjust width and length

Feeder connect with centrifugal blower ,equiped with engraved roller ,increase friction with convey belt ,make sure paper board sending correctly.

3.Feeder Operate Board

There is one frequency inverter in feeder part ,They connect PLC system& another one frequency inverter in printing part and control printing, make machine highly Synchronization ,work accurately ,fast and effective ,save more power.

4.Printing Part

Printing part machine frame made of 12mm thickness steel plate and 10# square steel.Stronger & Steady.

5.Printing Entrance

There is two electronic photocell eye in sending track and one in printing entrance(Total Three Pieces) ,when paperboard come ,they will command sending wheel to convey material to printing cylinder

6.Ink Circular System

Anilox Roller + Rubber Roller + Ink Circular Pump+Air Compressor,automatic circular ink,make ink always clean ,have a colorful printing effect.
220 Mesh anilox roller. it can transfer ink equably ,especially when you print 2mm size words on material. Anyway,It save Printing Ink.
Shore Hardness 90 Oilproof Rubber Roller,Oilproof character make it long service life.

7.Printing Cylinder

1CM thickness metal produce printing cylinder. And Cylinder surface through chrome plating ,make it smooth and good hardness.

8.Feeding Unit & Printing Unit Control System

Whole machine equipped with 2 frequency inveter.And this two inveter are synchronous control by PLC.

Feeding unit and printing unit all through frequency control by frequency inveter.

8.Back Side Emergency Stop Button , Jog Button

\t
Model
\t
SBY-CB-1200-2
\t
SBY-CB-1200-3
\t
SBY-CB-1200-4
\t
Print Color
\t
2Colors
\t
3Colors
\t
4Colors
\t
Max.Entrance Width
\t
1400(mm)
\t
1400(mm)
\t
1400(mm)
\t
Max.Printing Width
\t
1200(mm)
\t
1200(mm)
\t
1200(mm)
\t
Min.Printing Width
\t
270(mm)
\t
270(mm)
\t
270(mm)
\t
Max.Printing Length
\t
1000(mm)
\t
1000(mm)
\t
1000(mm)
\t
Min.Printing Length
\t
200(mm)
\t
200(mm)
\t
200(mm)
\t
Print Speed
\t
30-60pcs/min
\t
30-60pcs/min
\t
30-60pcs/min
\t
Print Cylinder Dia(mm)
\t
320(mm)
\t
320(mm)
\t
320(mm)
\t
Printing Plate Thickness
\t
2.24-5(mm)
\t
2.24-5(mm)
\t
2.24-5(mm)
\t
Total Power
\t
6KW
\t
6KW
\t
7KW
\t
Machine Size(mm)
\t
L5100×W1700×H1400
\t
L5800×W1700×H1400
\t
L6500×W1700×H1400
\t
Machine Weight(Kgs)
\t
2600Kgs
\t
2800Kgs
\t
3000Kgs
Our Workshop
Packing & Delivery
\t

*The normal package is fumigated wooden box.

*Machine will cover with PE water proof film to prevent moisture from the ocean.

*Gear and Bearing will paint with lubricating oil. all guide roller will paint with antirust oil.
Our Certifications


CE Certificate

Our Service

Warranty

* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*In Vietnam,Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. We have engineer in Vietnam, Indonesia ,Malaysia&Philippines.

Q: How long is your delivery time?

A: Generally it is 30-40 days after getting deposit.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before delivery.
