BiGa Three Axis DRO Kits Lathe Specified Digital Readout Display DRO Linear Scale

Product Overview

Description

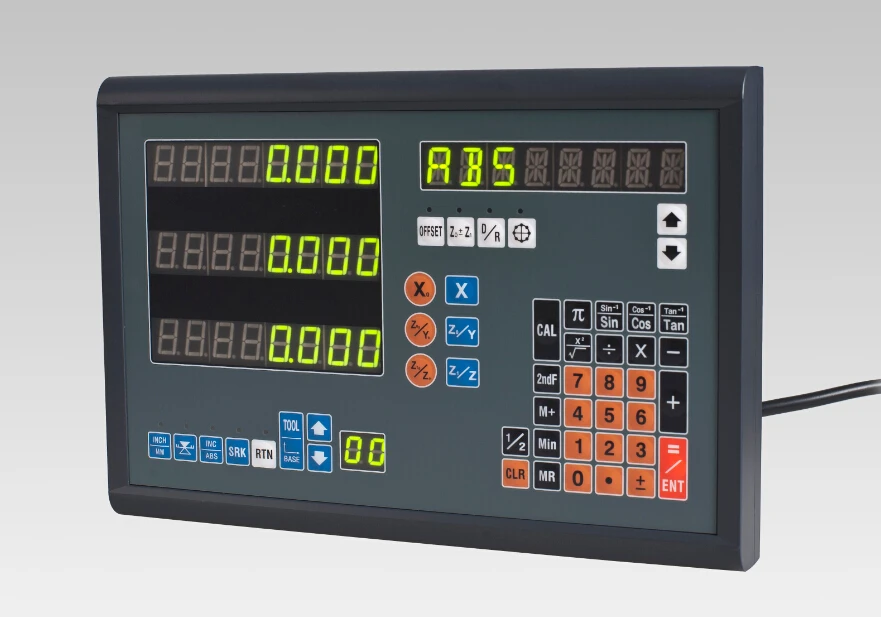

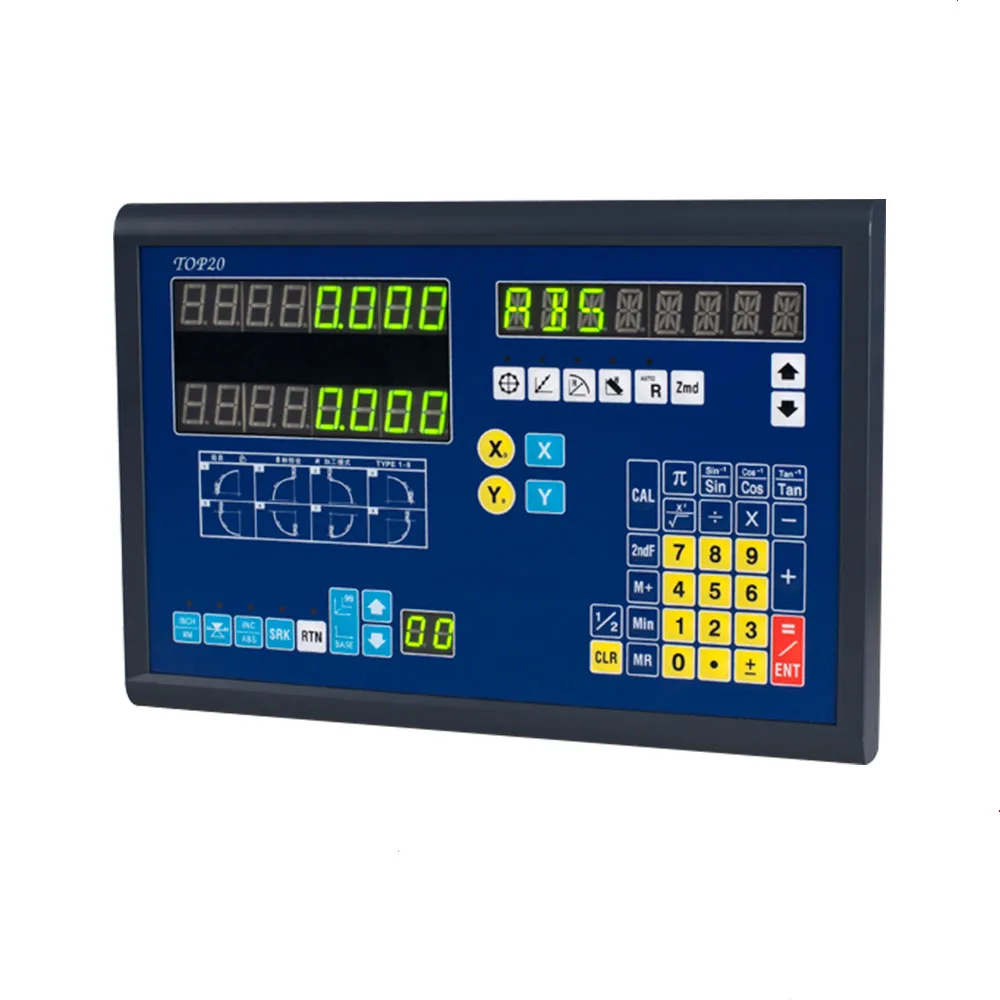

*Feature of TOP20-3L  Digital Readout Display/DRO * :



The TOP20-L is a dedicated lathe specific DRO with all the functions you would expect and built in tilt mounting to ensure to optimal viewing.

It is in a compact, slim, high performance plastic casing. Fully loaded with all the features you would expect. Cost effective DRO solution but without compromising on performance.

1.Machine specific versions
2.Lathe applications
3.Cost effective design
4.One touch axis zero keys
5.Tool Compensation and Tool Number.
6.Diameter or Radius Reading.
7.Set tool compensation dimension
8.Bright clear wide-viewing angle display
9.Wipe clean membrane keypad
10.Ideal replacement for retrofit.

*Feature of TOP20-3L DRO /Digital readout display*

No. Axes:	2, 3
Display:	Bright Green LED
Case:	ABS Plastic or metal
Power :	110…240 VAC (50/60 Hz)
Storage Temperature:	-20oC to +70oC
Operating Temperature:	0oC to +50oC
Relative Humidity:	20% to 85%
Dimensions (H x W x D):	182mm x 265mm x 45mm
Auxiliary Port (6-outputs + RS232):	Optional

Non-condensing
USB Service Fitted as standard

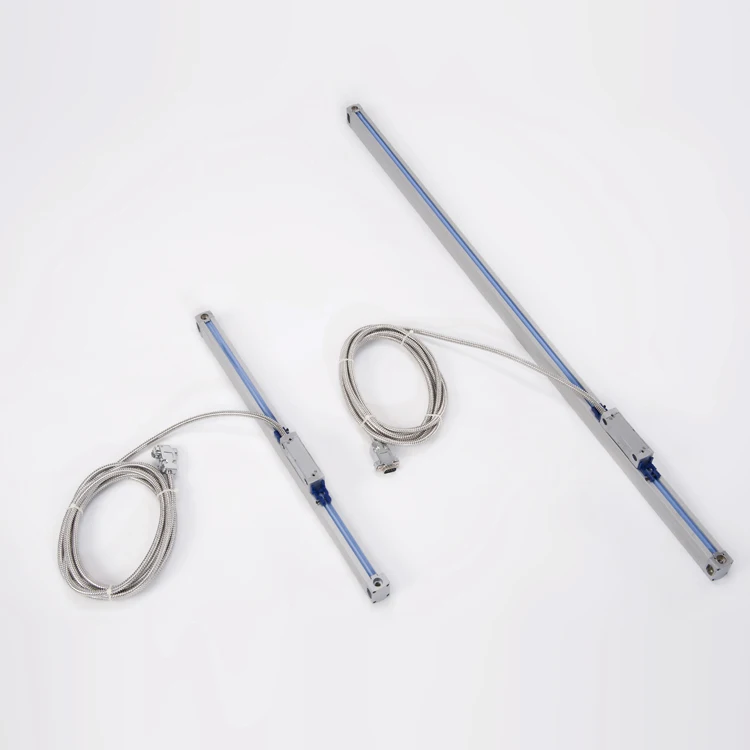

Feature of linear scale:

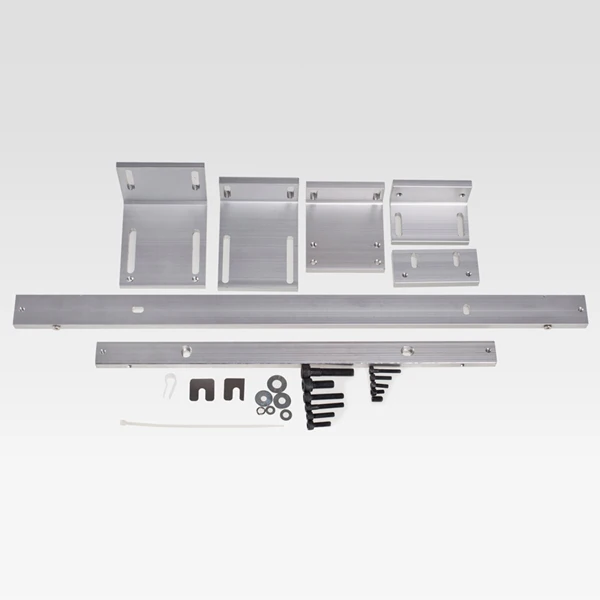

ASD4- universal linear scales are laser calibrated and laser engraved providing quality costeffective linear feedback ideal for Milling, Lathe and other applications. Supplied with scale cover and machine bracket kit, scales 500mm and under are also supplied with an aluminium mounting spar.

1. 20µm Optical grating glass scale2. Guided scanning unit on a 5 ball-bearing carriage
3.Lip-seal protection
4. Resolutions of 1µm or 5µm
5. TTL, Quadrature or 1vpp, 11µA Sinusoidal signal options
6. Easy Mounting
7. Measuring Lengths 50 mm – 1000 mm
8. 60 m/min Max. Traverse velocity
9.Reader-head bracket and Aluminium cover included

Delivery and Packaging:

Delivery time: 3 working days after get your payment

Packaging:standard export packaging

After-sale service:

Warranty period:1 year

During the warranty period, we will offer free spare parts and fauty goods replacement  for free.



Afetr the warranty period, we will also offer technical support and your request will be replied within 12 hours.
