self adhesive waterproof membrane manufacturing equipment

Product Overview

Description

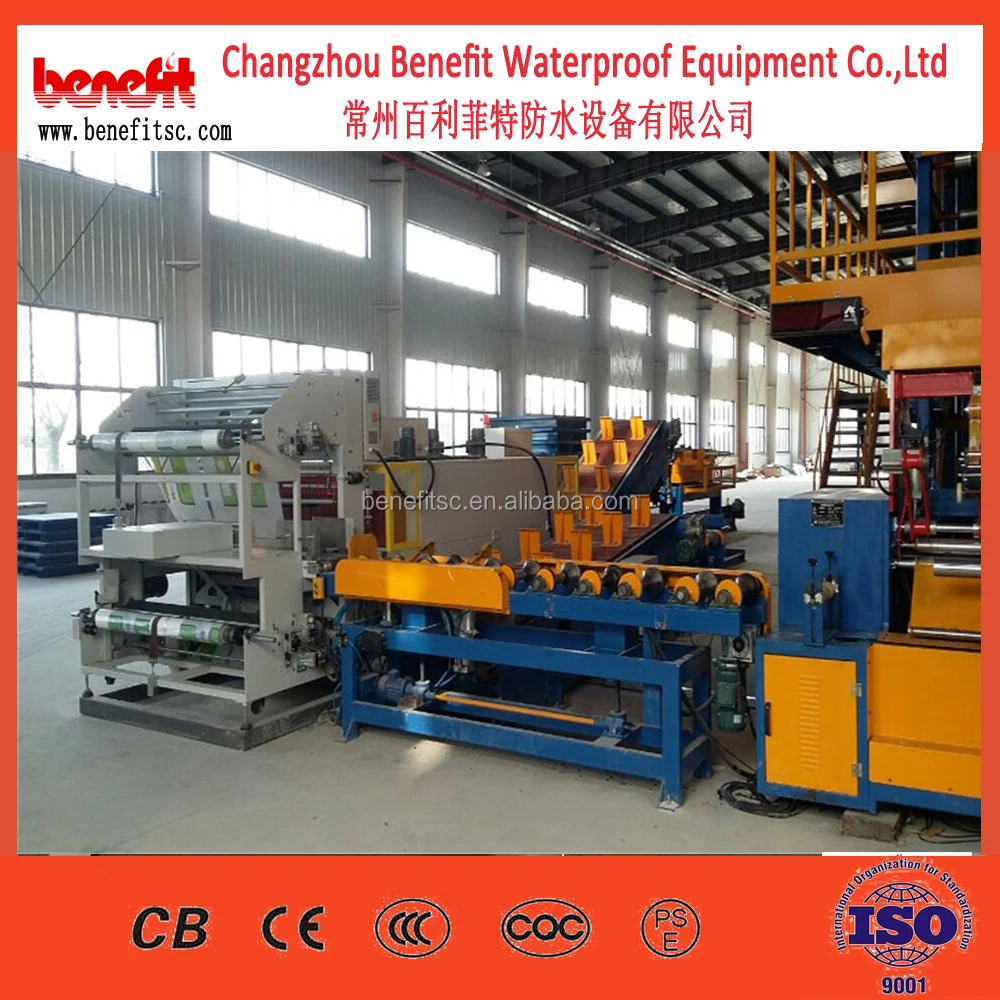

Self adhesive waterproof membrane manufacturing equipment



The whole parts of the modified bitumen waterproof membrane line

1.Reinforcement unwinding device

2.Reinforcement splicting device



3.Reinforcement storing and drying device



4.Central aligner



5.Recoating and tension control device



6.Asphalt coating device



7.Sand-scattering device



8.Filming and thickness-measuring device



9.Sand-pressing with uspending cooling device

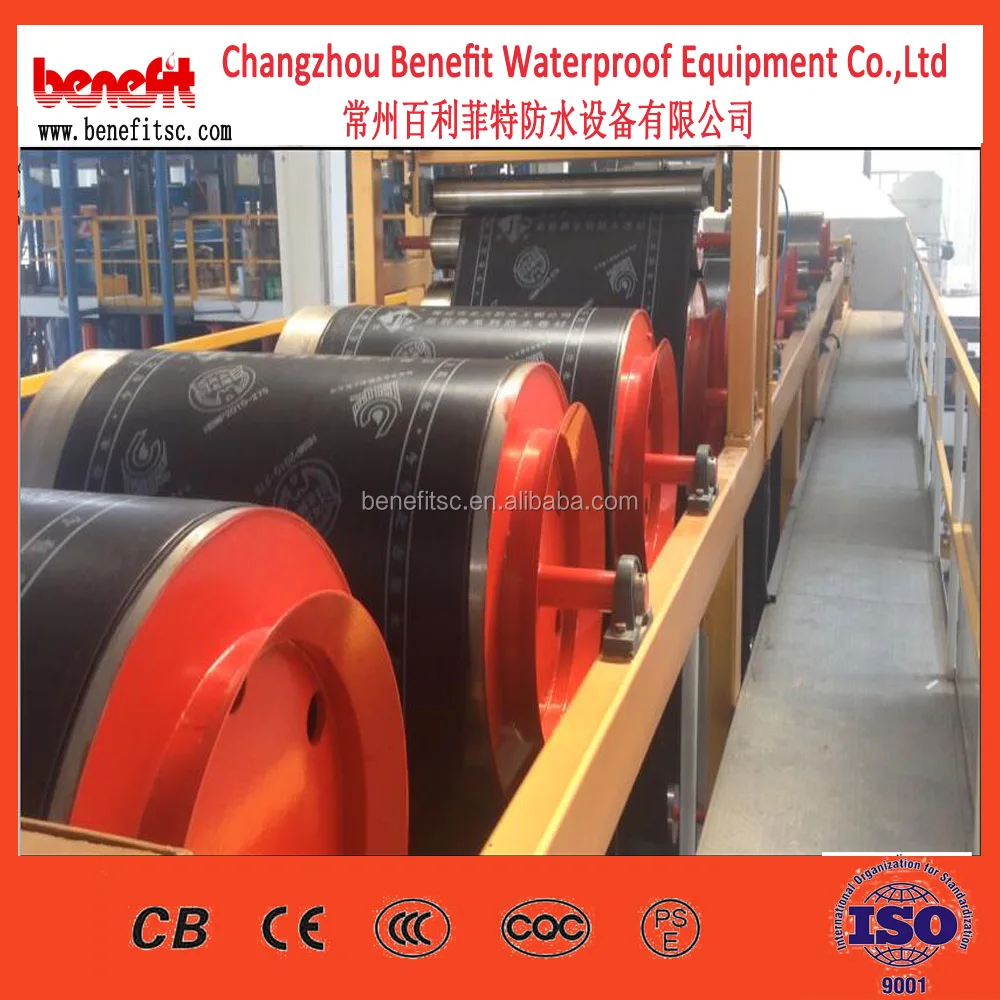

10.Cooling and embossing device



11.Reinforcement storing and drying device



12.Drawing-spring device



13.Auto winding machine

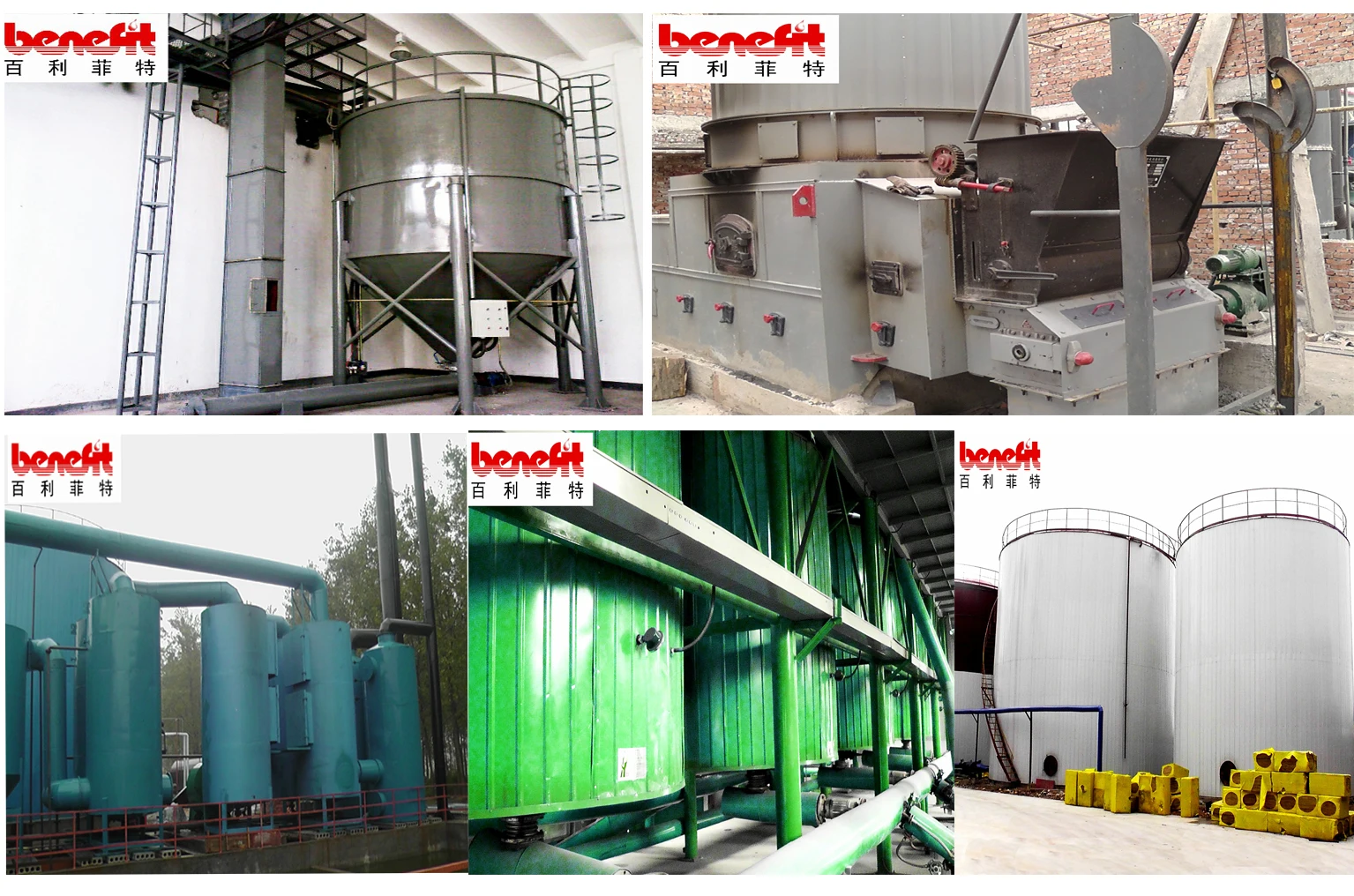

14.Mixing-weighing system



15.Storage tank



16.Powder-conveying system



17.Fume treatment system



18.Heating with boiler system



Technical Data





Item		Self-adhesive Modified Bitumen  Waterproofing Membrane Producion Line
Parameter
Scale		12 million sqm per year
Thickness		1.5-2.5mm
Standard Width		1000mm
Length		20m/roll
Speed		5-60m/min(adjustable)
Total length		48m
Total height		6m
Total installed capacity		100kw









Process:



Modified bitumen membrane production line is that making asphalt ,rubber powder ,machine oil ,stone  powder together to be the mixed material, then to make the material glue with base materials after heating and extruding ,next step is that composited PE film or rock particles on the double side of formed membrane ,the device is automatically formed ,cooled and adjusted by tension control ,automatic rolled into winder membrane which control by traction device,finally made up bitumen waterproof  membrane ,it has good production structure ,and good properties of peel strength ,tensile strength tear ,elongation ,low temperature,aging and other comprehensive performance is very good ,it can be used directly by self adhesive and paste roasted ,and it also can be boned directly on the concrete base ,adhesive strength ,difficult to falling ,construction is extremely simple and convenient.





Working principle



The whole working principle can be divided into 3 steps.



1.To mix the bitumen,rubber powder , talcum powder , engine oil and some other raw materials via mixing tanks(the mixing tank should be kept warm by conduction oil).The finished mixtures can be called bituminous mixtures .



2.The bituminous mixtures will be deliveryed into coating pools.Then the base

material(reinforcement)will be coated with the bituminous mixtures.At last ,the coated

reinforcement will be covered by PE film or sand or other materials.At that time ,the bitumen  membrane preliminary forming.



3.The finished products will be cooled by water and air,then be rolled by auto-winder.



The scope of application

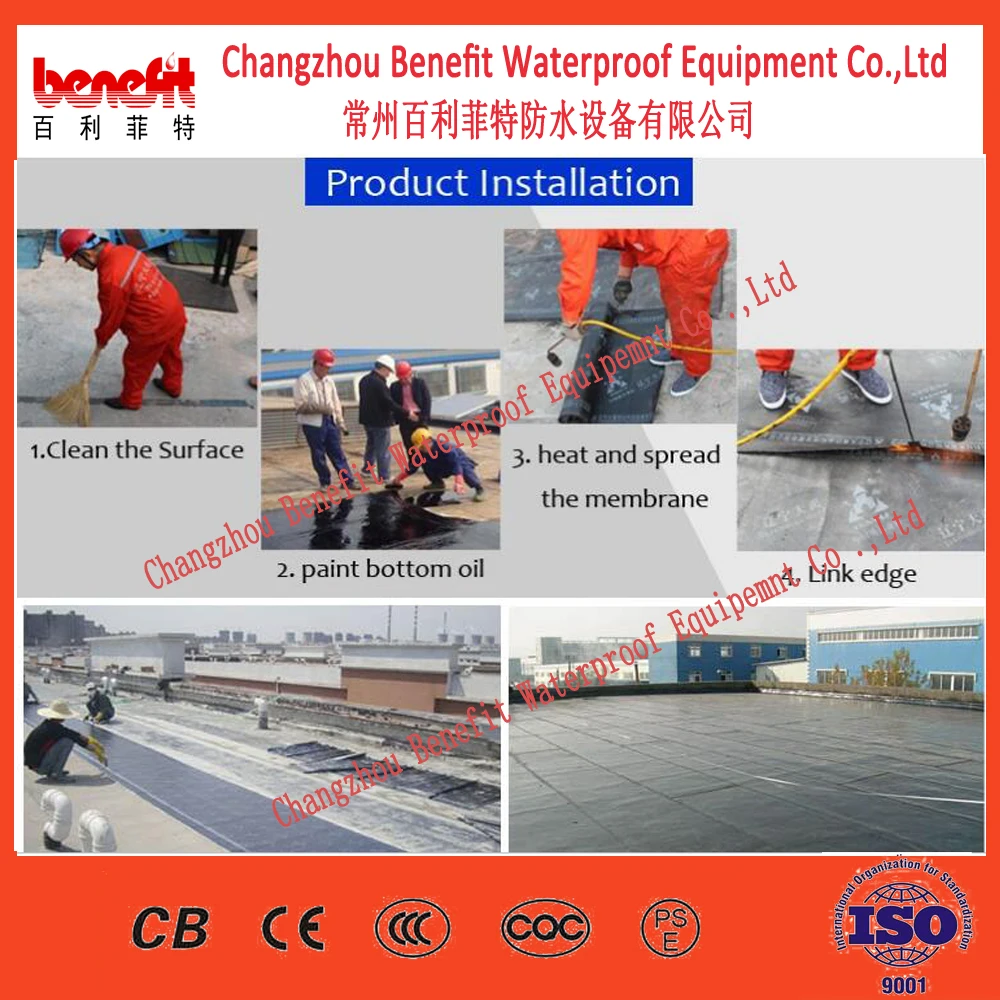

Self-adhesive rubber asphalt waterproofing membrane can be applied to the general industrial and civil construction and other waterproof performance has a higher requirements of the waterproofing works.It can be used for all parts of underground buildings (including basement floor, elevator shaft, basement exterior wall, basement roof, etc.) and roof, podium, balcony (terrace), bathroom waterproof and moisture.



Company information





Changzhou Benefit Waterproof Equipment Co.,Ltd,established in 1990, is a professional

manufacturer which is specialized in researching, producing, marketing and service waterproof equipment. As a private-owned enterprise, Our company is a famous supplier in the line of waterproof equipment in China, also an important supplier in the international markets. On the basis of absorbing foreign advanced science and technology, our factory has developed various kinds of advanced waterproof equipment plants, and has got many national patents. The factory is strictly in accordance with international quality system to ensure product quality. Our factory pursues the enterprise culture of sincere, realistic and innovation, adheres to the service goal of honesty, customer-oriented and win-win situation. We are looking forward to cooperating with you.





Why choose us?





1.Honest supplier to the worldwide buyers



2.  Factory, direct supplier, competitive price



3.  More than 20  years of production experience



4.  Warm and friendly service and guide



5.  Small and big orders are welcome



6.  24-hour service for you
