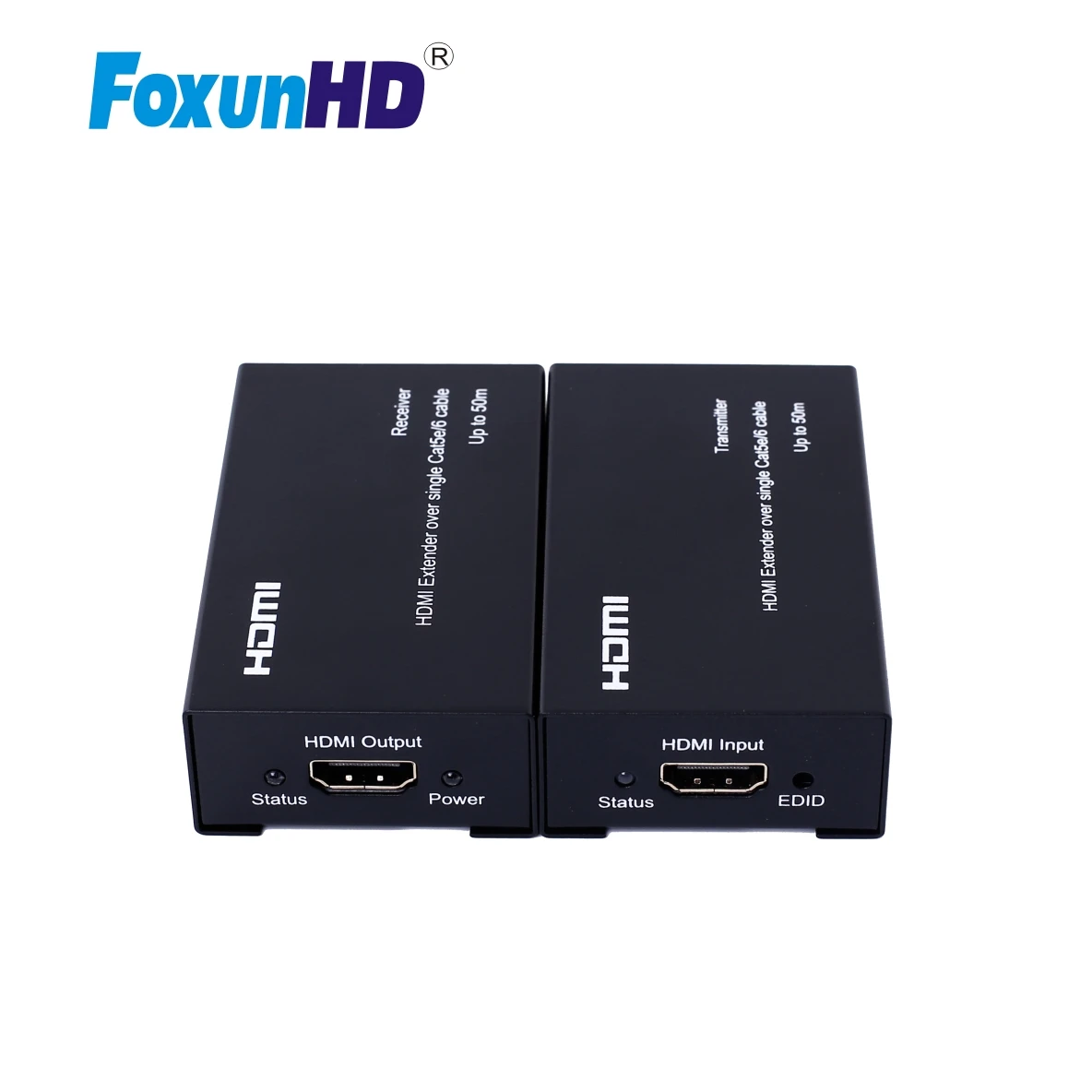

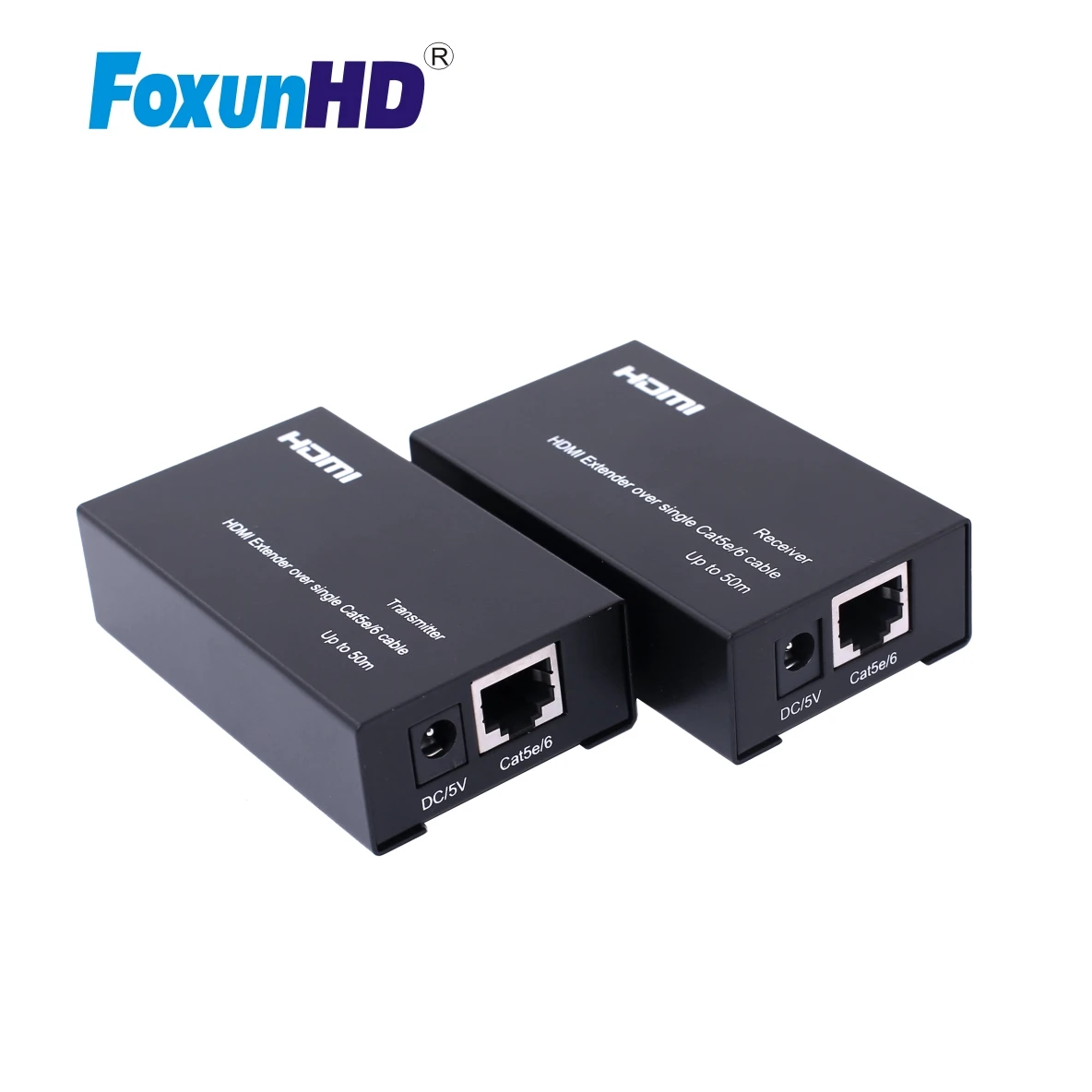

Alibaba China Hdmi AV Extender HD Video Balun By Single Cat 5E/6/7 (The Latest & The Best) Ver 1.3 Certified For Full Hd 1080P

Alibaba China Hdmi AV Extender HD Video Balun By Single Cat 5E/6/7 (The Latest & The Best) Ver 1.3 Certified For Full Hd 1080P

hd video transmitter Features:

1).Each set includes one transmitter and one receiver
2).One pair as a full functional module, no need of setting.
3).Use single UTP cable(Cat5E/6)to substitute HDMI cable to achieve long distance transmission,the UTP Cable follows the standard of IEEE-568B.
4).Transmission distance reaches up to 50 meters under the video format of 1080P.
5).Auto-adjustment of feedback, equalization and amplify.
6).supports 8 bits per frame(frame rate of 24 total)dark.
7).Signaling rates up to 2.25Gbits in support of 1080P display.
8) .Support 3D video format

HDMI Extender this section there are many features make it play to its advantages in the use of energy

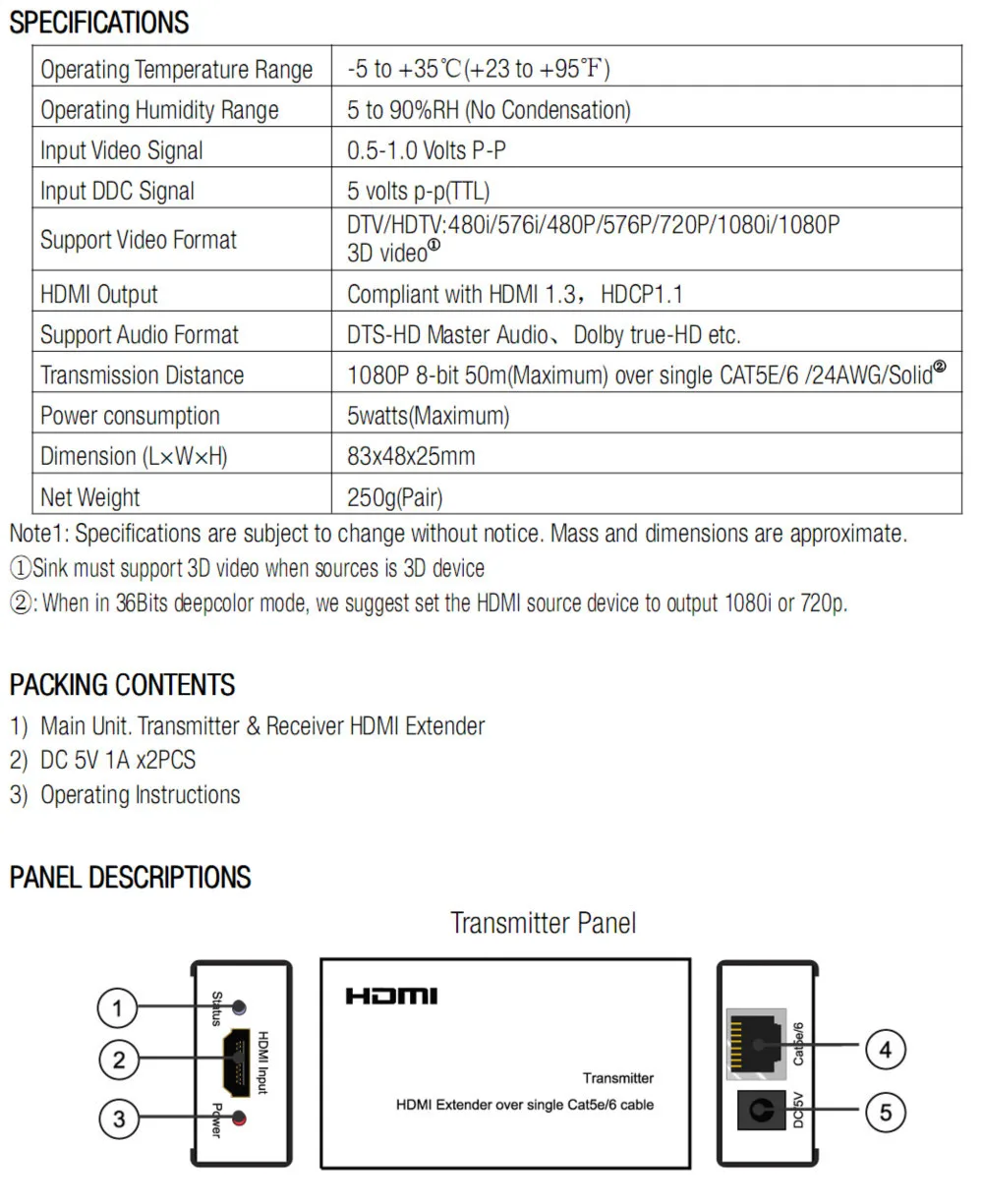

hd video transmitter specification:

Note1: Specifications are subject to change without notice. Mass and dimensions are approximate.
Sink must support 3D video when sources is 3D device
When in 36Bits deepcolor mode, we suggest set the HDMI source device to output 1080i or 720p.

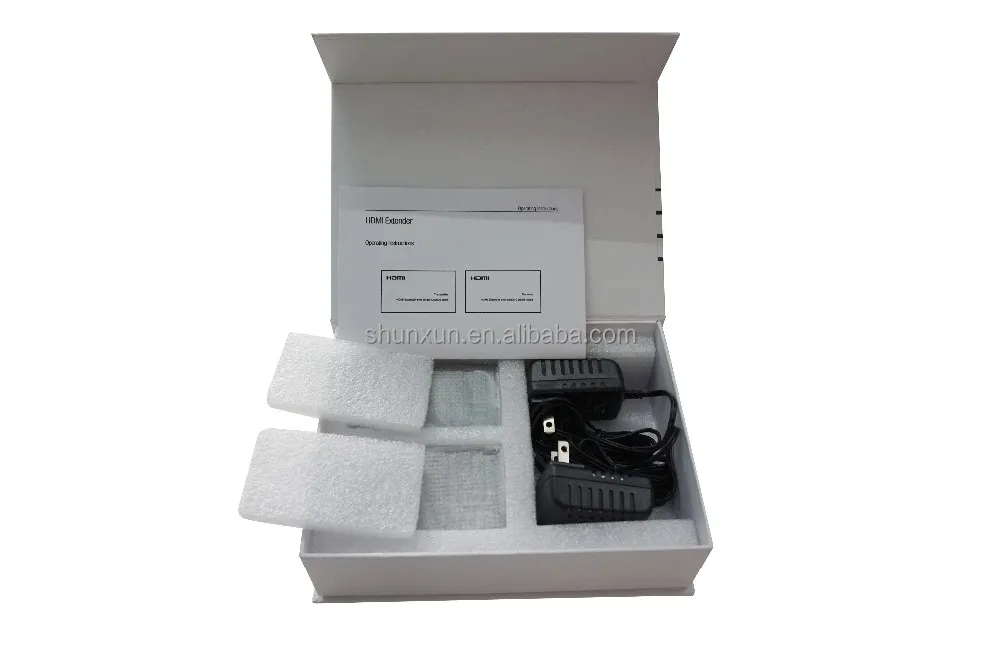

hd video transmitter packing:

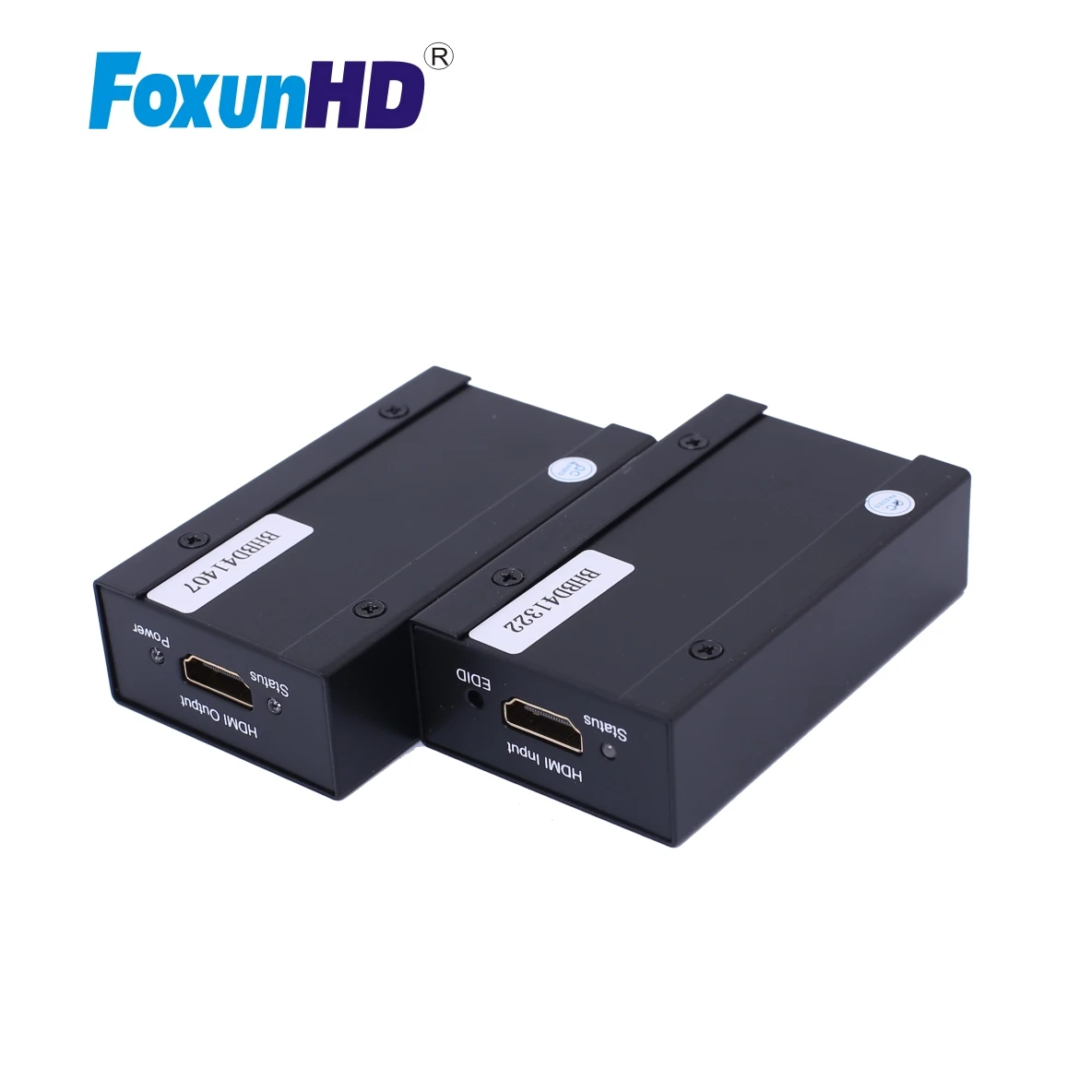

1) Main Unit. Transmitter & Receiver HDMI Extender
2) DC 5V 1A x2PCS
3) Operating Instructions

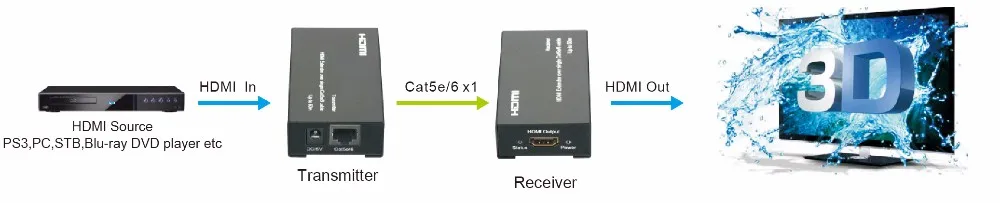

hd video transmitter diagram:

hd video transmitter Connection:

1) Connect the HDMI signal sources (Such as PS3, STB etc) to HDMI Transmitter.

2) Connect CAT5e/6 cable to both the output of the transmitter and input of the Receiver.  (The cables must follow the standard of EIA-TIA 568B).

3) Connect the HDMI display (Such as HD-LCD, HD-DLP) into the Receiver.

Attention: Insert/Extract cables gently.

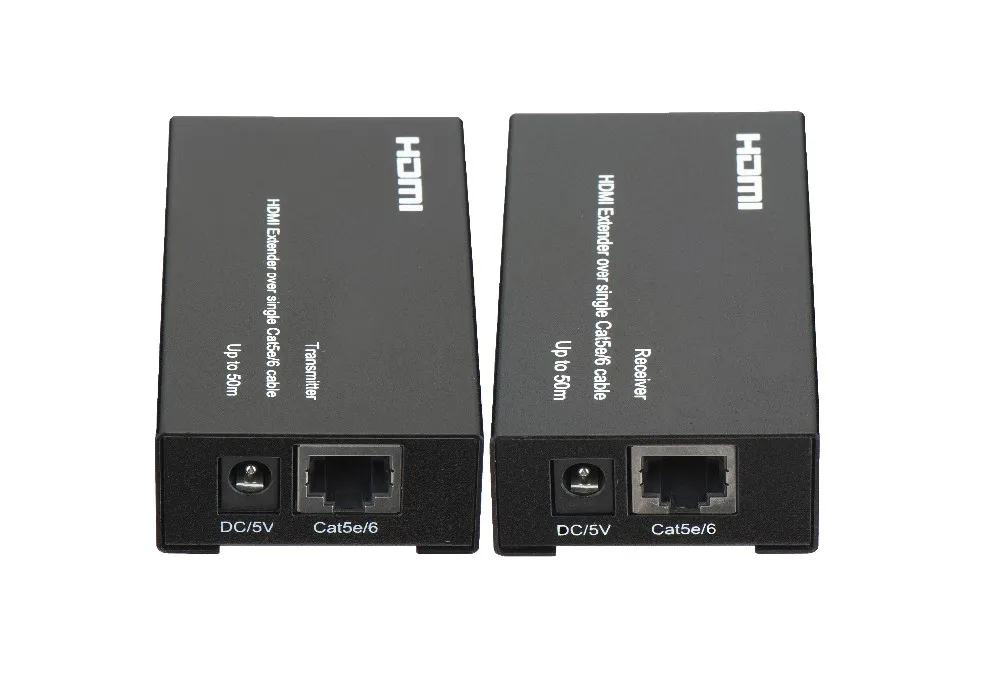

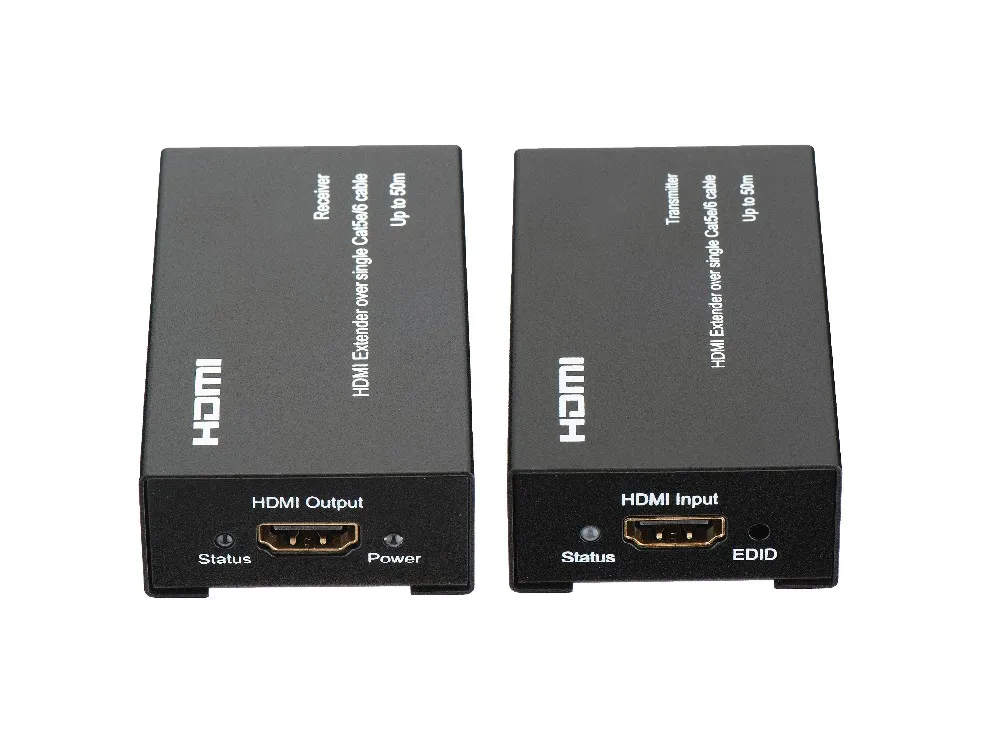

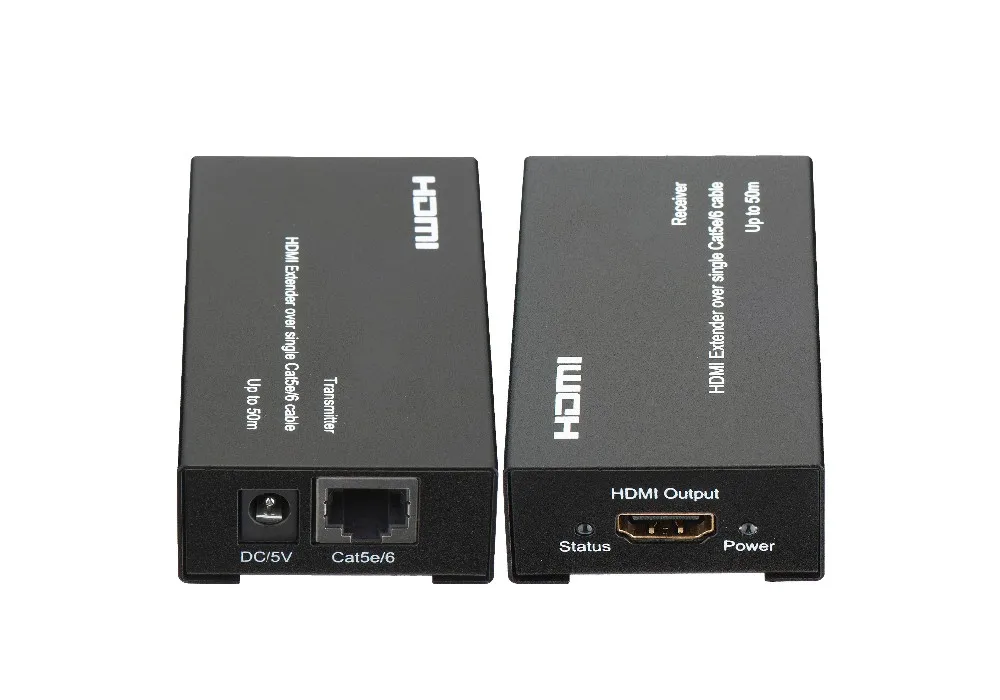

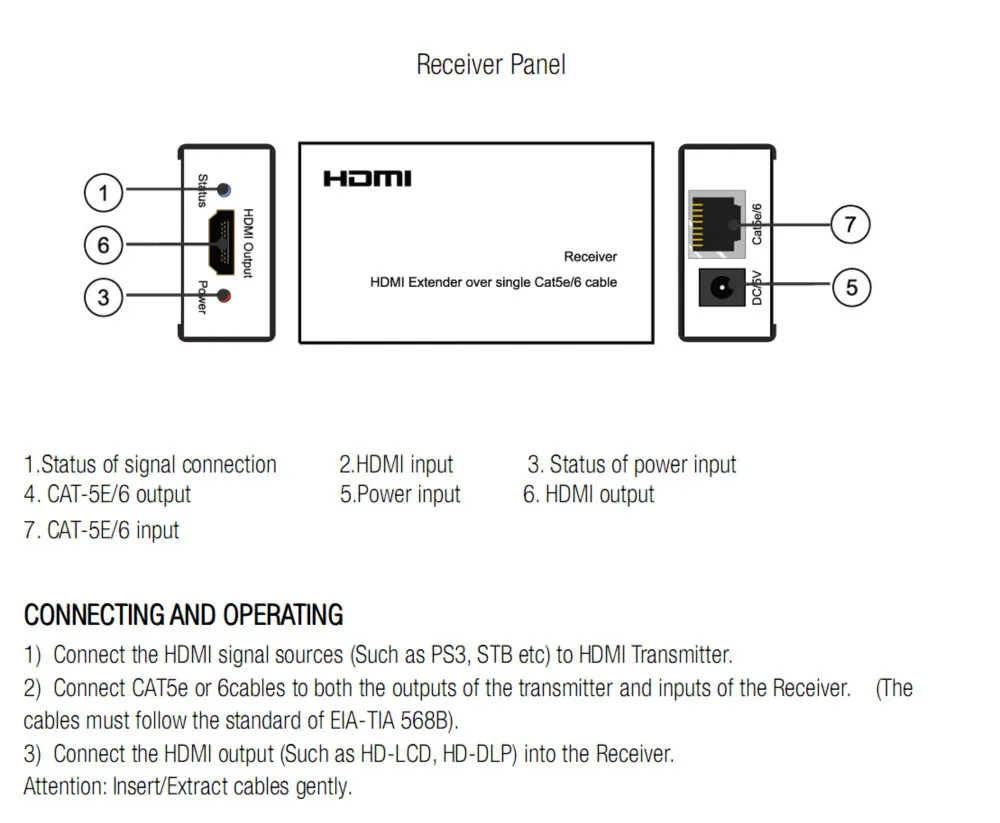

hd video transmitter Panel Description:
