Continuously Aluminum Coating Mirror Making Machine Manufacturers
Mirror make machine
| General description |
The mirror making machine is a kind of custom made machine. It can be variable designs according to the customer's needs, such as the glass sizes, the required daily capacity, the colors of coatings, the functional of glass sheets, and the quality level.
There are two forms of PVD technologies involved in this application, one of them is thermal evaporation and the other is magnetron sputtering.
| Kinds of technology | Thermal evaporation | Magnetron Sputtering |
| Cycle time | About 10-15min. per sheet | From 15 to 20min. for batch type coater but for the continuous line, the output is about 60-90 seconds per sheet. |
| Kinds of coatings | Only Aluminum | Chrome, aluminum, silver, titanium |
| Size of glass | Small size of glass sheets, up to 1830X2440mm | Up to 2440X3660mm |
| Colors of the coatings | Only silver like(chrome like) | Different PVD colors(but expensive) |
| Quality of coatings | Normal quality | Very high quality |
| Because of the multi needs, you can see this mirrors made by different machines |
| Batch Type Vacuum Coaters |

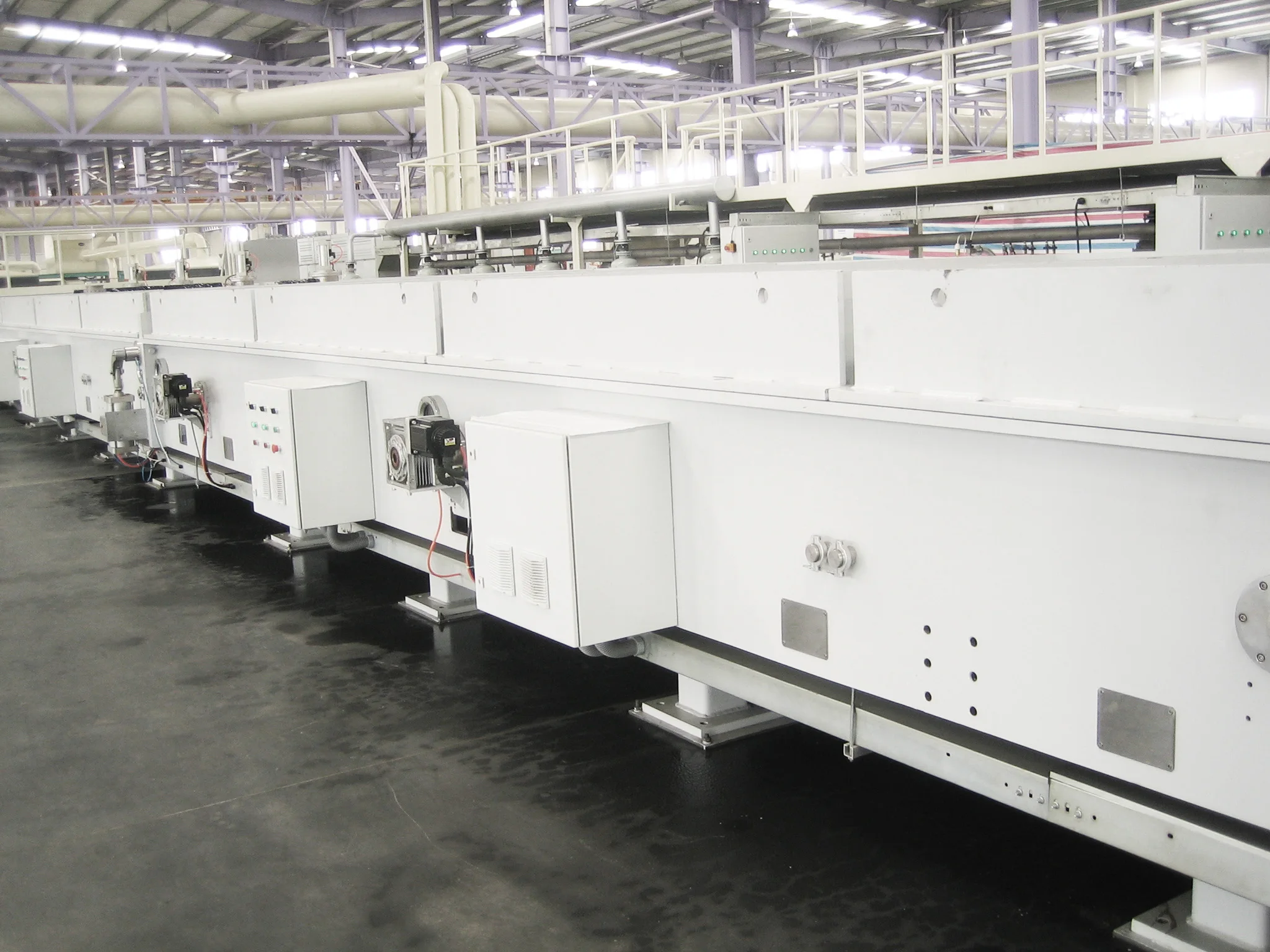

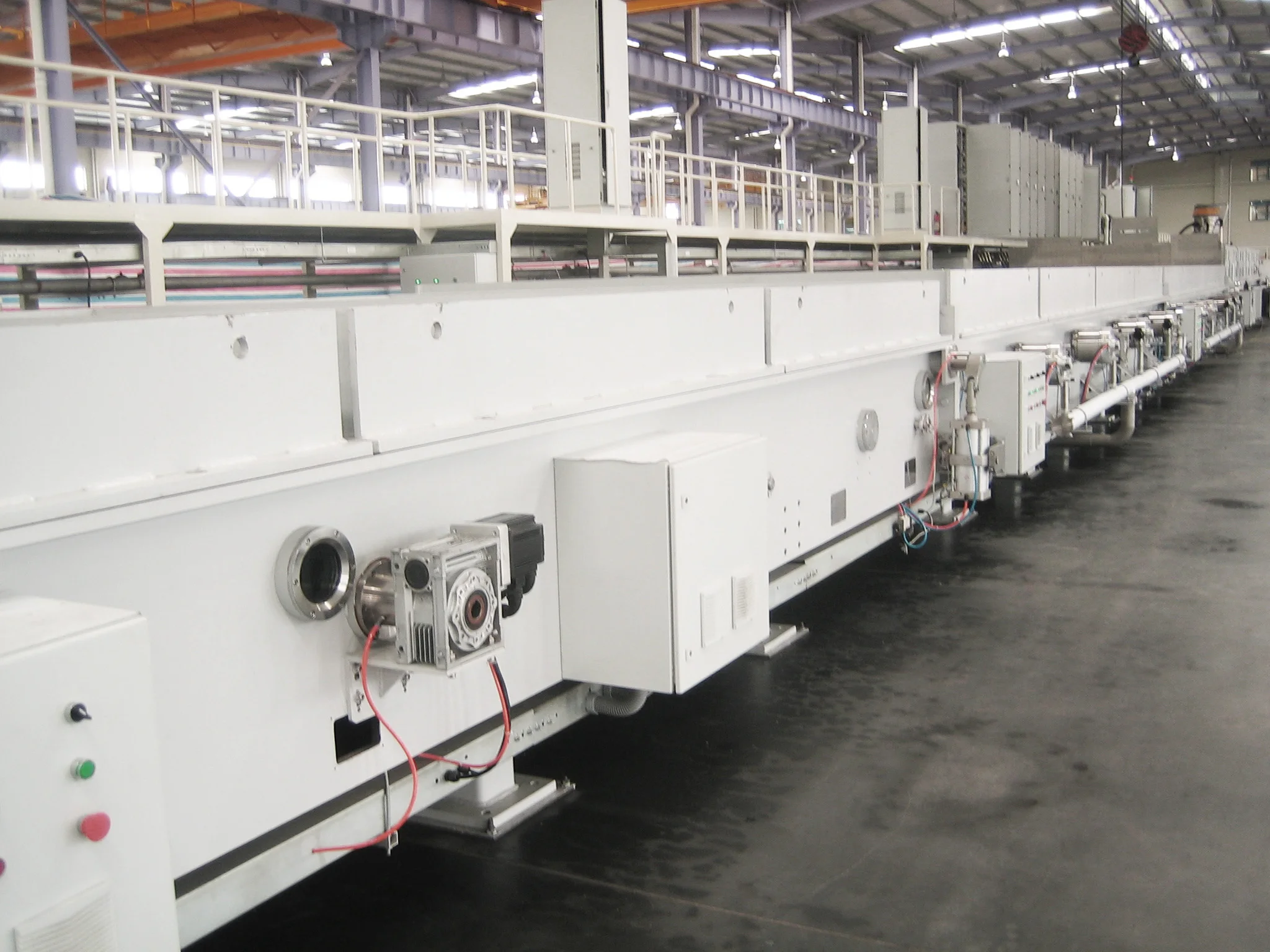

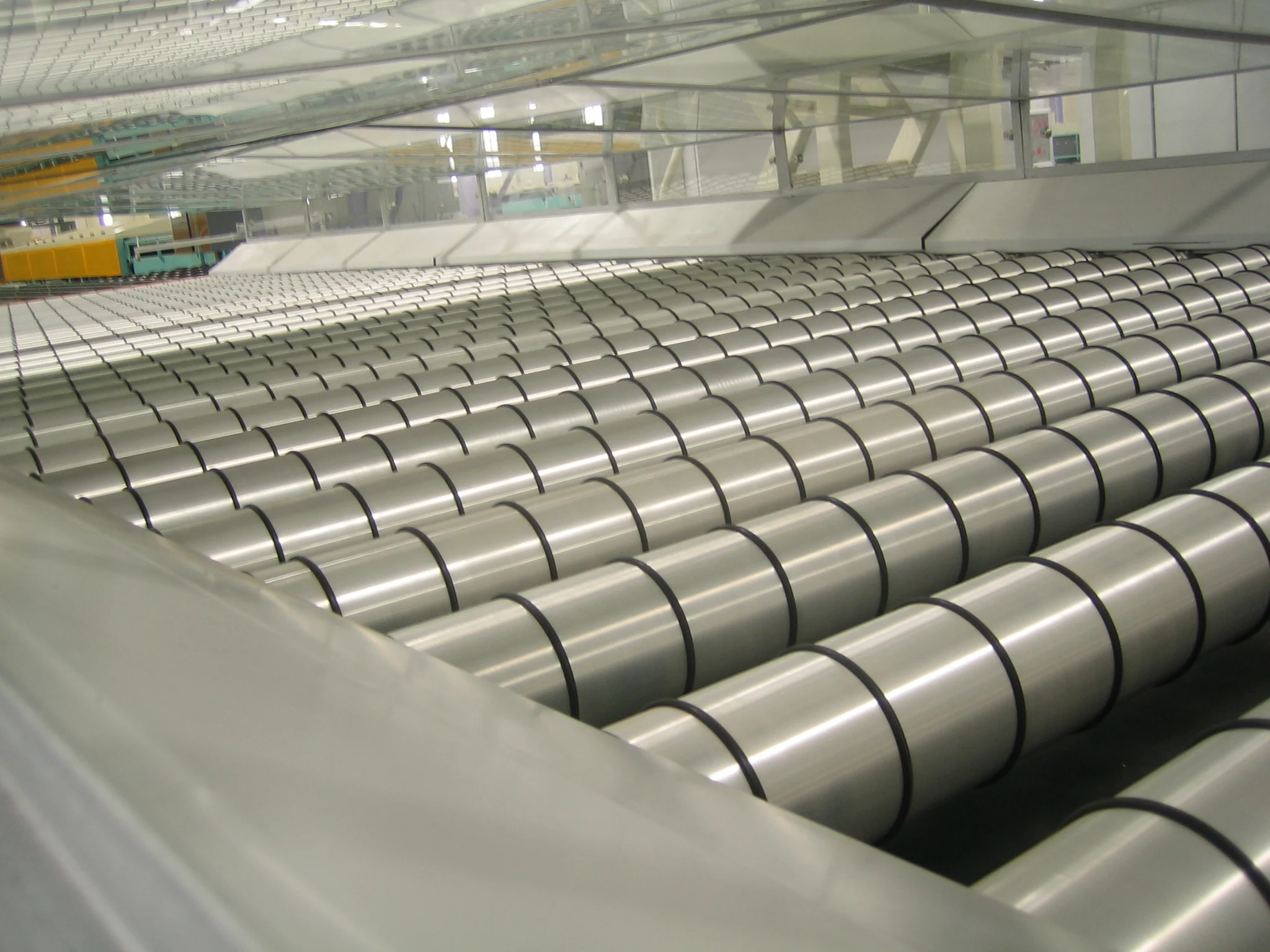

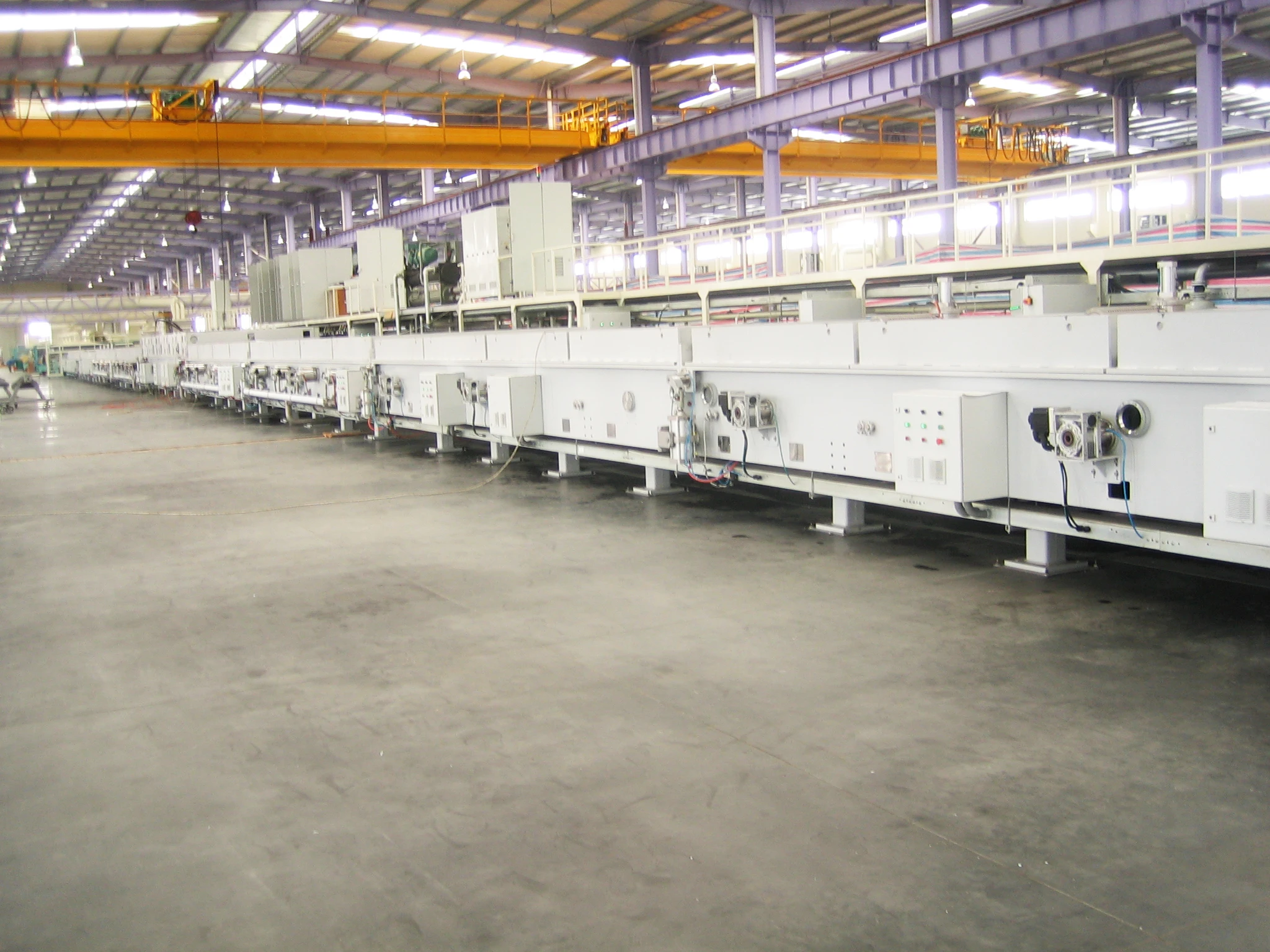

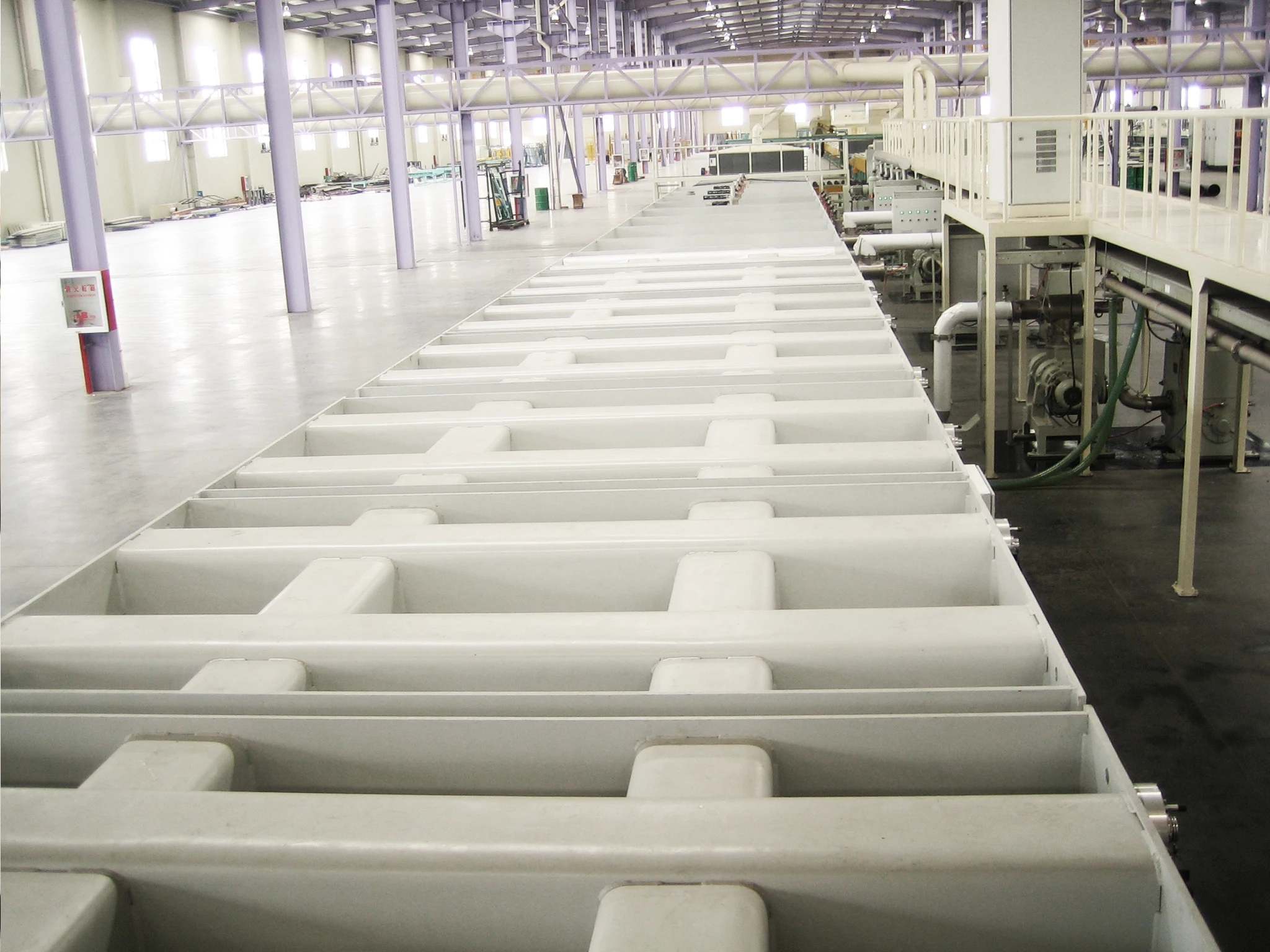

| Continuous mirror making line |
See? We can not make a quote for the universe needs, in another words, we don't have any standard machines.
for your own needs for a quote.
Company Information
Contact Us
Inquiry Guide:
The PVD coating machine can be used for different materials and industries. In order to recommend you the appropriate machine, we need your help on telling us:
What is the material of your product?
What is you maximum part size?
What is the size of your parts most in common?
What is the desired quantity of parts to be coated daily?
What are your desired coatings or coating colors?
