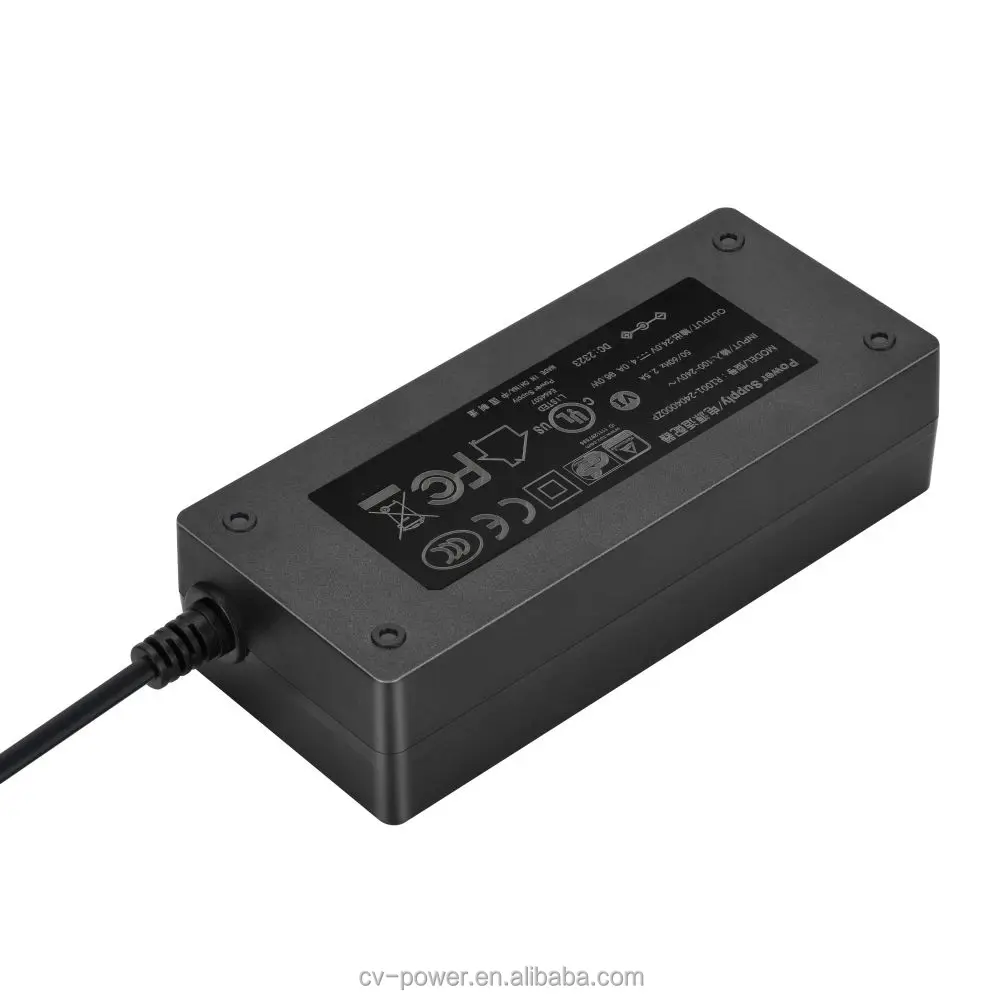

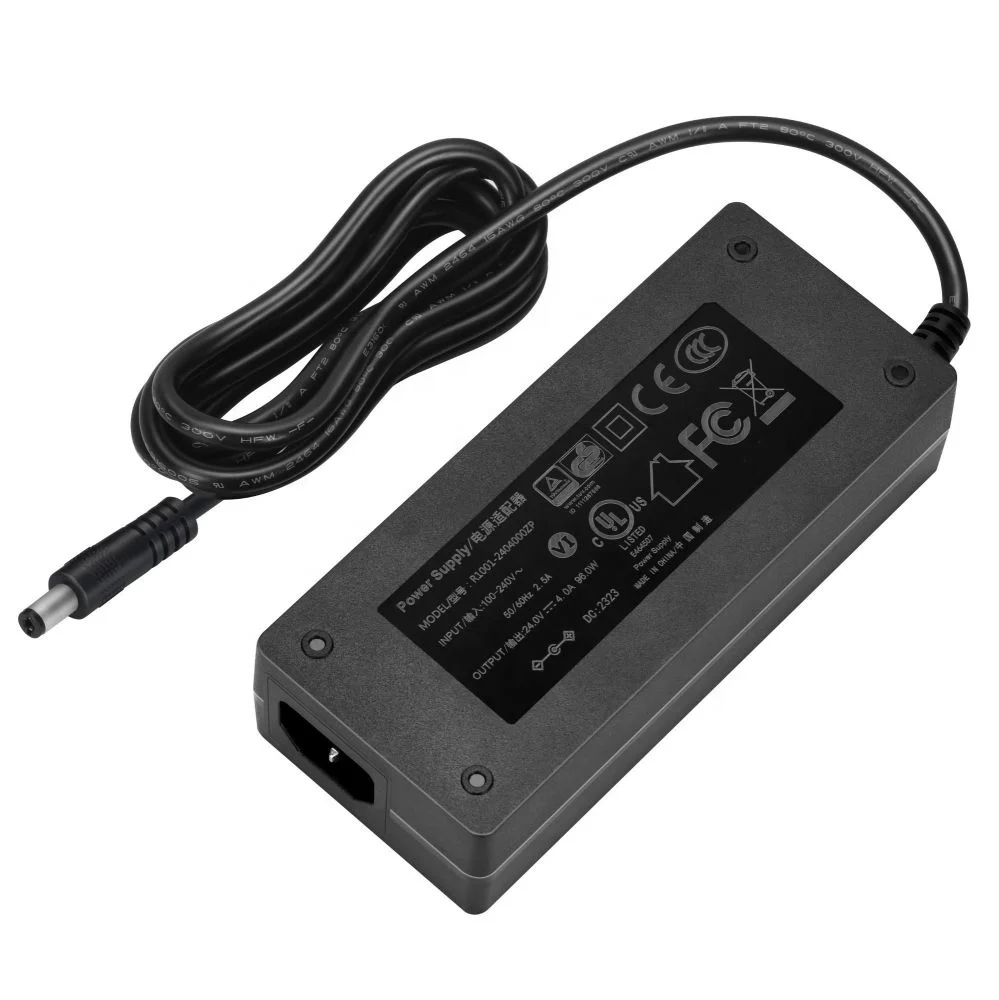

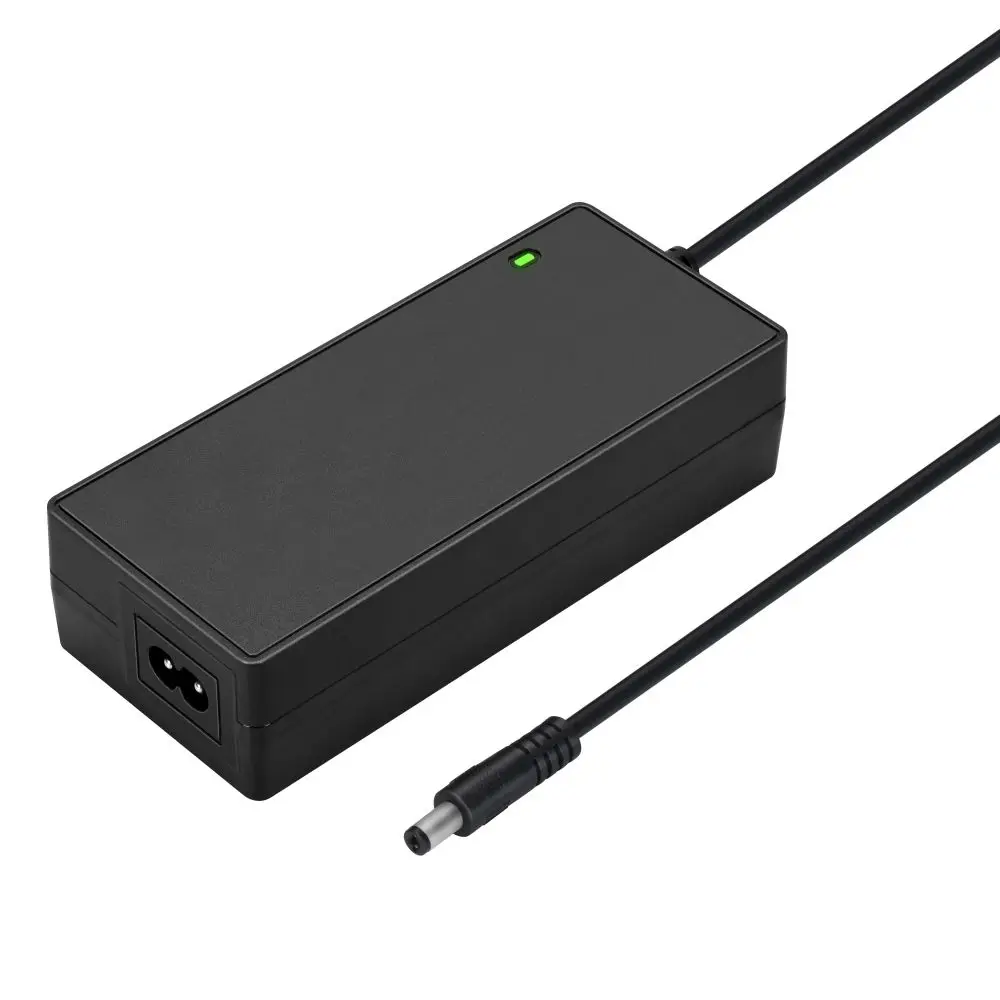

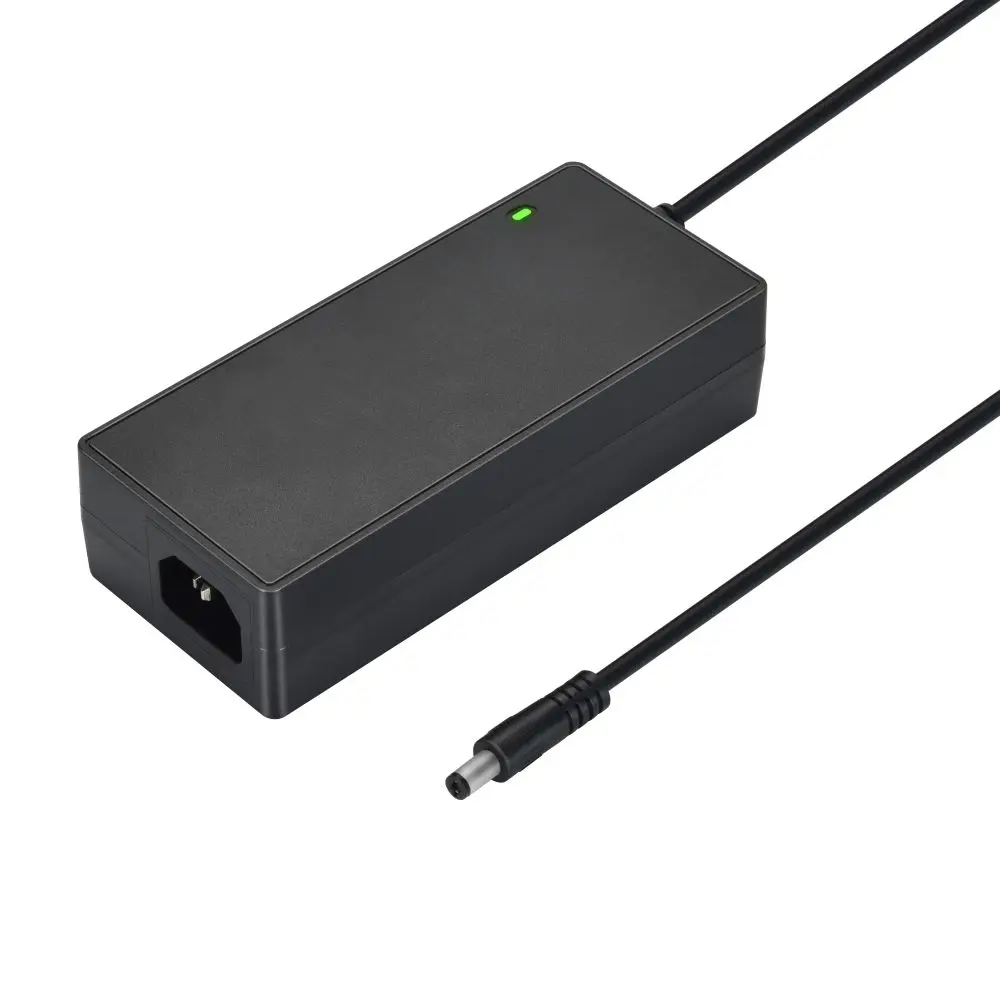

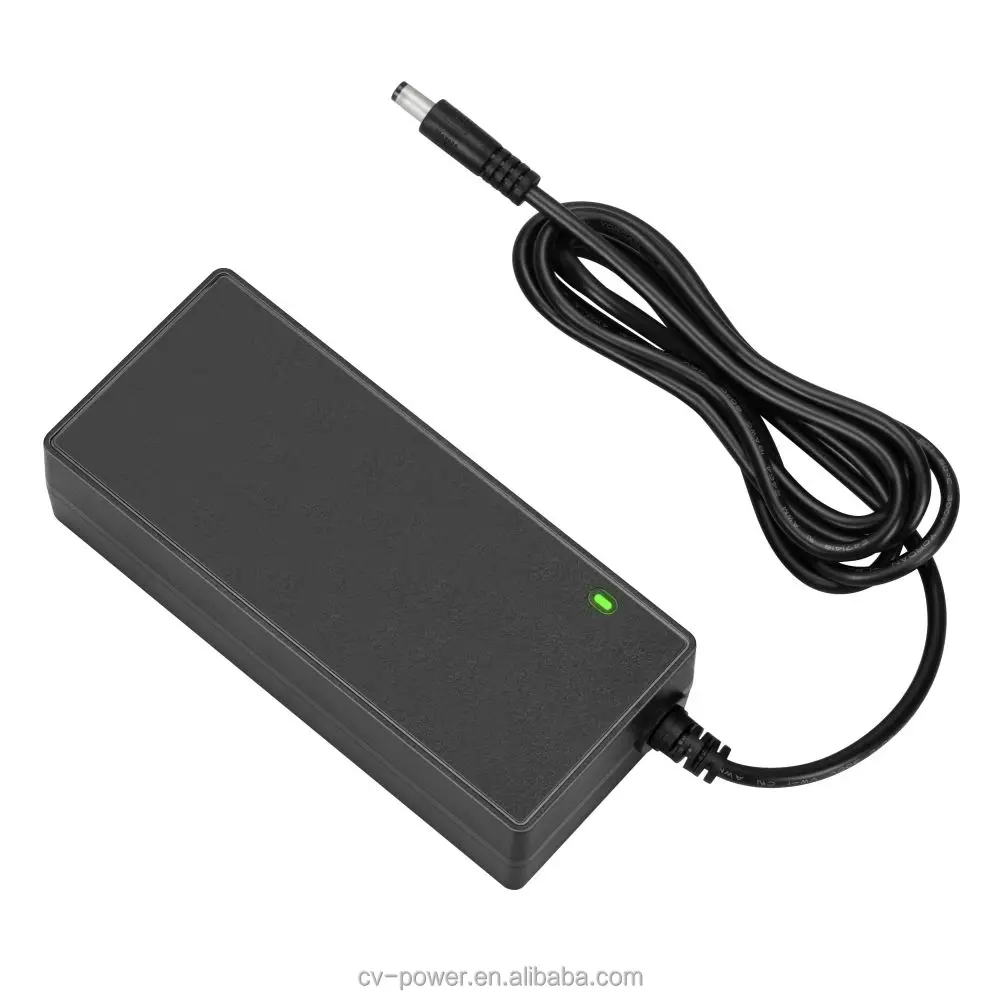

48 Volt 2.5A Desktop Power Supply for LED SMD RGB LED Display PoE 48V 2500mA AC DC Switching Power Adapter
- Category: >>>
- Supplier: Dongguan Changbao Electronics Technology Co. Ltd.
Share on (60708939721):
Product Overview
Description
Details Images
* Input: 100-240VAC 50/60Hz
* Output: 48V 2.5A max +/-5% tolerance
* Class II starand, indoor use only
* More units for 120W series: 5V/9V/12V/15V/18V/19V/24V/36V/42V/48V/54V available
* Safety: OCP/OVP/OTP, SCP, automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off.
* Wide compatibilities: LED Strip Lights, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, Humidifier, HUB, Keyboard, BT Speaker, Monitor, Webcam, DVR, NVR, audio/ video power supply
* Safety: OCP/OVP/OTP, SCP, automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off.
* Wide compatibilities: LED Strip Lights, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, Humidifier, HUB, Keyboard, BT Speaker, Monitor, Webcam, DVR, NVR, audio/ video power supply
Products Description

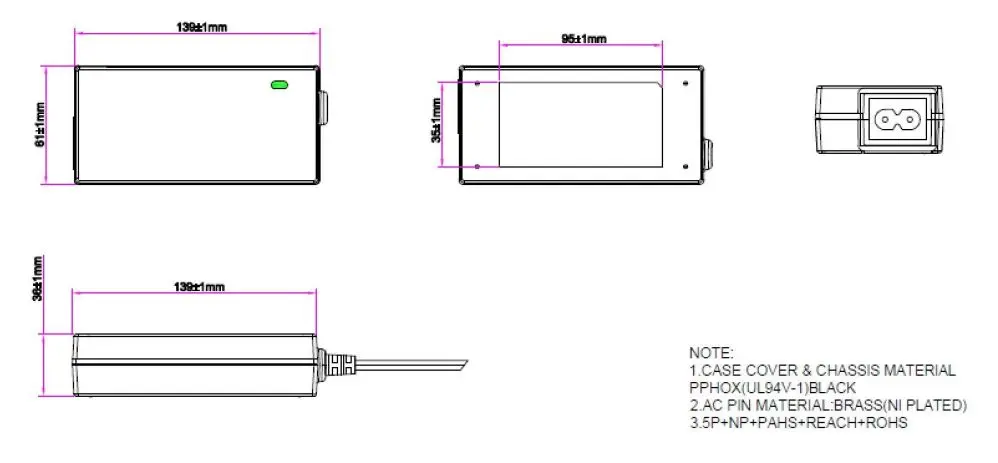

* Size: 139 x 61 x 35.5mm (L x W x H)
* Weight: 420g
* Color: Black, White (optional)
* Universal plugs: US/EU/AU/UK/JP and more
Item | 48V 2.5A AC/DC Power Adapter | ||
Model | Compatible Battery | CB-S480250D | |
INPUT | Input | 100-240VAC 50/60Hz | |
Output | Output | 48VDC / 2.5A | |
Features | Ripple & Noise | <120mV | |
Charging | Energy star level | Eup 2.0, Doe VI, CEC VI, CoC V | |
Efficiency | >89% | ||
Installing | Available for the system of Safety Class I/II | ||
Environment | Operation Temp | -10 ~ +65℃, 10 ~ 95% RH non-condensing | |
Storage Temp | -20 ~ +85℃ (Refer to "Derating Curve") | ||
Storage Humidity | 20 ~ 90% RH non-condensing | ||
Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
Cooling Method | by NTC (natural cooling) | ||
Safety&EMC | Safety Standard | UL 62368, ETL 62368, EN 62368, EN 61558 | |
Safety Approvals | UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us. | ||
EMC Stardard | EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 | ||
MTBF | 80K hrs min. MIL-HDBK-217F (25℃) | ||
Machanicals | DC Connectors | USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available | |
Dimension | L152xW76xH26mm (LxWxH) | ||
Packing | 520g; 30pcs/17.5Kg/0.056CBM | ||
Wide Compatibilities
More Plugs Alternative
Product packaging
1. PE bag+ Small white box + Carton
2. PE bag+ Honeycomb cardboard + Carton
3. We support the customized packing, customer need to provide file in AI format
4. All the master cartons that we used in the good quality as exporting standard
FQA:
Q1: What is the warranty for your product?
A1: We guaranteed for 24 months, any quality problem happened in this period of time for our reason, we will send the replacement parts in next order.
Q2: How soon can I get samples for test to check quality?
A2: We can provide 1-3pcs free samples. The lead time for our regular products is 3-5 days. For customized products need 2-3 weeks. We will also customized nice product to meet your requirement.
Q3: Can you accept OEM&ODM service business?
A3: Yes, we can. Our month supply ability is 500000pcs. Our R&D team can customize the special product as your needs. You can visit our website to learn more about our excellent R&D team, and you will believe you can get satisfied product.
Q4: Do you accept small quantity orders?
A4: Yes, we accept. But no doubt that the more the amount of you order, you will get more discounts if you have a regular monthly order volume, we also would like to give you the appropriate discount.
Q5: Why should you buy from us not from other suppliers?
Specialized in battery charger, power adapter and OEM/ODM, 22 senior engineers and Integrity, Innovation, Professionalism, Focus, Good quality, Customer first, Quick response. Universal approvals: UL/cUL, ETL, CE, GS, FCC, RoHS, PSE, KC, CCC, RCM, CB...
Q6: What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency:USD/EUR/HKD/CNY
Accepted Payment Type: T/T, L/C, PayPal
