2/4/6/8/10/12/14/16/18/20/22 AWG Red Black Silicon Cables 600V Silicone Rubber Cable Heatproof Soft Electric Tinned Copper Wire (60709030048)

Share on:


Price:RUB 0.7934 - RUB 238.01
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

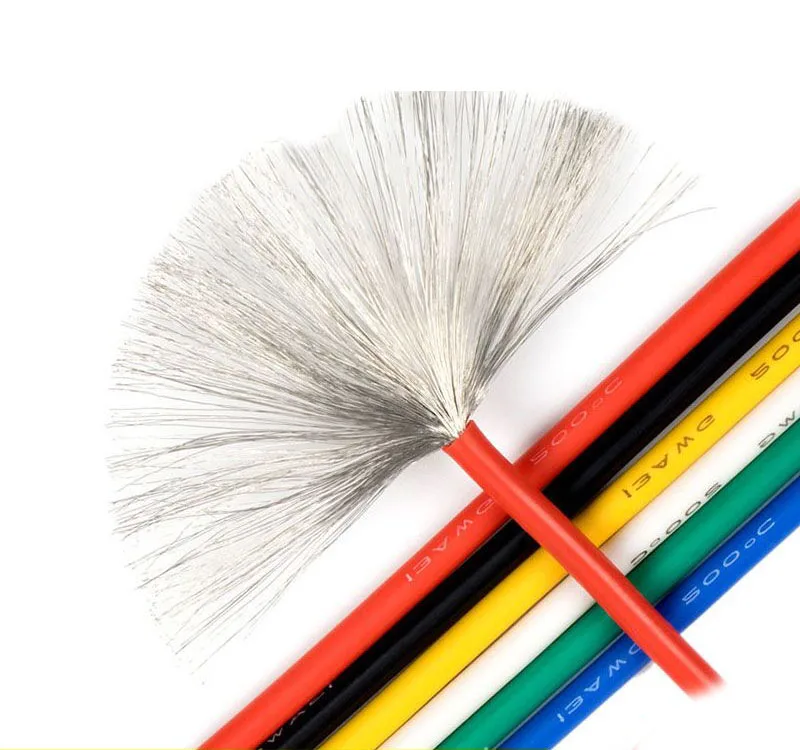

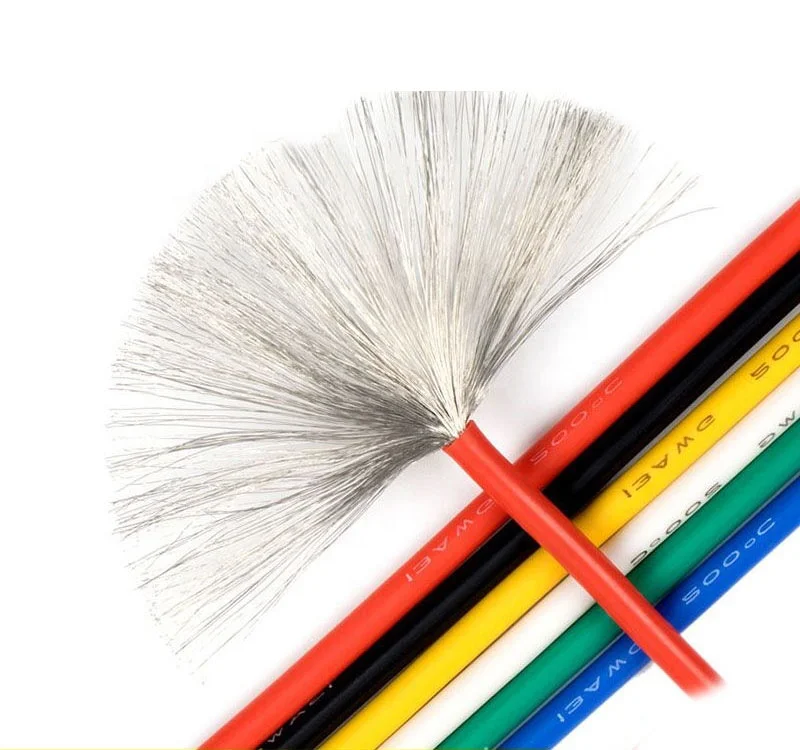

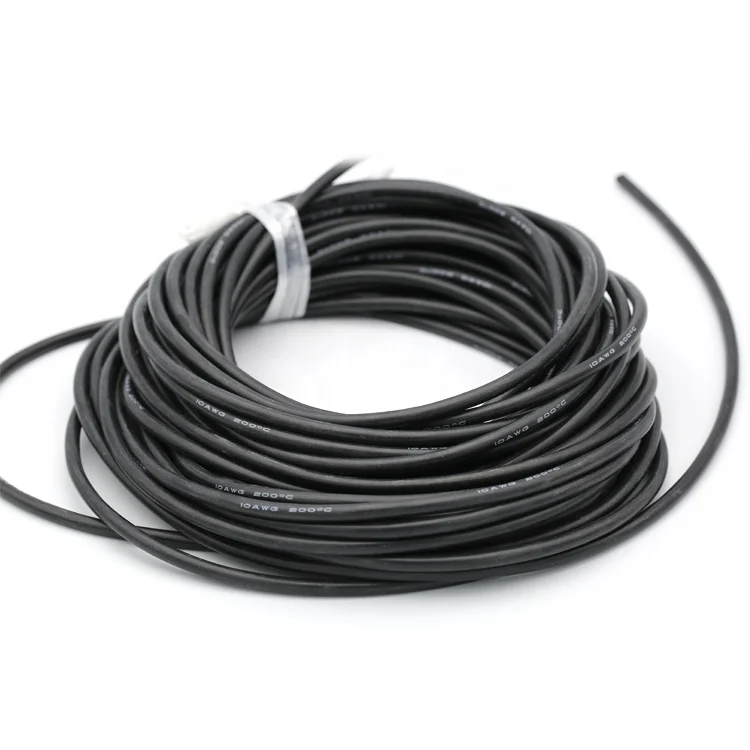

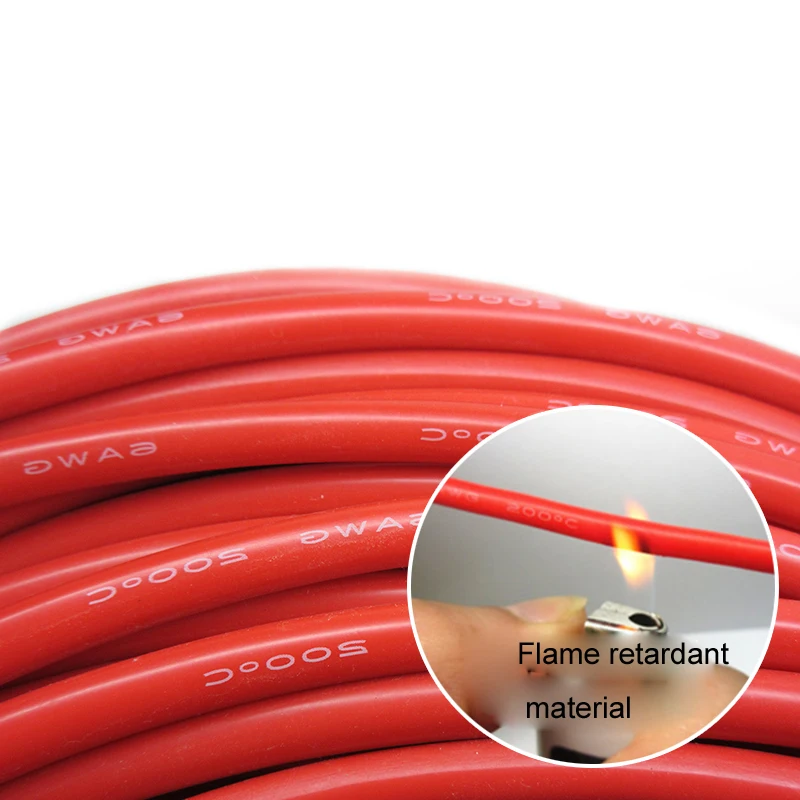

2/4/6/8/10/12/14/16/18/20/22 AWG Red Black Silicon Cables 600V Silicone Rubber Cable Heatproof Soft Electric Tinned Copper Wire

It is suitable for RC Aircraft, UAV, Car, Boat, Electric vehicle, Eectric meter pen, Lipo battery, etc.

Color options:

2AWG:Red Black

4AWG:Red Black

6AWG:Red Black Blue

8AWG:Red Black Blue White Yellow Green Orange

10AWG:Red Black Blue White Yellow Green Orange

12AWG:Red Black Blue White Yellow Green Orange

13AWG:Red Black Blue White Yellow Green Orange

14AWG:Red Black Blue White Yellow Green Orange

16-30AWG:Red Black Blue White Yellow Green Orange

(We can customize other colors. If you order a large amount, we can customize logo on the wire for you!)



Specification table:

Specifications

   (AWG)

Copper wire shares

(compos.NO./mm)

Insulation thickness

 (mm)



Diameter (mm)

Overall diameter

(mm)

Conductor resistance

(Ohm/km)

Sectional area      (mm2)

Carrying current

(ampere)

packing

(M/coils)

6AWG 3200/0.08mm 1.65 5.2 8.5 1.21 16.08 300 100
8AWG 1650/0.08mm 1.2 4.4 6.3 4.1 8.29 190 100
10AWG 1050/0.08mm 5.28 2.92 5.5 6.3 5.3 140 100
12AWG 680/0.08mm 3.42 2.41 4.5 9.8 3.4 88.4 100
14AWG 400/0.08mm 2 1.85 3.5 15.6 2.07 55.6 200
16AWG 252/0.08mm 1.3 1.47 3 24.4 1.27 35 200
18AWG 150/0.08mm 0.75 1.13 2.3 39.5 0.75 22 200
20AWG 100/0.08mm 0.5 0.92 1.8 62.5 0.5 13.87 400
22AWG 60/0.08mm 0.3 0.72 1.7 88.6 0.33 8.73 400
24AWG 40/0.08mm 0.2 0.58 1.6 97.6 0.2 5 400
26AWG 30/0.08mm 0.15 0.44 1.5 123 0.14 3.5 400
28AWG 16/0.08mm 0.08 0.32 1.2 227.2 0.08 1.25 1500
30AWG 11/0.08mm 0.055 0.3 0.8 331 0.06 0.8 1500
