Wedge Johnson Wire Vee Screen DSM Parabolic Filter Screen Curve Welded Sieve Bend Screen
- Category: >>>
- Supplier: Hebei YUBO Filtration Equipment Co. Ltd.
Share on (60709032083):
Product Overview
Description
Product Description

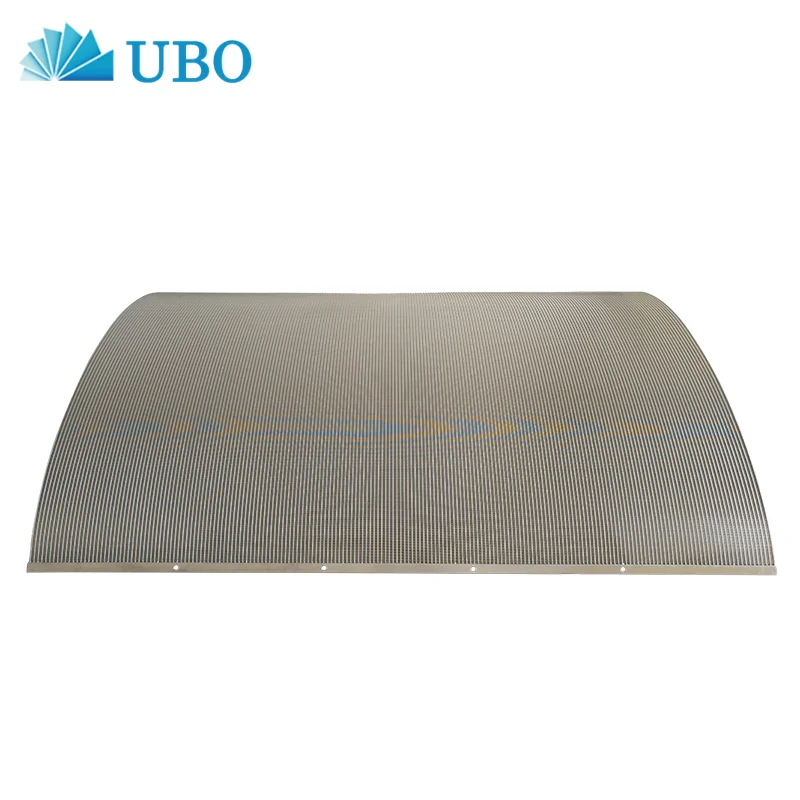

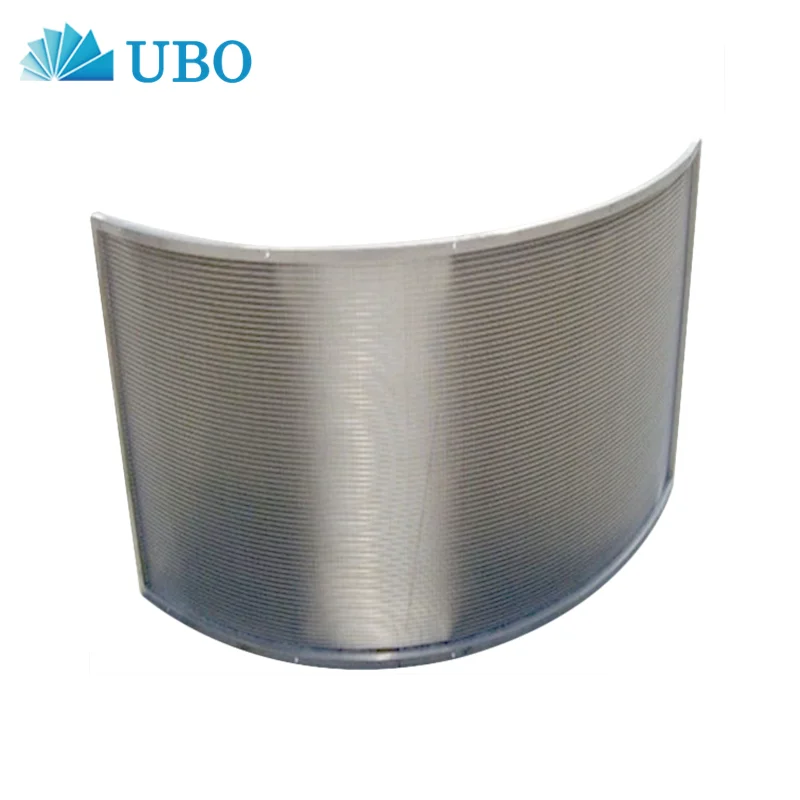

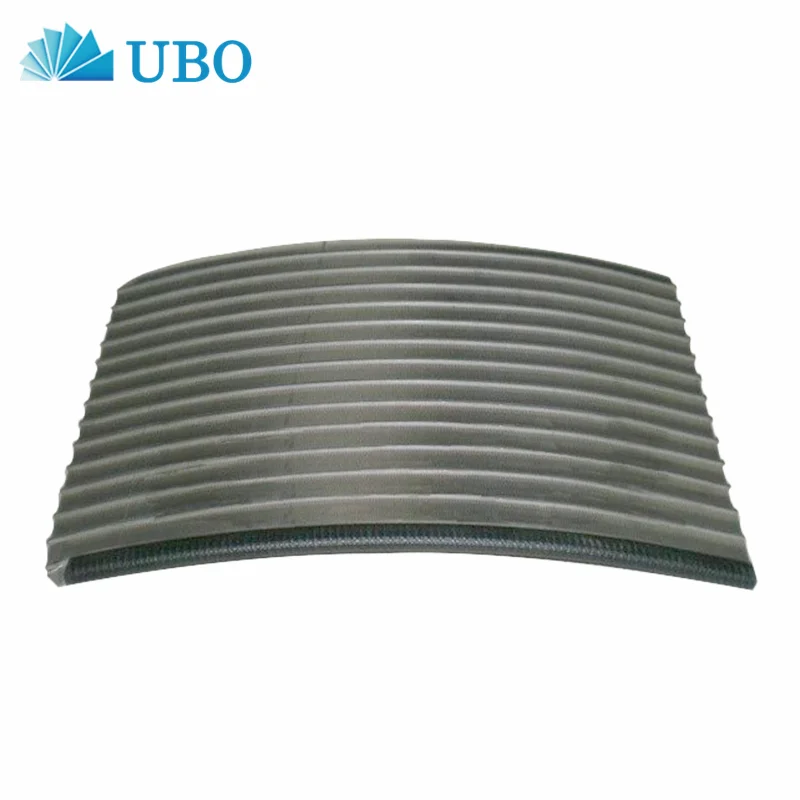

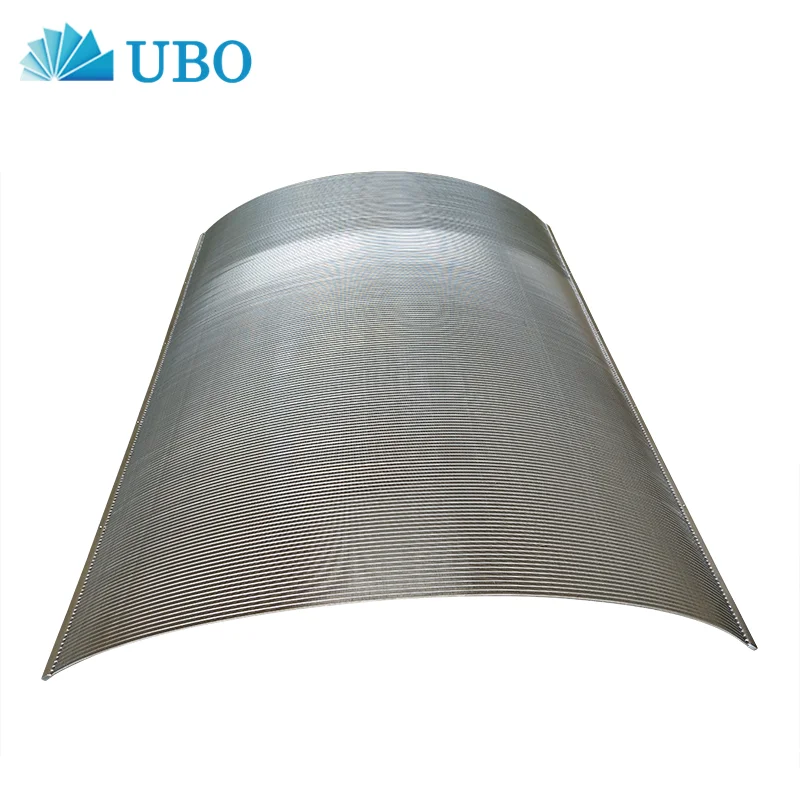

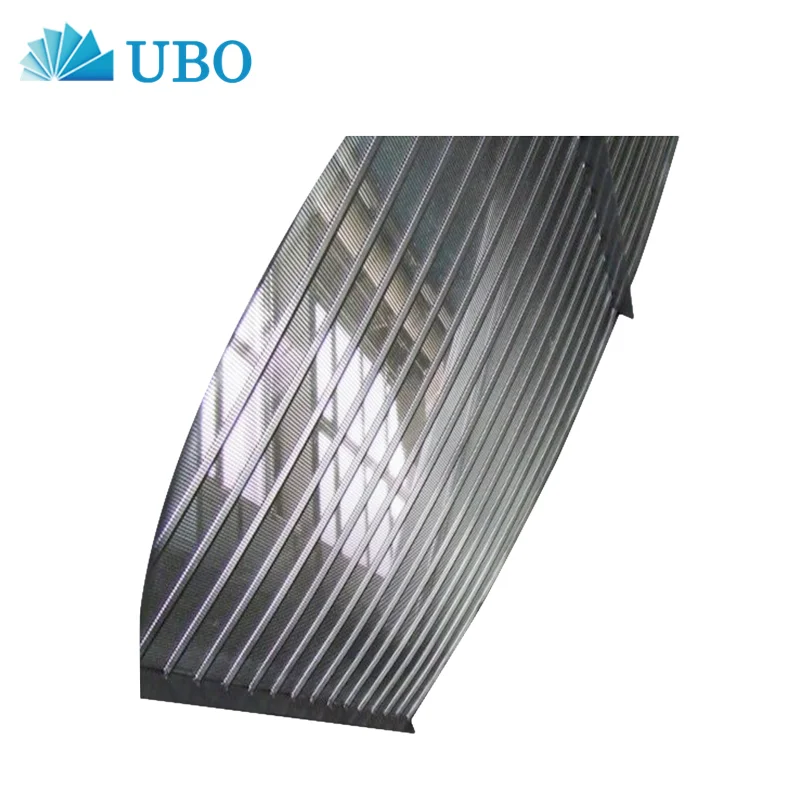

stainless steel wedge wire screen arc parabolic curve welded sieve bend screen
Sieve Bend Screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery. Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity. A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.
Specifications
| |||||||
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
Length Range | Up to 6000mm | ||||||
Width Range | Up to 6000mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5*2.5 2x3 | 2x3 | 3*5 | 3x5 | 3x5 4*6 5*8 |
Angle | 90°,120°,140°,150°,160° etc. | ||||||
Arc height | 10mm,15mm,20mm,50mm or depend on you size of screen panel. | ||||||
Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. | ||||||
Note | Customized according to requirement | ||||||
Application
Related Products
For more products,you could also visit www.ubowedgewire.com
Packaging & Shipping
FAQ
• 1.IS YOUBIOU (UBO) Factory or Trading Company?
YOUBIOU (UBO )Group has our own factory. professional on wedge wire and filters production and export for more than 10 years.
• 2.HOW ABOUT THE MOQ?
MOQ according to different product, sometimes MOQ decided by customer.
• 3.Cou You supply the sample?
We could offer the sample for free charge but the cost of freight is extra.
• 4. What payment term do you accept?
T/T ,L/C at sight, Western Union, and other mainstream payment term.
• 5. How about the delivery time?
Usually within 3-15days after receiving the deposit;
• 6.Where is your Market?
We have been exporting to more than 120 different countries and regions all over the world.
• 7.How About your sales service?
Market promotion support and best after sales service will be offered to every customer, and help them get more new customers and orders.
