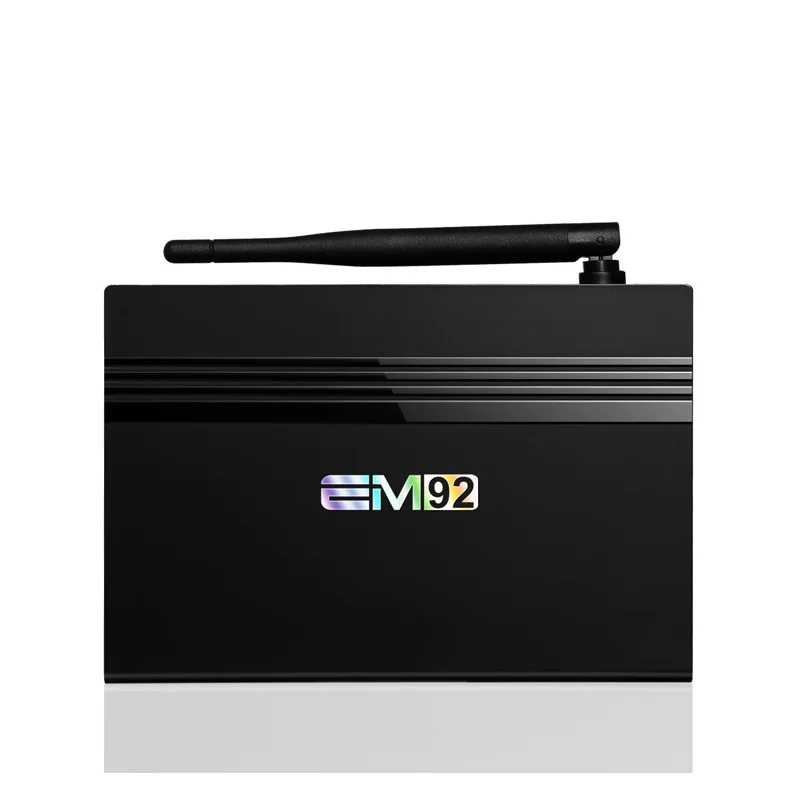

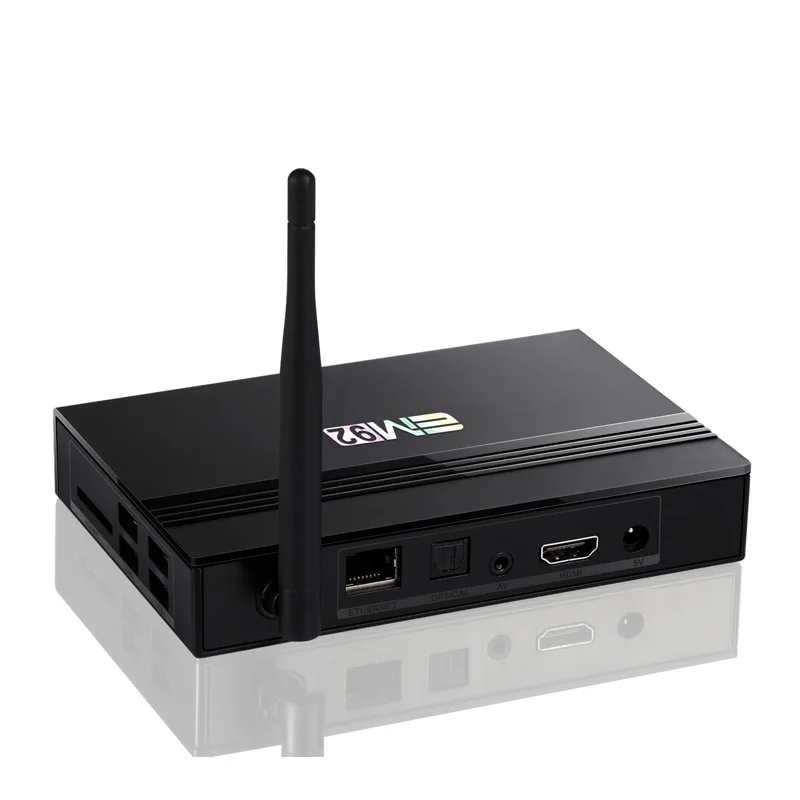

EM92 Amlogic S912 Root Access Smart OTT TV Box 3GB Octa Core Android 7.1 TV Box

Product Overview

Description

EM92 Amlogic S912 Root Access Smart OTT TV Box 3GB Octa Core Android 7.1 TV Box

Hardware Specifications
Chipset				Amlogic S912 Octa-Core ARM Cortex-A53 64-bit 2.0GHz
GPU				ARM Mali-T820MP3 GPU 750MHZ+
FLASH				16GB/32GB eMMC FLASH
SDRAM				2GB/3GB DDR3/DDR4
Power Supply Specifications
Power Supply				DC 5V/2A
Main Features
OS				Android 6.0 / Android 7.1 Optional
Video/Picture Decoding				•VP9-10 Profile-2 up to 4Kx2K 60fps •H.265 HEVC MP-10 L5.1 up to 4Kx2K 60fps •H.264 AVC HP L5.1 up to 4Kx2K 30fps, H.264 MVC up to 1080p 60fps •MPEG-4 ASP L5 up to 1080P 60fps (ISO-14496) •WMV/VC-1 SP/MP/AP up to 1080P 60fps •AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P 60fps •MPEG-2 MP/HL up to 1080P 60fps (ISO-13818) •MPEG-1 MP/HL up to 1080P 60fps (ISO-11172) •RealVideo 8/9/10 up to 1080P 60fps •WebM up to VGA •MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) •Supports JPEG thumbnail, scaling, rotation and transition effects
Video/Picture Encoding				•Independent JPEG and H.264 encoder with configurable performance/bit-rate •JPEG image encoding •H.264 video encoding up to 1080P 60fps with low latency
Video Post-Processing Engine				HDR10 and HLG HDR processing, motion adaptive 3D noise reduction filter, advanced motion adaptive edge enhancing de-interlacing engine, 3:2 pull-down support, deblocking filters, etc..

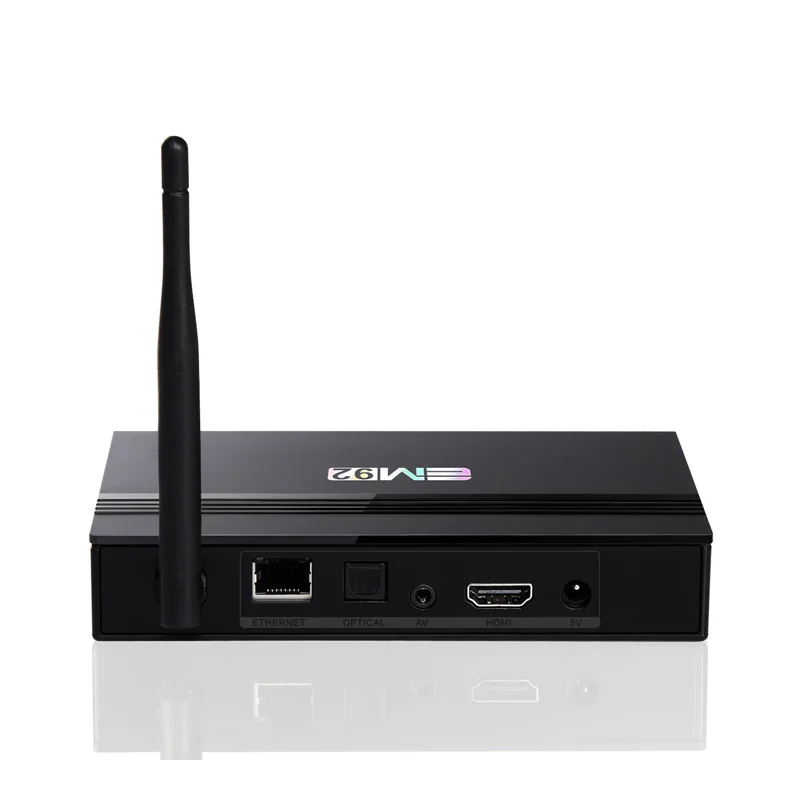

Video Output				•Built-in HD 2.0a transmitter including both controller and PHY with 3D, CEC, HDR and HDCP 2.2, 4Kx2K 60 max resolution output •CVBS 480i/576i standard definition output •RGB888 TTL interface up to 1920×1080
Audio Decoder and Input/Output				•Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing •I2S audio interface supporting 8-channel (7.1) input and output •Built-in serial digital audio SPDIF/IEC958 output and PCM input/output •Built-in stereo audio DAC •Dual-channel digital microphone PDM input •Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
USB host				4 High speed USB 2.0,support U DISK and USB HDD
Card reader				SD/SDHC/MMC cards
HDD file system				FAT16/FAT32/NTFS
Support Subtitle				SRT/SMI/SUB/SSA/IDX+USB
High Difinition video output				Support all standard SD/HD/4k2k Ultra HD decoding and output
OSD type of languages				English/French/German/Spanish/Italian/ etc multilateral languages
LAN				Ethernet:IEEE 802.3 10/100/1000M
Wireless				Support 802.11 a/b/g/n/ac,  Dual channel WIFI 2.4GHz/5.8GHz
Bluetooth				BT 4.0
Mouse/ Keyboard				Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle
HD				HD  2.0
AV				Support
Software Specifications
Network Function				Miracast,Codi,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.
Other feature				Free Internet searching,thousands of android applications,many kinds of games,etc.



Q1, When will you make shipment?

For standard box, usually will be sent from stock, you will receive them in 3-5 days after getting express way tracking code,for OEM, it will take 15-25 days after confirming pre-production sample.



Q2, What is the warranty of this model?

We provide 24 months warranty,if you experience manufacturer defects with it within the guarantee period, please contact your Sales Rep for after-sale support, if the problem is not able to be fixed there, we will offer free repair service and bear the round-trip shipping cost.



Q3, What is your minimum order quantity?

10 pcs for the MOQ of our standard boxes, sample is acceptable too.



Q4, What payment methods do you accept?

We accept T/T, PayPal, Western Union, And Trade Assurance on Alibaba.



Q5, What you can do for my OEM /ODM orders?

Customize giftbox and logo printing on Housing, firmware customization including booting image, Launcher UI, animation, install apps, default settings and so on. ODM like PCBA design, build a new mould etc, wellexperienced R&D team to support you!
