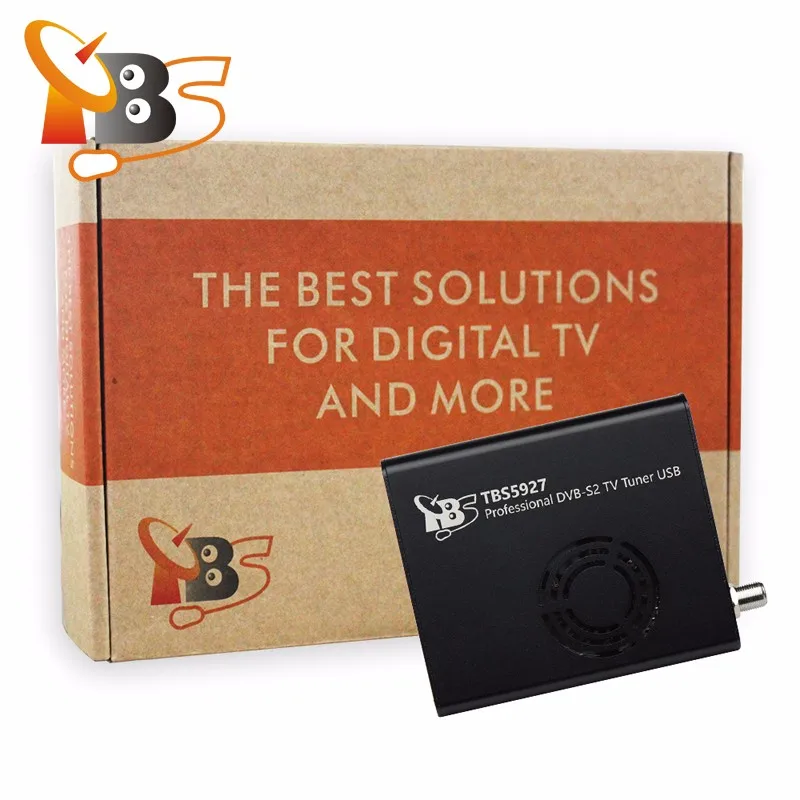

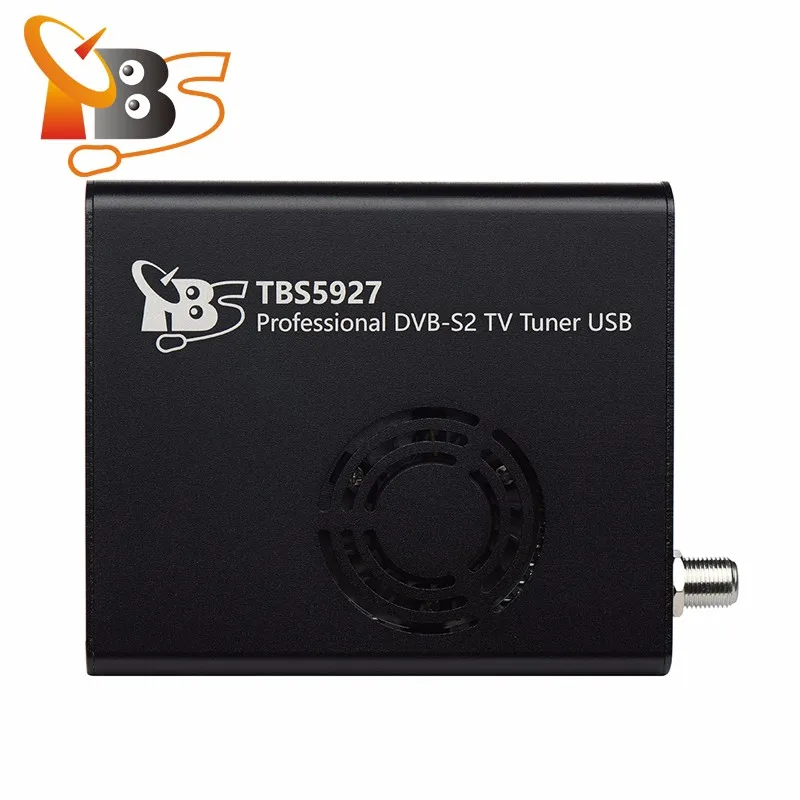

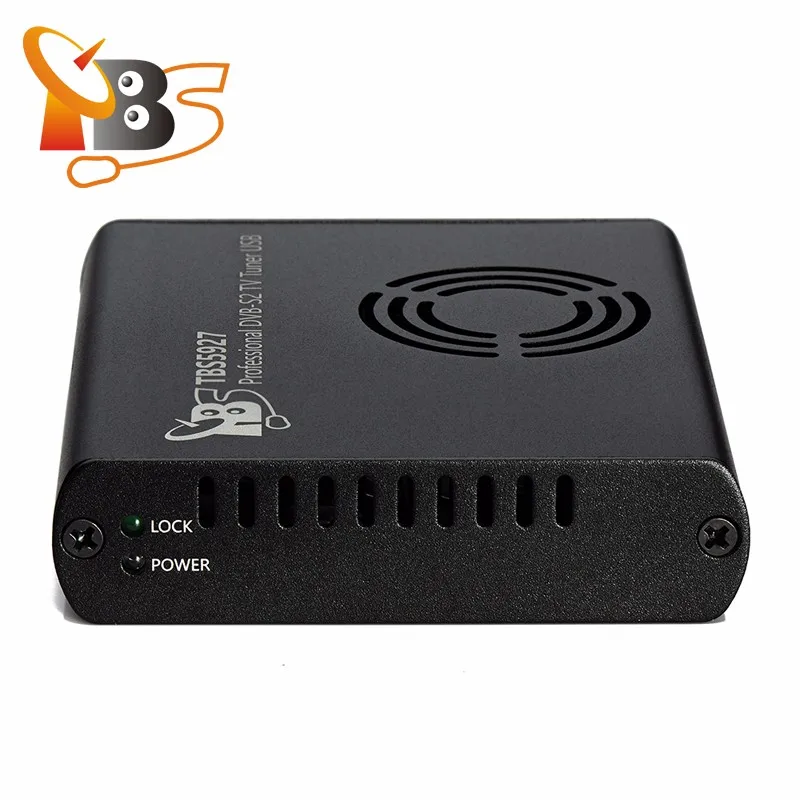

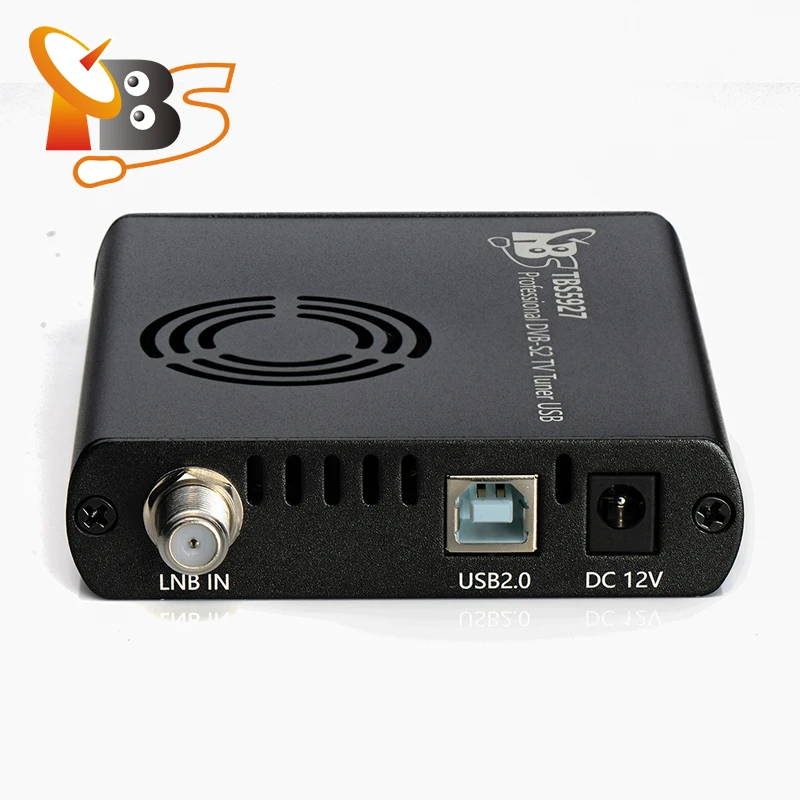

TBS5927 is a Professional level digital satellite TV Tuner box with USB2.0 connection to PC. TBS5927 supports not only normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also ACM, VCM, Multi Input Stream, 16APSK and 32APSK mode, Multiple Generic Stream, Combined Single Generic &Single TS, which most satellite receiving devices can't support.
The built-in hardware blind scan feature allows scanning of unknown satellite transponder with symbol rate as low as 200ksps, while most satellite receiving device can receive no less than 1Msps symbol rate. With use of dedicated TBS tools, those special streams can be captured. Both Windows BDA driver and Linux driver are provided.
Main Features:
EUMETCast Compatibility
DVB-S2/S Transponders Receiving
Support CCM, VCM,ACM and Multi Input Stream
Watch & record satellite TV/ radio programs on PC
Wide range symbol rates support from 200Ksps to 45Msps
High-speed Data download via Satellite
Unicable/One Cable compatibl
Support blind scan
High reliability
Specification
Receiving Frequency | 950~2150 MHz Tuning Range | |
Input Level | -69~-23dBm | |
Demodulator | Yes | |
Symbol Rate: | ||
DVB-S QPSK | 0.2~45Msps | |
DVB-S2 QPSK/8PSK | 0.2~45Msps | |
DVB-S2 CCM ACM VCM | QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | ||
16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||
32APSK+3/4, 4/5, 5/6, 8/9, 9/10 | ||
DVB-S | QPSK+1/2, 2/3, 3/4, 5/6, 7/8 | |
Data Burst & Tone Burst | Support | |
DiSEqC2.X and Motor | Support | |
Carrier Capture Range | ±10MHz | |
Applications | Data receiving | |
IPTV streaming | ||
Media monitoring | ||
Digital content distribution | ||
Power consumption | ||
Input/Power | +12/ | |
Temperature | 0~60℃ | |
System Requirements | Windows 2000/XP/Vista/7/8/10 or Linux | |
Available USB2.0 Port | ||
Satellite Dish and LNB | ||
Dimension | ||
TV tuner Boxsize | 12x9x2 (cm) | |
Net weight | 190g | |
Gift Box Size | 16x16x8(cm) | |
Weight | 615g | |
Package Contents | 1 x TBS5927 | |
1 x Power adapter | ||
1 x USB cable | ||
