LULU Brand 9500lbs 12V electric mini winch for atv tractor winch boat traile
- Category: >>>
- Supplier: Jiangsu Hongjin Electro-Mechanical Equipment Manufacturing Co. Ltd. [Jiangsu China]Jiangsu
Share on (60709143690):
Product Overview
Description
LULU Brand 9500lbs 12V electric mini winch for atv tractor winch boat traile

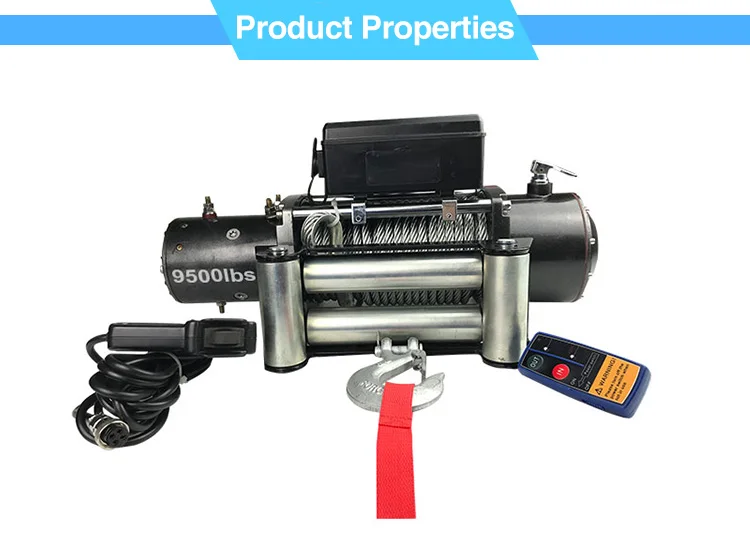

Product Display
| 9500lbs Features and Specifications | ||
| HJEW-N95 | HJEW-N95S | |
| Rated line pull | 9500 lbs.(4318 kgs.) single-line | 9500 lbs.(4318 kgs.) single-line |
| Motor | Series Wound 5.5hp/4.0kw | Series Wound 5.5hp/4.0kw |
| Geartrain | 3-Stage Planetary | 3-Stage Planetary |
| Gear Ratio | 265:1 | 265:1 |
| Waterproof | IP 67 rating | IP 67 rating |
| Brake | Automatic In-The-Drum | Automatic In-The-Drum |

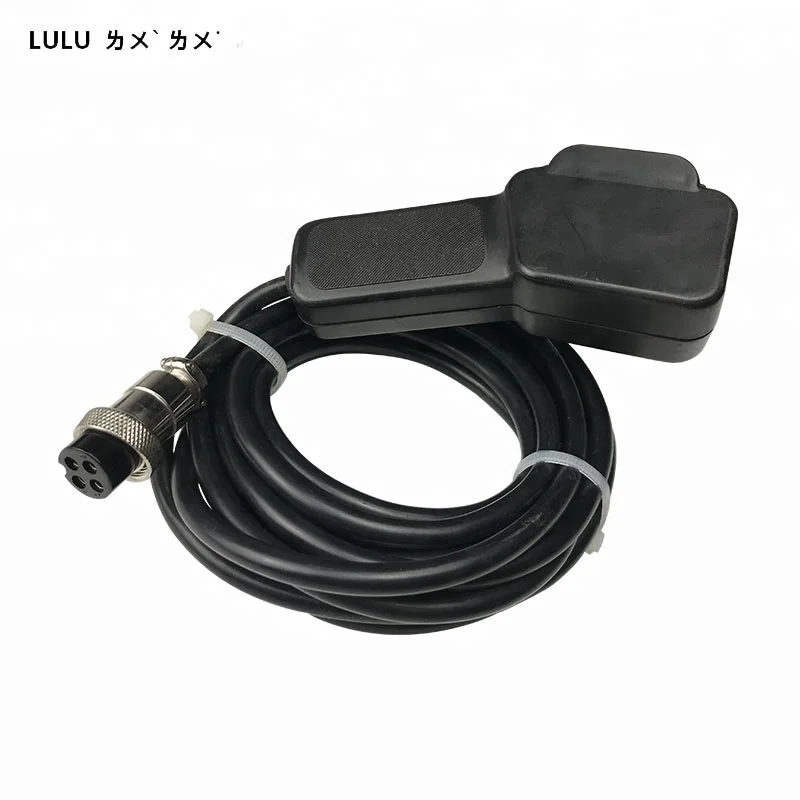

| Remote Control | Control switch,12 in (3.7m) lead | Control switch,12 in (3.7m) lead |

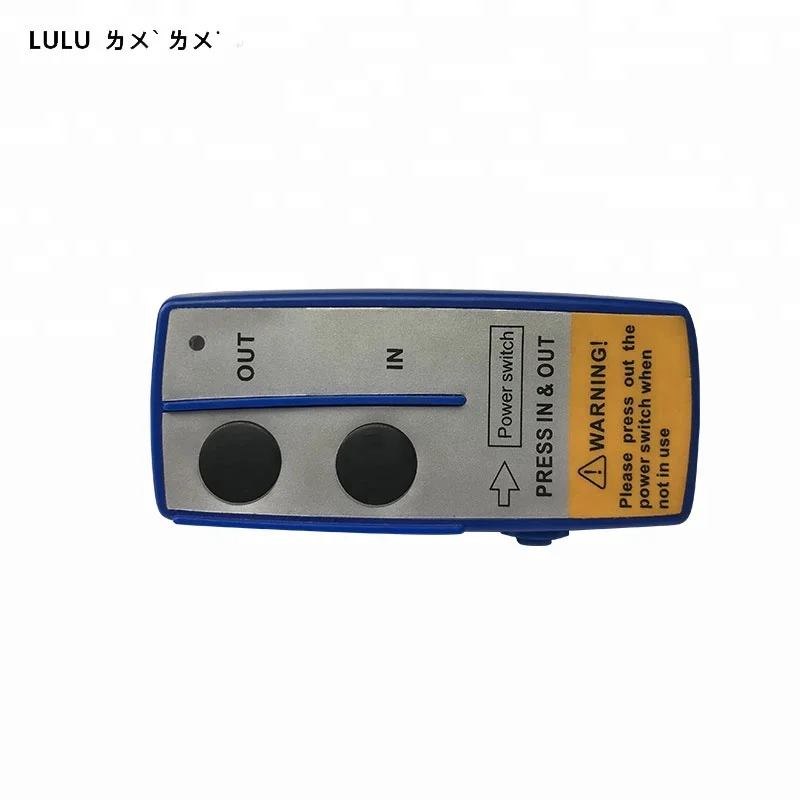

| Extra Wireless Remote | Options | Options |
| Clutch (freespooling) | Sliding Ring Gear | Sliding Ring Gear |
| Drum Diameter / Length | 2.5 in (63.5mm) / 88.19 in (224mm) | 2.5 in (63.5mm) / 88.19 in (224mm) |
| Cable Diameter / Length | 21/64 in (8.3mm) / 85.3ft. (26m) | 21/64 in (8.3mm) / 85.3ft. (26m) |
| Cable Type | Wire Rope | Synthetic (UHMWPE) |

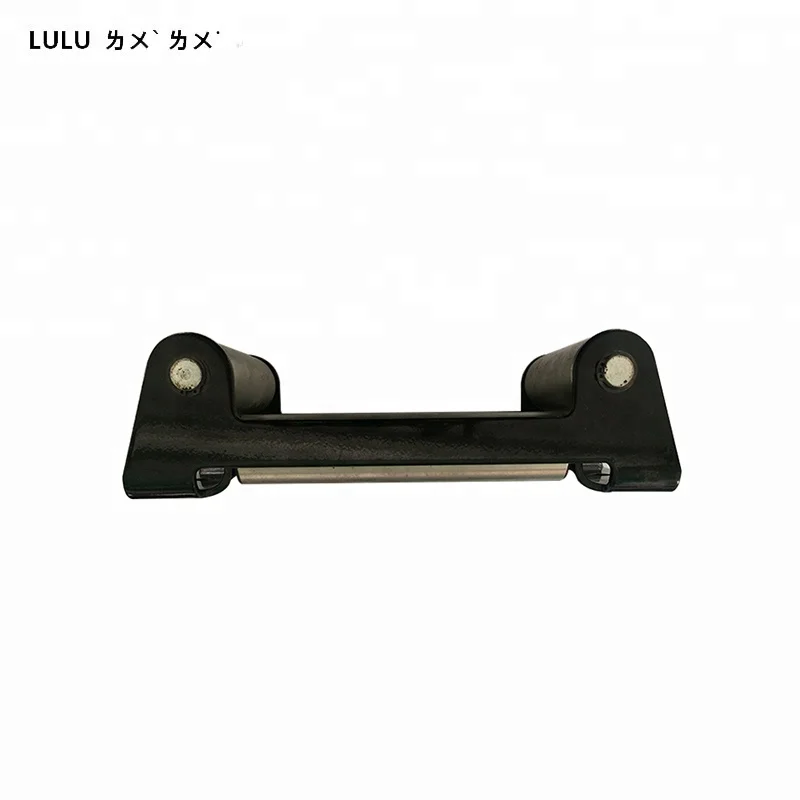

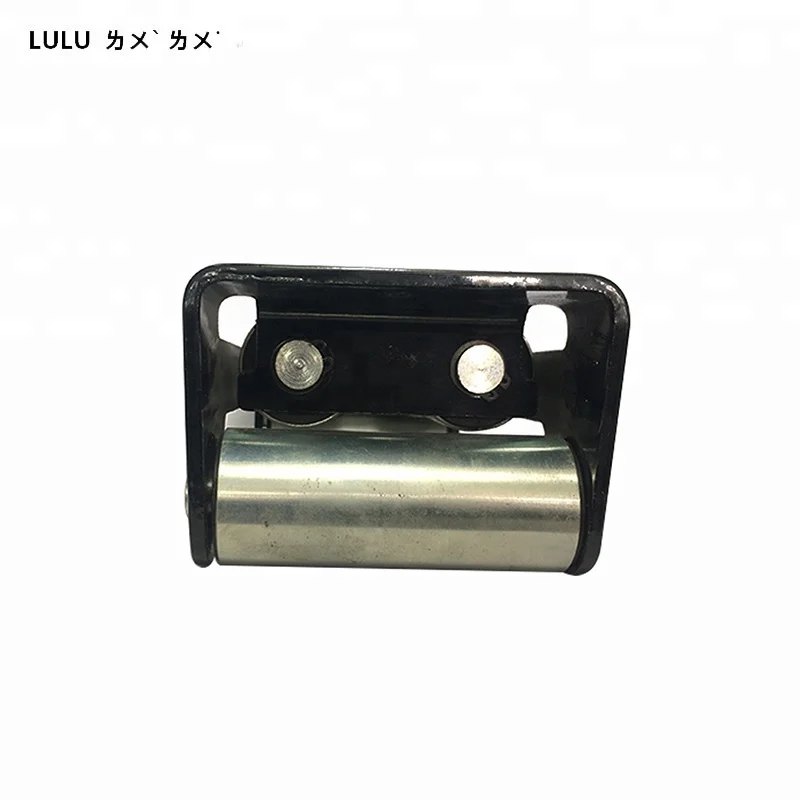

| Fairlead | Roller | Stainless Steel Hawse / Alumimum Alloy Hawse |
| Rcommended battery | 650 CCA minimum for winching | 650 CCA minimum for winching |
| Battery Leads | 25 Sq.mm, 72 in (1.83m) 1 | 25 Sq.mm, 72 in (1.83m) 1 |
| Color | Black (Default) or customised | Black (Default) or customised |
| Finish | Black / Textured Black Power Coat | Black / Textured Black Power Coat |
| Weight | 84.9 lbs. (38.5 kgs.) | 52.47 lbs. (23.8 kgs.) |
| Mounting Bolt Pattern | 10.0 in x 4.50 in (254mm x 114.3mm) | 10.0 in x 4.50 in (254mm x 114.3mm) |
| Overall Dimensions | (L x W x H) 20.9 in x 6.3 in x 8.9 in 532mm x 160mm x 218mm | (L x W x H) 20.9 in x 6.3 in x 8.9 in 532mm x 160mm x 218mm |
| Pull, Speed, Amps | ||
| Line Pull Lbs.(Kgs.) | Line Speed FT./min (M/min.) | Motor Current |
| 0 | 205.5(5.22) | 65 amps |
| 2000(907) | 17.1(4.34) | 125 amps |
| 4000(1818) | 122.5(3.1) | 180 amps |
| 6000(2727) | 105.6(2.68) | 230 amps |
| 8000(3636) | 90.5(2.3) | 300 amps |
| 9500(4318) | 84(2.13) | 370 amps |
| Line pull and rope capacity in each layer | ||
| Pull by layer | Rated line pull Lbs. (Kgs.) | Total rope on drum FT. (M) |
| 1 | 9500 (4318) | 16.3 (5.0) |
| 2 | 7700 (3493) | 39.3 (12.0) |
| 3 | 6500 (2954) | 65.6 (20.0) |
| 4 | 5610 (2585) | 92 (28.0) |
