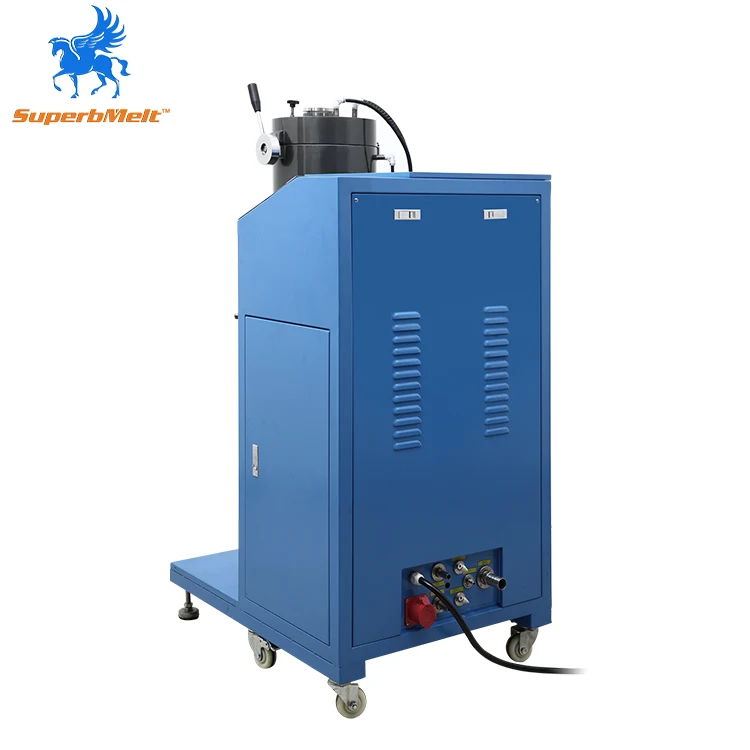

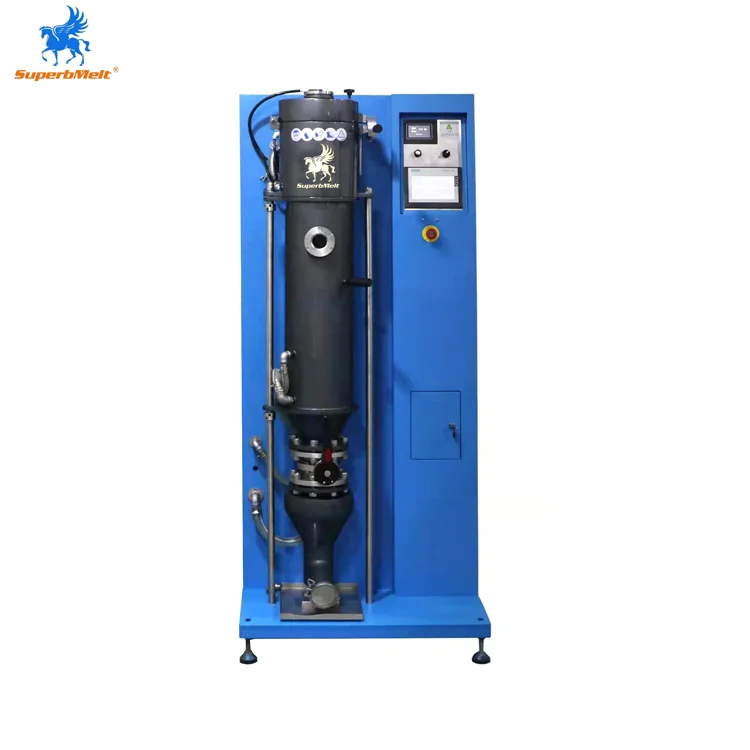

Небольшой серебряный гранулятор по хорошей цене
- Category: Other Metal & Metallurgy Machinery >>>
- Supplier: Longgang Superb Electromachinery Co. Ltd.
Share on (60709230048):
Product Overview
Description
Product Description
| Model number | SPB-VS5 | SPB-VS10 | SPB-VS20 |
| Photo |  |  | |
| Power source | Three phase 380V±10%, 50/60Hz | Three phase 380V±10%, 50/60Hz | Three phase 380V±10%, 50/60Hz |
| Power | 15 kw | 15 kw | 25kw |
| Casting system | Vacuum casting system | Vacuum casting system | Vacuum casting system |
| Applicable metal | Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, Silver, Copper, Brass, Bronze, and their alloys |
| Melting time | 5-6 min | 5-6 min | 5-6 min |
| The Max capacity | 24K Gold: 5.0 kg 925 Silver: 2.5 kg | 24K Gold: 10.0 kg 925 Silver: 5.0 kg | 24K Gold:? 20.0 kg 925 Silver: 10.0 kg |
| Max heating temperature | 1600℃ | 1600℃ | 1600℃ |
| Max. temp control k-type | 1100℃ | 1100℃ | 1100℃ |
| Casting chamber size | D275*H1100mm | D330*H840mm | D385*H1000mm |
| Dimension | 730*935*1600mm | 800*1020*1700mm | 850*1050*1800mm |
| Weight | 175KG | 235KG | 265KG |
| Protective gas | Argon | Argon | Argon |
| Vacuum pump (Optional) | 63 m3/hour | 63 m3/hour | 63 m3/hour |
| Control of temperature | by PID | by PID | by PID |
| Accuracy of temperature | ±2 degrees Celsius | ±2 degrees Celsius | ±2 degrees Celsius |
| Vacuum filter | Y | Y | Y |
| Vacuum leakage detector | Y | Y | Y |
| Casting chamber lift | Y | Y | Y |

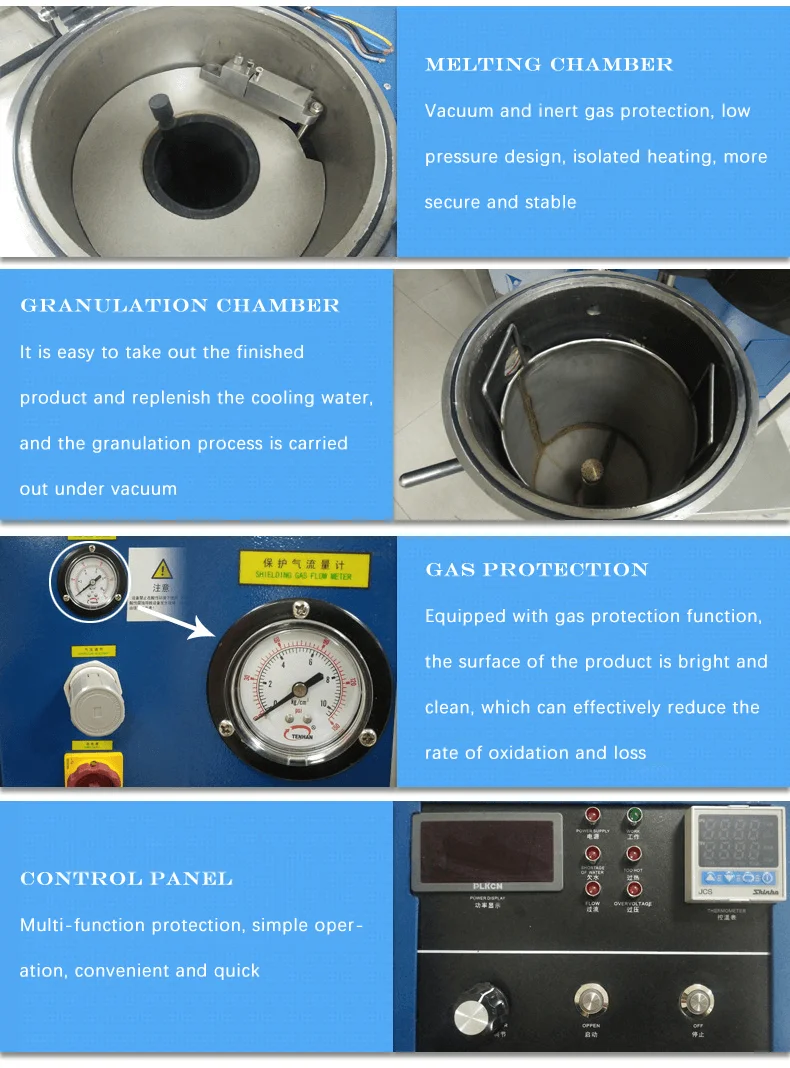

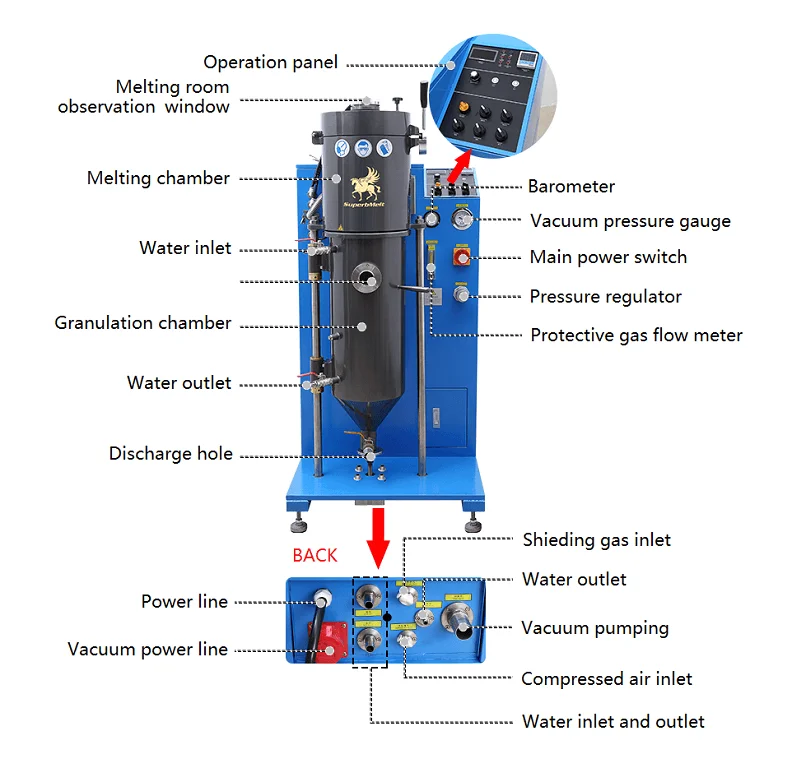

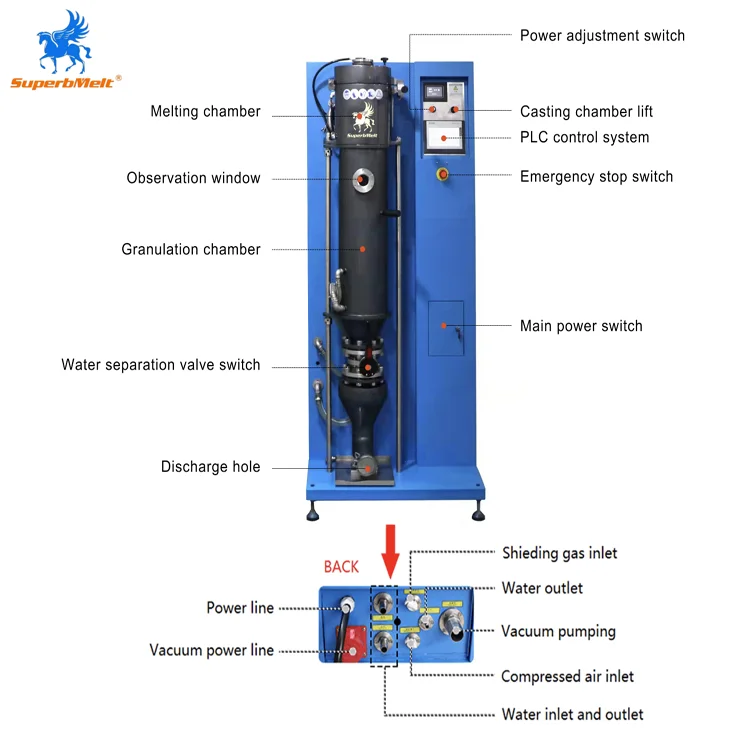

Features of Granulator Machine:
1.Heating coil with low-voltage design, insulted heating, safe, and table.
2.The induction generator is designed to allow the homogenization of the alloy thanks to the stirring effect of the magnetic field which works while the metal is being melted in the crucible.
3.Water in the tank is continuously circulating and it is cooled by a powerful chiller to keep the process variables under control and obtaining consistency and quality in the produced grains.
4.Easy to get materials from granulating barrel and can supplement cooling water.

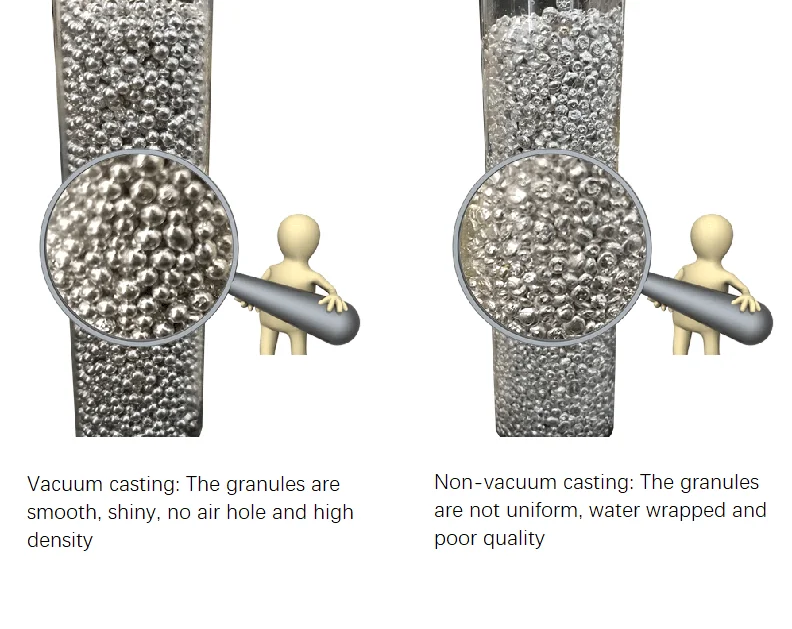

5.The finished products have no oxidization, producing equal particles, good color and good sphere
