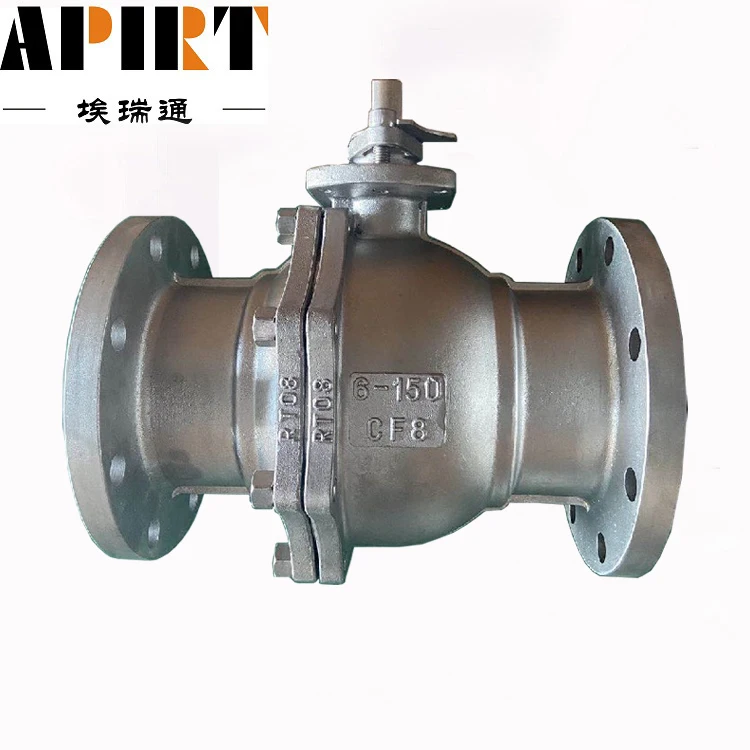

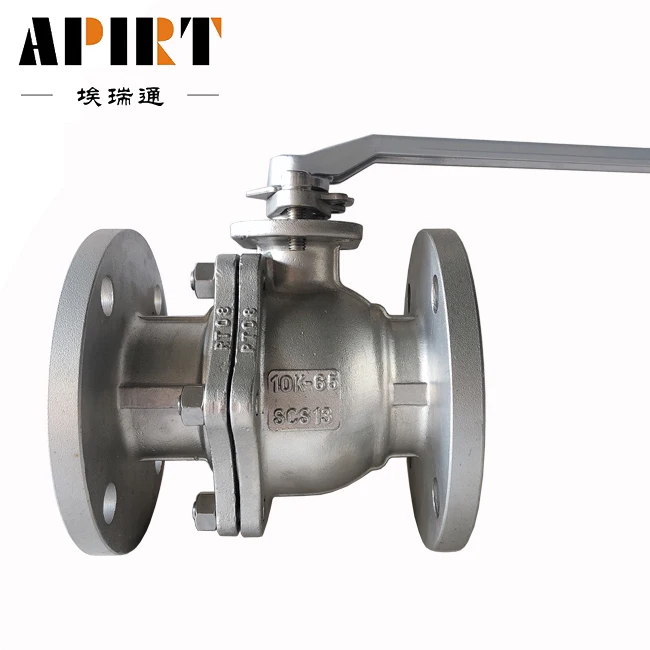

Stainless steel ball valve API flanged stainless steel ball valve
- Category: >>>
- Supplier: Zhejiang Ruitong Valve Co. Ltd.
Share on (60709247555):
Product Overview
Description
Product Description
| 1.PN16 Flanged ball valve Technical Standard | ||||||||
| Design and Manufacturer | Face to face end | Flange Dimension | Pressure Temperature Rating | Inspection and Test | ||||
| API 600 | ANSI B16.10 | ANSI B16.5 | ANSI B16.34 | API 598 | ||||
| API 6D | API 6D | API 6D | ||||||
| 2. .API flanged ball valve Pressure | ||||||||
| Pressure | unit | 150 | 300 | 600 | 900 | |||
| Shell Test | Mpa | 3 | 7.7 | 15.3 | 23 | |||
| Water Seal Test | Mpa | 2.2 | 5.7 | 11.3 | 17 | |||
| Air Seal Test | Mpa | 0.6 | ||||||
| 3. API flanged Ball valve Material | ||||||||
| Body | Stem | Gasket | Seal face | Working temperature | Medium | |||
| WCB | 2Cr13 | PTFE, RPTFE, graphite | PTFE, PPL, RPTFE | 150C | water | |||
| CF8 | 304 | nitric acid | ||||||
| CF8M | 316 | acetic acid | ||||||

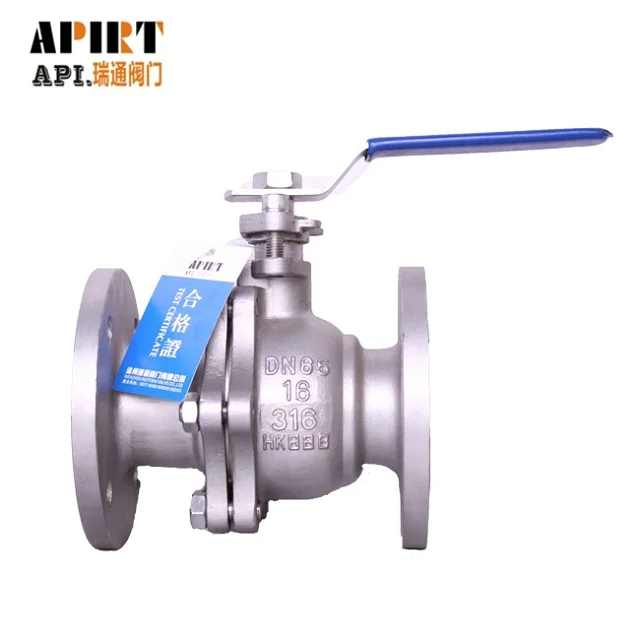

Product Name: PN16 flanged ball valve
Material: stainless steel CF8 CF8M CF3 CF3M F304 F316etc
End Connection: RF ,FF ,RTJ flanged end ,NPT ,BSP,SW/ BW welded end
Standard: DIN GB ISO JIS BA ANSI
Pressure Grade: DIN GB ISO JIS BA ANSI
Brade: APIRT
Working temperature: Working temperature-29~425℃ WCB -40~500℃ SS
Used Medium: Water,Oil,Gas,Niric Acid ,etc
Product Catalog

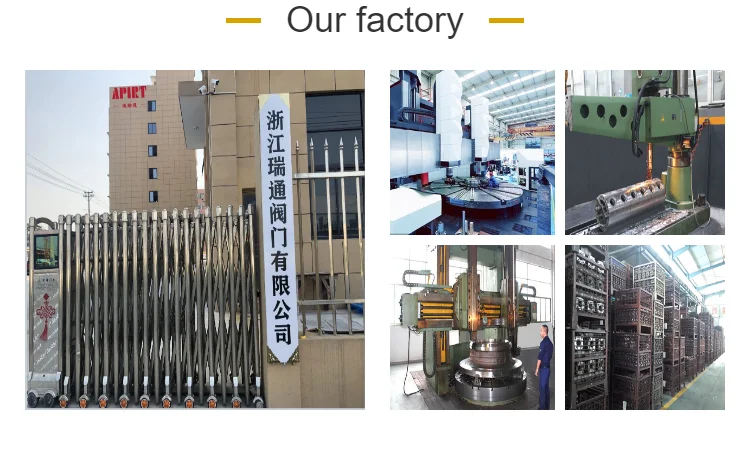

Company Information
Zhejiang general valve co., LTD Zhejiang general valve co., LTD is located in the cradle of Chinese mathematicians, the home of the Chinese dynasties, known as "southeast of the landscape of guilin" of wenzhou, to provide you with professional production, processing and sales as one of the valve manufacturer and other services, adhering to the customer-focused service concept, to feel the needs of customers, the company's main machinery, valve, relief valve, to provide customers with products and good technical support and perfect after-sales service and sincere attitude are new and old customers consistent high praise. The company has a sound organizational structure and a group of experienced, high-quality, efficient staff, zhejiang ruitong valve co., ltd. is a well-known machinery enterprises in wenzhou. |  |
Packaging & Shipping
FAQ
Q:Are you a factory?
A:We are a factory setted up more than 10 years and export more than 10 years.
Q:When is the delivery date?
A:15-30 days in general
Q:Coud you send me a quoattion?
A:Sure,before the exactly quotation we need information followed:
1).Product material grand
2).Quantity of each sizes.
3).The size range of your product.
4).Your requriement, such as deal with the surface or anyother requriement
5).Best, Please show us your product picture.
Q: Can you send me a sample?
A: Yes,and the sample also is free
Q: How about the after service?
A:Free of charge for one year warranty,if have any problem,
when our technicianer check, after confirm it ,we will change it at once.
Q:What about the shipping package?
A:Standard packing or as customer requirements.
