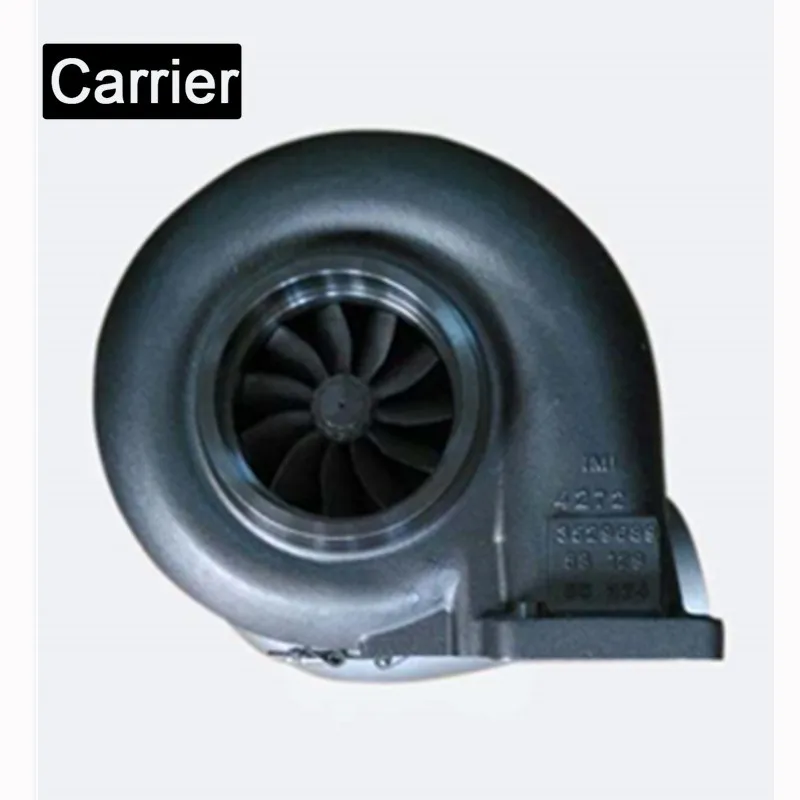

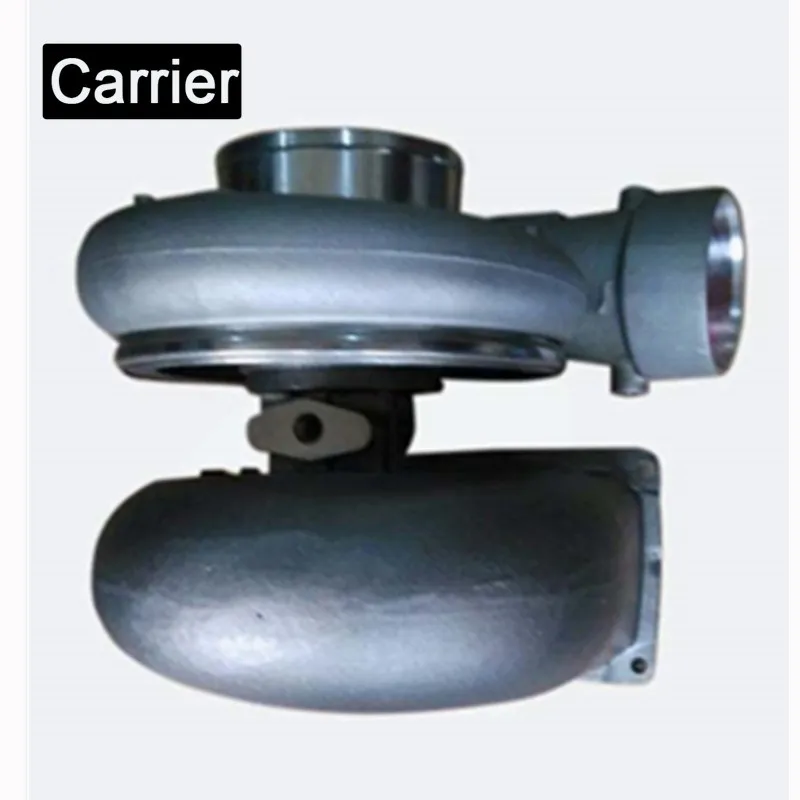

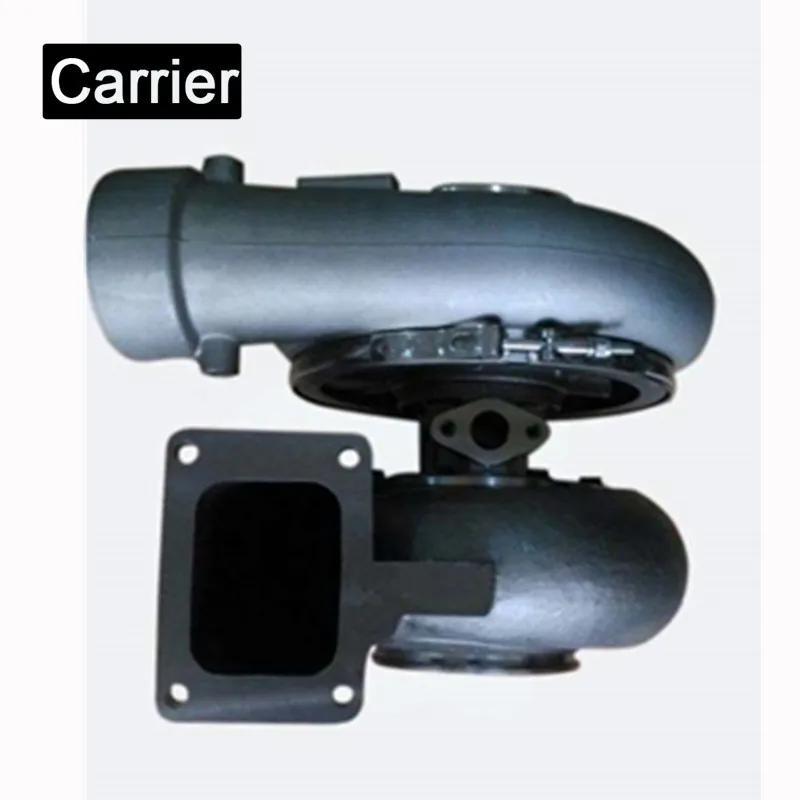

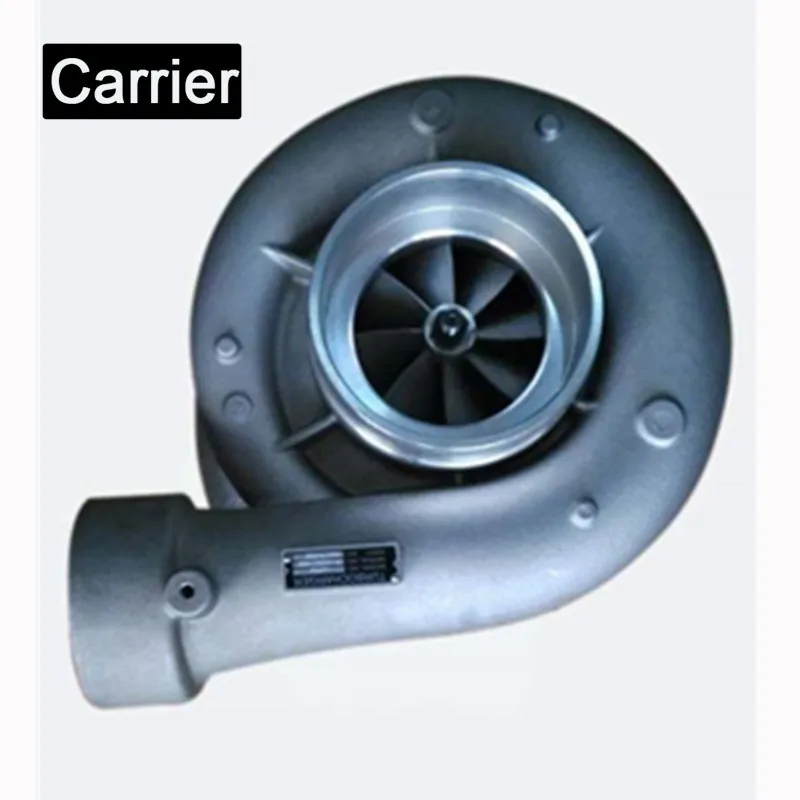

3803452 HC5A Turbo 3594111 With KTTA19 KTTAC1500E, KTTA50 Engine
3803452 HC5A Turbo 3594111 With KTTA19 KTTAC1500E, KTTA50 Engine
3803452 HC5A Turbo 3594111 With KTTA19 KTTAC1500E, KTTA50 Engine
3803452 HC5A Turbo 3594111 With KTTA19 KTTAC1500E, KTTA50 Engine
3803452 HC5A Turbo 3594111 With KTTA19 KTTAC1500E, KTTA50 Engine

3803452 HC5A Turbo 3594111 With KTTA19 KTTAC1500E, KTTA50 Engine

Share on (60709253993):


Price:RUB 22,144.19

Quantity:


Product Overview

Description

Product Description


Part Number3594111
Previous versions4033464, 3524660, 3594112, 3594113, 3594114, 3529718
OE number3803452, 3801563, 3803450
DescriptionCummins Industrial Engine
CHRA3594213  NEW IN STOCK
EngineKTTA19, KTTAC1500E, KTTA50
Turbo ModelHC5A, HC5A-3091M/N58P4
Engine ManufacturerCummins
FuelDiesel
KW1500 HP
Angle α (compressor housing)38.5/45/360°
Angle β (turbine housing)90/360°
Bearing Housing3523429
Turbine Wheel3521034 (3521034)(Ind. 129.0 mm, Exd. 111 mm, 11 Blades) (1152105436)  NEW IN STOCK
Comp. Wheel3523546 (Ind. 103.8 mm, Exd. 131. mm, 8+8 Blades)(1152105403)  NEW IN STOCK
Back plate3524421
Heat shield Number3519783
Repair Kit3545647 (1152105750)  NEW IN STOCK
Gasket (turbine Inlet)409265-0000 (Inox Steel)
Gasket (oil outlet)210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025)














 1.jpgcarrier turbo_.pngCHRA_.pngTurbocharger_.png_20190325104338_.png_20190325104353_.png_20190325104402_.png_20190325104419_.png_20190325104431_.png_20190325104452_.png
