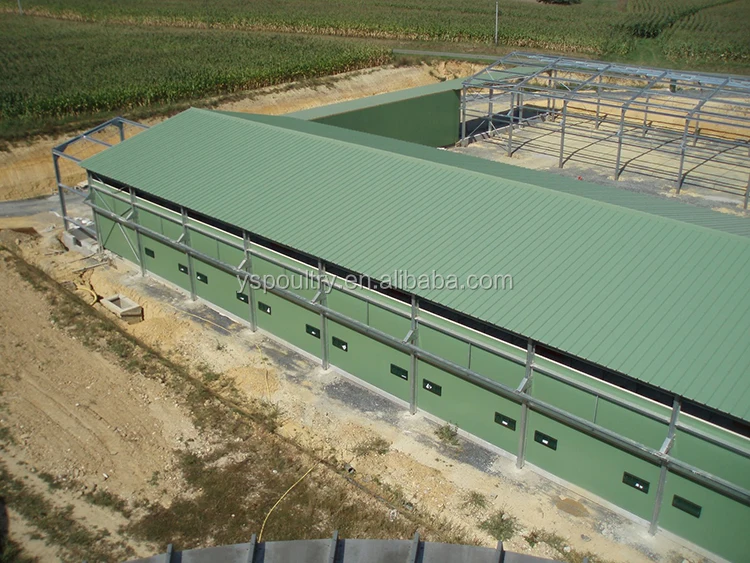

1. Chicken Capacity: 50,000 chickens( and customer now design to expand another chicken house-also 50,000 chicken, new order has been placed in Ocotober, 16th)
2. Equipment: 4 row 4 tiers A type Chicken Layer Coop, with automatic drinking, feeding, egg collecting, manure cleaning as well as ventilaton and temperature controling system.
3. If customer don't have experience on highers profit and large scale chicken farm, we can supply turnkey service. You just need offer the size of your chicken farm or chicken quantity you want to raise. We can design the most resonablle plan base on our 28 y-year experience. Meanwhile, we can also provide you the installation after ervice, and farming guidance.
The Main Specification of our Chicken Layer Coop:
Tier/set
Size/Piece
L*W*H(mm)
Pcs/ Set
Nest/Piece
Capacity/
nest
Capacity/set
Size/set
(L*W*H)mm
3 / 4/ 5 tier
1950*380*350
6/ 8 /10 pcs
5 nest
3 birds
90/ 120/ 150birds
1950*2163*1564
1950*2367*1885
3 / 4/ 5 tier
2150*420*410
6/ 8 /10 pcs
5 nest
4 birds
120/ 160/ 200birds
2150*2367*1577
2150*2541*2077
3 / 4/ 5 tier
2150*500*430
6/ 8 /10 pcs
5 nest
5 birds
150/ 200/ 250birds
2150*2610*2216
2150*2567*2282

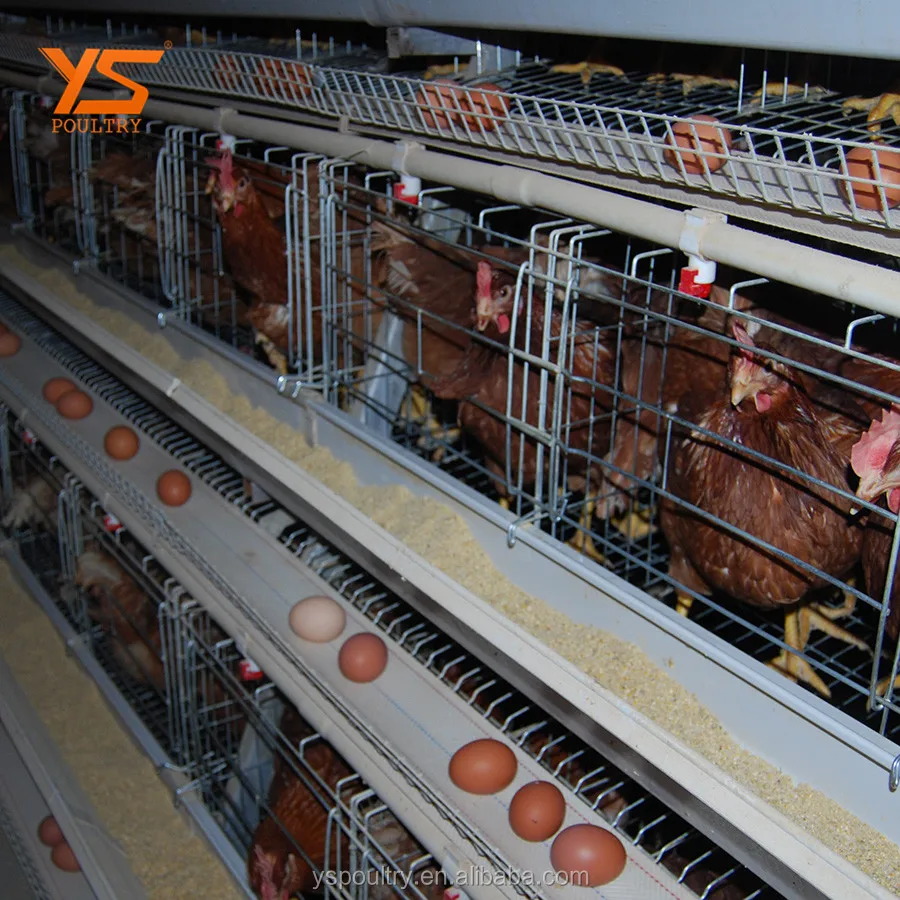

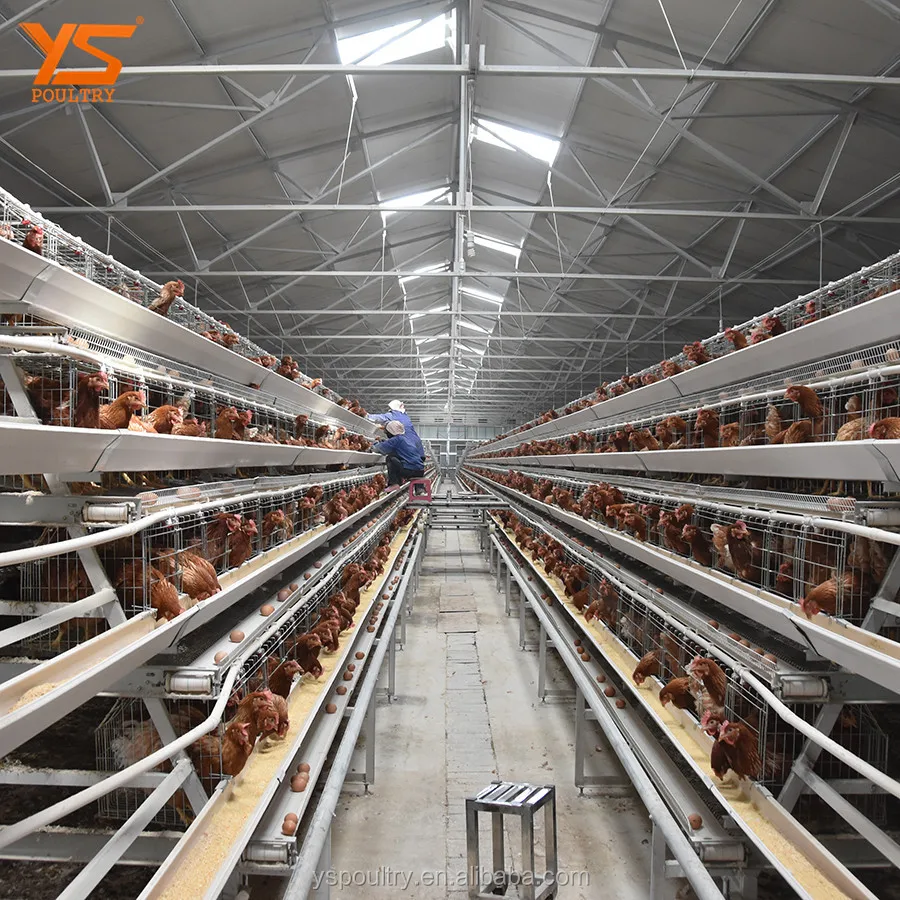

Show how the equipment run:
Main Parts of Chicken Layer Coop

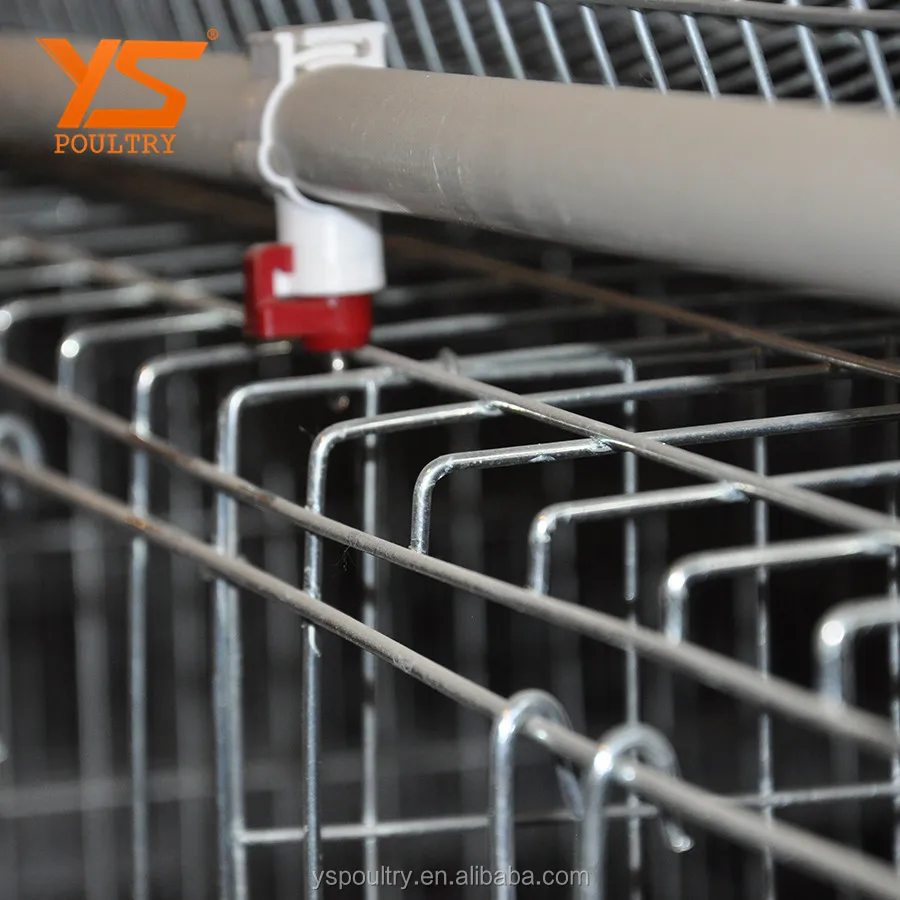

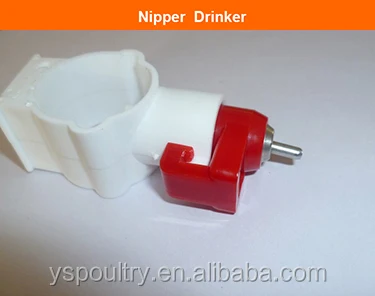

Nipple Drinker
1. Stainless steel valve with three-ply seal, 360°contacts
2. Sealed: we will do strict leakage test before delivery to make sure every nipple drinker isn’t leakage and highly sensitive.
3.Opening valve pressure:≤4N.
4. Adaptable water pressure: 0.5~ 5KPa

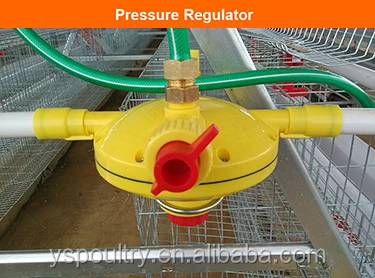

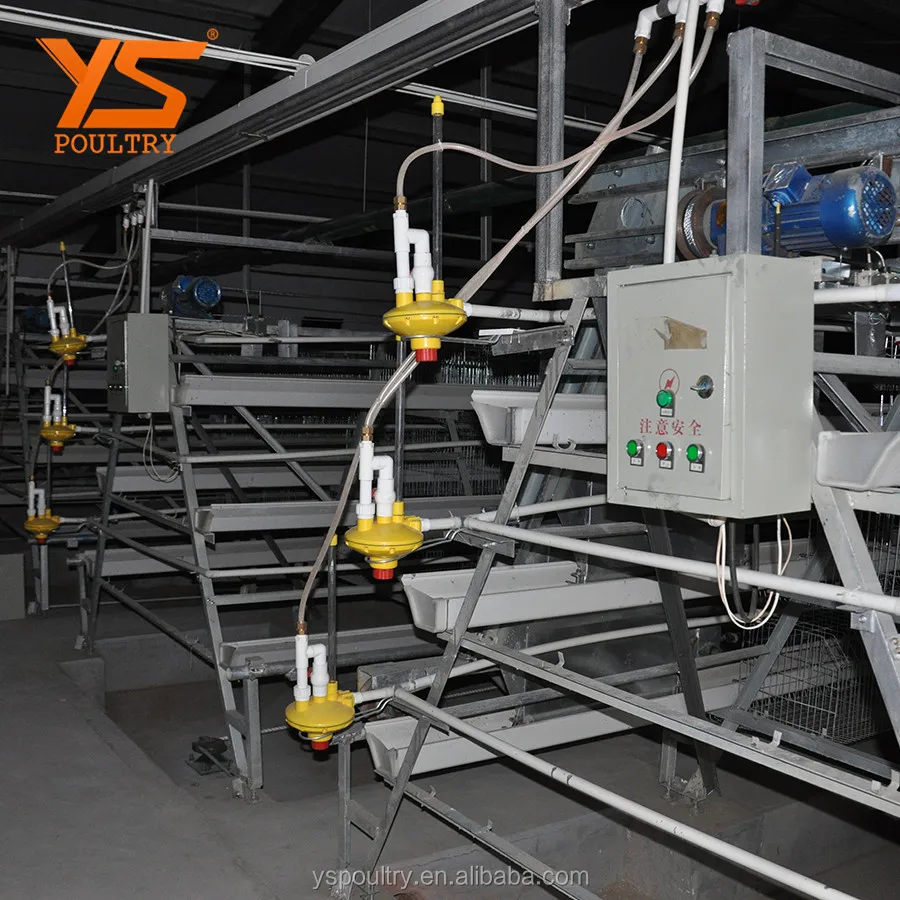

Pressure Regulator
1. Regulating sensitive: regulating range can reach 0.5~5KPa
2. Big water flow when washing, so that the water pipe can be cleaned up thoroughly.
3.The part of water level display is made by transparent PC pipe, it’s easily to read and it sealed with pressure regulator by rubber ring. Insert contacting, convenient for
disassembling and cleaning.
4. Based on chicken age level, nipple drinker water volume can be adjusted accurately according to the regulator. It could avoid water waste, humidity of house, liquid manure, more ammonia gas, so keep chicken health, surrounding environment clean.

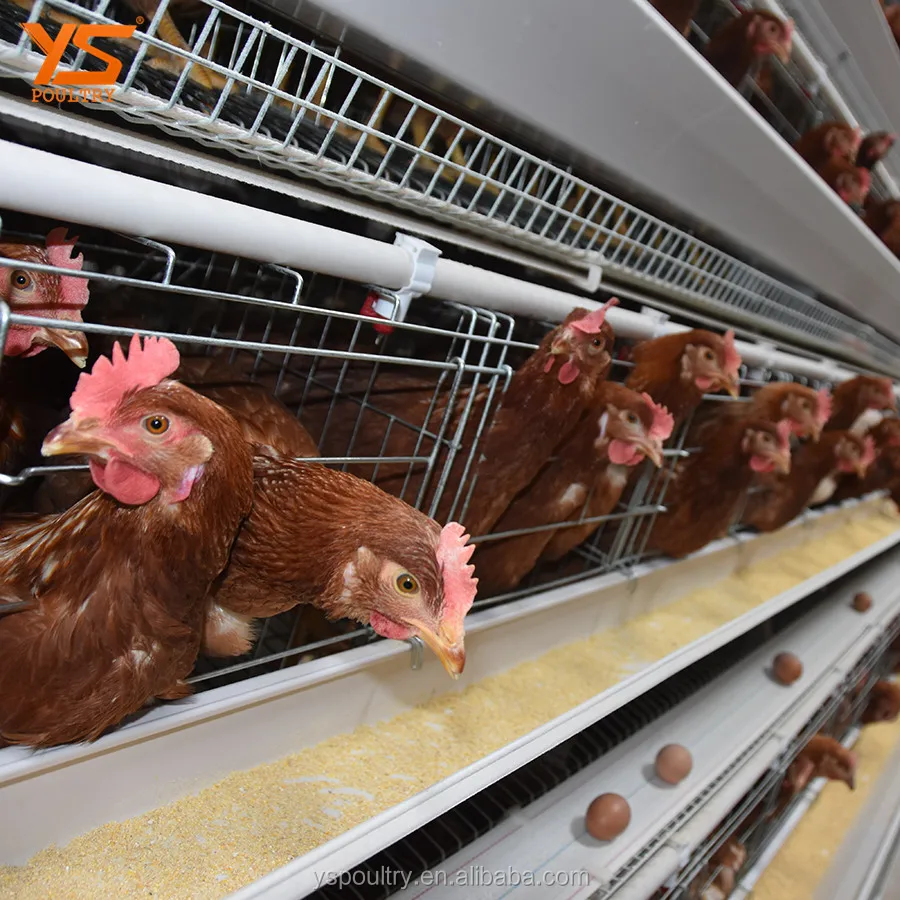

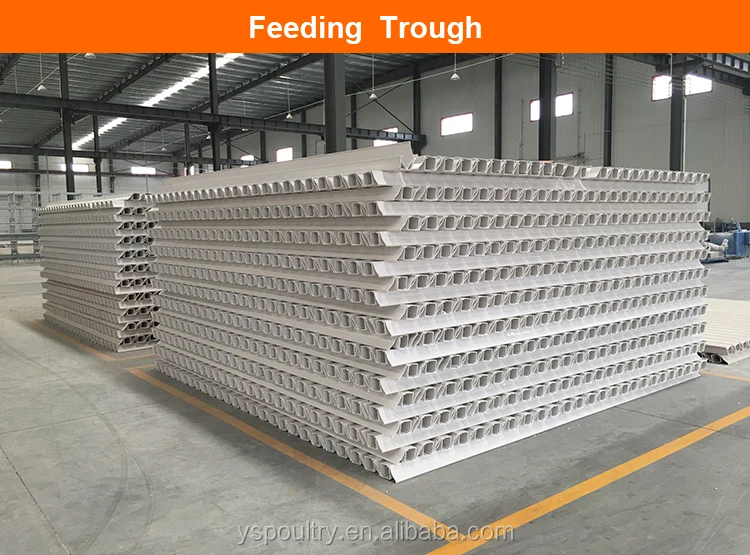

Feeding Trough
Our feeding trough produced by imported new material ..with uniform whiteness and glossiness,
..solid quality, not easy destroy, big supporting capacity ..won’t deform and discolor after long time using.
..All contacting parts and end cap are produced by galvanized steel sheet.
Cage Frame
U type steel(hot dip galvanized bending steel.)
Surface treatment is hot dip galvanization, zinc coating thickness is 2.5mm, so it is anti-corrosion and no rusty for years, and can keep it’s self performance and appearance without being affected by surrounding poor environment.
Feeding trough supporter is shaped one-time, hanger installation, convenient, durable and solid.
Cage leg is double reinforced by rivet and screw, some factories use manual welding or just use screw.
Galvanized steel sheet.
Use Shanghai Baosteel material, 275g zinc content. But after long time using, 275g galvanized steel sheet has longer service life because of thicker zinc coating thickness.
All produced by automated NC bending machine, first it can make sure the steel performance, second, it doesn’t destroy the zinc coating thickness, so it won’t rusty and corrosive in the future, third, all product drawing are inputted by computer, every process is according to the technical parameter and specification exactly, so there won’t have any other questions when installation.
Related products
Main typies of chicken cages for your reference:
Zinc-aluminum coating of all wire parts(cage front, bottom
wires and lateral partitions). so it’s three to four times
better protection against corrosion compared to galvanized wire.
Animal husbandry industry chain as a whole works are in full upgrade, production operations in the future will be more safety and health,
more environmental protection and energy saving, more intelligent and efficient.
YISHUN are committed to provide one stop services including consultation, design, planning, manufacture, installation, commissioning, and follow-up upgrade to our customers in the fields of animal farming.
Integrated Solutions: We are always exploring solutions and deliver the most value to the customer. The combination of the project is
not a single product and should pay attention to the system as a whole match.Like a car, the engine matching with body is better, to be more energy-saving, cost saving, high efficiency. We from the perspective of the customer's actual demand, complete the consulting design to the production operation of the whole delivery.
Our Services
Our Goal is to provide excellent customer service
We are committed to provide one stop services including consultation, design, civil constrution, manufacture, installation, commissioning, and follow-up upgrade to our customers in the fields of animal farming.
