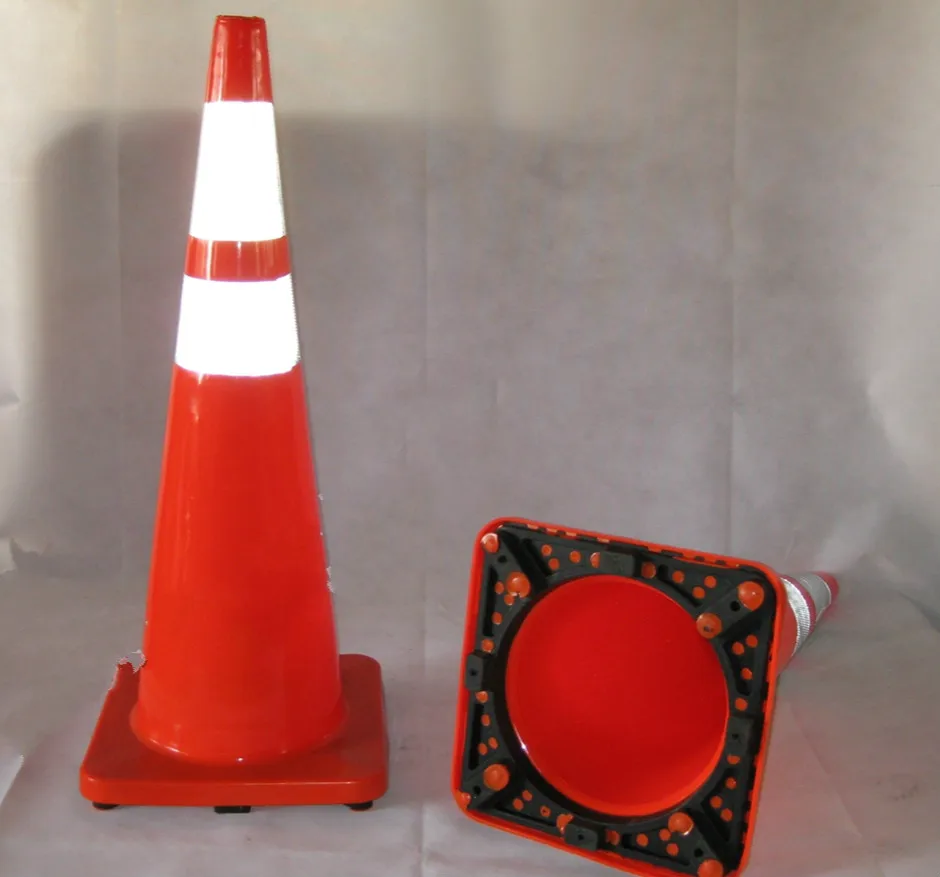

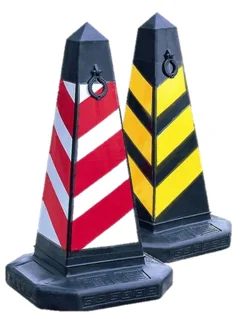

traffic cone road cone extruder machine

Product Overview

Description

WELCOME TO "SHENGDA"

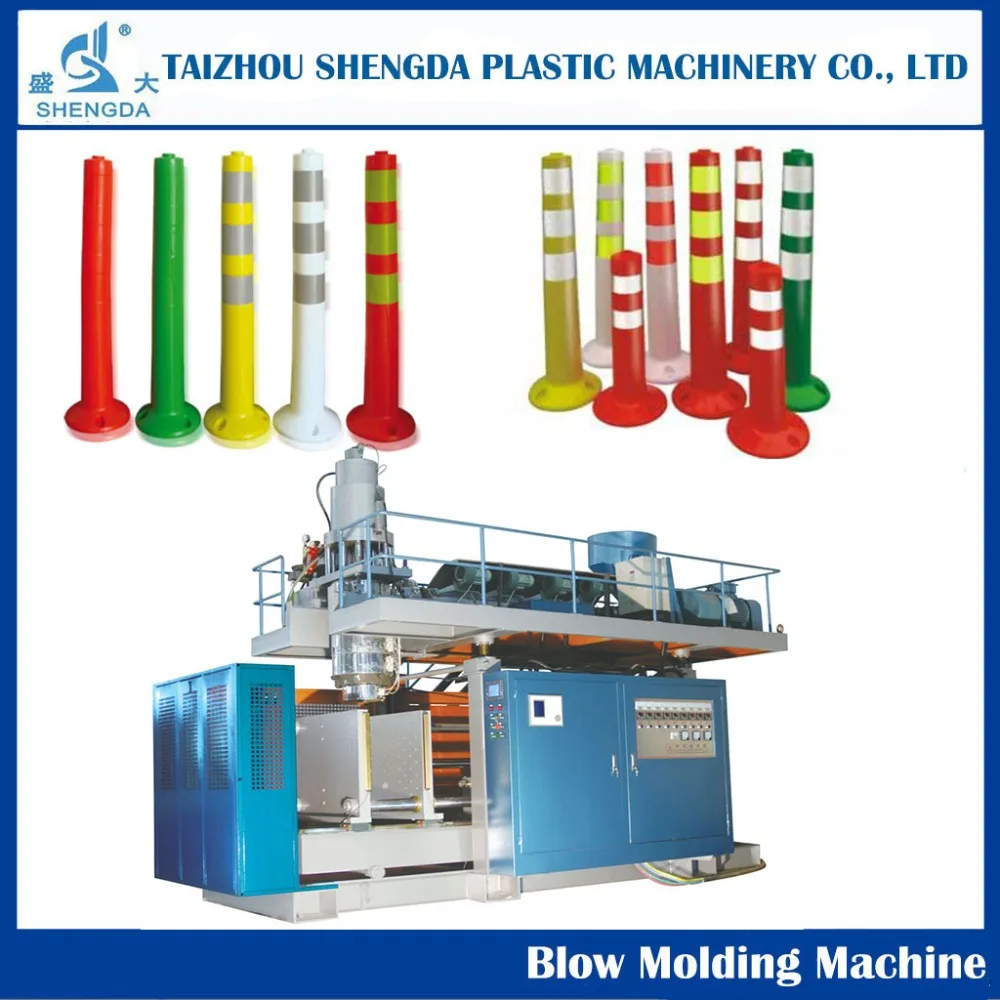

plastic blow mold machine ZK-90A Model

import PLC controller
3 point parison control system, especial suit for parasol base automotive accessories,tool box,road cone etc simple products..

much more economic than ZK-90B



automatic large extrusion blow molding machine --- This  model  adopts  fixed  mould  open-closing  system  and accumulator die. Parison programmer is available to control thickness.This model is automatic process with low noise, saving energy,high efficiency, safe operation, easy maintenance and  other benefits. This model  is  widely used to  produce  chemical barrel, auto parts(water box,oil box,air-condition pipe,aoto tail), toys(wheel,hollow autobike, basketball stands,baby castle), tool box,vacuum cleaner pipe,chairs for bus and gymnasium,etc.This model can produce max 60L hollow plastic product.

ZK-90MODEL haveZK-90A ZK-90B model .

ZK-90A 3 points parison controller in PLC, suit for automative parts, air duct, tool case, tool box, traffic cone,etc.

ZK-90B 30 points parison controller independent,suit for jerrycan, drum,baby safety seat chemical tank,etc.

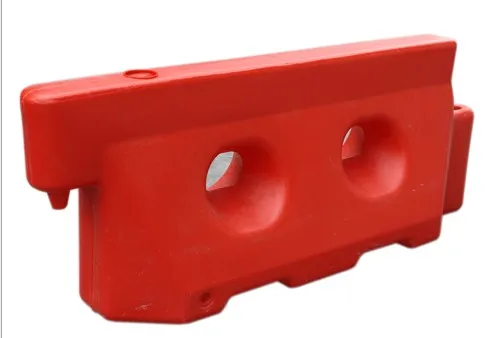

ZK-100B suit for 100Lbelow  tank jerrycan, road barrier,water tank,bus seat etc..

ZK-120B for 100-220L drum road barrier baby castle, table panel etc large products

good quality and best price, can make the needs of customers.



Features:



specification	unit	zk-90A	zk-90B
max container capacity	L	50	60
number of die heads	set	1	1
machine dimension(L*W*H)	M	5*3.1*3.2	5*3.1*3.9
total weight	ton	7	9
clamping unit
clamping force	KN	300	300
platen opening stroke	mm	350-1050	350-1050
max mould size(W*H)	mm	700*1000	700*1000
mould thickness	mm	360-500	360-500
power
max drive	KW	11	11
total power	KW	63	70
fan power for screw	KW	0.9	0.72
air pressure	Mpa	0.7	0.7
air consumption	m3/min	0.9	0.9
average energy consumption	KW	28	35
extruder unit
screw diameter	mm	90	90
screw L/D ratio	L/D	25:1	25:1
plasticizing capacity	kg/hr	100	120
number of heating zone	zone	5	4
extruder heating power	KW	12.5	12.5
extruder driving power	KW	22	30
accumulator head
die head dimension	m
number of heating zone	zone	3	5
power of die heating	KW	7	20
max die-pin diameter	mm	350	350
accumulator volume	L	5	6



Technical specifications:

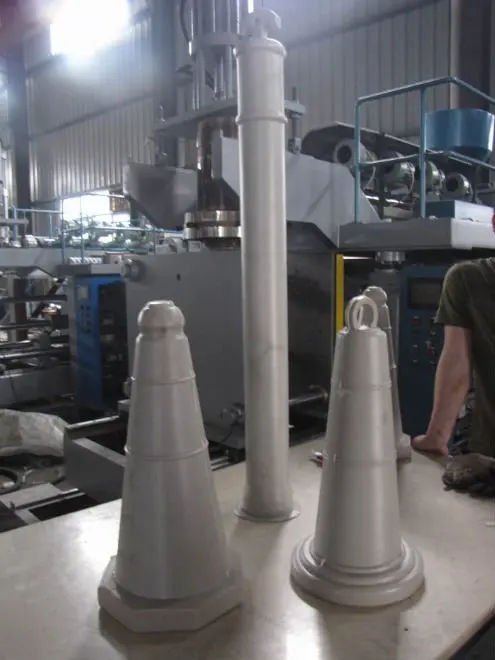

 the photos is just testing products, not so clear and good looking.

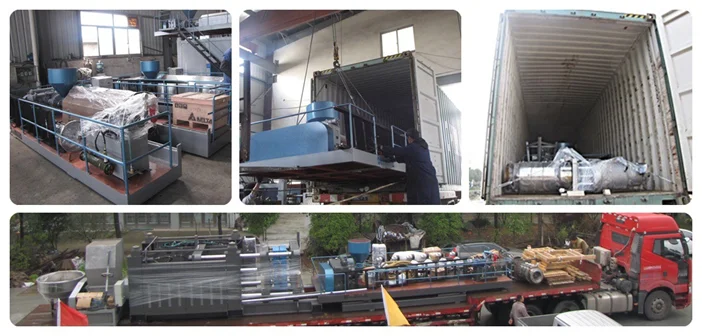

PACKAGE & SHIPPING
