Product Overview

Description



Product Overview

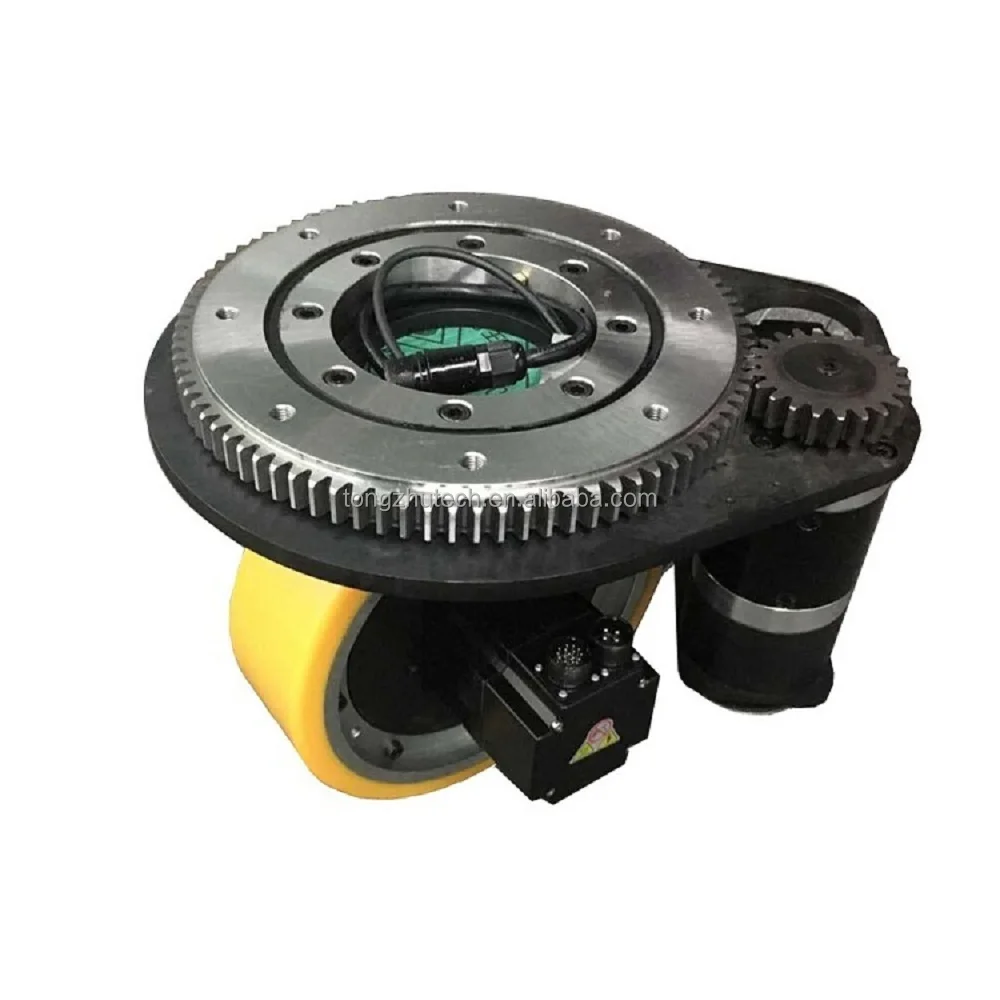

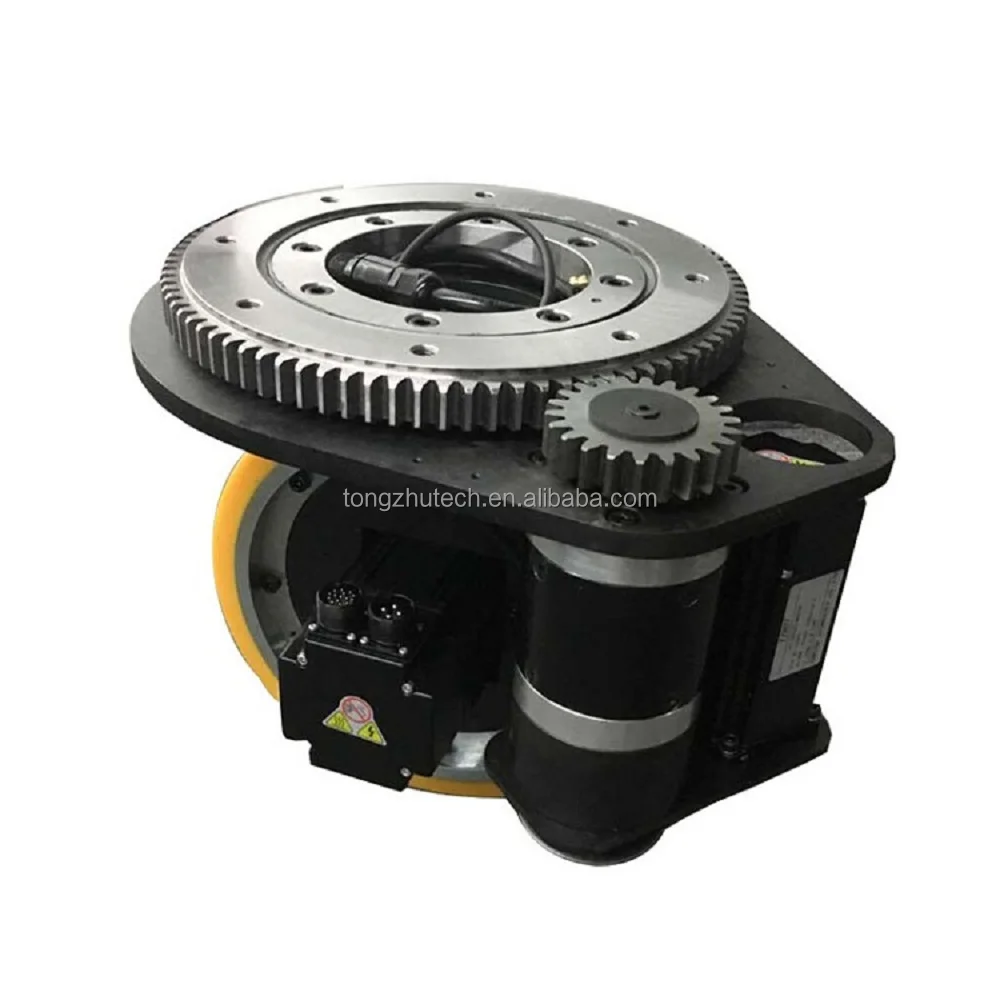

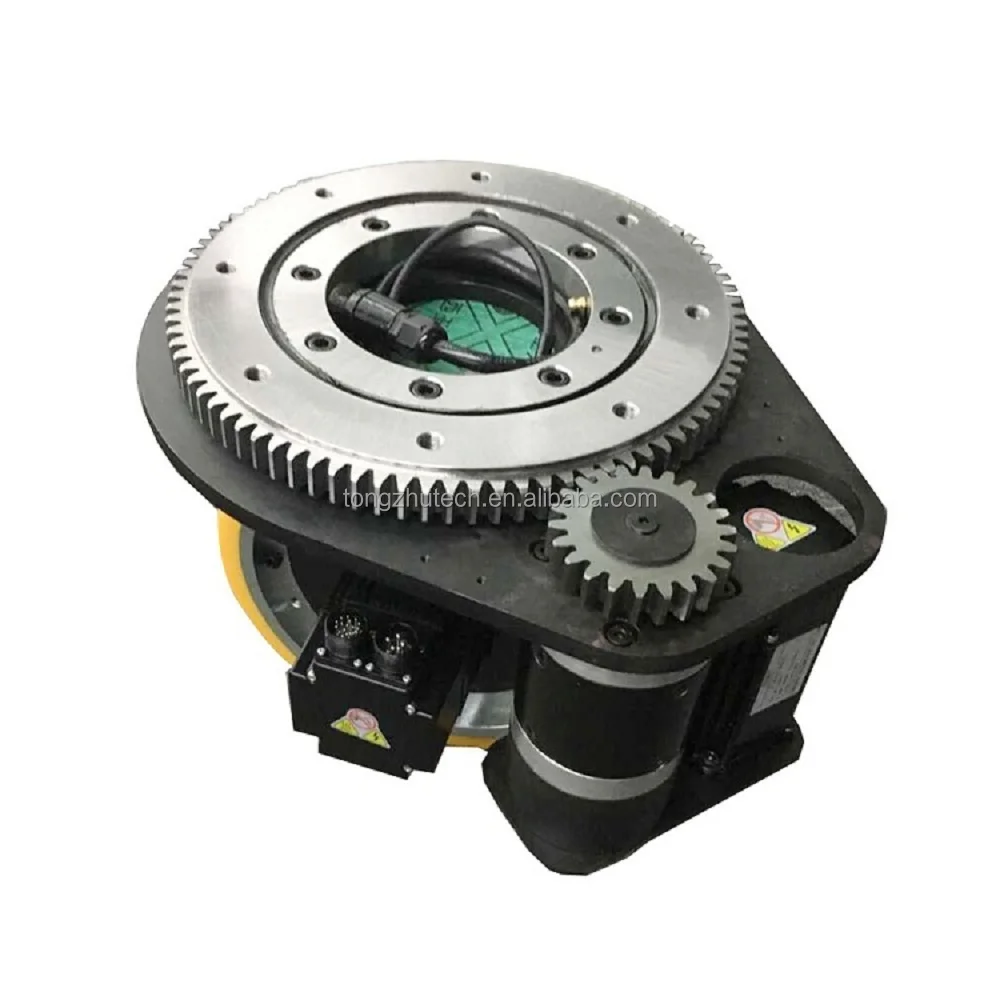

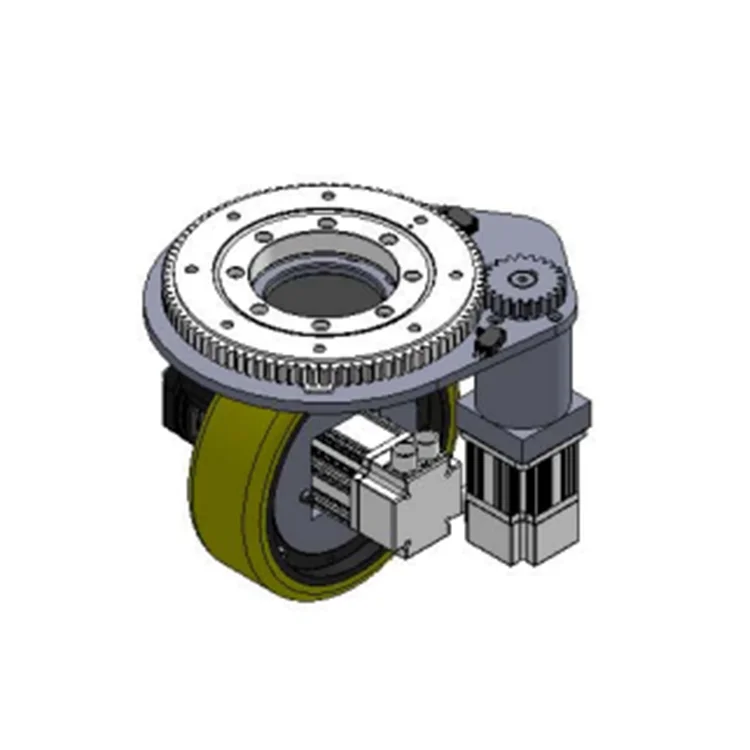

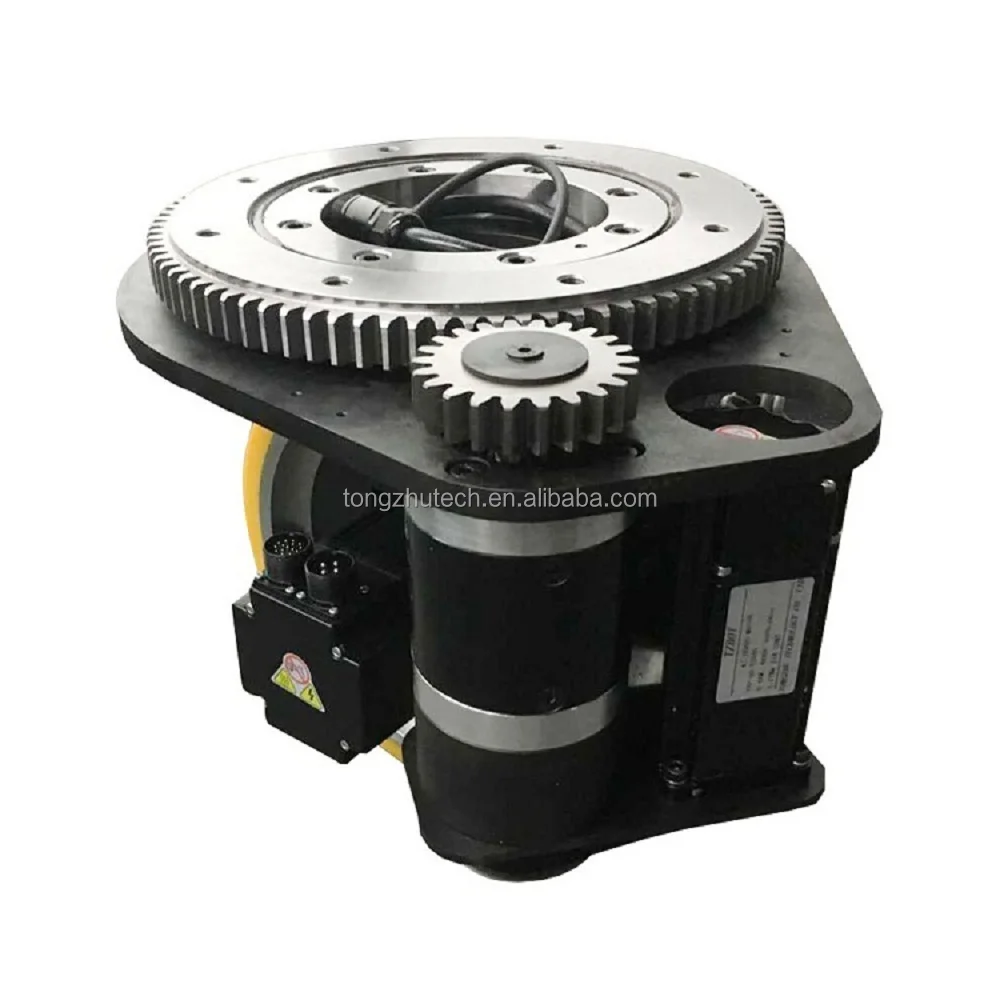

TZ18-D075S04 Horizontal Drive Wheel

The driving wheel is the core component of AGV (Automatic Navigation Vehicle), which is mainly used in various types of AGV vehicles, electric stackers, tractors, or other industrial automatic navigation vehicles. Driving and steering of driving wheels through transmission mechanisims such as motors and reduction gears, driving vehicles for precise walking and direction control.


PRODUCT SPECIFICATIONS


Item
Motor Data
Model
TZ18-D075S04
                                                  Traction Data
37.5KW
Motor Type
Servo
Power S2-60 min
750W
Rated Voltage
48V
Rated Current
20A
Rated Speed
3000rpm
Rated Torque
3.5Nm
Gear Ratio
1:34.14
Wheel Diameter
250mm
Brake Torque
8Nm
Encoder
Increment
                                                Steering Data
Power S2-60 min
400W
Rated Voltage
48V
Rated Current
11A
Rated Speed
3000rpm
Rated Torque
0.45
Total Reduction Ratio
1:200
Encoder
Increment

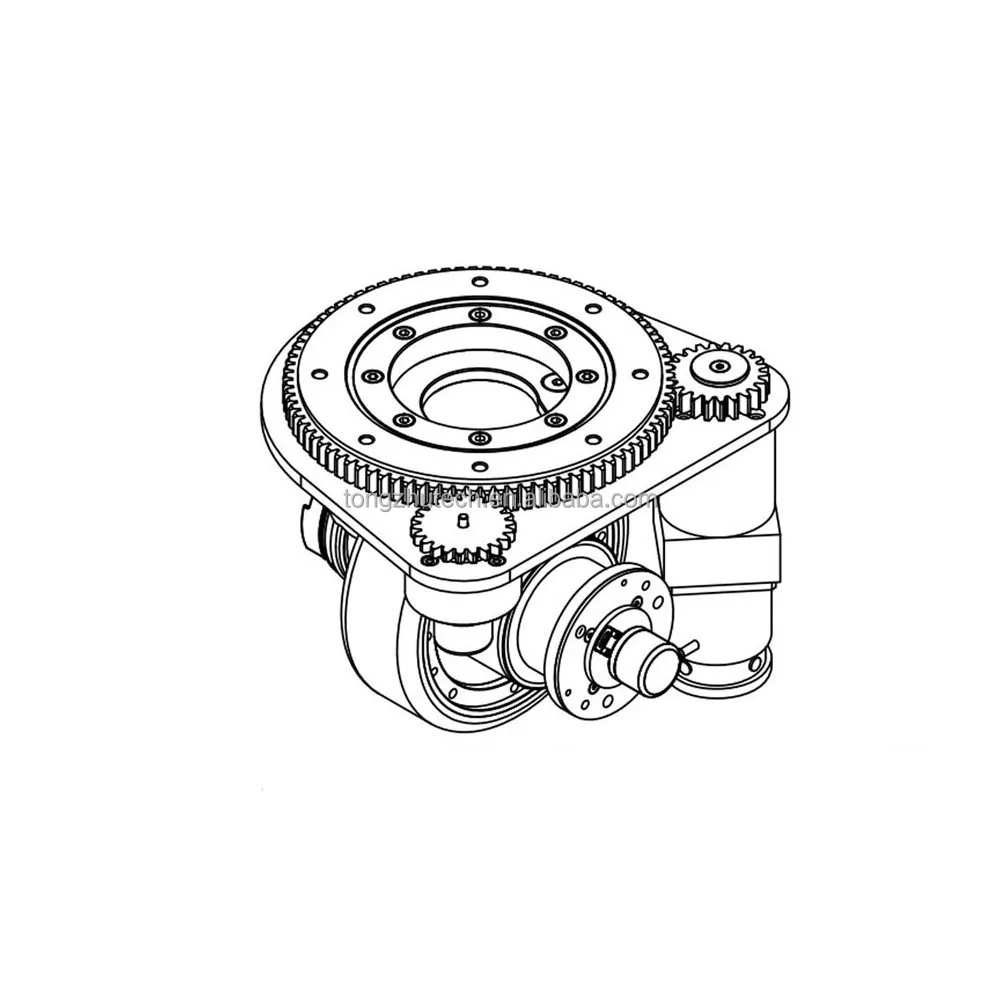

Dimensions




Advantages



Better precision for steering
This TZ18-D075S04 drive wheel has two encoders, one on the motor and another on the steering gear wheel, which has much higher accuracy.
Besides, it could install the absolute encoder at left position.



The smaller steering radius

The radius of gyration of TZ18-D075S04 is smaller, it’s better for designing of agv.



Low noise

The TZ18-D075S04 is servo motor, which is much lower noise when working.
