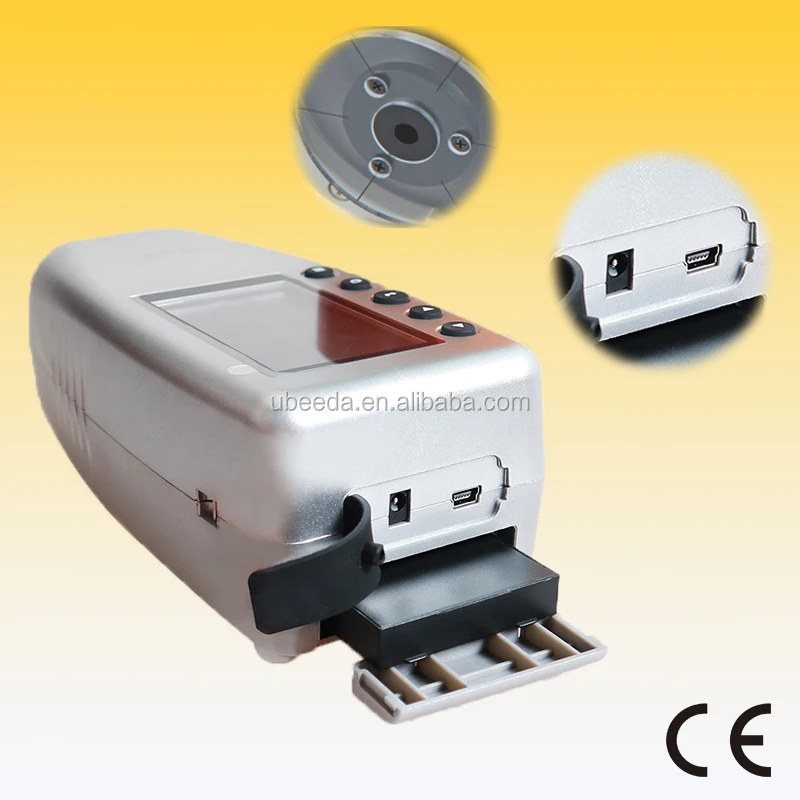

Accurate Colorimeter for auxiliary spray color

Share on (60709344490):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

The Colorimeter is a professional colorimeter designed and produced subject to the relevant standards of International Commission on Illumination (CIE) and national stands. Being with brand new imported key components, the instrument is well designed and features in precision, stability, easy handling, easy to learn and cost-effective.
The instrument applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing for industries as textile, printing and dyeing, garments, shoes, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys etc., as well as to the auxiliary color matching during the processes as injection, inking, painting and spraying coating etc.

\t
SPECIFICATIONS FOR COLOR METER
\t
Model
\t
WR-10
\t
Color Space
\t
CIELAB
\t
Color Difference Formula
\t
△E*ab
\t
Measurement Caliber
\t
φ8mm
\t
Illumination Condition
\t
CIE Recommendation:8/d
\t
Light Source
\t
D65
\t
Sensor
\t
Photodiode array
\t
Observer
\t
CIE 10° Standard observer
\t
Measurement Range
\t
L: 0 to 100
\t
Repeated Accuracy
\t
△E<0.08
\t
Table Difference
\t
△E<0.2
\t
Measurement Interval
\t
1 Sec.
\t
Storage Capacity
\t
Type sample data : 100 groups with testing sample data: 100 groups
\t
Lifetime of Bulb
\t
5 years more than 1.6 million measurements
\t
Display Screen
\t
TFT true color 2.8inch@(16:9)
\t
Language
\t
English/Simplified Chinese
\t
Interface of External
\t
USB2.0 (USB-B) RS-232 (115200bps)
\t
Working Temperature Range
\t
0℃-40℃(32℉-104℉)
\t
Storage Temperature Range
\t
-20℃-50℃(-4℉-122℉)
\t
Humidity Range
\t
Relative humidity less than 85%,without condensation
\t
Weight
\t
700g
\t
Size
\t
199*68*90mm
\t
Package Size
\t
400*240*340mm
\t
Battery Charging Time
\t
8 hrs
\t
Battery
\t
Li-ion battery, 5000 times Measurement
\t
Standard Accessories
\t
AC adapter/ 3000mAH Li-ion battery
\t
Optional Accessories
\t
Flour measuring device/Micro printer

Main Features

1). Cost-effective: while maintaining low prices, with excellent performance, high repeatability and high accuracy.
2). The most convenient colorimeter: black and white version boot automatically corrected (national patent)
3). Efficient, Environmental Energy management:Removable lithium battery, the capacity reach to 3000mAH,  charge one time can measure 5000 times.
4). The real color display: LAB-dimensional map, the test results at a glance! Observing more comfortable!
5). Exquisite appearance: the machine small and exquisite appearance, comfortable hand grip, moderate weight, measuring long and does not feel tired.
6). Simple interface: The page type, graphical user interface design,easy to use.
7). Multipurpose measurements: with a powder test kit (optional), easy to measure powder color.

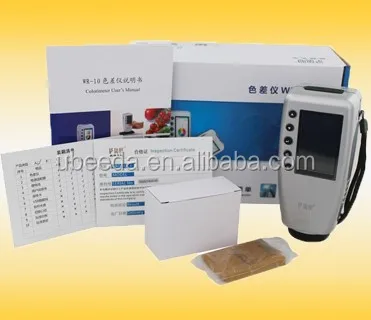

Composition picture

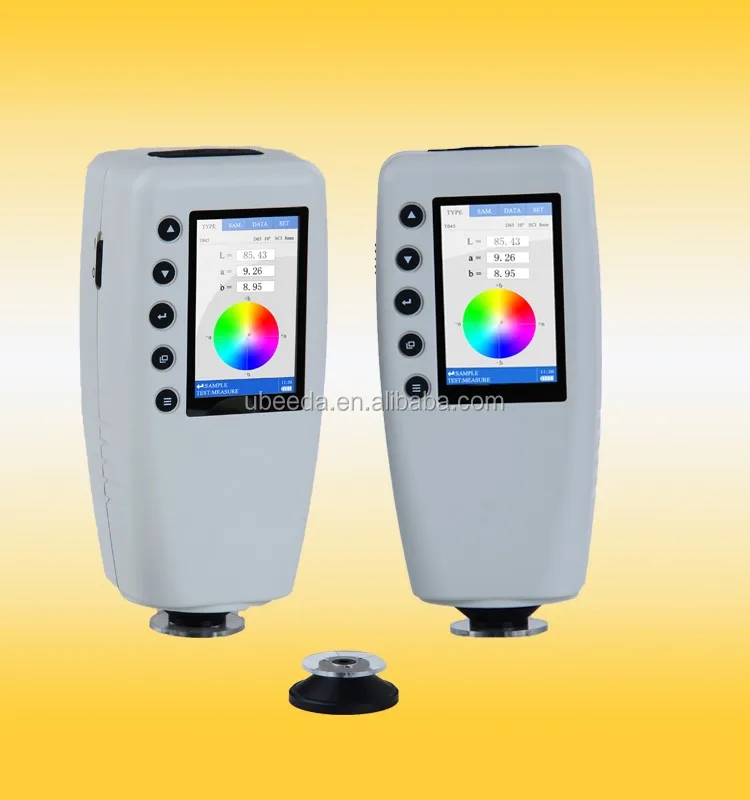

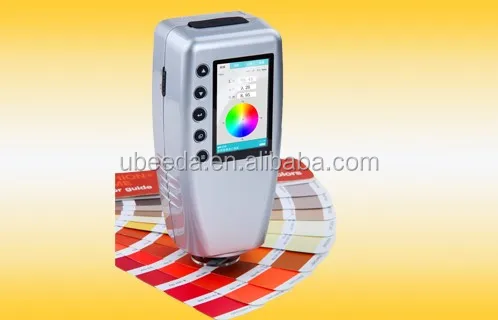

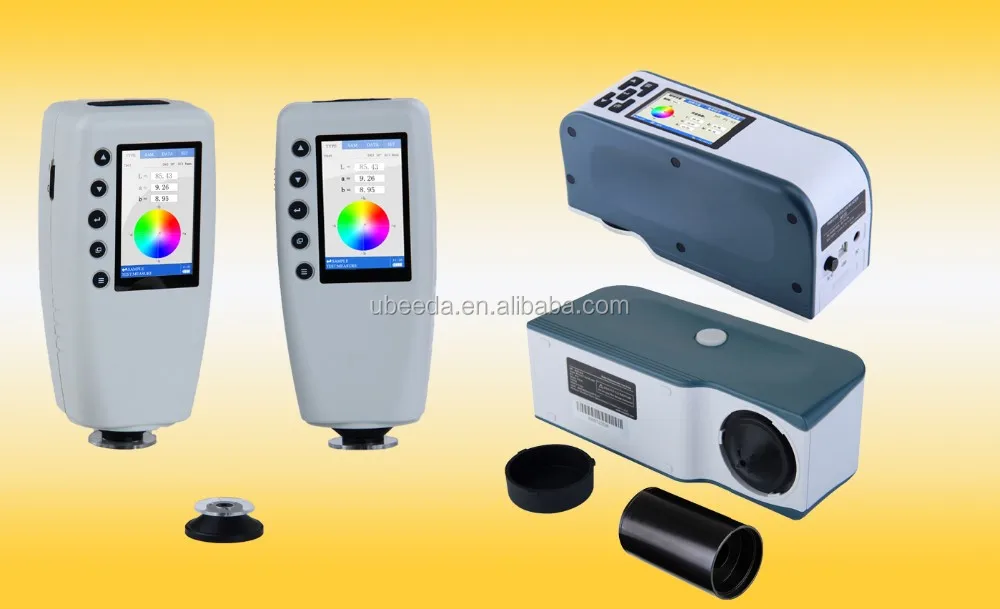

Detailed Images

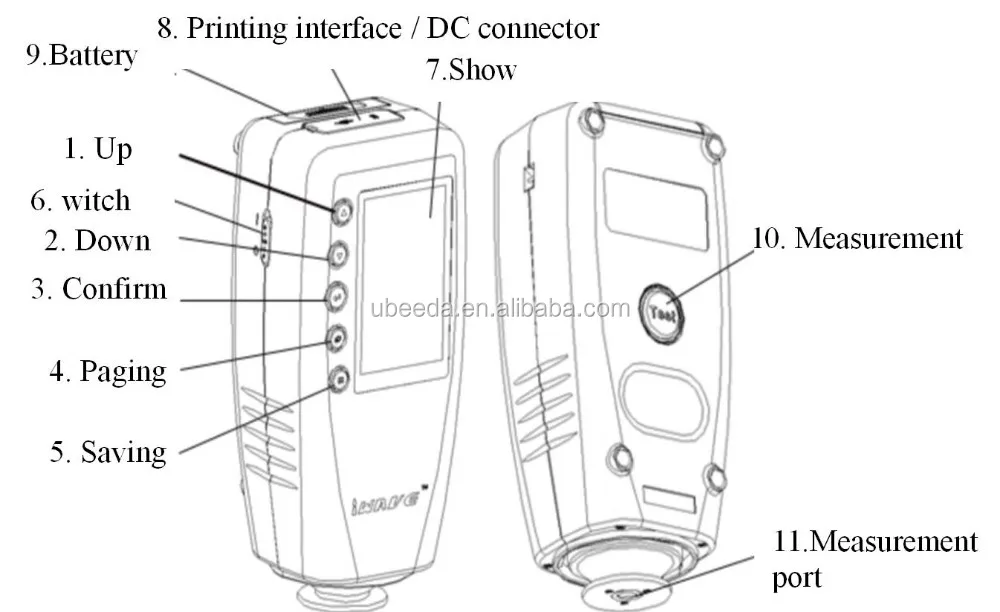

Machine Parts

Name: Color meter

Brand: FRU

Original: China

1. The most convenient colorimeter: automatic correction when starting up (national patent)
2. Environmental, low energy consumption instrument, high capacity lithium battery
3. Comfortable observation with real color screen display

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Offer best sample price.

* View our Factory.

After-Sales Service

* Training how to instal the machine,

* Training how to use the machine by email or telephone.

* If machines have problems, we will solve them as soon as possible.

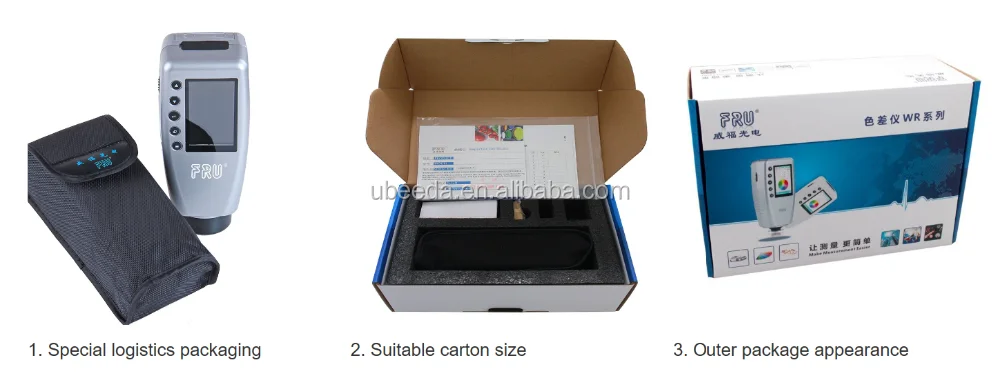

Packing & Delivery
\t
Packaging
\t
Size
\t
28*19*11CM
\t
Weight
\t
1.5KG
\t



Packaging Details
\t
Each set protected with thick foam, packed by export carton box, operation manual inside.
