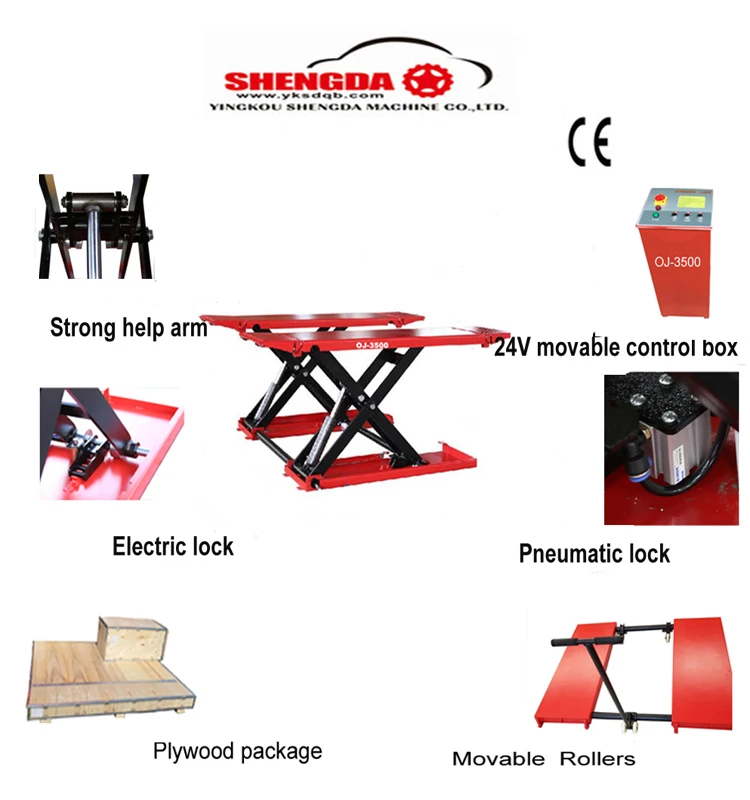

1. Lock:Pneumatic release Lock./Automatic electromagnetic coils
2. It with mobile kits.When lift dow, could movable.
3. It with 24v limited Switch
4. It with square rubber pads.
5. It is could install on ground.

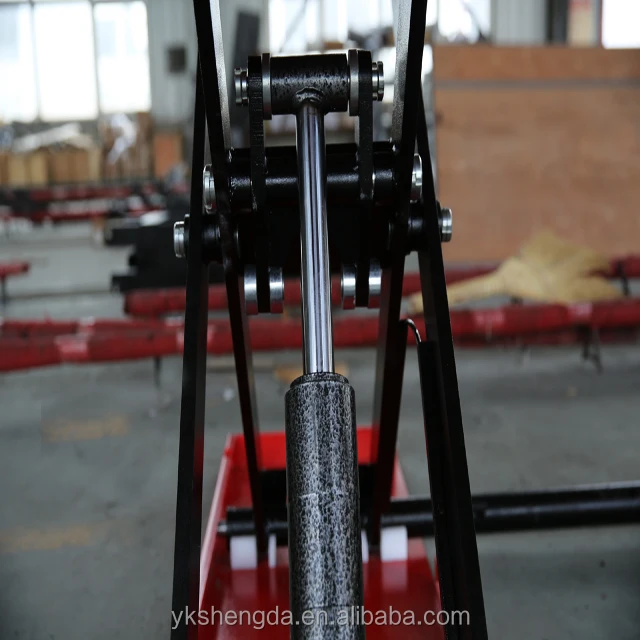

6.It with arm helper on top of hudraulic cylinders

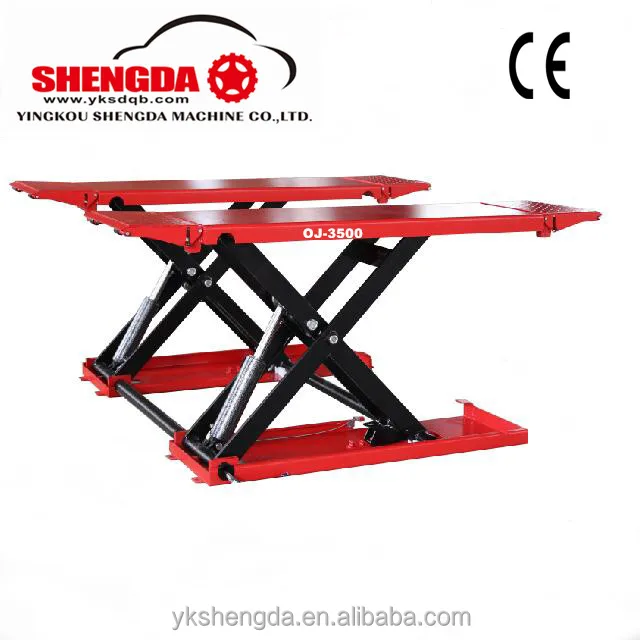

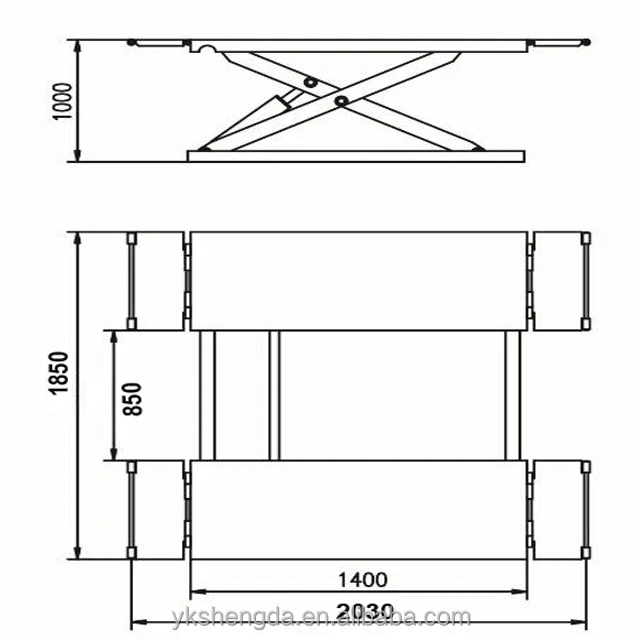

Standards Features | OJ-3500 |
Lifting Capacity | 3500KG |
Lifting Height | 1000MM |
Min Height | 110MM |
Platform Length | 1400-2030MM |
Single Platform Width | 500MM |
Space Between Platforms | 850MM |
Overall Width | 1850MM |
Lifting Time | 60s |
Net Weight | 580kg |
Gross Weight | 600kg |
Rated Voltage | 220V/380V |
Packing Size | 1950*1460*220mm 400*400*980mm |
