12 heads frequency conversion floor grinding machine & ASL650 T8
- Category: Road Machinery >>>
- Supplier: Shanghai Qiheng Machinery Co. Ltd.
Share on (60709379470):
Product Overview
Description
12 heads frequency conversion floor grinding machine & ASL650-T8
Notice:
Our Brand ASL has been well known in the worldwide and get very good reputation. Herein, many thanks to our customers for the always support and trust to our company. However, recently we find out there are some companies who use our ASL brand and pictures to sell the different equipment in the market. In order to protect customers legal right, we hereby state that SHANGHAI QIHENG MACHINERY CO., LTD. is the only one company to manufacture and sell ASL products in China, no any other third party agent. Please kindly pay much attention to it.
Product Description
ASL650-T8 TECHNICAL PARAMETER
Model(ASL650-T8) | A1 | B1 | A2 | B2 |
Voltage | 380V-440V | 220V-240V | 380V-440V | 220V-240V |
Current | 24A | 40A | 24A | 40A |
Motor | 10HP(7.5KW) | 10HP(7.5KW) | 10HP(7.5KW) | 10HP(7.5KW) |
Inverter | 15HP(11KW) | 15HP(11KW) | 15HP(11KW) | 15HP(11KW) |
Frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
Disc speed | 0-1800RPM | 0-1800RPM | 0-1800RPM | 0-1800RPM |
Disc Diameter | 250MM*3 | 250MM*3 | 250MM*4 | 250MM*4 |
Water-Tank | 30L | 30L | 30L | 30L |
ASL650-T8 Technical Parameter

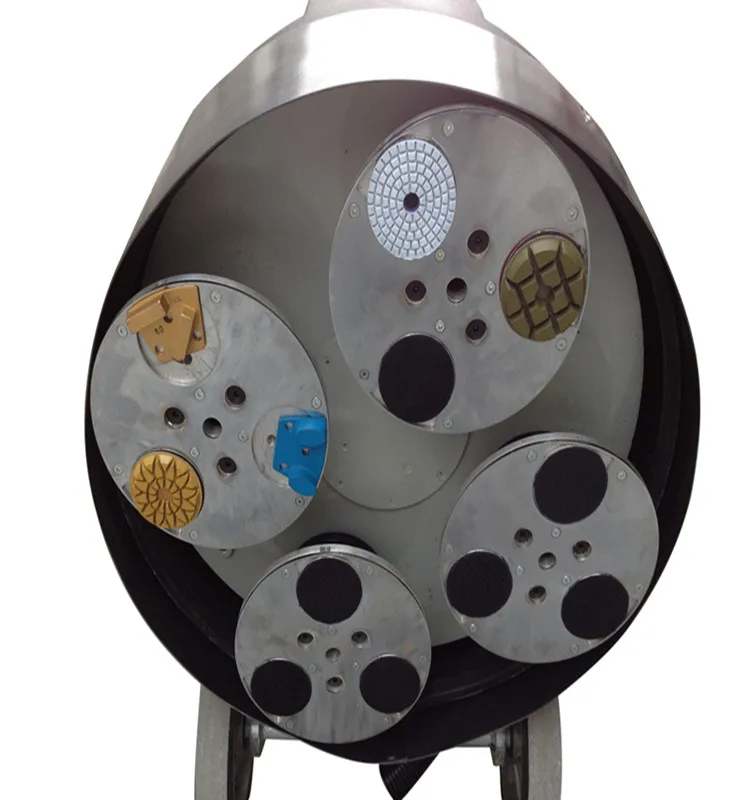

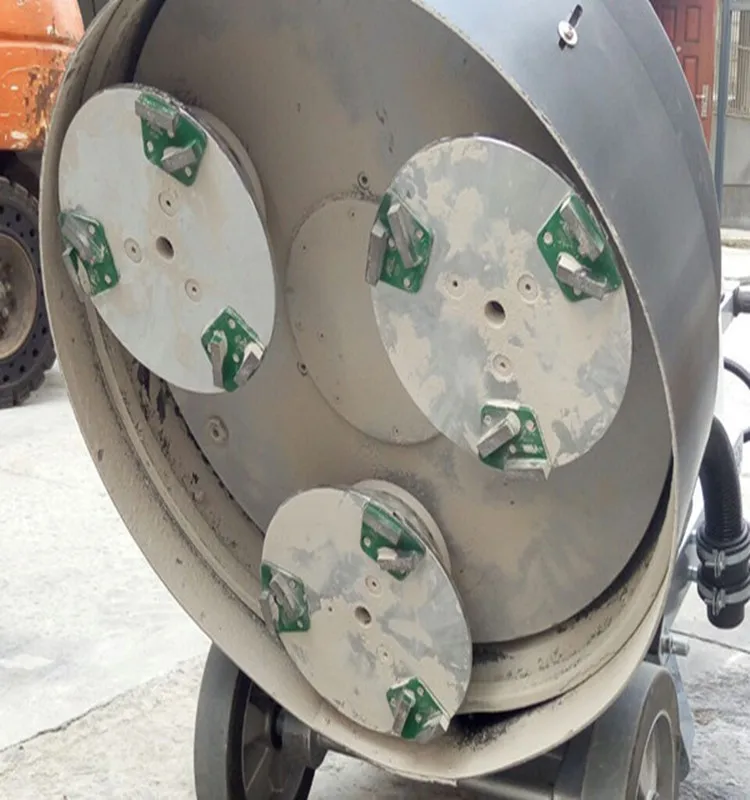

ASL650-T8 Detail Picture
ASL650-T8 Advantage
1.All-aluminum alloy gearbox and planetary gear driver reach the very good flatness grinding effect,delicate and smooth surface as well as the powerful repairing scratches function
2.Folding handle and split body design is more convenient for worker to carry and transport
3.the automatic levelinging system could reach very good flexibility to evenly touch the floor and perfectly balances the machine
4.Integrated system of the suction port could achieve the we tand dry grindng and polishing
5.Integrated system of weights is for adjusting the grinding pressure to reduce the loss od the diamond and pads,but also to reduce the carrying burden

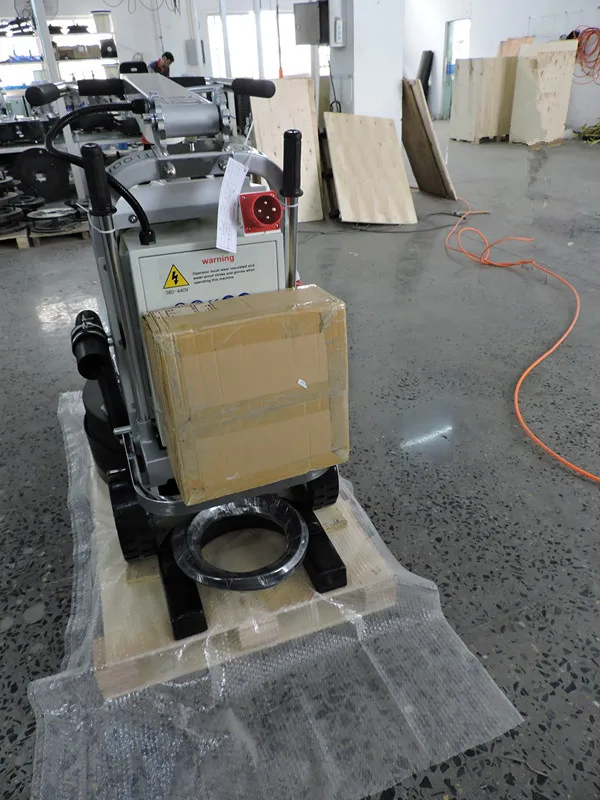

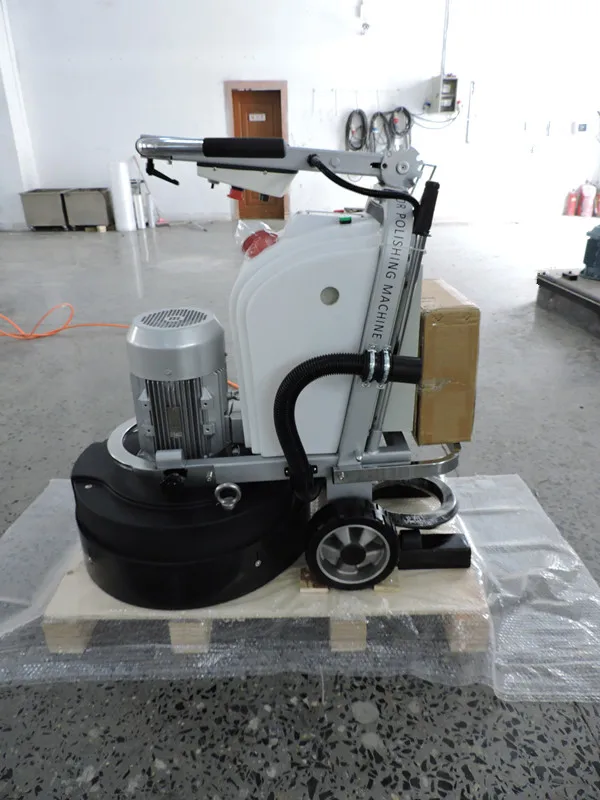

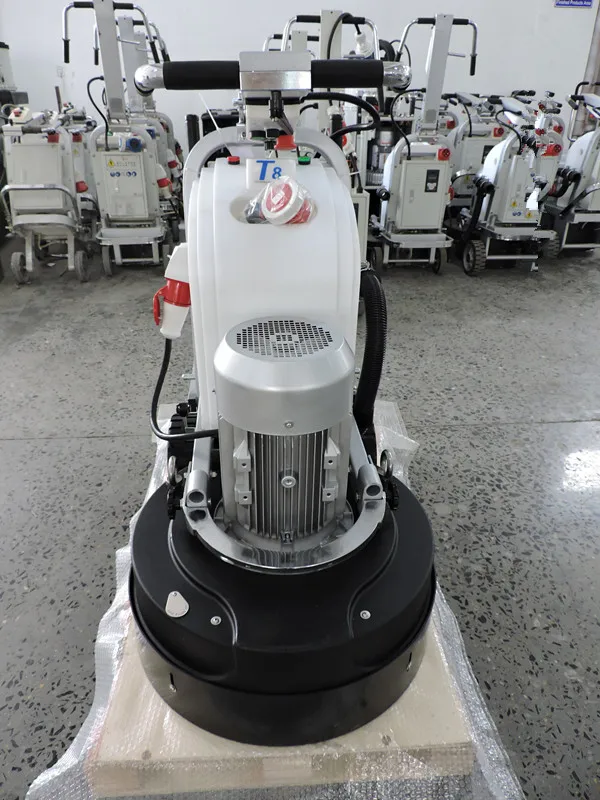

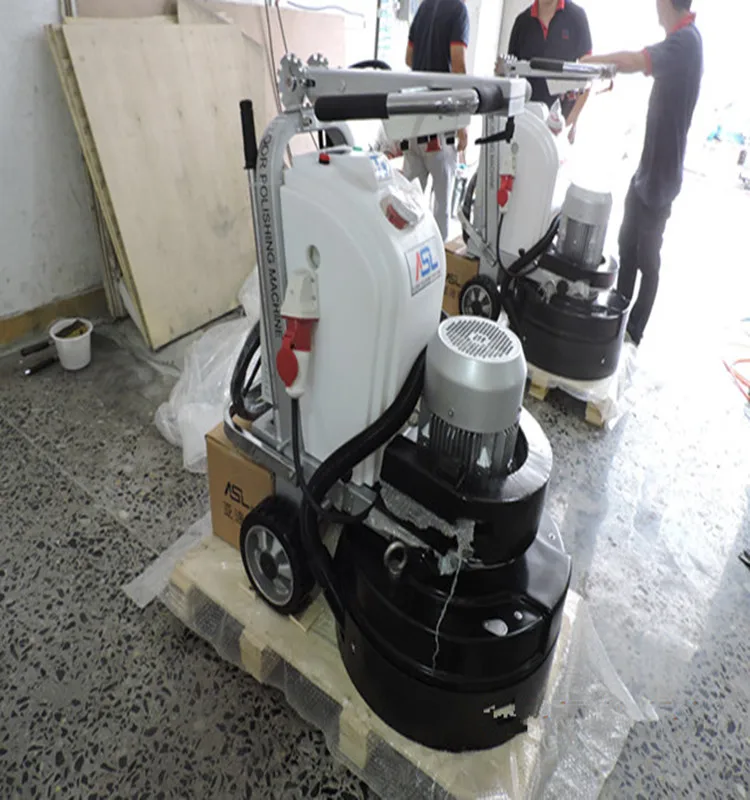

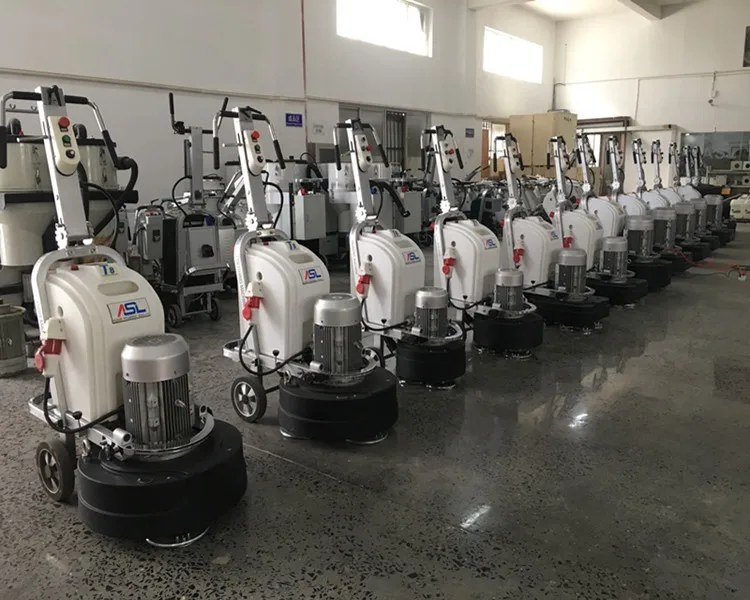

ASL650-T8 Physical Picture

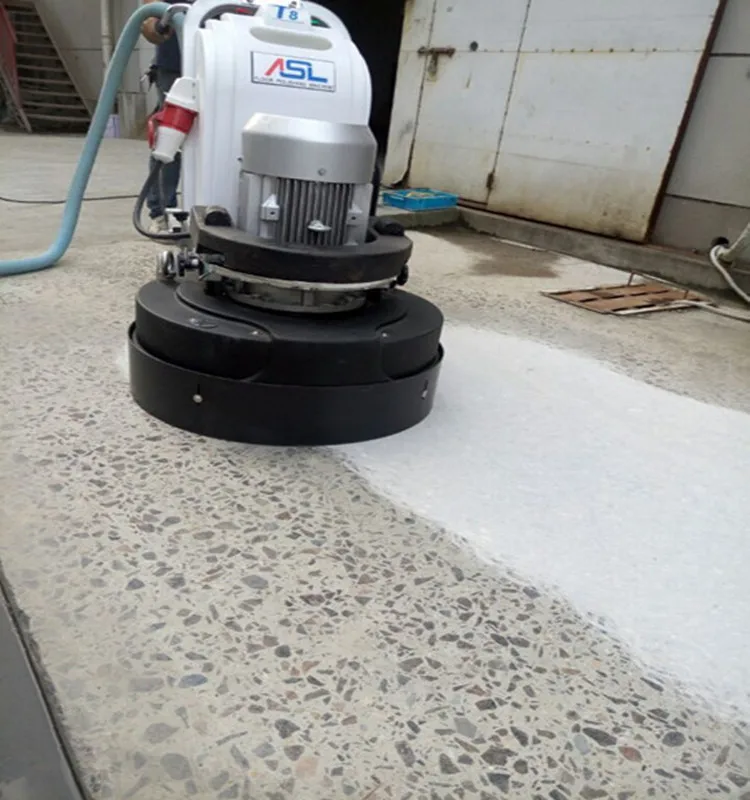

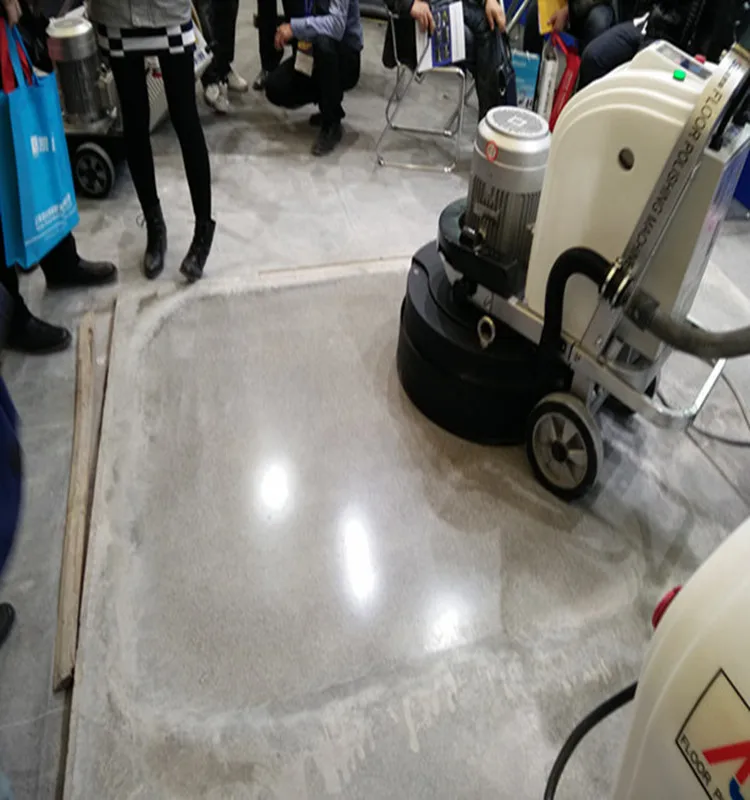

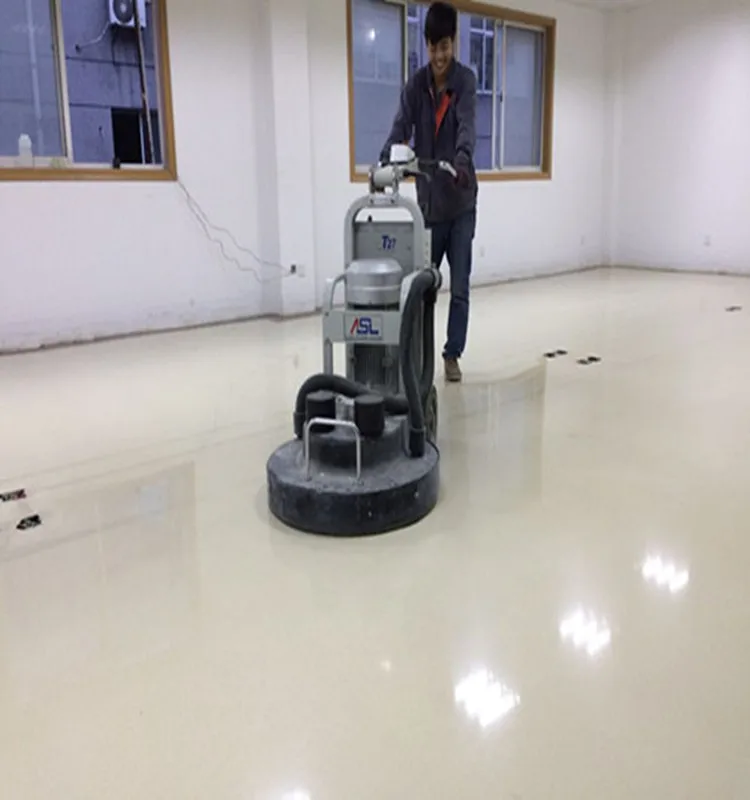

ASL650-T8 Grinding Picture
