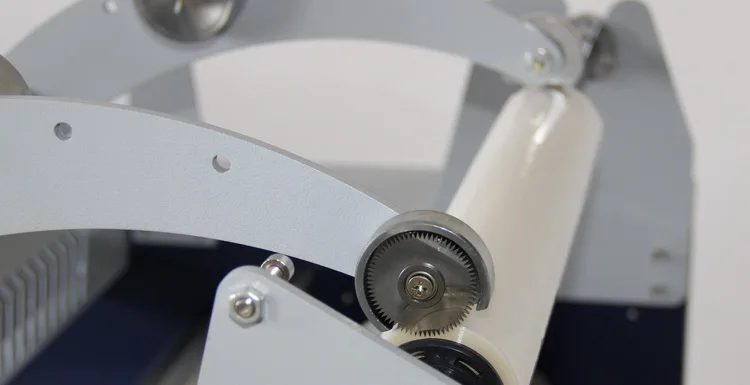

Perforating blade can punch small gap on the film,so we can separate the paper after laminating by hands easy,do no need to use the knife to cut.
Cutting blade, can cut extra film when paper laminating, very convinient, do not need to trim the paper after laminating, save time.

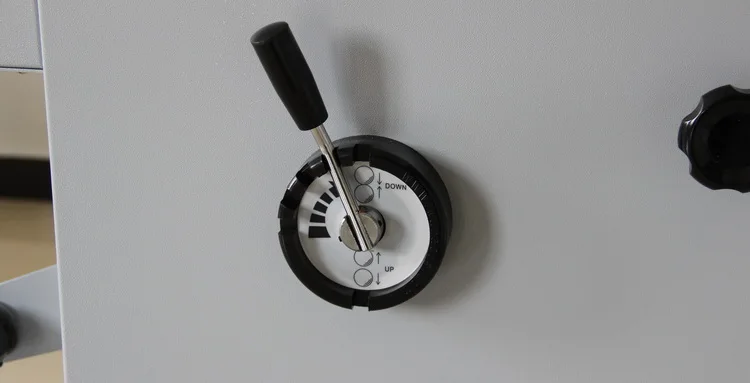

Pressure adjusting device, can meet different thickness of paper laminating.

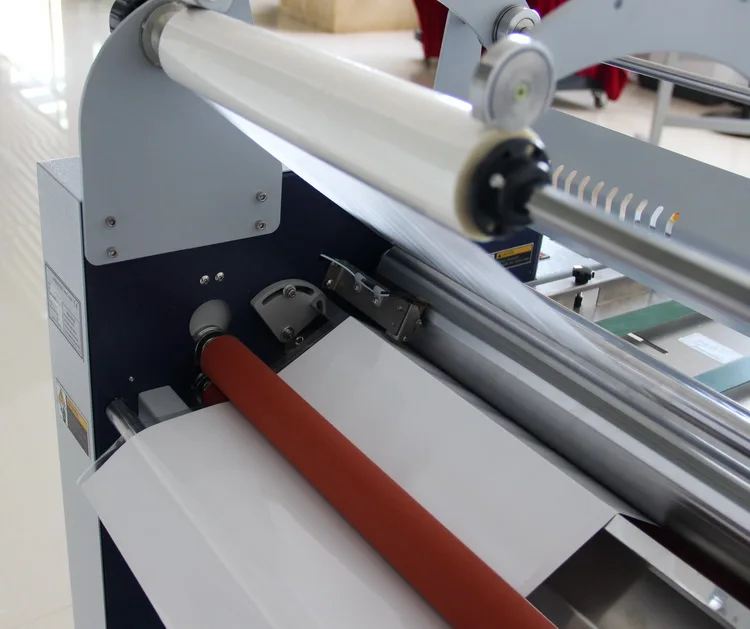

Top steel roller,bottom imported silicon roller, perfect laminating effect, long life.

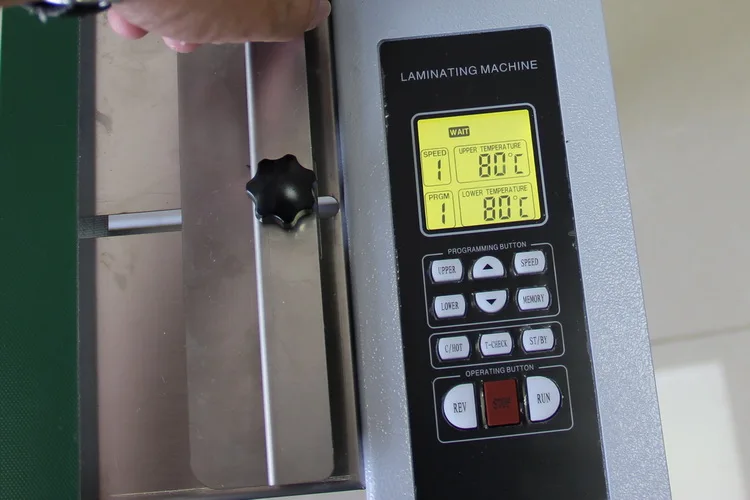

Program temperature control, LCD screen showing temperature and speed.
Anti curl technology, can adjust according to different thickness of paper,ensure not curl when laminating thin paper.

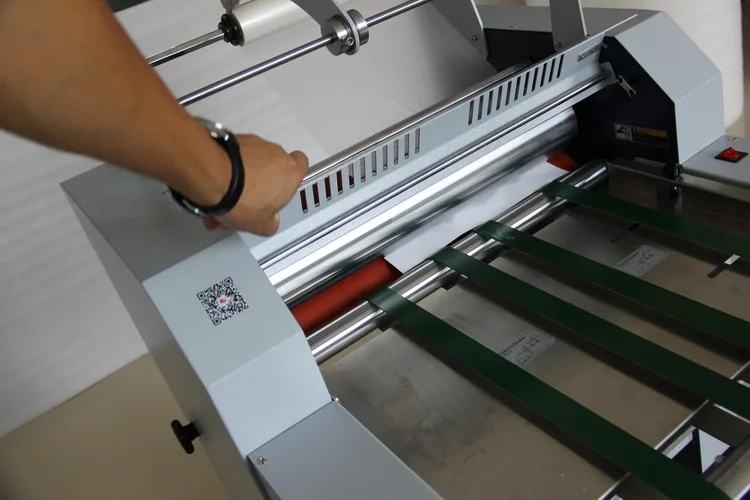

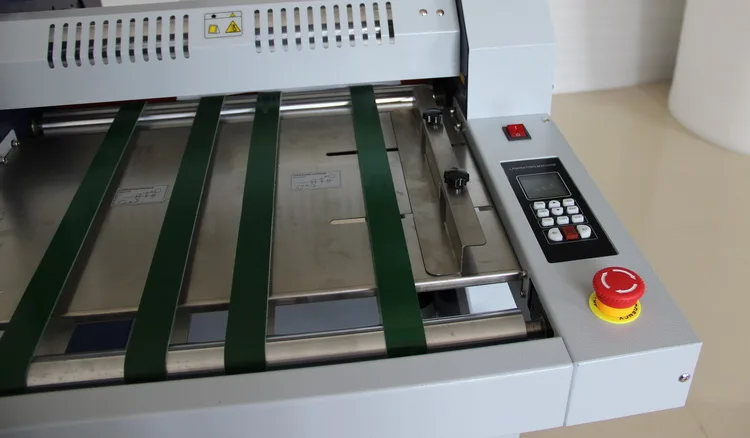

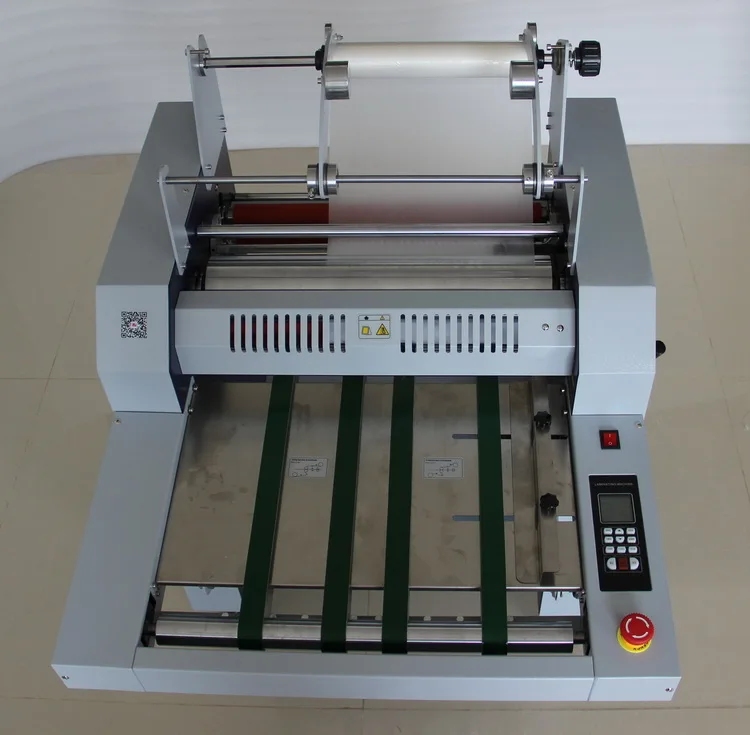

Conveyor belt paper feeding design, paper feeding easy.
With paper collecting design
Machine parameters :
Model
CB-FM720
Max. laminating width
700mm
Laminating type
single side and double sides
Max. laminating speed
10m/minute
Working temperature
60~150℃
Total Power
2200W
Voltage
220V/50Hz, 110V/60Hz
Steel roller diameter
100mm
Feeding mode
manual
cutting film
manual
Anti-curl function
with
rewind paper
auto
cold laminating function
with
the film thickness
25~250mic, suggest 38micron
with perforateing blade
yes
roler quantity
4
core size
1",1.5",3"
machine size
109*75*105cm
Packing size
125*89*111cm
Machine weight
135kgs
Gross weight
185kgs
packing
1 unit/ exported wooden case
FAQ
Q1. About the packing? A: According to the machine type, if heavy machine, we will pack it in exported wooden case, if light machine, we will pack it in cartons.
Q2. About the payment? A: If order amount is more than USD5000.00, we can accept T/T 30% as deposit, and 70% before delivery.
Q3. About the trade terms? A: EXW, FOB, CFR, CIF.
Q4. About the delivery time? A: According to the machine model and quantity, if hot-selling machine, will be within 15 days.
Q5. About the shipping port?
A: Ningbo/Shanghai
Q6: About the OEM?
A: Yes, we can produce machines with your logo and model.
