Spiral Hydraulic Piling Machine For Ground Screw

Product Overview

Description

Spiral Hydraulic Piling Machine For Ground Screw

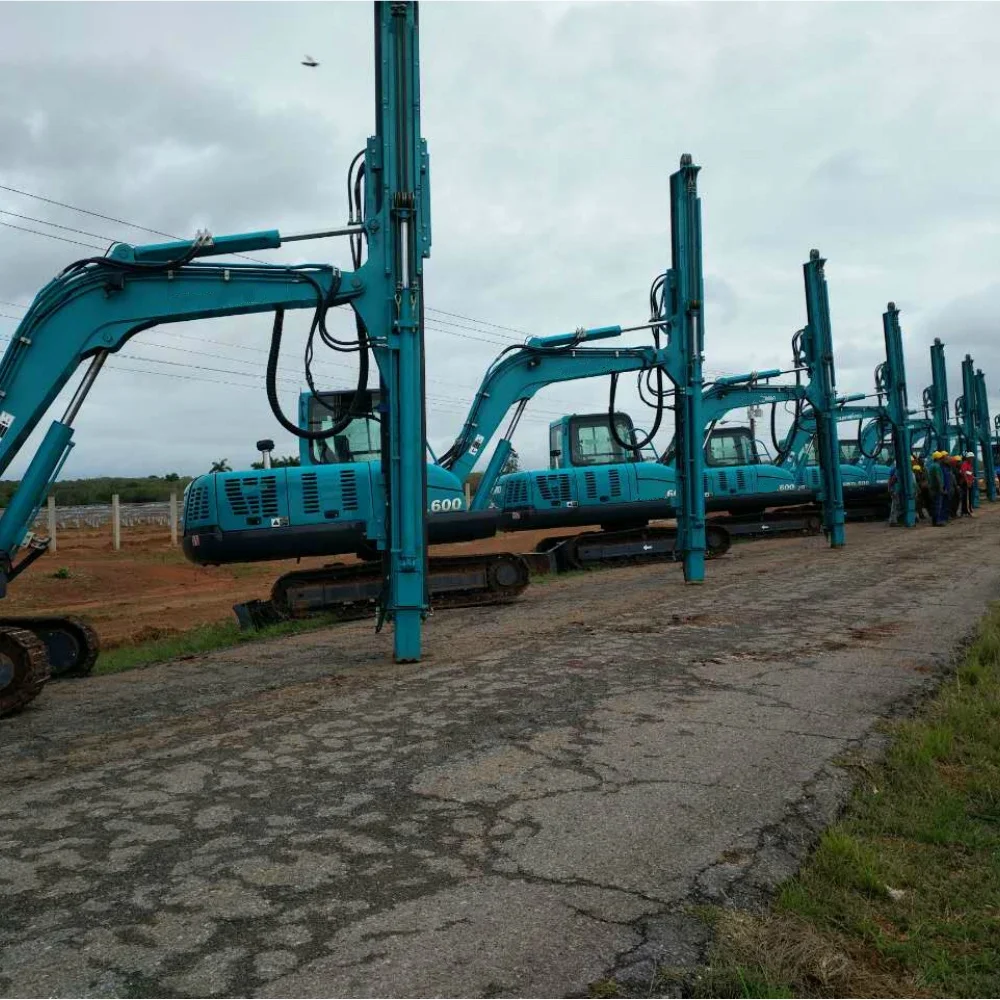

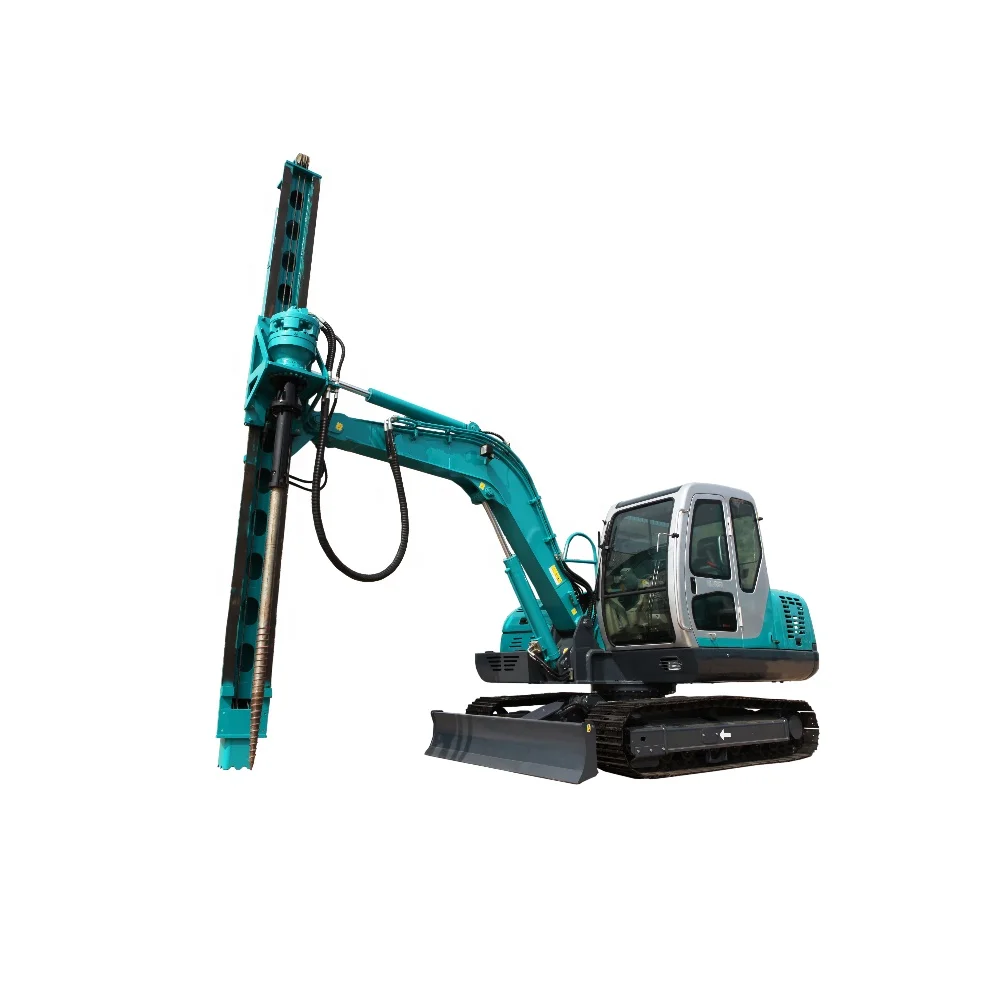

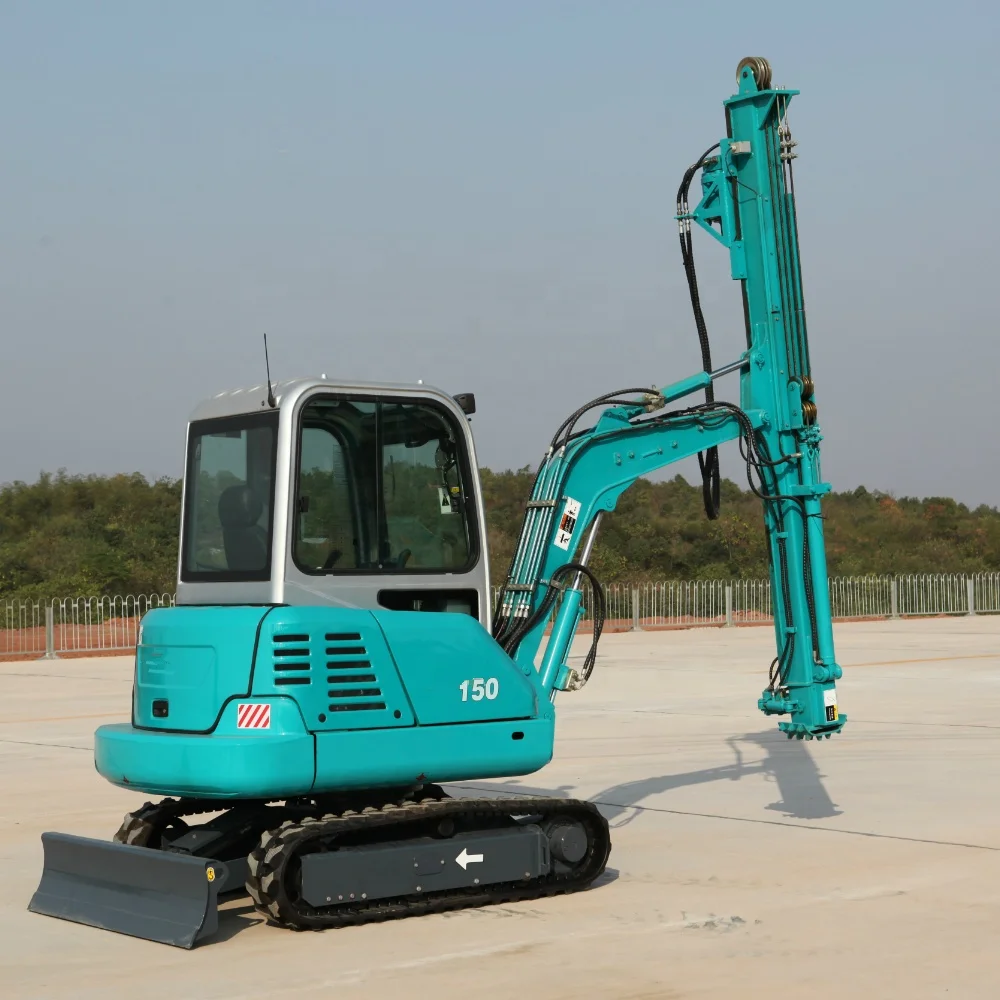

Product Display



Screw Pile Machine Technical Datas

Main Data	Unit	HD-H150	HD-H600	HD-H800
OPERATION PARAMETER
Pile diameter	mm	76	76~90	76~200
Pile depth	m	1.8	3	4
CHASSIS
Track base	mm	1430	2240	2745
Gauge	mm	1150	1680	2312
Crawler width	mm	250	400	350
Ground clearance	mm	280	340	460
Blade length	mm	1400	2080	---
ENGINE
Model		YANMAR-3TNV82A	V3300-DI	4BT3.9
Displacement	L	1.331	3.3	3.9
Power/Speed	kw/rpm	16/2200	54.9/2600	75/2200
Full tank capacity	L	42.5	140	300
FEED
Length of drillrig	mm	3400	4800	6920
Feed length	mm	2000	3500	4500
Feed speed	m/s	2	3	4
Feed force	kN	15	30	7.5
TRAVELLING
Travel speed	km/h	4.7/2.6	4.5/3.1	3.2/2.0
Traction force, max	kN	19	55	100
Hill climbing ability	°	20	25	25
ROTARY
Rotary speed, max	rpm	40	40	40
Rotary torque, max	N.m	1500/3000	6000	6000
DIAMENSION
Gross weight	t	3	7.8	16
Diamension	m	5.65X1.4X2.6	8.5X2.2X3.15	9.04X2.95X3.4



Screw Pile Machine Features

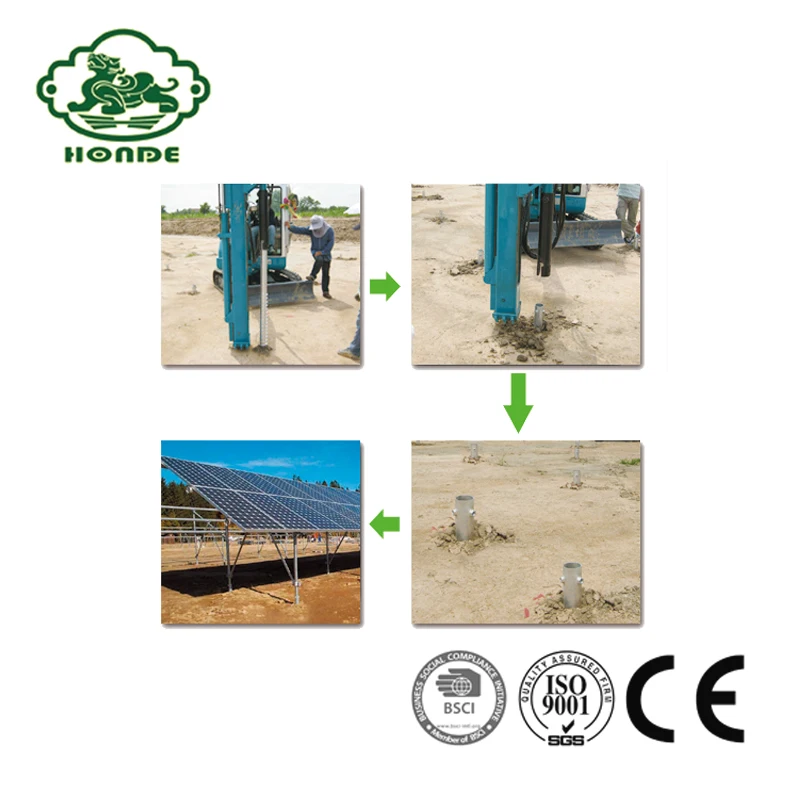

-This type spiral pile drill rig is a new type of simple drilling equipment with independent innovation, ideal for pile construction in solar panels, billboards, street lanp,fences, flagpoles, triffic signs, isolation net and simple houses, giving strong stratum adaptability and high efficiency.

-The rig is equipped with a large torque rotary head for strong power, which provides strong adaptability in stratum.
-The hydraulic system adjusts rotation and feed to the stratum conditions accurately, which ensures high drilling efficiency.
-The rig is equipped with a pile guide device to guarantee pile verticality and quality.
-The rig can be equipped with various pile connecting devices according to the pile structure and size,which makes pile insertion flexible and efficient.
-In different stratum condition, the rig can be equipped with down-the-hole percussion, cutting, short spiral and other tools to achieve full stratum driling.





Package & Delivery
Size	5.65x1.4x2.6m
Packing details	The machine will be loaded in 40HQ
N / G Weight	3 t
Delivery	By sea



Installation

Why choose us?

1. Professional

  China's Leading manufacturer with 10-years experience in the Electric wrench.

2. Quality Management

  Stric quality control for CE standard.

3. Production capacity;

  200 Ground Screw Driver and 500000 pcs Ground Screw per month.

4. Reasonable price

  We frequently strive to offer better,flexible and win-price

5. Excellent after-sales service

  We provide free warranty period of three months and our customer service team

  Offers you Pre-sales and after-sales service.
