Epoxy Coal Tar Pitch Anti Cprrosion Marine Spray Epoxy Paint

Share on (60709539305):


Price:$3.30 - $3.80

Quantity:


Product Overview

Description





  Epoxy Coal Tar Pitch Anti Cprrosion Marine Spray Epoxy Paint



>>>Click Here to Know More.






Product Description














































Product Description



ACTH-206 High Build Epoxy Coal Tar Pitch Anticorrosive Finish
(used for boat)
Operative norm: HG/T 2884-97



Usage

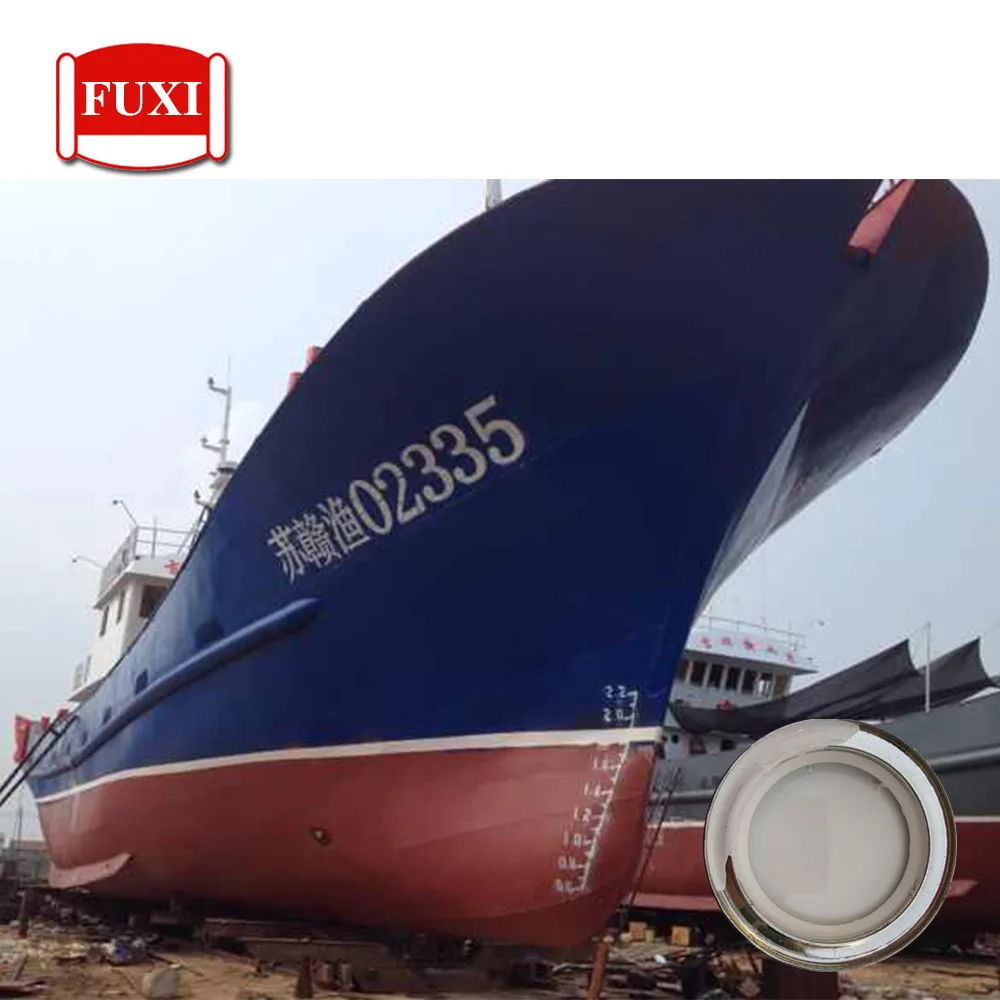

Mainly used for bilge and shipping boat ballast tank part, container outside bottom,different kinds of underground pipeline and underground anticorrosion of steel products.






Suitable Substrate


Boat & Steel

Features






1. Excellent anticorrosion property,applicable for the part which it can bear brine immersion.
2. Excellent attack resistance and abrasion resistance property, high build construction propery
3. Excellent compatibility with unpainted steel substrate and shop primer.






Color



Black



Substrate Treatment



Confirm the surface clean and dry before working.


Shelf Life

 1 year



Drying Time



Temperature℃    -10    0     10     20    30
Dry to touch min    4    2.5    2     1.5    1
Dry semi-hard hrs  36   24    14    10     8
Min interval hrs     36   24    14    12     8



Mixing Ratio


Double components

Package


20Lper metal barrel




Detail Show





For Primer Usage: As First Layer





Epoxy Paint  ss.jpg





For Finish Usage: As Final Layer





Epoxy Paint  ss5665.jpg











Popular Types













High Build Epoxy Zinc-Rich Anticorrosive Primer


(Passed EU CE Certification)











♦ Good cathodic protection.





♦ Excellent anti-corrosion and abrasion resistance property, good high build applicability.





♦ Good weather resistance, dry quickly.





♦ Good gas cutting and welding property.





♦ Good matching property with many kinds of subsequent coat.





♦ Good adhesion to steel surface.





Usage:


Mainly be used as primer for the iron and steel structure surfaces of ships, bridges, petrochemical engineering infrastructure, container and steel structures.



































Suitable substrate



Bare steel



Color



Gray



Film thickness



50μm/layer



Theoretical coverage rate



0.18kg/m2/50μm



Drying time



Temperature:   5℃      10℃      20℃     30℃





Dry to touch:  20mins   20mins    10mins    5mins





Dry to handle:  36hrs    24hrs     18hrs      10hrs



Mixing ratio



Main agent : firming agent = 10:1 by weight



Package



2 component package, total 33 kg: part A 30 kg, part B 3 kg


















Epoxy Phenol Anticorrosive Finish


(Passed EU CE Certification)





♦ Good resistance to oil, petroleum, aliphatic hydrocarbon solvent properties and salt water, also have good tolerance  to a variety of chemicals .





♦ Excellent high build workability.





♦ Excellent resistance to abrasion and impact resistance.








Usage:


Mainly used for oil tanks and solvent tanks, sea cabin , can be used for resistance to chemicals, salt water, solvent tank walls required corrosion.



































Suitable substrate



Bare steel



Color



Gray



Film thickness



50μm/layer



Theoretical coverage rate



0.13kg/m2/50μm



Drying time



Temperature:   10℃      20℃     30℃





Dry to touch:    3hrs       2hrs      1hrs





Dry to handle:   18hrs      16hrs    12hrs



Mixing ratio



Main agent : firming agent = 5:1 by weight



Package



2 component package, total 24 kg: part A 20 kg, part B 4 kg


















Epoxy Mica Iron Intermediate Paint


(Passed EU CE Certification)





♦ It has a longer interval.





♦ Excellent water and salt water resistance.





♦ The film is tough, strong with good wear-resistance.





♦ It is high build and heavy-duty paint.





♦ Good matching with all kinds of finish.





Usage:


Mainly use for steel which sprayed zinc powder primers, excellent compatibility with zinc powder primers,polyurethane finish.



































Suitable substrate



Bare steel



Color



Gray



Film thickness



50μm/layer



Theoretical coverage rate



0.13kg/m2/50μm



Drying time



Temperature:   10℃      20℃     30℃





Dry to touch:    4hrs      3hrs     2hrs





Dry to handle:   10hrs      8hrs     6hrs



Mixing ratio



Main agent : firming agent = 8:1 by weight



Package



2 component package, total 27 kg: part A 24 kg, part B 3 kg







Color Choose


color choose.jpg





Application Show


Epoxy Paint application ss.jpg
