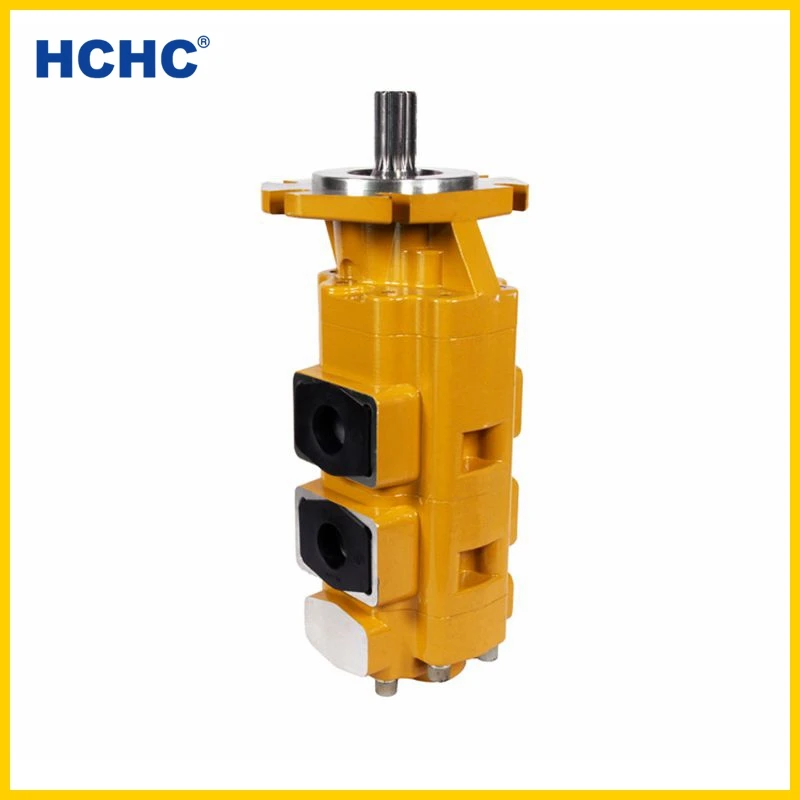

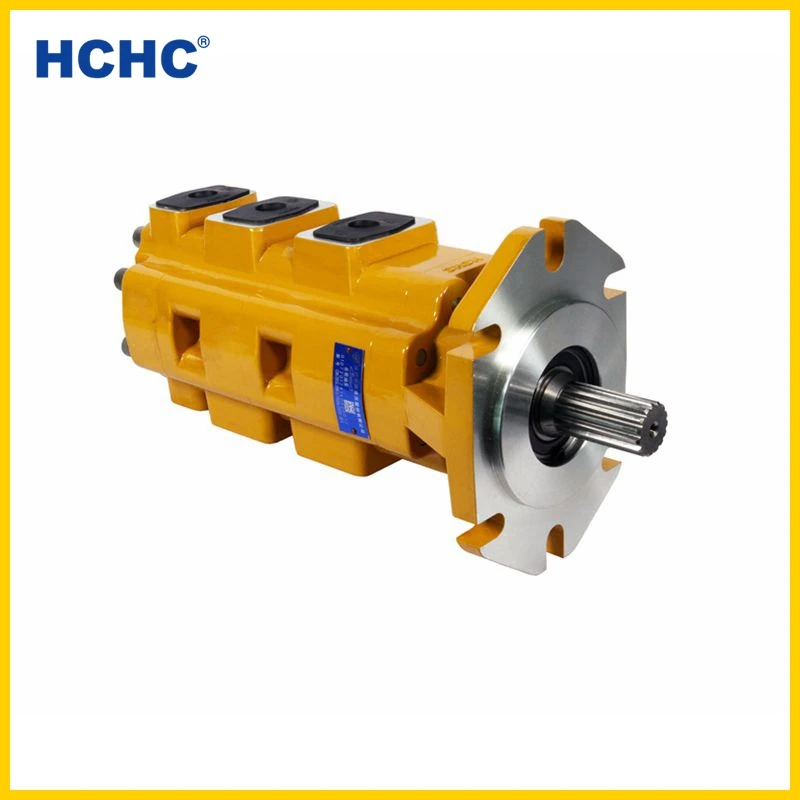

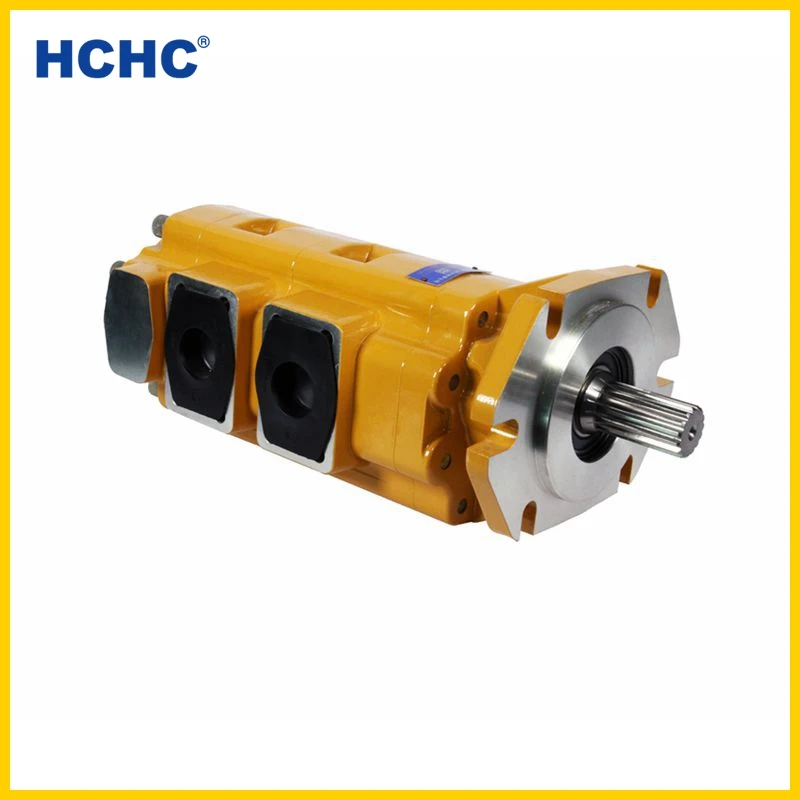

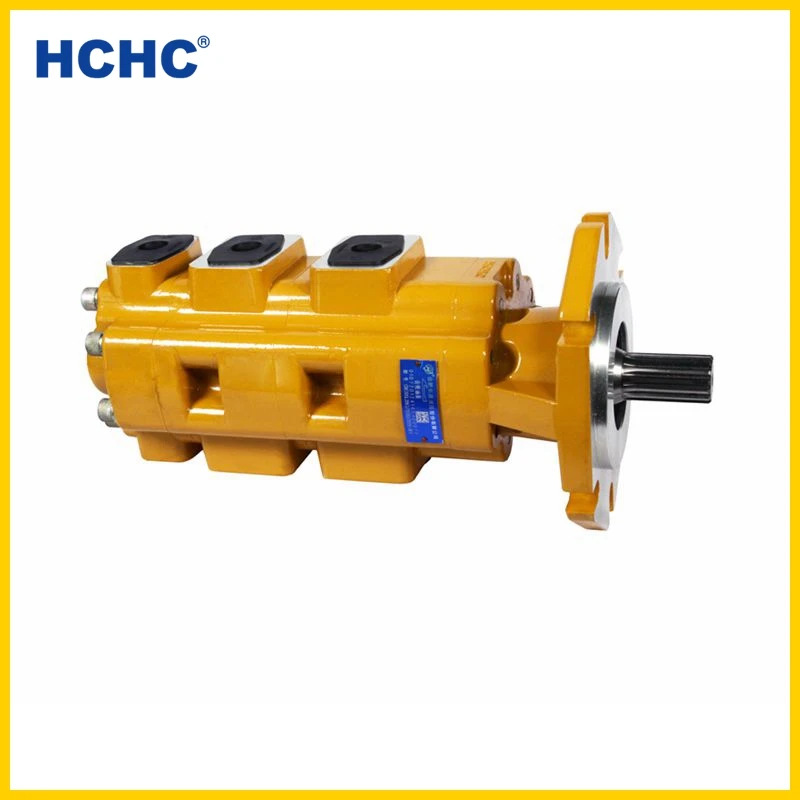

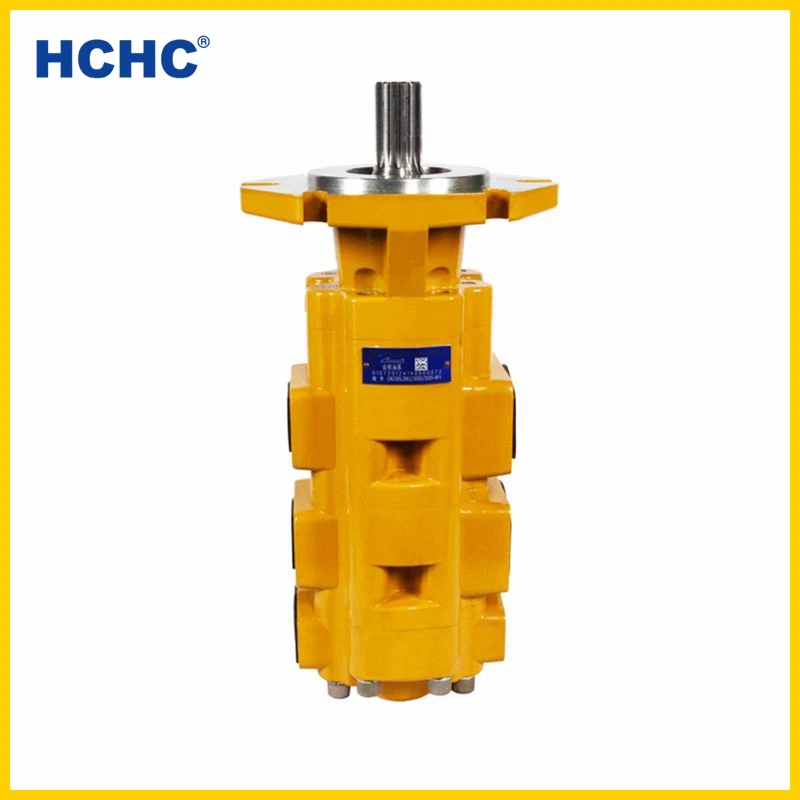

China exporter of hydraulic triple gear pump CBGTBSL
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60709550035):
Product Overview
Description
Product Description
China exporter of hydraulic triple gear pump CBGTBSL
Performance character:
1. High strength cast iron material housing makes stronger bearing capacity.
2.The technology of radial asymmetric design makes long service-life and high reliability.3. The joining type of inlet/outlet position, flange (F) and thread (L).
4. The type of shaft end: P (Plain key), H (rectangle spline), SAE spline, metric spline.
5. The auto-compensation unit of axial clearance ensures the high volumetric efficiency.
Specification
Model Code
CBGTBSL - 2 *** / 2 *** / 2 *** - B F X
① ② ③ ② ④ ② ⑤ ⑥ ⑦ ⑧
①Product model
②Product series
③Nominal displacement of fore pump
④Nominal displacement of middle pump
⑤Nominal displacement of rear pump
⑥Mounting type: B=square flange
⑦Joining port type: F=flange
⑧Shaft extension type: X=involute spline
Model | Nominal Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volume Efficiency (≥%） | ||||||
Rated | Max. | Min. | Rated | Max. | ||||||
CBGTBSL-2063/2020/2020-BFX | 63/20/20 | 16 | 20 | 800 | 2000 | 2500 | 90 | |||

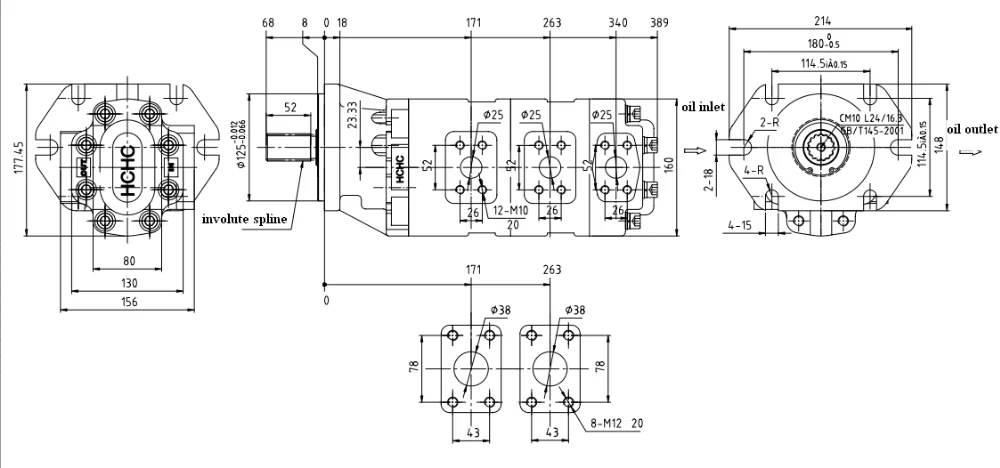

Outline Dimension
