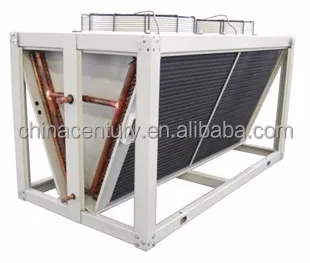

V Type Air Cooled Condenser With Specifications for Refrigerator

Industrial Refrigerator Air Cooled Condenser Price

Fin type air cooled condenser is one of high efficient condensing heat exchangers designed for refrgeration compressor condensing units and multi-compressor units. We have Flat-blow air cooled type, V type and W type with different width/length and different air direction to meet your different needs. Up blow air direction and lateral blow direction can insure best fittings; different fan quantity can insure condensing pressure adjusting. Fin type condensers equip with axial fan, can reduce motor noise; refrigeration capacity covers from 6KW to 227KW.Fiting different Kinds of refrigerant such as R134a•R404A•R507A•R407C•R22 Fin type air cooled condenser is one of high efficient condensing heat exchangers designed for refrgeration compressor condensing units and multi-compressor units. We have Flat-blow air cooled type, V type and W type with different width/length and different air direction to meet your different needs. Up blow air direction and lateral blow direction can insure best fittings; different fan quantity can insure condensing pressure adjusting. Fin type condensers equip with axial fan, can reduce motor noise; refrigeration capacity covers from 6KW to 227KW.Fiting different Kinds of refrigerant such as R134a•R404A•R507A•R407C•R22 .

Main features

A .Scientific structure, good interchangeability, fit for different kind of compressors;
B. Window type and cellular type of aluminum fin for your choice;
C. Can chose hydrophilic aluminum foil
D. Did gas tightness examination under3.0Pa atmospheric pressure, to insure its trait of high tightness;
E. Pitch of fins can be adjusted between 2.0-3.0mm to meet your different requests;
F. Different alternative condensing fans available

Range of application

Refrigeration industry, cold-room project;
Agricultural, food, restaurant, chemical industry;
Fit for central air conditioning mainframe equipment;

Certification

Our company always put  the quality of the first. Provide every customer with quality services. The quality of our products is good, and we access to a series of certification.

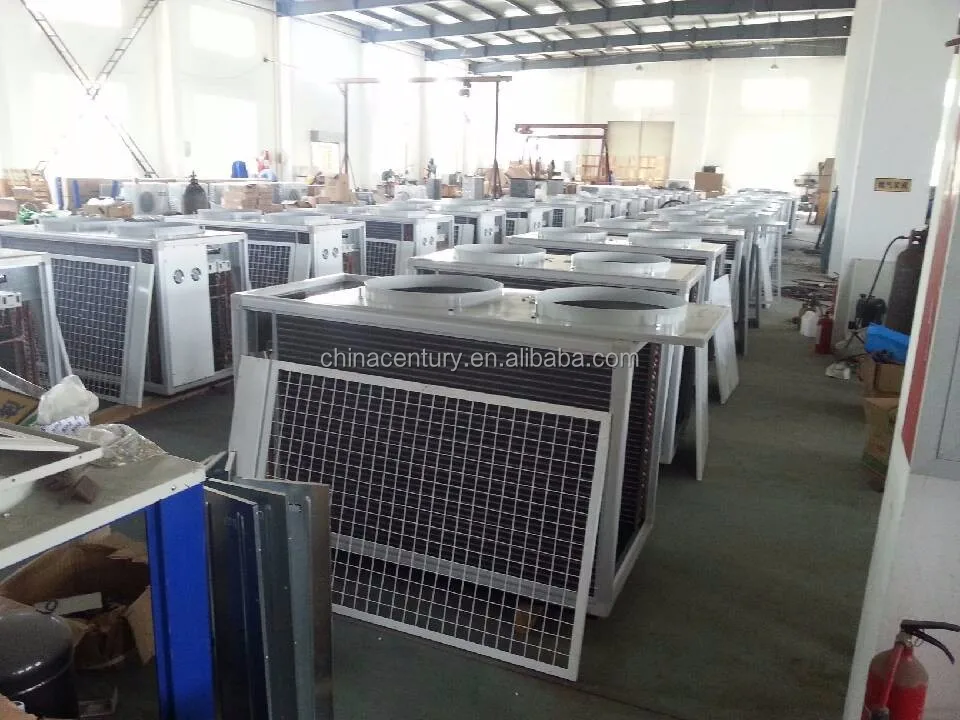

Condensers

Here are the condensers in our factory.

Ready to packing and delivery.

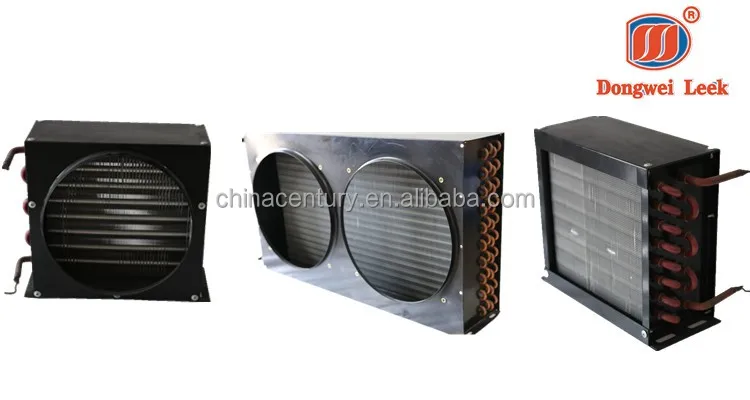

Condensers

Our company has various types of condensers for different cooling capacity

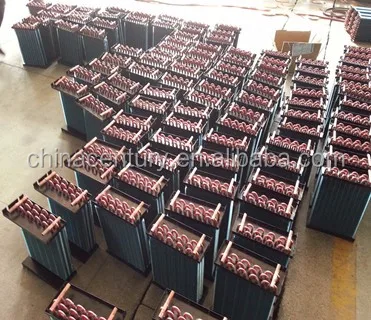

Condensers

These are unfinished condensers.

Q:How long have you been in this field? Where is your factory?

A: We have been in this field for 10 years and our factory located in Dongtai Jiangsu. About 3 hours drive to Shanghai.

Q:What are your main products?

A: Hermetic Compressor    Condensing Unit   Air cooler   Condenser  Monoblock

Q: Do you provide samples ?

A: Yes, we could offer the sample,but customers need to pay for it.

Q: What is your terms of payment ?

A: T/T, L/C, Western Union;  30% T/T in advance, 70% before delivery.

Q: Packaging & Shipping ?

A: Pallet, wooden case or with outer carton, or as customers' specific requirements.
