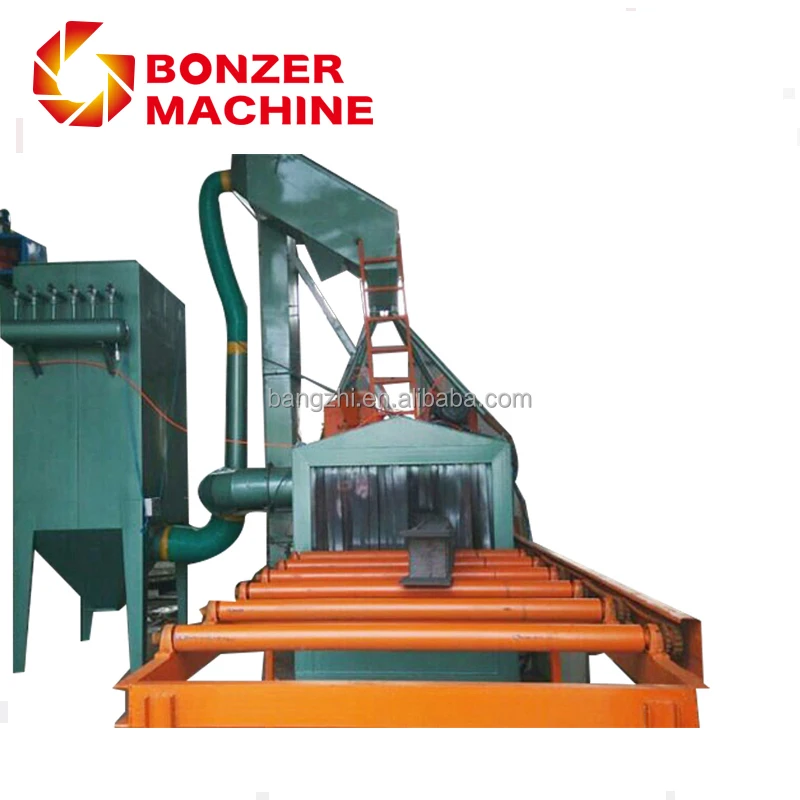

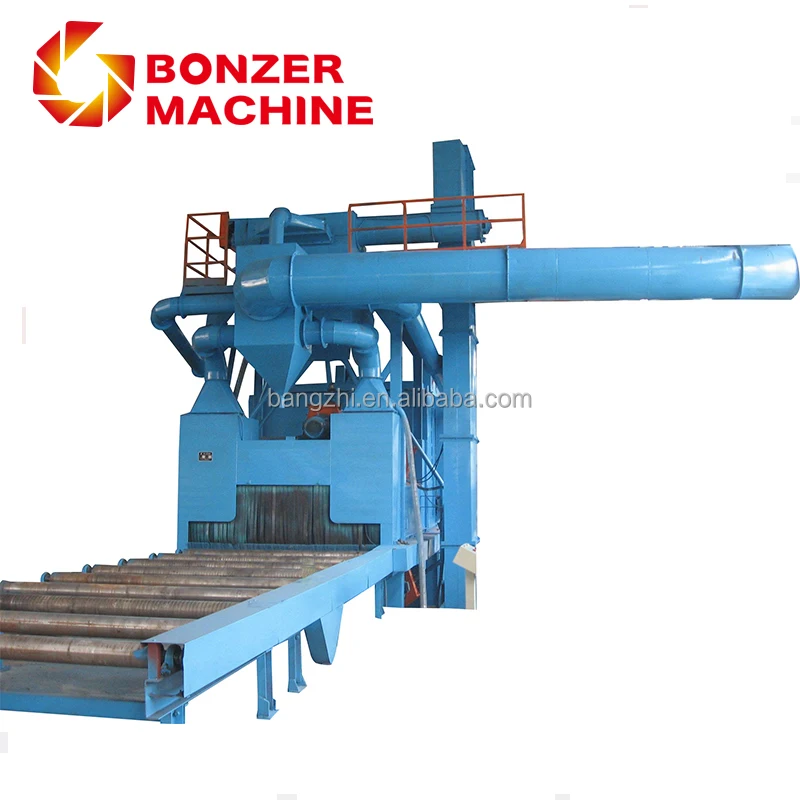

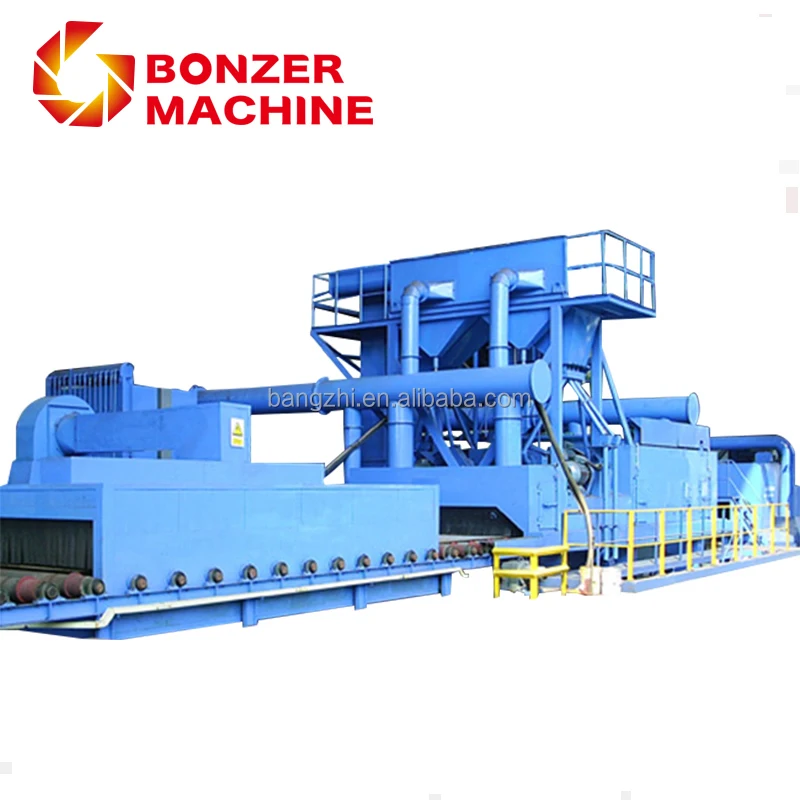

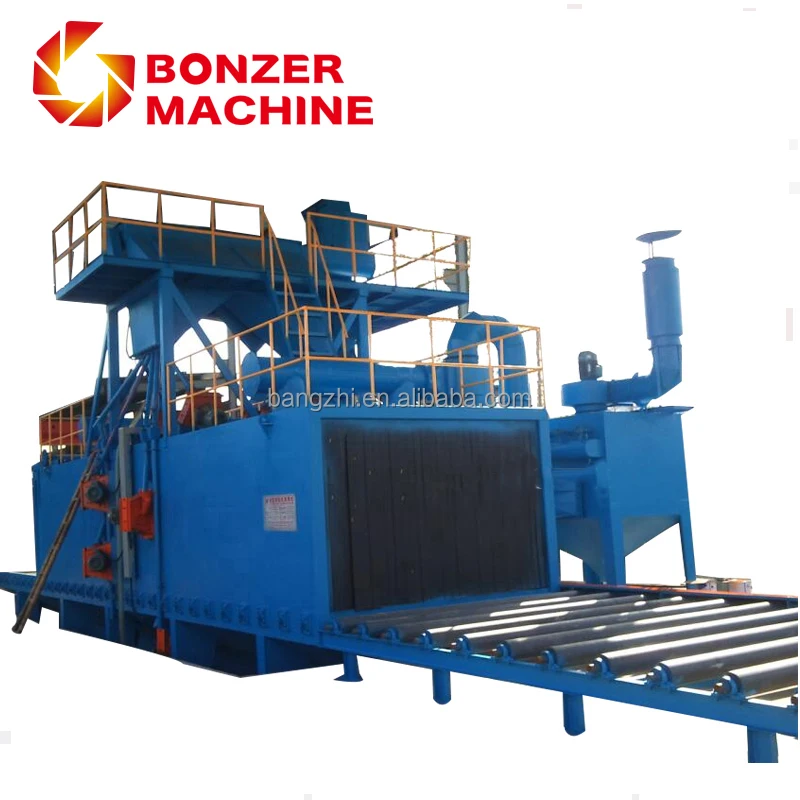

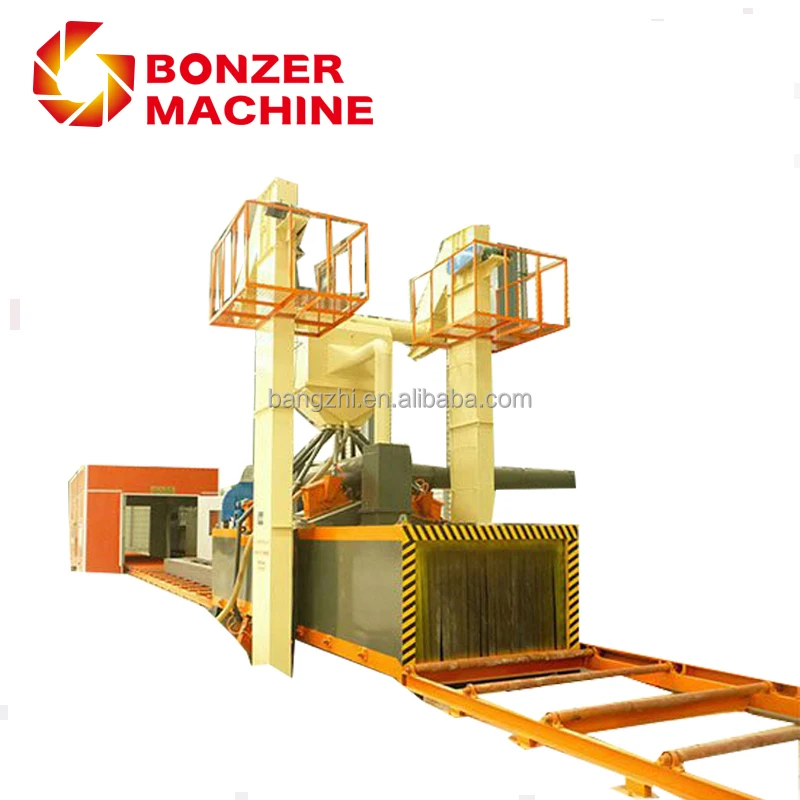

Portable drum road surface steel plate sand shot blasting machine and painting machine

Share on (60709561814):


Price:RUB 2,345,604.00 - RUB 3,909,340.00

Quantity:


Product Overview

Description

Portable drum road surface steel plate sand shot blasting machine

Product Description



APPLICATION



The series belongs to roller-type shot blast cleaning equipment,

mainly used for surface treatment(namely preheating,rust removal,

paint spraying and drying)of steel plate and various structural sections,

also for cleaning and strengthening of metal structure parts.And mainly used for buildings,

bridges and other industries with large I-beam,

H-beam steel structure such as size pieces of high stress

and the elimination of cleaning the surface rust.



Technique Parameter

main parameter



Item Unit Q698 Q6912 Q6915
Effective cleaning width mm 800 1200 1500
The room feed-in size mm 1000*400 1400*400 1700*400
Length of workpiece mm 1200-12000 1200-12000 1200-12000
The thickness of cleaning steel sheet mm 3-60 3-60 3-60
The speed of wheel conveyor (stepless speed variation) m/min 0.5-4 0.5-4 0.5-4
Steel profile specification mm 800*300 1000*300 1500*300
The quantity of shot blasting kg/min 4*180 4*250 4*250
Amount of first time loading kg 3000 3000 4500
