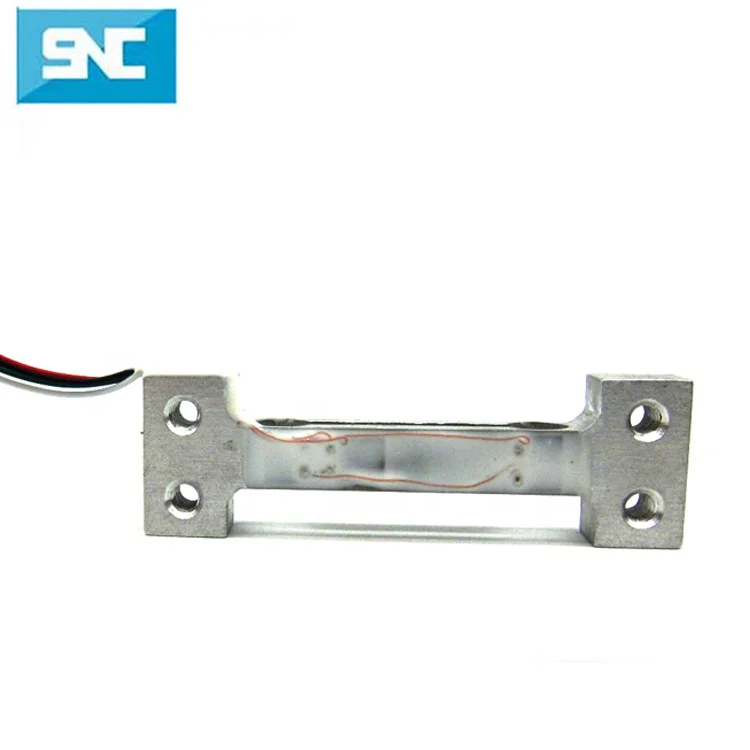

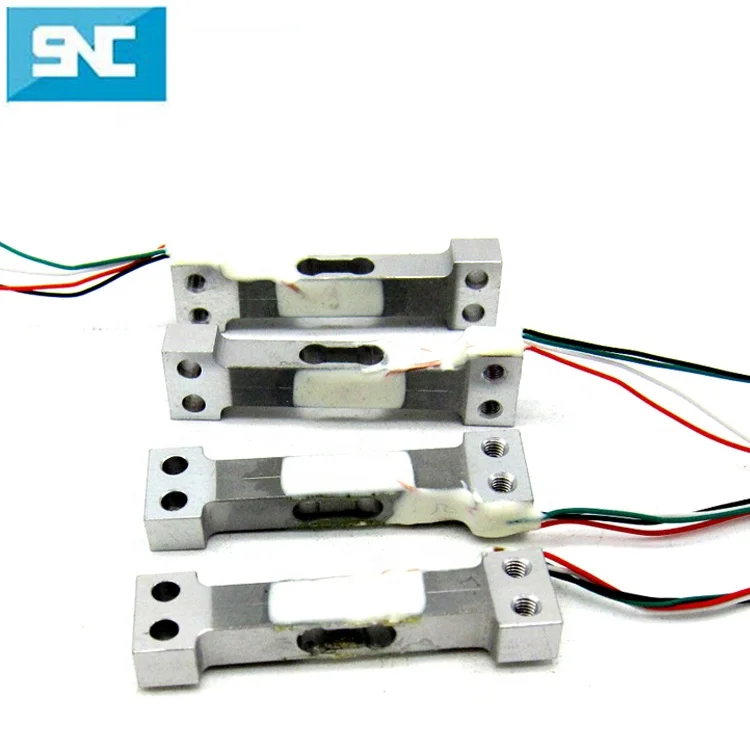

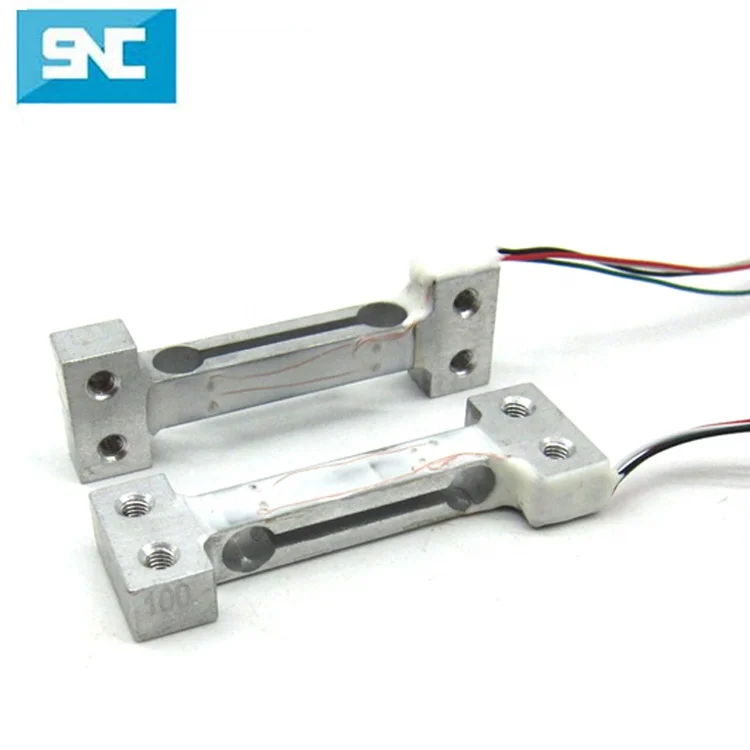

High Precision 100g 300g 500g 750g 1 kg Load Cell Sensors for weighing scale
- Category: >>>
- Supplier: Shenzhen Sensor And Control Company Limited
Share on (60709591416):
Product Overview
Description
High Precision 100g 300g 500g 750g 1 kg Load Cell Sensors for weighing scale
Product Description
Features:
Model: SC639M
Rated load: 100g~1500g
Safe overload: 120%
Material: Aluminum
Apply to: body scales, hand scales, kitchen scales, postal scales, fishing scales and other micro electronic weighing systems

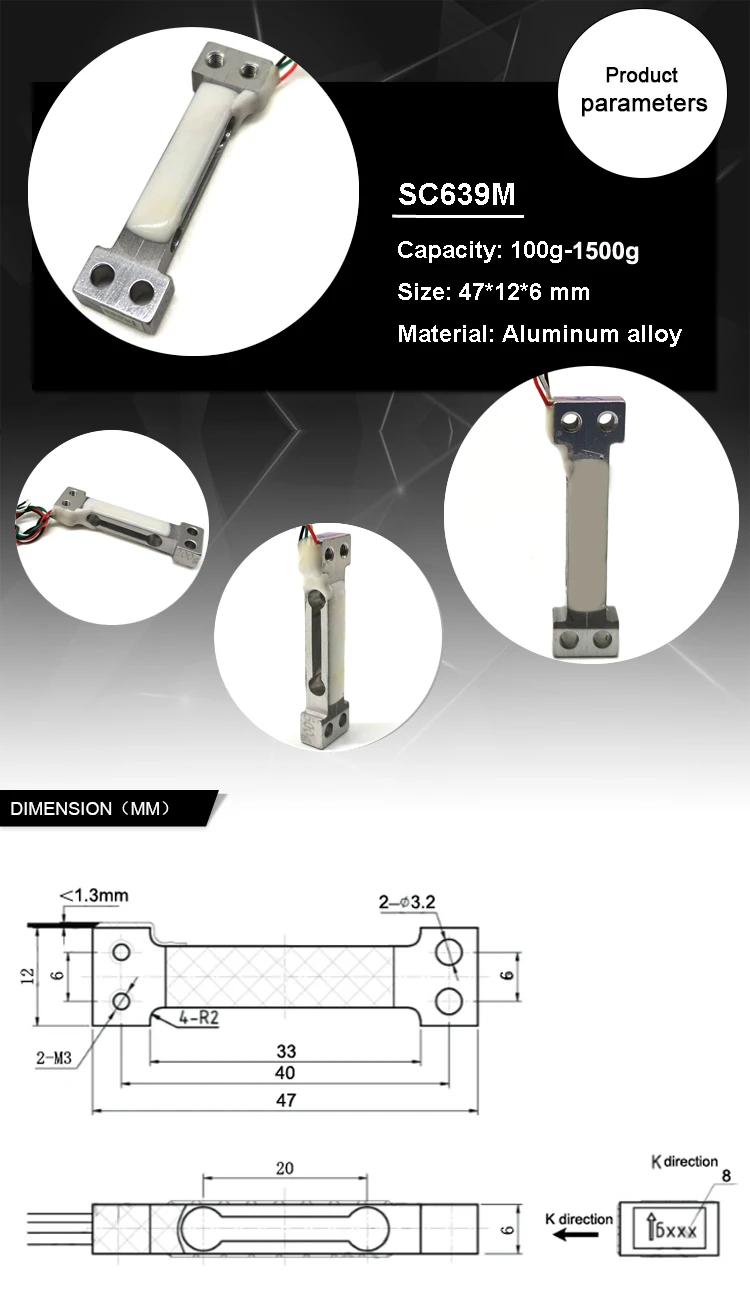

Parameters
Model | SC639M |
Capacity | 100g, 200g, 300g, 500g, 750g, 1000g, 1500g |
rated output | As stated below |
Accuracy class | 0.05%F.S |
Non-linearity | 0.05% F.S |
Repeatability | 0.05% F.S |
Hysteresis | 0.05% F.S |
Creep | 0.05%RO/3min |
Temp. effect on sensitivity | 0.05%F.S/10 deg C |
Temp.effect on zero | 0.05%F.S/10 deg C |
Zero balance | 0.1%RO/1min |
Input resistance | 1090 ± 10 ohm |
Output resistance | 1000 ± 10 ohm |
insulation resistance | ≥2000 MΩ(50V) |
Recommended excitation voltage | 5-10VDC |
Compensated temperature range | -10-+40℃ |
safe overload | 120 %RO |
Ultimate overload | 150%RO |
Load cell material | Aluminum alloy |
Cable connection | 0.6*110 mm |
Wire definition | Red-Exc + / Black-Exc - / Green-Signal + / White-Signal - |
Aluminum alloy,mainly used for price computing scales, counting scales, weighing scales etc
Capacity(g) | 100 | 150 | 200 | 300 | 500 | 750 | 1000 | 1500 |
Output(mV/V) | 0.6+/-0.15 | 0.7+/-0.15 | 1.0+/-0.15 | |||||
Related Products
Production Process
Company Information
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
Why Choose Us

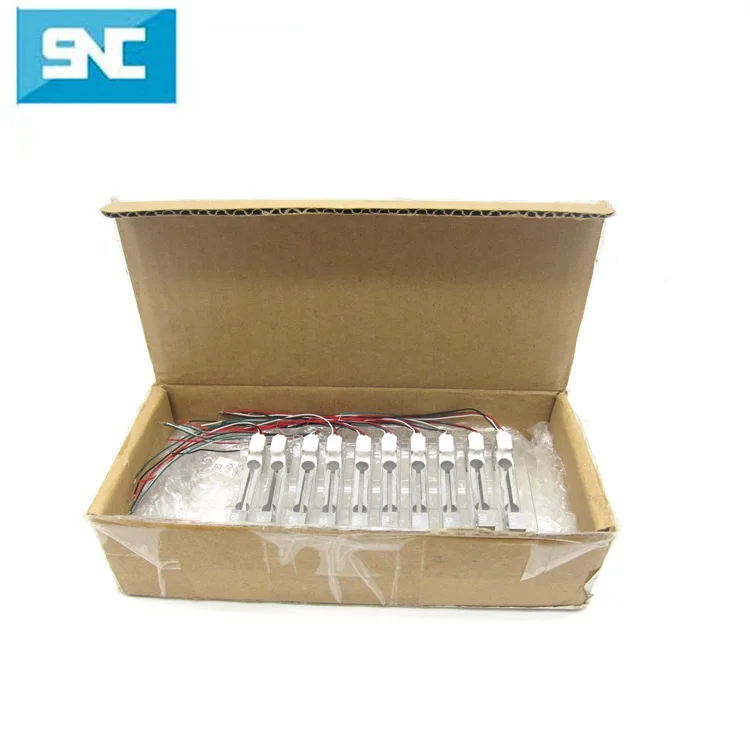

Packaging & Shipping
FAQ
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
